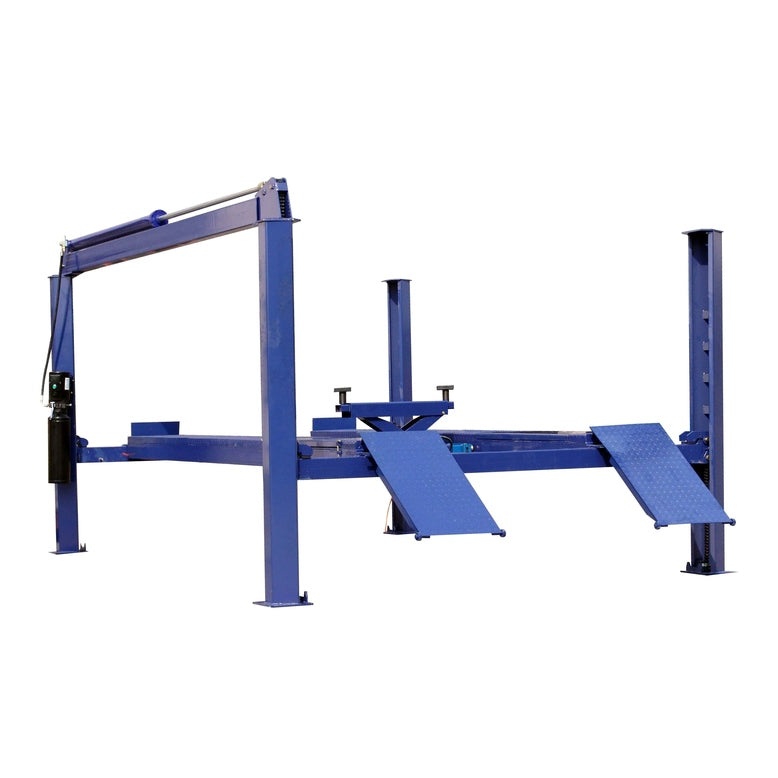

iDEAL 14,000 lb Four Post Alignment Lift – FP14KAC-X
Precision Lifting for Professional Alignment Work
When perfect alignment is the name of the game, you need a lift that doesn’t play around. The iDEAL FP14KAC-X Four Post Alignment Lift is built for commercial auto shops that demand accuracy, durability, and efficiency. With an impressive 14,000 lb capacity, a heavy-duty chain-driven system, and extended rise height, this lift takes the stress out of suspension and steering jobs.
Engineered with bolt-on alignment hardware, multi-position runways, and turntable flexibility, it’s tailor-made for two- or four-wheel alignments—even for oversized vehicles. And thanks to its full-length slip plates, high-grade powder coating, and 18 locking positions, this beast is as reliable as it is refined.
Bridge jacks not included.
Features
-
14,000 lb Capacity – Designed for heavy-duty commercial alignment work
-
Chain-Driven, High-Performance Lift System – Minimal maintenance, maximum uptime
-
182.5" Max Service Wheelbase – Easily accommodates long trucks and SUVs
-
166.7" 2-Wheel & 157" 4-Wheel Max Alignment Wheelbase – Built for flexibility
-
Extended Rise Height (79-1/2") – Better access for undercarriage work
-
'Bolt-On' Runway Alignment Kit – Easy installation and alignment accuracy
-
18 Locking Height Positions – Safe, customizable working heights
-
Full-Width Rear Wheel Slip Plates – Smooth movement for accurate toe and camber adjustments
-
Dual Turntable Positions with Spacer Covers – Adjustable for different wheelbases
-
20" Wide Runways – Supports wider vehicles and increases stability
-
Narrow & Wide Mounting Positions – More installation versatility
-
Single-Point Pneumatic Lock Release – Engage all locks with a single button
-
Slack Cable Safety System & Self-Chocking Ramps – Safety-first design
-
Heavy-Duty Powder Coat Finish – Durable, corrosion-resistant
-
Includes: Internal airline kit with FLR, HD carbon steel turntables (4.5K capacity each), and rollback spacers
Specifications
| Model | FP14KAC-X |
|---|---|
| Lifting Capacity | 14,000 lbs |
| Max Service Wheelbase | 182.5" |
| Max Alignment Wheelbase (2-Wheel) | 166.7" |
| Max Alignment Wheelbase (4-Wheel) | 157" |
| Min Alignment Wheelbase (4-Wheel) | 103" |
| Overall Length (with Ramps) | 252.5" |
| Overall Width (Without Power Unit) | 131-7/8" |
| Overall Width (With Power Unit) | 142" |
| Overall Height | 92-1/2" |
| Max Rise Height | 79-1/2" |
| Minimum Height | 9-7/8" |
| Width Between Posts | 116-1/4" |
| Length Between Posts | 196" |
| Width Between Runways | 43" or 46" |
| Runway Width | 20" |
| Ramp Length | 44" |
| Max Clearance Under Runway | 69-5/8" |
| Drive-Thru Clearance | 100" |
| Base Plate Dimensions | 10-1/2" x 9" |
| Power Requirement | 220V – 20 Amp – 1 Phase |
| Shipping Weight | 3,810 lbs |
| Minimum Bay Size | 16' x 25' |
