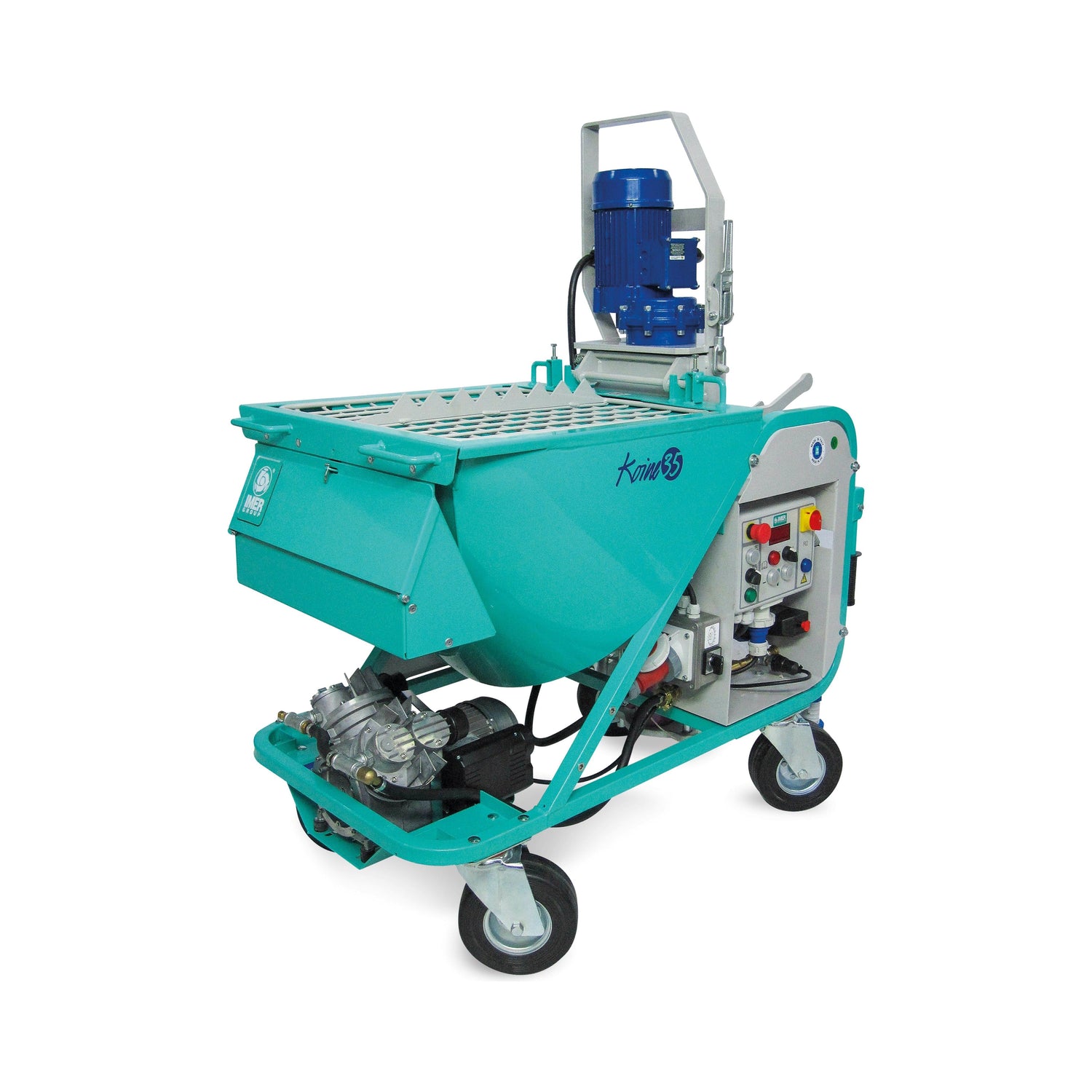

IMER Spray & Mixing Pump | Continous Cycle | 5 HP | Single Phase | Koine 35 1106315

The IMER Koine 35 is a cutting-edge, versatile mixer and pump designed to take on a wide range of applications, including pre-blended cementitious and gypsum-based mortars, stucco, fireproofing, self-leveling underlayments, and grouts. This powerful machine offers continuous mixing, spraying, and pumping while maintaining a compact design for portability and easy transport. It's the ideal solution for interior or high-rise building projects, ensuring seamless operation even in the most demanding conditions.

With its advanced features, the Koine 35 makes your mixing and spraying tasks more efficient, delivering optimal performance and reliability every time.

Key Features:

• Continuous Mixing, Spraying, and Pumping: Capable of handling a variety of materials including mortars, stucco, fireproofing, and self-leveling underlayments.

• Turbo Boost Power: The single-phase 3 HP motor can be boosted to 5 HP with inverter technology, ensuring maximum efficiency and power.

• Versatile Material Flow Rates: Pumps and sprays up to 60 cu ft/hr, with the ability to tackle large projects with ease.

• Long-Distance Pumping: Pumps materials up to 300 ft with ease, making it suitable for large construction sites or high-rise work.

• Thermally Protected Motor: The electric motor is equipped with thermal protection to prevent overheating, ensuring long-lasting reliability.

Specifications:

• Power Supply: 220V/60Hz, Single-phase

• Total Machine Power Requirement: 5 HP

• Drive Motor: 3 HP

• Feeding Impeller Motor: 1/2 HP

• Water Pump: 1 HP

• Material Flow Rate: Up to 60 cu ft/hr

• Maximum Pumping Distance: 300 ft

• Loading Height: 36 in

• Dimensions (L x W x H): 27 x 62 x 47 in

• Weight: 510 lbs

Standard Equipment:

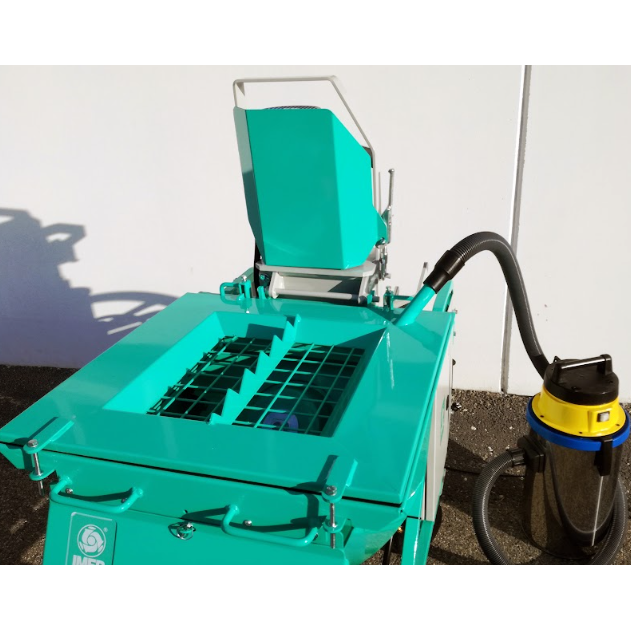

• Dust Grate with Vacuum Port

• D8 1.5 Stator and Rotor

• Material Delivery Pressure Gauge

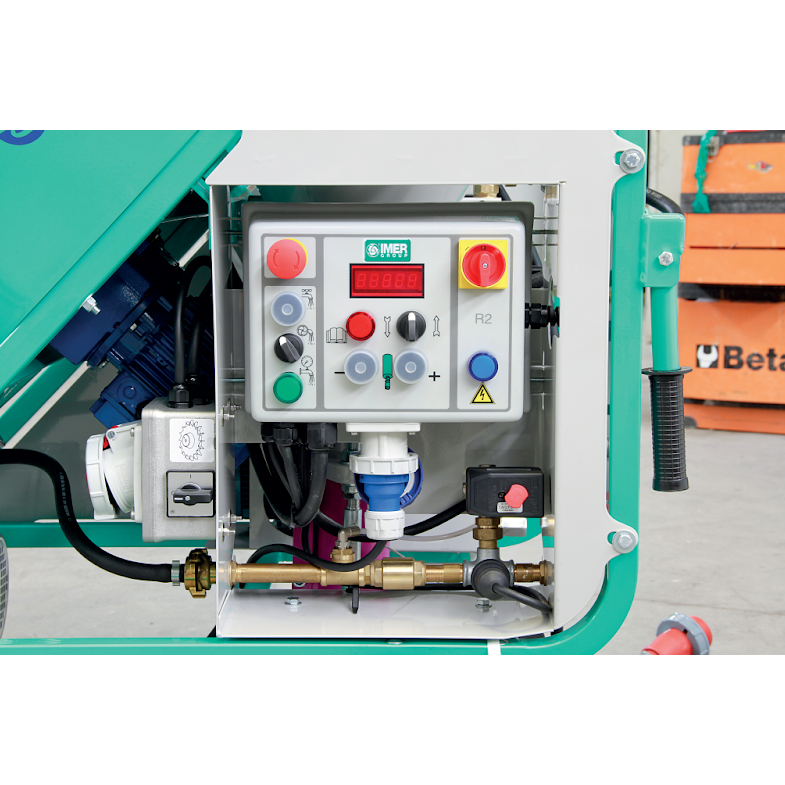

• Control Panel with IMER 4-Speed Inverter

• Self-Priming Water Booster Pump

• Water System with Flow Meter & Discharge Valves

• 66" Power Cord

• 66" Water Hose (3/4")

• 50" Material Hose (1")

• Hose Cleaning Kit with Toolbox

• Mixing Chamber Clean-Out Tool

• Air Compressor Ready

Features:

• Accessory Toolbox: Keep all your parts organized and never lose essential pieces again.

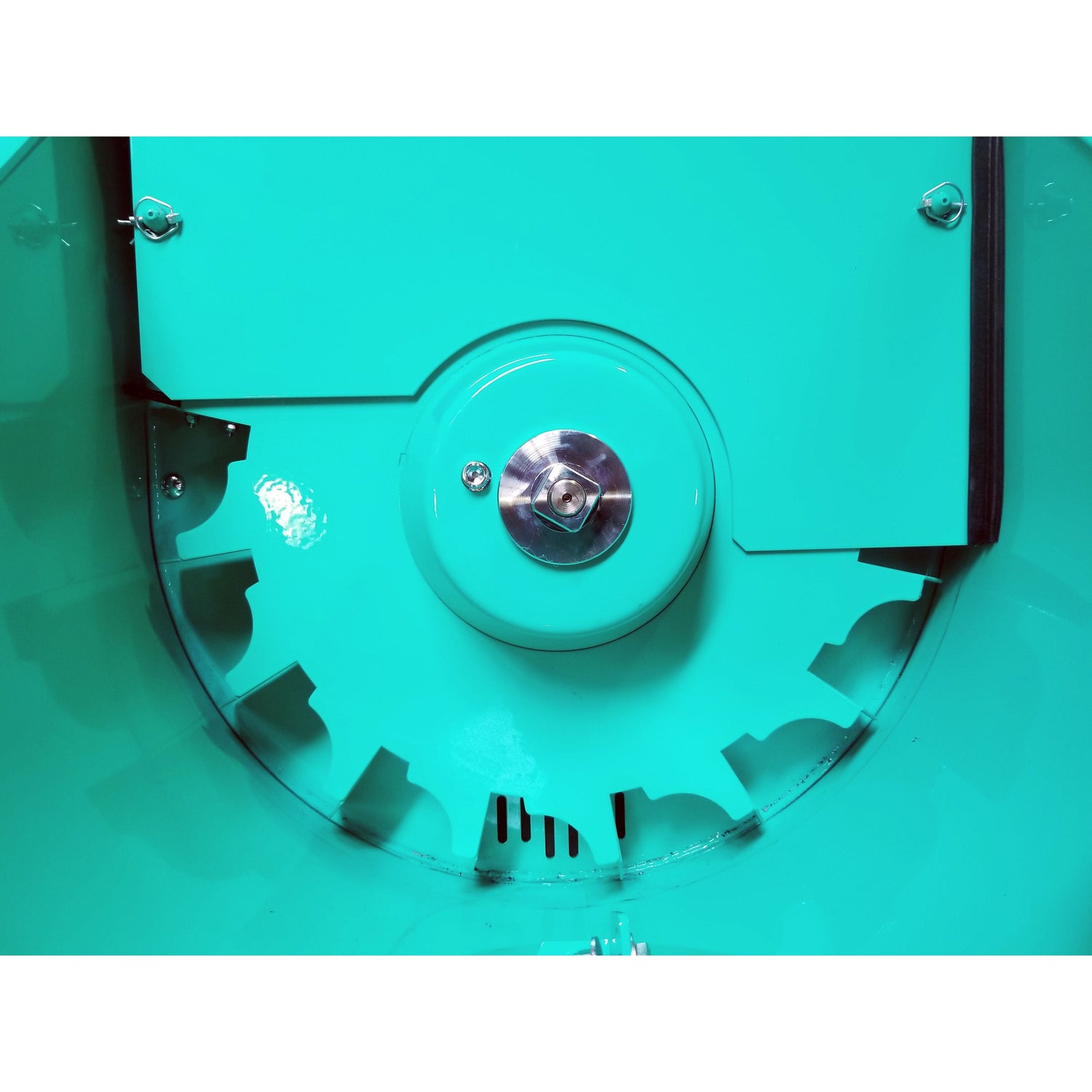

• Continuous Feed Impeller Blade: Efficiently feeds your pre-blended materials for consistent mixing and pumping.

• High Output Capacity: Pumps and sprays up to 16 bags of fireproofing per hour with the optional compressor.

• Long-Distance Performance: Capable of pumping and spraying up to 300 feet away.

• Inverter Technology: Automatically adjusts power and monitors electricity to deliver optimal performance.

• High Efficiency: The 4-speed material flow delivers up to 120 – 50lb bags of self-leveling material per hour.

• Thermal Protection: Prevents motor overheating with integrated thermal protection.

• Self-Priming Water Pump: Features a stainless steel housing and brass impeller for durability and long-lasting performance.
