Description
Description

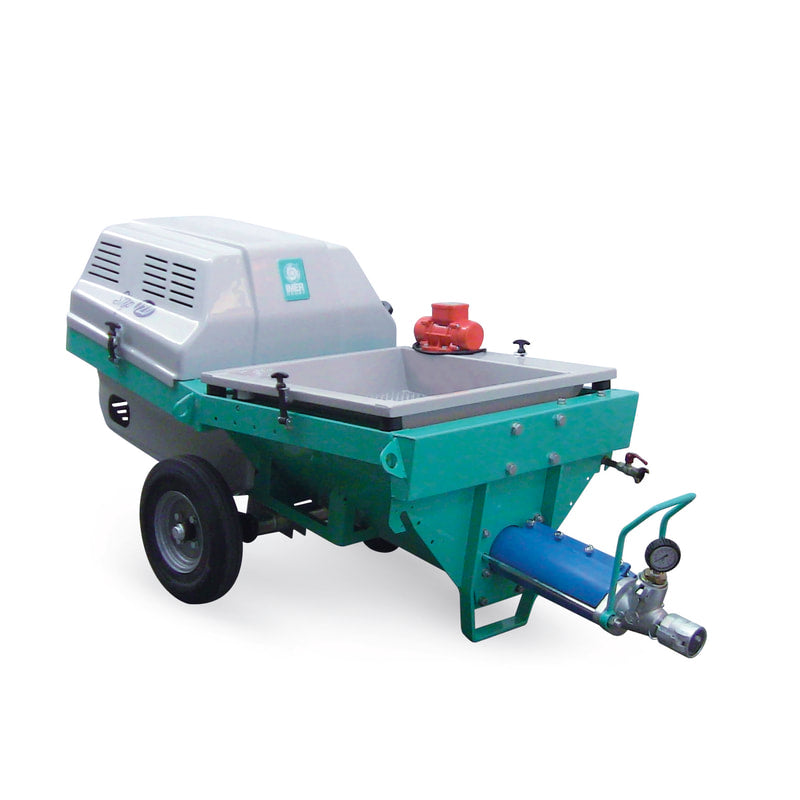

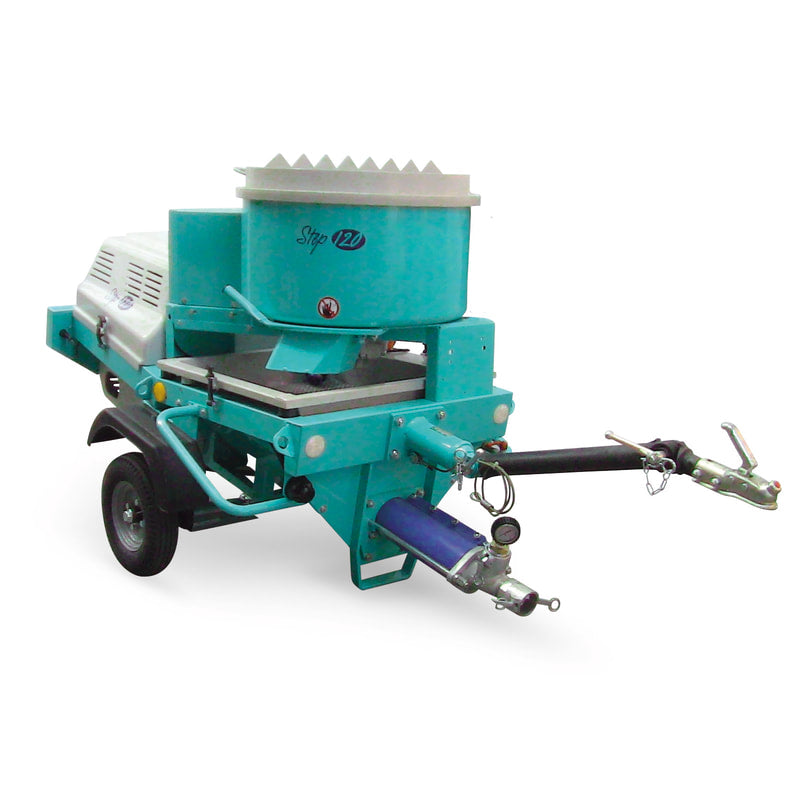

The IMER Step-Up 120 Towable Electric Pump is a high-flow, heavy-duty material pump designed to efficiently pump or spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, waterproofing, and a wide variety of other materials. Powered by a 7.5 HP three-phase motor, this pump provides superior flow and greater distance, pushing materials up to 300 feet horizontally and 200 feet vertically with ease.
Ideal for larger-scale jobs, the Step-Up 120 excels in applications requiring high-volume material movement, especially those involving 3/8" aggregates for grouting. It is designed to handle demanding conditions, providing contractors with the power and reliability they need for high-efficiency job completion.
Key Features:
-
Powerful Three-Phase Motor: 7.5 HP motor delivers more horsepower for higher flow and longer reach.
-
Large Material Handling Capacity: Pumps up to 3/8" aggregates for grouting applications.
-
Flexible Pumping Range: Pumps materials up to 300 feet horizontally and 200 feet vertically, allowing for flexibility across various job site layouts.
-
High Flow Performance: Achieves a maximum flow rate of up to 6 cubic yards per hour depending on the rotor/stator kit used.
-
Standard Grate for Premixed Materials: Included to efficiently process and pump premixed materials.
Specifications:
-
Motor Power Rate: 7.5 HP
-
Mixer Power Rate: 2 HP
-
Max Aggregate Size: 3/8 in
-
Maximum Flow Rate (IM25L): 2.75 cu yd
-
Maximum Flow Rate (60.12): 6 cu yd
-
Maximum Flow Rate (2L6): 2.35 cu yd
-
Horizontal Pumping Distance: 300 ft
-
Vertical Pumping Distance: 200 ft
-
Hopper Capacity: 4.25 cu ft
-
Dimensions: 33" W x 80" L x 38" H
-
Weight: 616 lbs
Standard Equipment:
-
2-Speed Control Panel
-
66" Power Cord
-
Remote Control Ready
-
100% Duty Cycle Motor: 5 HP / 7.5 HP, 2-Speed, Three-Phase Motor
-
IM25L Rotor/Stator
-
Tow Kit
-
33" of 35mm Hose with Cam Coupling
-
50mm to 35mm Material Hose Reducer
-
Grate for Premixed Materials
-
Accessory Tool Box
Optional Equipment:
-
Spin 30 Continuous Mixer with iDust Grate (Part # 1106152)
-
Step-Up 120 Pan Mixer, 3-Phase (Part # 1107509)
-
Piston Compressor, 3-Phase (Part # 1107585)
-
2L6 Rotor/Stator Kit (Part # 1107088)
-
60.12 Rotor/Stator Kit (Part # 1107090)
-
Vibrating Grate (Part # 1107593)
-
33" x 35mm Hose (Part # 1107528)
-
33" x 50mm Hose (Part # 1107533)
-
50mm to 35mm Material Hose Reducer (Part # 1106178)
-
120" Remote Control (Part # 1107574)
-
Non-Towing Wheel Kit (Part # 1107633)
-
Spray Gun Step 120 (Part # 1107577)
-
Shotcrete Gun (Part # 1106250)
-
5" Overhead Wand (Part # 1107549)
-
16" x 35mm Male to 25mm Male Hose (Part # 1107074)
-
Pintle Tow Ring (Part # 1107161)
