IMER Scissor Lift | 49 ft Working Height | Electric & Diesel | IM 7043 RT

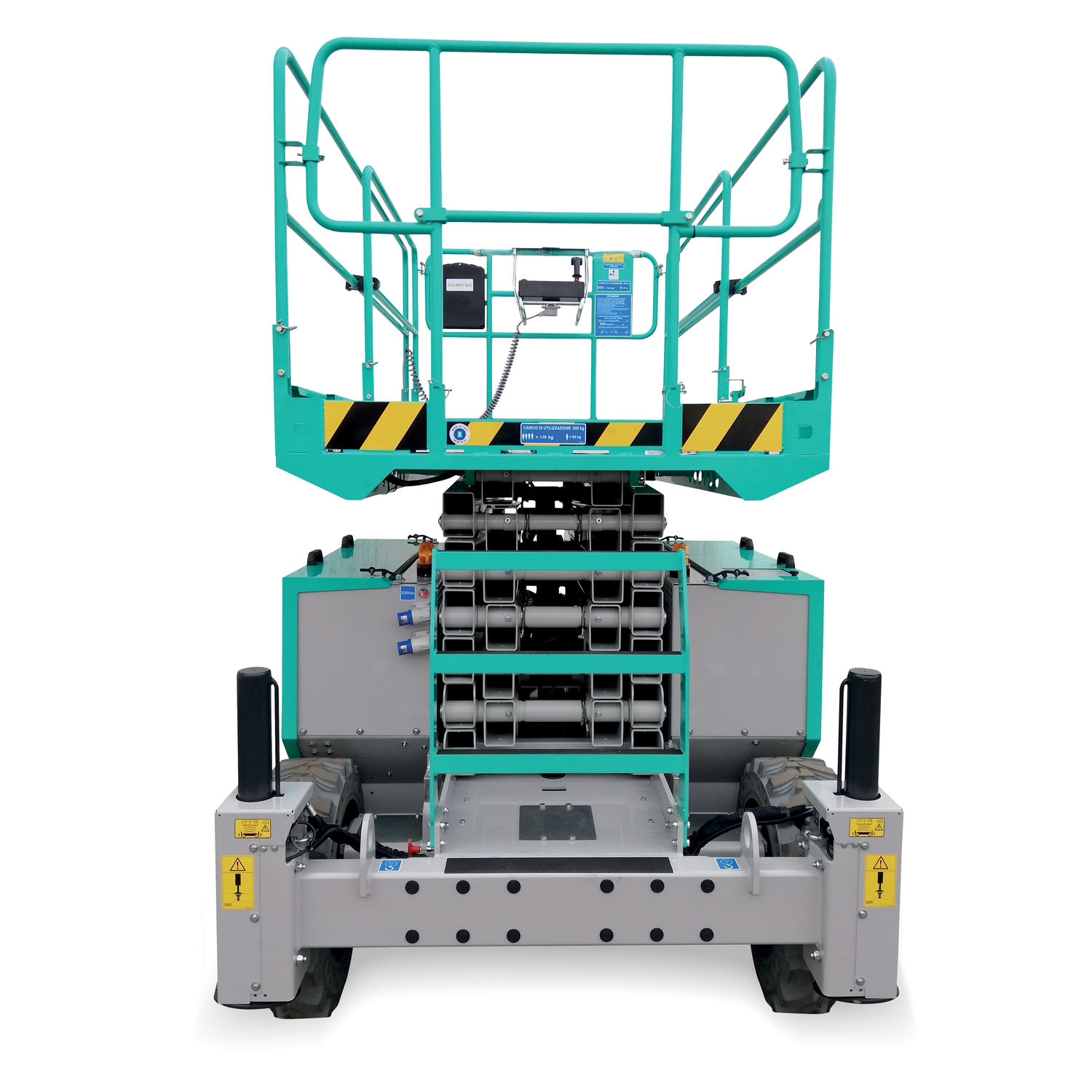

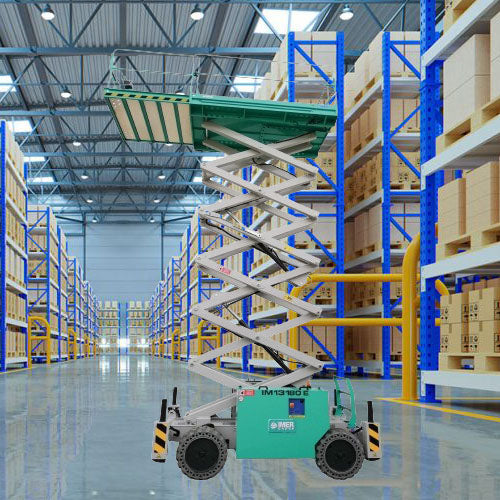

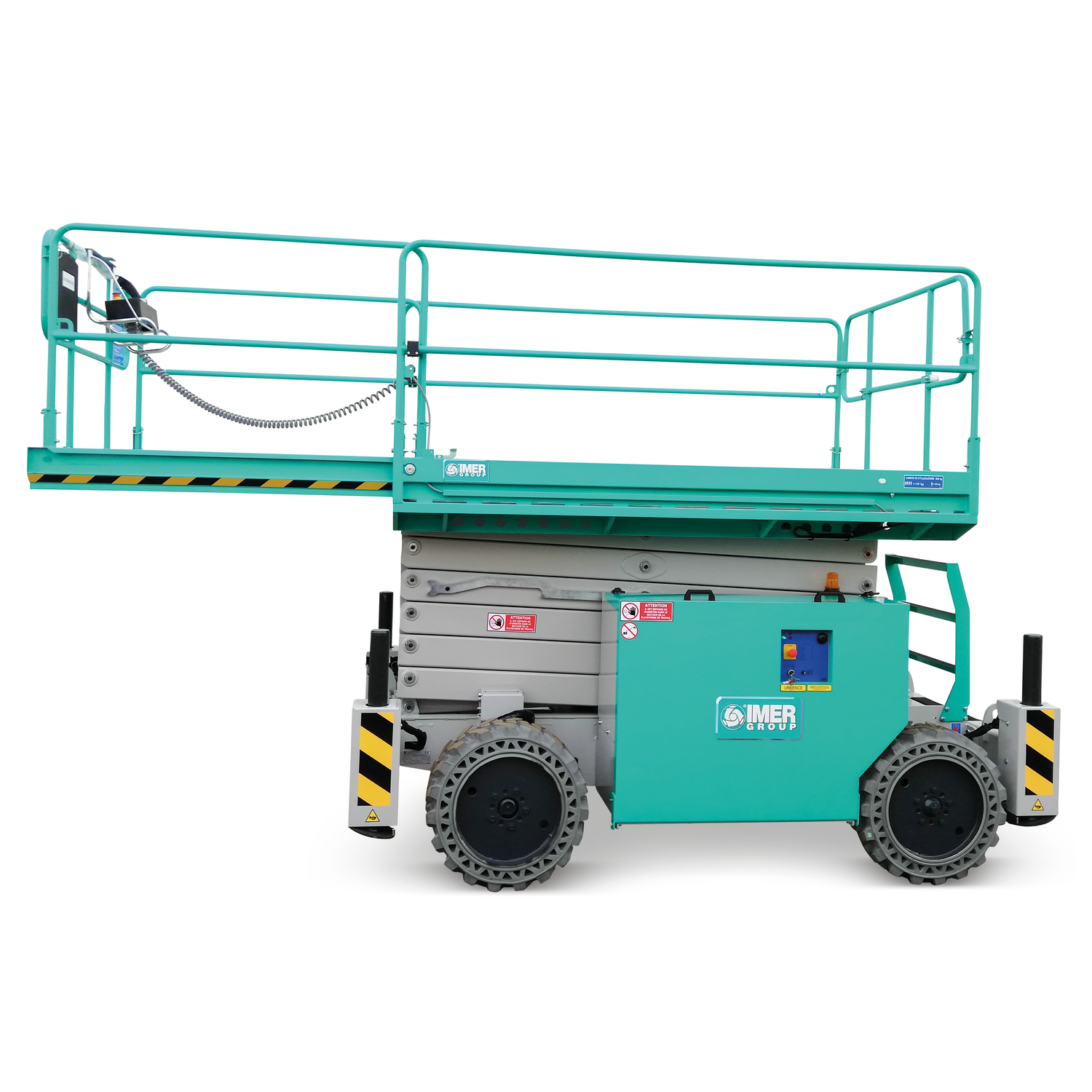

The IMER IM 7043 RT is a robust and versatile scissor lift built to deliver high performance across a wide range of indoor and outdoor tasks. With an impressive 49-foot reach, this lift is designed to handle demanding environments, from construction sites to facility maintenance. Its dual power system allows for seamless switching between electric and diesel-electric modes, ensuring efficient operation no matter the power source available. Whether working on rugged terrain or indoors, the IM 7043 RT provides the height, power, and adaptability to improve productivity and safety.

Designed with operator convenience in mind, this lift enables users to drive at full height, ensuring superior efficiency. Perfect for tough jobs that require both height and heavy lifting capacity, the IMER IM 7043 RT is a must-have for any demanding operation.

Key Features:

• Dual Power System (Electric & Diesel-Electric): Switch effortlessly between electric and diesel-electric modes to suit your work environment, whether indoor or outdoor.

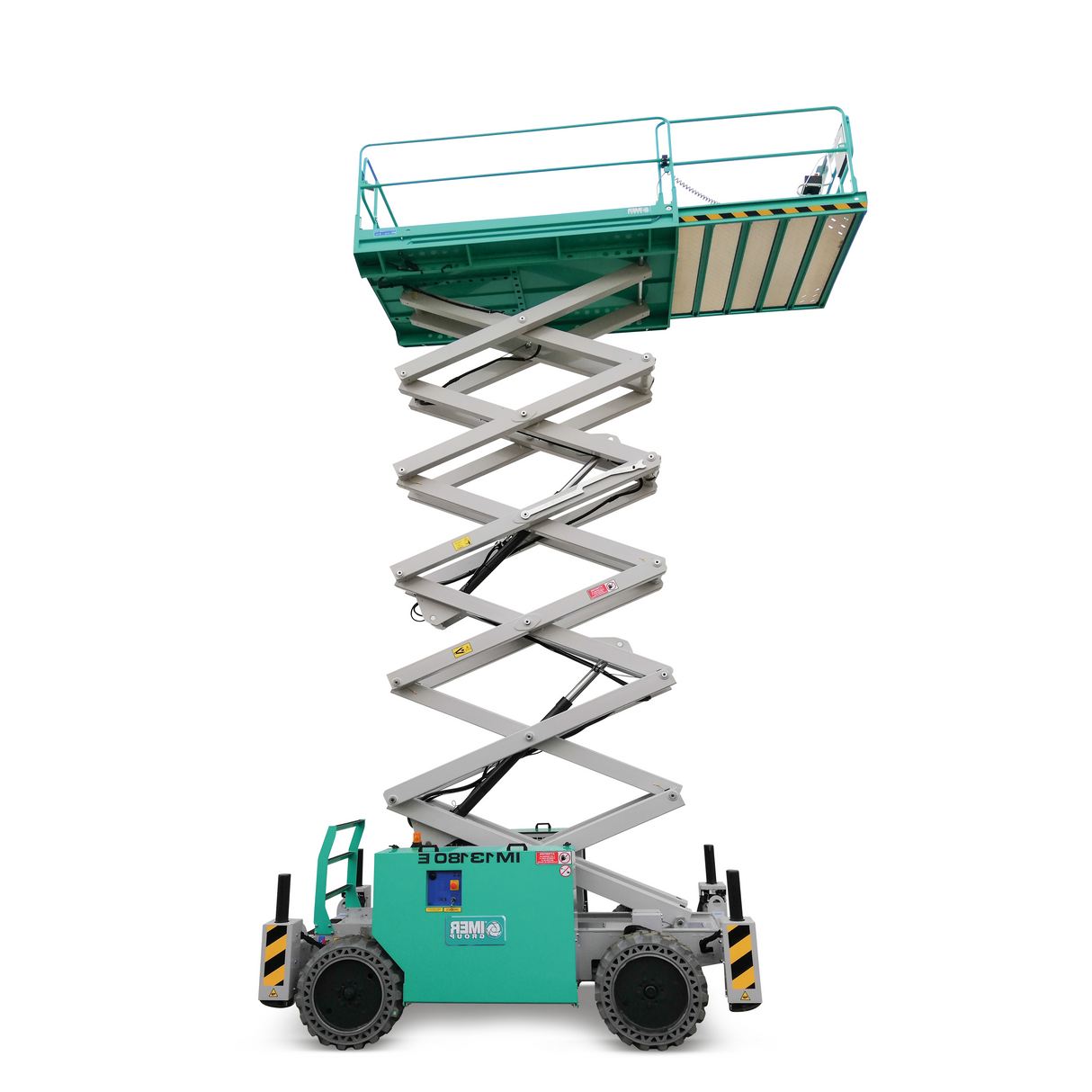

• 49-Foot Reach: Offers ample height for reaching elevated work areas with ease and stability.

• Electric & Diesel Power Options: Equipped with both electric and diesel power options for maximum versatility across different applications.

• Proportional Controls: Easy, intuitive controls that offer smooth, proportional movements for precise adjustments.

• 4-Wheel Drive & Oscillating Axles: Ensure superior mobility and stability, even on rough terrain.

• Auto-Leveling Outriggers: For stable operation on uneven surfaces, allowing for smooth lifts and enhanced safety.

• Manual Deck Extension: Allows for additional workspace, extending to 59 inches (1.5 meters) for more room on the platform.

• Rough Terrain Tires: Non-marking, extra grip tires designed to handle the toughest terrains, making this lift perfect for outdoor use.

• Flashing Beacon & Audible Motion Alarm: Ensures visibility and safety on job sites, especially in high-traffic areas.

Standard Equipment:

• Manual Deck Extension (Full Capacity on Deck): Extends up to 59 inches (1.5 meters) for added flexibility.

• Front Driving & Steering Wheels: Provides enhanced maneuverability in tight spaces.

• 4-Wheel Drive: Ensures maximum mobility over rugged surfaces and uneven terrain.

• Oscillating Axles: For improved stability when driving on challenging terrains.

• Auto-Leveling Outriggers: Stabilize the lift on uneven ground for safe operation.

• Hydraulic Transmission (2WD): Ensures powerful and reliable operation.

• Negative Parking Brakes: Provide secure parking when the lift is not in use.

• Mechanical Wheel Drive Disengagement: For emergency hauling if needed.

• Manual Emergency Lowering Device: Allows for safe lowering of the platform in case of power failure.

• Proportional Controls: For precise movement control and smooth operation.

• Diagnostic System & Hour Meter: Monitor the performance and usage for maintenance tracking.

• Cylinder's Holding Valves: Prevent accidental descent in case of hydraulic failure.

• Inclinometer with Motion Cut-Out & Alarms: Ensures safe operation on inclines by automatically cutting off motion if unsafe angles are reached.

• Overload Sensor: Alerts operators if the lift is carrying too much weight.

• Electric Scissor Protection: Adds an additional layer of protection to the scissor mechanism.

• Rough Terrain Tires with Extra Grip: Provides enhanced traction and stability on uneven surfaces.

• Removable Control Box: For easy operation and maintenance.

• Fold-Down Railings: For easy access and improved safety when entering or exiting the platform.

• Flashing Beacon: Increases visibility on the job site.

• 120V Cable with Plug Socket & Safety Cut-Out: For secure electrical connection.

Electric Equipment:

• Powerpack 48V-7.2kW: Provides reliable electric power for lifting and driving.

• Traction Battery 48V 300Ah: Large-capacity battery ensures extended operational time.

• Battery Charger with Automatic Switch-Off: For safe charging with automatic shut-off when charging is complete.

• Battery Control System with Low Voltage Cut-Out Protection: Protects the battery from damage by shutting off at low voltage levels.

• Battery Cut-Out Handle: Allows for easy disconnect of the battery for maintenance or storage.

• Rough Terrain Tires (Non-Marking): Extra grip, non-marking 28" x 9½" tires for superior performance on rugged surfaces.

Diesel-Electric Equipment:

• Water-Cooled Diesel Engine: Provides powerful diesel operation for challenging tasks.

• Start-Up Battery 12V 66Ah: Ensures reliable starting of the diesel engine.

• Start-Up Battery Alternator: Recharges the start-up battery while the lift is in operation.

• Powerpack 48V-7.2kW: Dual-power system for hybrid functionality.

• Traction Battery 48V 300Ah: Ensures extended working hours with electric power.

• Battery Charger with Automatic Switch-Off & Battery Control System: For safe charging and protection.

• Rough Terrain Tires (Non-Marking): Specially designed for rugged outdoor use, offering both durability and safety.

Specifications
