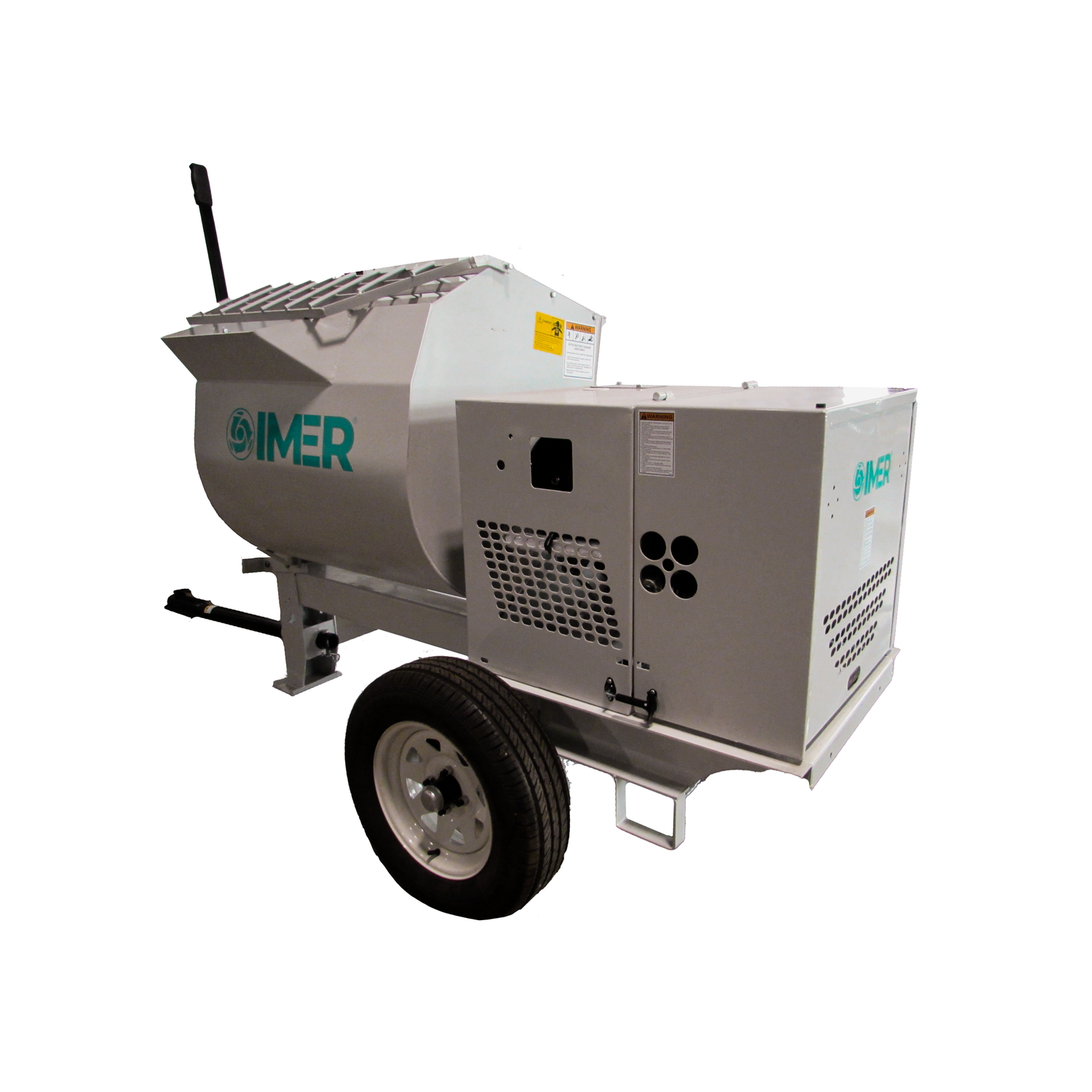

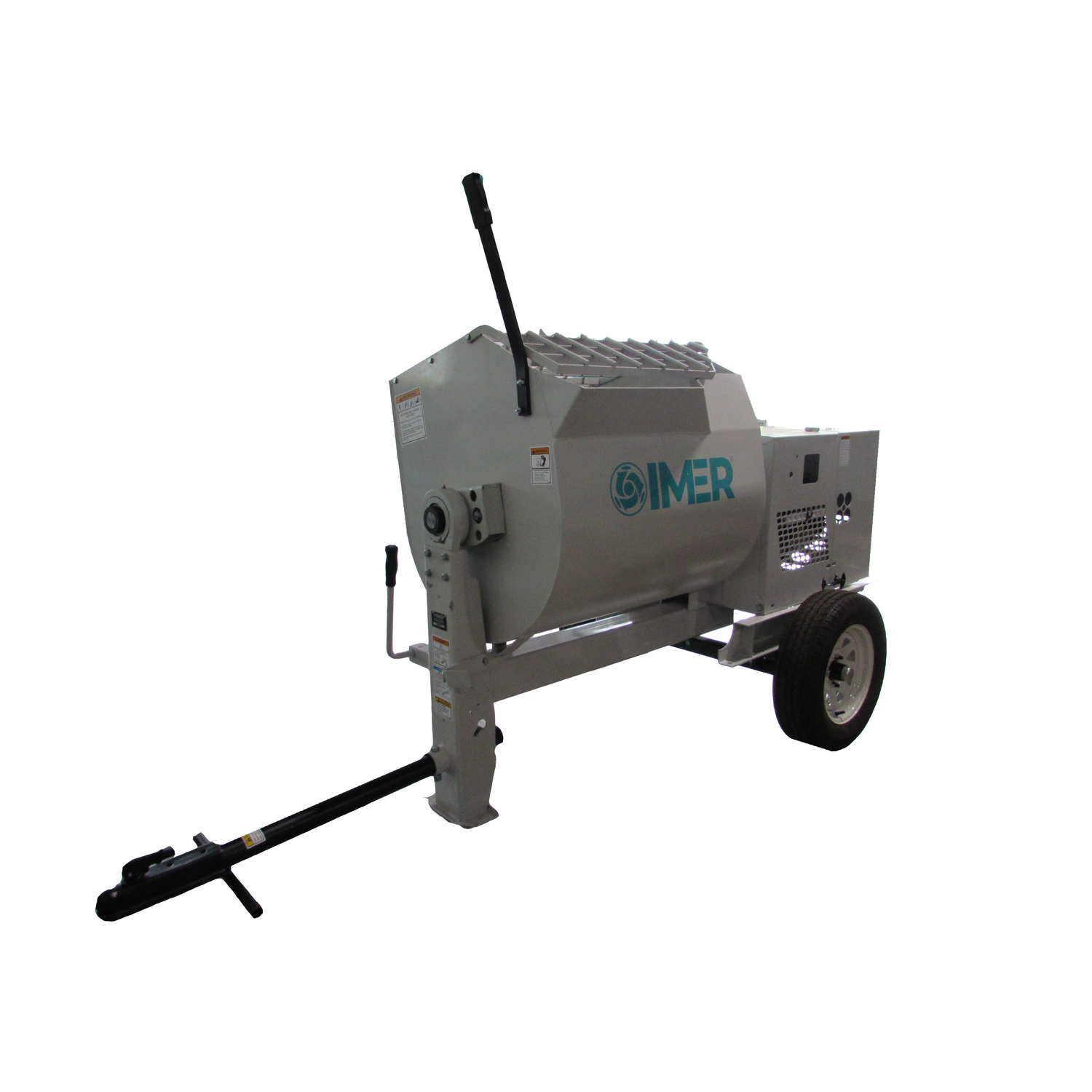

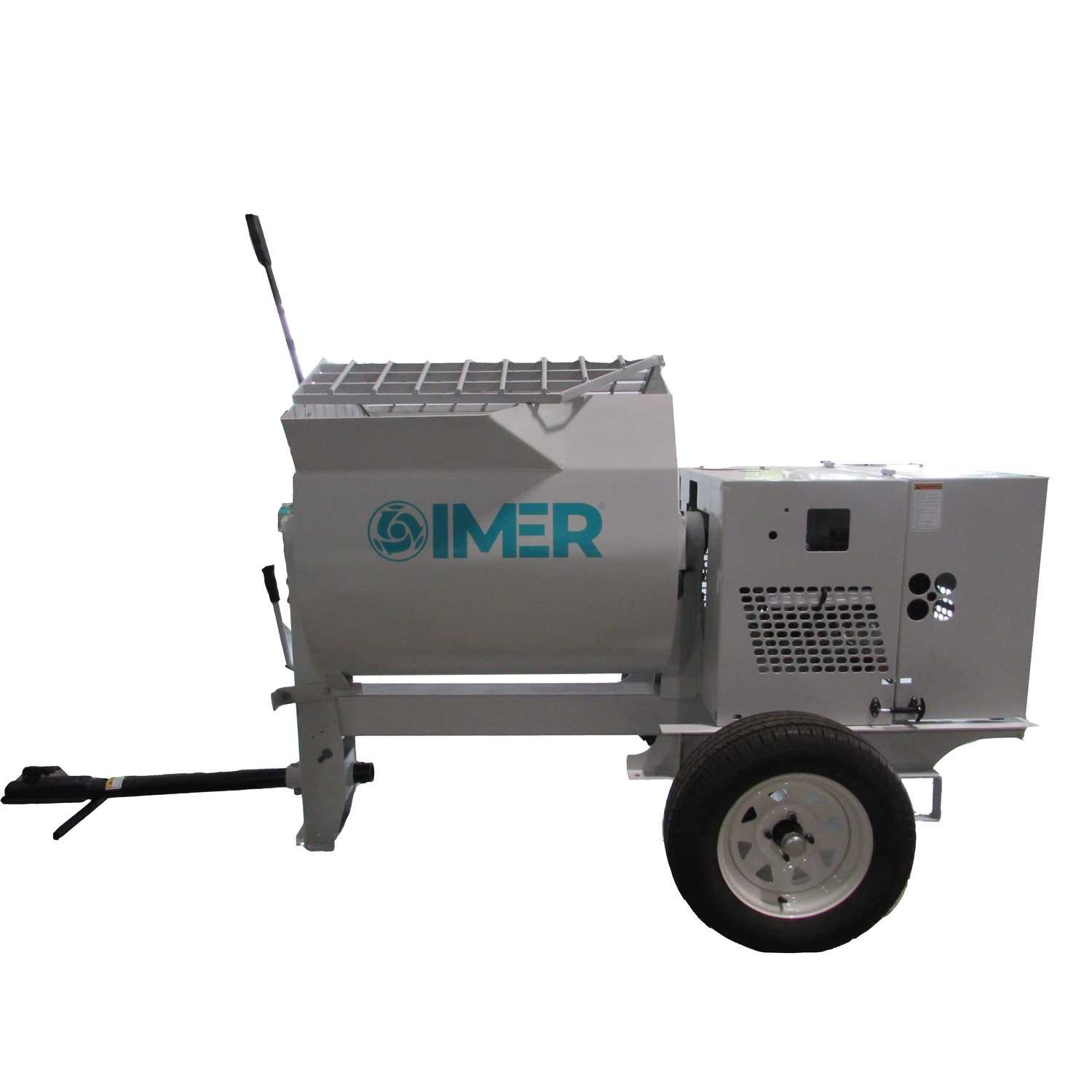

IMER Horizontal Shaft Mortar Mixer | 12 cu ft Steel Drum | HSM 12 - 1130121

Mix Like a Pro – Mortars, Stucco, and Grouts Made Easy

When you need a reliable mortar mixer that gets the job done quickly and efficiently, the IMER 12 cu ft Steel Drum Horizontal Shaft Mortar Mixer is your go-to solution. Whether you’re mixing mortar, stucco, or grouts, this towable powerhouse ensures smooth, consistent mixing every time. The advanced gearbox design maximizes power transfer to the paddles, making it extra quiet and super efficient. Plus, with its towable design, you can take it wherever your job requires.

Why Choose the IMER 12 cu ft Mortar Mixer?

• Powerful Mixing: With a gearbox design that transfers more power to the paddles, you get the best mix every time, without the extra noise.

• Towable Convenience: This unit is highway towable, so you can easily transport it to different job sites, making your work more efficient.

• Versatile and Durable: Ideal for mixing mortars, stuccos, and grouts, the steel drum is tough enough for any job.

• Compact Design: Even though it’s a 12 cu ft mixer, its compact size and ergonomic height make it easy to handle.

Features

• High-Capacity Drum: With a 12 cu ft capacity, the IMER HSM 12 can handle 3.5–4 bags of material at once, allowing you to tackle larger jobs without having to mix multiple batches.

• Efficient Gearbox: The gearbox’s design ensures efficient power transfer, so you get optimal mixing performance with minimal effort.

• Towable Design: Equipped with a 2-inch hitch tow bar or Pintle hitch (select at purchase), this mixer is ready for highway towing — easily transportable to any job site.

• Forklift Pockets: Easily move the mixer on-site using the forklift pockets, offering versatility in its placement.

• Heavy-Duty Tires: Comes with B78 X 13" tires, making it ready to handle tough terrain and rough job sites.

Specifications

• Bag Capacity: 3.5–4 bags

• Cubic Feet: 12 cu ft

• Overall Height: 56.5"

• Overall Width: 45"

• Charging Height: 58"

• Overall Length (with Tow Bar): 84" (104.5" with pintle hitch)

• Tires: B78 X 13"

• Weight: 1200 lbs

• Highway Towable: Yes

Power Options

• Honda GX-390 Gas Engine: 11.7 hp, powerful and reliable for heavy-duty work.

• Leeson 1.5 hp Electric Motor: 120 V, for consistent performance on electric power.

Standard Equipment

• Tow Bar: 2-inch hitch or Pintle hitch (must be selected at time of purchase)

• Forklift Pockets: For easy transportation on-site

• Steel Drum: Heavy-duty design for long-lasting use

• Quiet Operation: Gearbox provides quieter operation without sacrificing power

Document

Product sheet
