IMER Electric Scissor Lift | 52 Ft Working Heught | 1128566

Reach New Heights with Confidence and Control

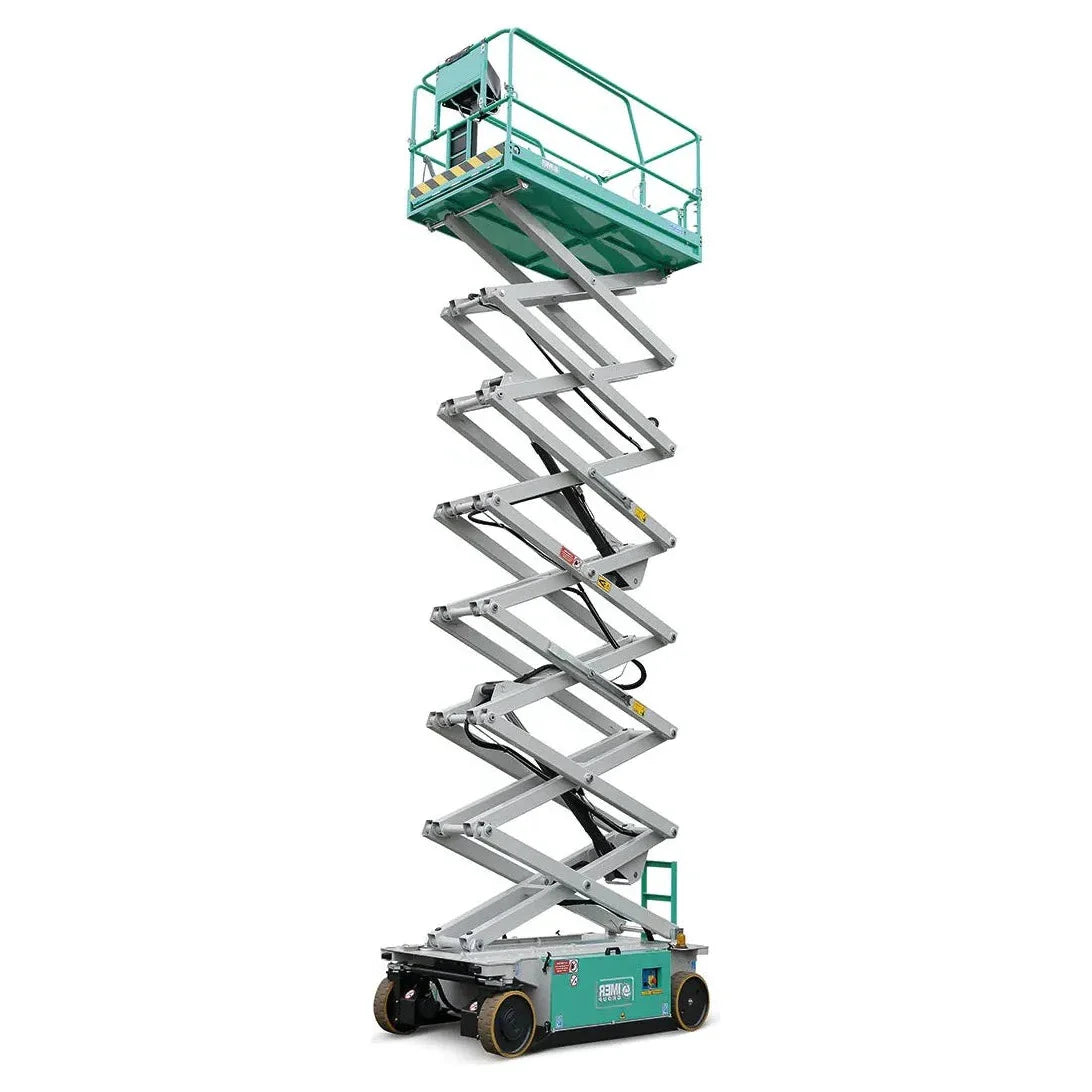

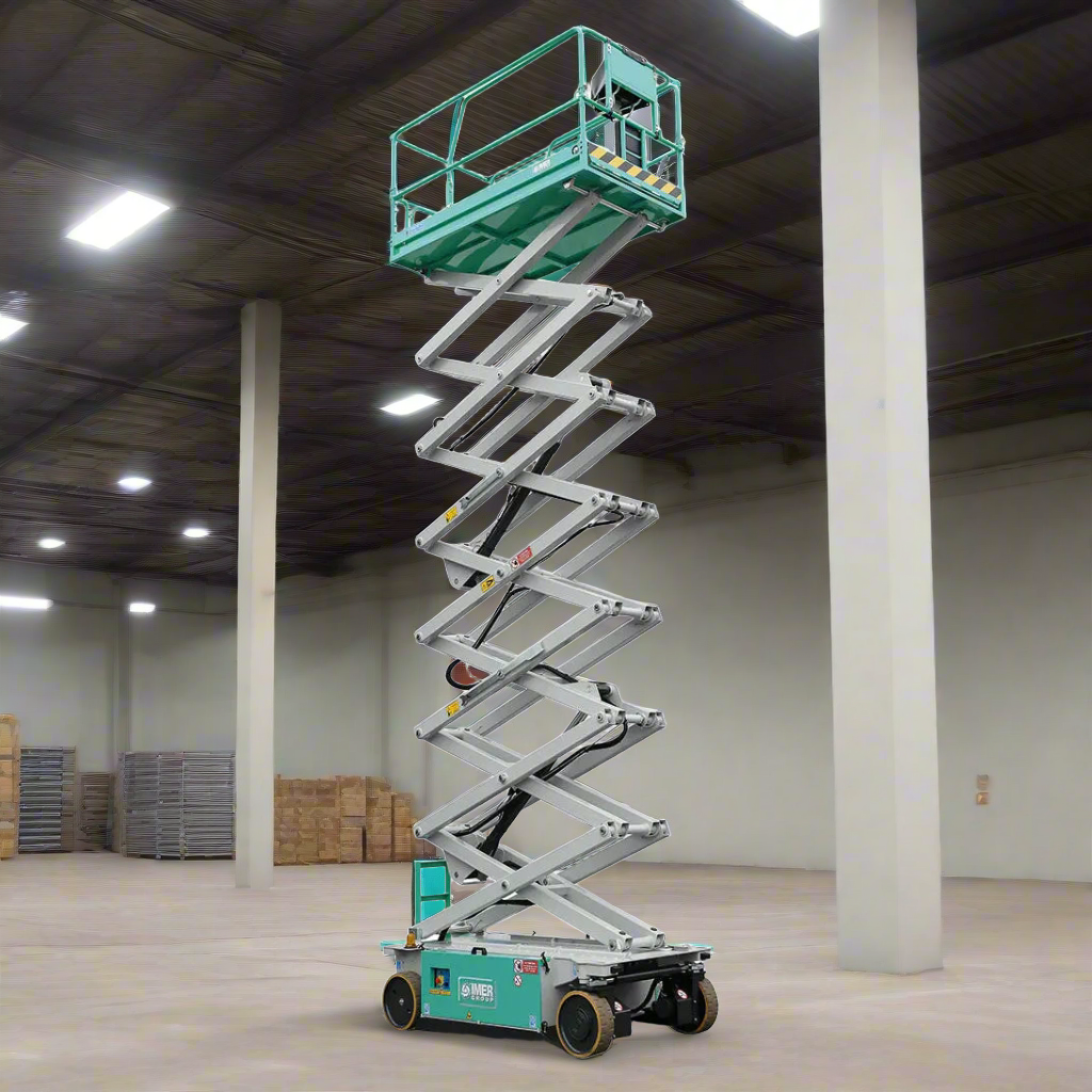

Looking for a lift that goes higher and carries more? The IMER IM 4746 Electric Aerial Scissor Lift is your ticket to tackling those tough, high-reaching jobs with ease. Boasting a 52 ft working height and 550 lb load capacity, this lift is designed to deliver excellent maneuverability, even in the tightest of spaces. With its compact size, intuitive controls, and reliable performance, you’ll get the job done faster — and higher — than ever before.

Why Choose the IMER IM 4746?

• 52 ft working height: Perfect for reaching those sky-high jobs, whether it’s for maintenance, installations, or repairs.

• 550 lb load capacity: Two people and all the tools they need, safely and comfortably.

• Small Steering Angles: The tightest spaces are no problem, thanks to optimized weight distribution and compact design.

• Full-Height Driving: Keep moving while at full height, boosting your productivity and efficiency.

Features

• Manual Deck Extension: Holds two people comfortably, making teamwork that much easier.

• Electric Traction on Front Wheels: Smooth movement wherever you need it — no more jerky starts and stops.

• Negative Electromagnetic Parking Brakes: Safety first! These engage automatically, with an electric disengagement system for convenience.

• 90° Wheel Steering: Perfect for getting into tricky spots with precision — no more awkward maneuvers!

• Manual Emergency Lowering: Because sometimes you just need to get down fast and safe.

• Non-return Valve on Lifting Cylinders: Keeps everything in place, so you can focus on the task, not the lift.

• Solid Rubber Non-marking Tires: Reliable grip with zero mess. No more worrying about floor scuffs.

• Electric Scissor Protection: Keeps the mechanism protected, allowing for longer-lasting, worry-free operation.

• Pot Hole Protection: Stay stable and steady, even when the ground isn’t as smooth as you’d like.

• Battery Level Control with Low Voltage Protection: Know when it’s time to recharge and avoid any surprise power outages.

• Foldable Guardrails: Easier storage for when space is tight.

• Platform Weight Management: Designed for maximum stability, no matter the load.

• ANSI 92.20 / CSA / CE & EN280 Approved: Certified for safety — work confidently at height.

• AC Power to Platform: Power your tools directly from the platform for added convenience.

• Flashing Beacon: Be visible, be safe, and stand out from the crowd.

• Proportional Controls with Diagnostics: Fine-tuned controls and smart diagnostics to ensure smooth operation every time.

Specifications

• Platform Height: 45 ft 7 in

• Working Height: 52 ft 2 in

• Stowed Height: 9 ft

• Height to Platform Bottom: 5 ft 3½ in

• Height with Guardrails Folded: 7 ft 4 in

• Base Width (Outside Tires): 4 ft

• Platform Length – Extended: 11 ft 8 in

• Platform Length: 7 ft 5 in

• Extension Platform Length: 4 ft 3 in

• Capacity / Number of People: 550 lb / 2

• Electric Drive Motors: 24 V / 4.0 HP

• Lifting Power Pack: 24 V / 5.3 HP Hydraulic

• Lifting/Lowering Time (Loaded): 68 sec up / 67 sec down

• Battery (Traction Battery) C5: 24 V / 300 Ah

• Battery Charger: 24 V / 30A

• Hydraulic Tank Capacity: 4.9 gal

• Drive Speed: 2.5 mph

• Safety Traction Speed: 0.4 mph

• Gradeability: 25%

• Internal Steering Radius: 0 ft (no turning radius, just perfection!)

• External Steering Radius: 7 ft 8½ in

• Tire Size: 16 in x 5 in

• Wheel Type: Cushion

• Max Tilt Angles: Side 1.2°, Longitudinal 2.0°

• Total Weight: 6,610 lb

Optional Equipment

• 120V Cable with Plug, Socket & Safety Cut-Out for US models

• Gel Battery IM 35 Series for longer battery life

• Additional Flashing Beacon Kit for extra visibility

• Compressed Air Line at the platform for added convenience
