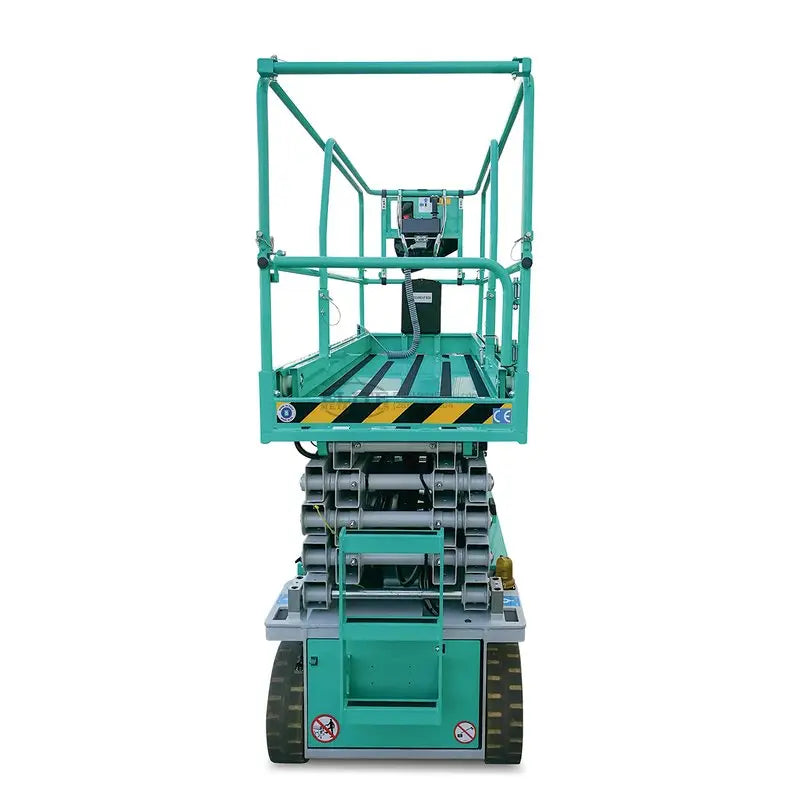

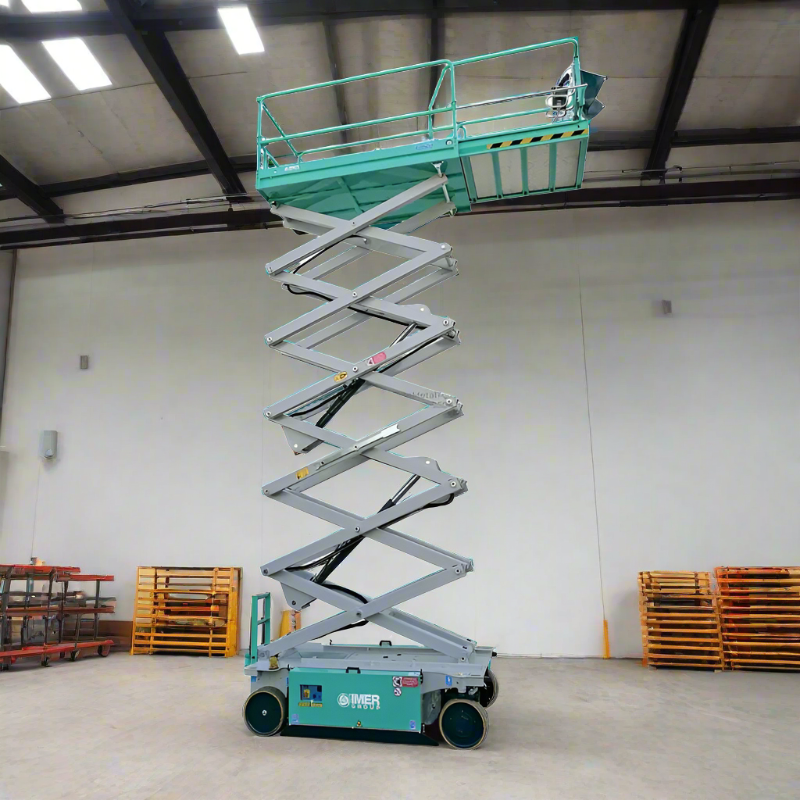

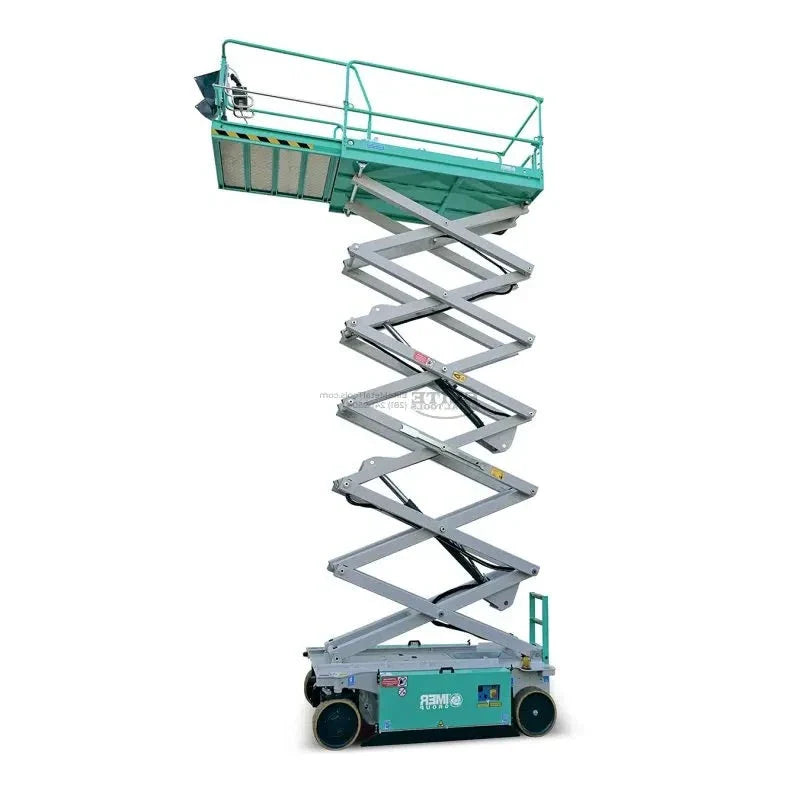

IMER Electric Scissor Lift | 46 Ft. Working Height | 1128556

Reach Higher, Work Smarter

When you need a lift that goes above and beyond (literally), the IMER IM 4740 E Electric Aerial Scissor Lift is your ticket to the sky. With a 46 ft working height and 770 lb load capacity, this powerhouse brings next-level versatility and maneuverability to tight spaces. Whether you’re handling heavy-duty jobs or tight spaces, the IM 4740 E gets the job done with ease and grace. Bonus: It’s compact enough to fit in spaces that would make other lifts feel claustrophobic. Talk about a perfect fit.

What Makes the IMER IM 4740 E a Game-Changer?

• 46 ft working height: Reach new heights without the need for ladders or scaffolding. Safety first, height second.

• Generous load capacity of 770 lb: Three people (and their tools) can comfortably work up top.

• Smooth maneuvering: Drive at full height — yes, even fully extended — because why slow down for safety when you can have both?

• Compact size: We like to call it a big machine in a small package. Get through tight spots without breaking a sweat.

Features

• Manual Deck Extension: Hold two people with ease, because we know you like to bring a team along for the ride.

• Electric Traction on Front Wheels: For easy navigation in tight spots. Who needs to fight their equipment?

• Negative Electromagnetic Parking Brakes: Automatic safety with electric disengagement — a lift that knows when to stop!

• 90° Wheel Steering: Maximum maneuverability with minimal effort.

• Manual Emergency Lowering: When power goes down, you still have control. No panic button needed.

• Non-return Valve on Lifting Cylinders: Holds the position until you're ready to move again.

• Solid Rubber Non-Marking Tires: Strong grip without the mess. Your floors stay spotless.

• Electric Scissor Protection: Keep the scissor lift system safe and sound.

• Pot Hole Protection: Because life (and job sites) happen. You’ll be covered.

• Battery Level Control with Low Voltage Protection: Never get stuck without power — you’ll know when it’s time to recharge.

• Foldable Guardrails: For a smaller footprint when you need to store the lift.

• Platform Weight Management: Keeps things balanced and safe, just how we like it.

• ANSI 92.20 / CSA / CE & EN280 Approved: Certified safe and sound — because your safety is our priority.

• AC Power to Platform: Power up your tools directly from the platform. No more running out of juice.

• Flashing Beacon: For high-visibility work, because "Hey, I’m working up here!" needs to be said loud and clear.

• Proportional Controls with Diagnostics: Because we believe in getting things done with precision.

Specifications

• Platform Height: 39 ft 4 in

• Working Height: 46 ft 11 in

• Stowed Height: 8 ft 7 in

• Height to Platform Bottom: 4 ft 10½ in

• Height with Guardrails Folded: 6 ft 11 in

• Base Width (Outside Tires): 4 ft

• Platform Length – Extended: 11 ft 8 in

• Platform Length: 7 ft 5 in

• Extension Platform Length: 4 ft 3 in

• Capacity / Number of People: 770 lb / 3

• Electric Drive Motors: 24 V / 4.0 HP

• Lifting Power Pack: 24 V / 4.0 HP Hydraulic

• Lifting/Lowering Time (Loaded): 68 sec up / 55 sec down

• Battery (Traction Battery) C5: 24 V / 300 Ah

• Battery Charger: 24 V / 30A

• Hydraulic Tank Capacity: 4.9 gal

• Drive Speed: 2.5 mph

• Safety Traction Speed: 0.4 mph

• Gradeability: 25%

• Internal Steering Radius: 0 ft (talk about zero turning radius!)

• External Steering Radius: 7 ft 8½ in

• Tire Size: 16 in x 5 in

• Wheel Type: Cushion

• Max Tilt Angles: Side 1.8°, Longitudinal 3.0°

• Total Weight: 6,430 lb

Optional Equipment (Because Who Doesn’t Like Options?)

• 120V Cable with Plug, Socket & Safety Cut-Out (Standard for US models)

• Gel Battery IM 35 Series

• Additional Flashing Beacon Kit (To get noticed)

• Compressed Air Line at the platform — because who wants to run up and down with a pump?
