IMER Electric Scissor Lift | 46 Ft. Working Height| 1128506

Elevate Your Work with Precision and Power

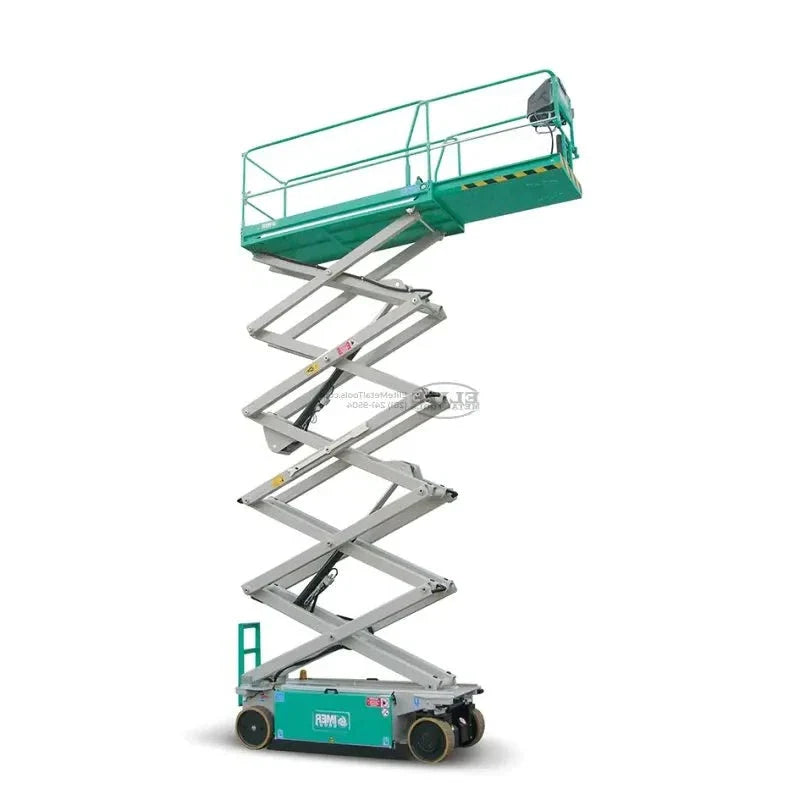

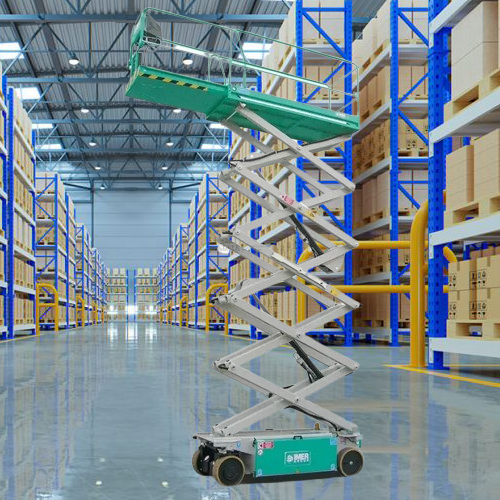

If you need to reach high and work efficiently in tight spots, the IMER IM 3540 E Electric Aerial Scissor Lift is your ideal companion. With a 46 ft working height and 510 lb load capacity, this compact powerhouse is designed to maneuver in places other lifts can only dream of. Whether you're tackling overhead repairs or installing equipment, the IM 3540 E does it all with ease — even at full height.

What Sets the IMER IM 3540 E Apart?

• 46 ft working height: Perfect for those big jobs that require both height and precision.

• 510 lb load capacity: Two people and their tools — no problem. Get the job done with room to spare.

• Maneuverable: Small steering angles and reduced size allow for effortless navigation, even in tight spaces.

• Compact design: More room for you to work in smaller spaces without compromising on performance.

Features

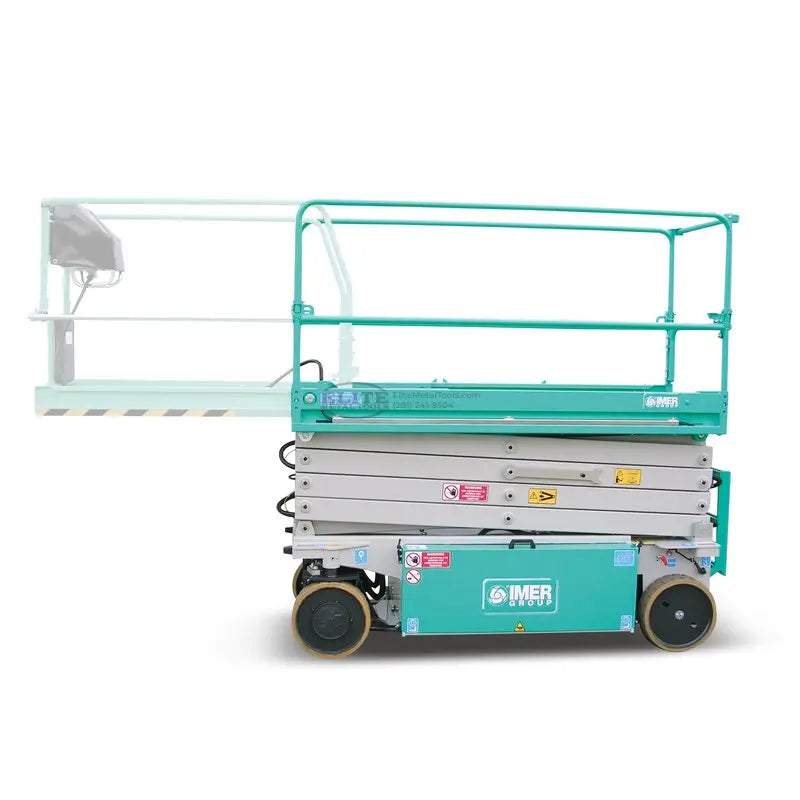

• Manual Deck Extension: Designed to hold two people comfortably. More hands, more work done!

• Electric Traction on Front Wheels: For smooth navigation — no bumps or jerks in your workday.

• Negative Electromagnetic Parking Brakes: They engage automatically for added safety, with electric disengagement when you need to move.

• 90° Wheel Steering: Get into those narrow spaces like a pro. It’s all about precision.

• Manual Emergency Lowering: Because life happens, and sometimes you need to get down fast and safely.

• Non-return Valve on Lifting Cylinders: Keeps everything steady until you're ready to move.

• Solid Rubber Non-marking Tires: Get great grip without leaving a trace on floors — no black marks, just results.

• Electric Scissor Protection: Extra protection for your lift system, making sure you can keep working smoothly.

• Pot Hole Protection: Stay steady even when the ground isn’t — because job sites are full of surprises.

• Battery Level Control with Low Voltage Protection: No more worrying about getting stuck halfway through the job. You'll know when it's time to recharge.

• Foldable Guardrails: For a more compact storage option, especially when you're on the move.

• Platform Weight Management: Ensures stability, because no one likes a wobbly platform.

• ANSI 92.20 / CSA / CE & EN280 Approved: Certified for safety, so you can focus on the work, not the worries.

• AC Power to Platform: Power your tools directly from the platform. Because we believe in productivity.

• Flashing Beacon: Make sure you're visible, because working at height is a big deal.

• Proportional Controls with Diagnostics: Precision movement and diagnostics for seamless operation.

Specifications

• Platform Height: 39 ft 4½ in

• Working Height: 46 ft 11 in

• Stowed Height: 8 ft 7 in

• Height to Platform Bottom: 4 ft 10½ in

• Height with Guardrails Folded: 6 ft 11 in

• Base Width (Outside Tires): 35 in

• Platform Length – Extended: 11 ft 8 in

• Platform Length: 7 ft 5 in

• Extension Platform Length: 4 ft 3 in

• Capacity / Number of People: 510 lb / 2

• Electric Drive Motors: 24 V / 4.0 HP

• Lifting Power Pack: 24 V / 5.3 HP Hydraulic

• Lifting/Lowering Time (Loaded): 73 sec up / 55 sec down

• Battery (Traction Battery) C5: 24 V / 300 Ah

• Battery Charger: 24 V / 30A

• Hydraulic Tank Capacity: 4.9 gal

• Drive Speed: 2.5 mph

• Safety Traction Speed: 0.4 mph

• Gradeability: 25%

• Internal Steering Radius: 0 ft (yep, zero turning radius!)

• External Steering Radius: 7 ft 2½ in

• Tire Size: 16 in x 5 in

• Wheel Type: Cushion

• Max Tilt Angles: Side 1.2°, Longitudinal 2.5°

• Total Weight: 7,110 lb

Optional Equipment (Because Why Settle for Less?)

• 120V Cable with Plug, Socket & Safety Cut-Out (Standard for US models)

• Gel Battery IM 35 Series for longer-lasting power

• Additional Flashing Beacon Kit for extra visibility

• Compressed Air Line at the platform for added convenience

• IMERVIEW GPS Remote Monitor System for remote tracking and diagnostics (perfect for fleet management)
