IMER Electric Scissor Lift | 39 Ft. Working Height | 1128496

Reach New Heights — Literally

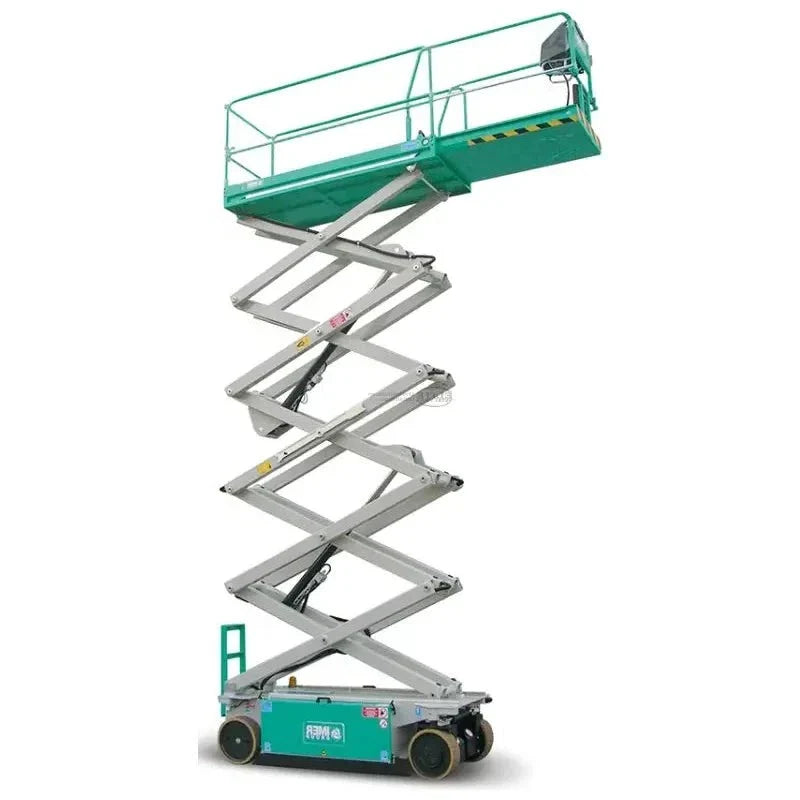

When the job calls for serious elevation without losing your cool (or your balance), the IMER IM 3534 E Electric Aerial Scissor Lift steps up — way up. Designed to be compact, lightweight, and sneakily powerful, this lift brings unbeatable versatility and maneuverability to tight spaces. Whether you're fixing, installing, or inspecting at height, you can drive it at full extension, boosting productivity and cutting down the back-and-forth. It's the ultimate "work smarter, not harder" machine... unless you like wrestling giant lifts in narrow spaces.

Why the IMER IM 3534 E Is the Real MVP

• Maximum working height: 39 ft (because you weren’t planning to use a ladder, were you?)

• Spacious platform: Extended platform length of 11 ft 8 in — bring the tools, bring the team.

• Compact base width: Just 35 inches wide — perfect for those tight job sites that are allergic to bulky equipment.

• Strong and steady: Handles up to 660 lb and accommodates 3 people safely.

• Top-notch productivity: Drive in any position — even fully extended — because who has time for downtime?

Features

• Manual Deck Extension: Holds two people with room to spare — stretch out, maybe do a cartwheel (kidding, please don’t).

• Electric Traction Front Wheels: Smooth, reliable motion that handles tight spots like a seasoned valet.

• Negative Electromagnetic Parking Brakes: Automatically engages for safe stops — no runaway lifts here.

• 90° Wheel Steering: Maneuvers like a pro with minimal turning radius.

• Emergency Lowering System: Manual option in case the power decides to ghost you.

• Solid Rubber, Non-Marking Tires: Grips like a beast but leaves no trace behind.

• Tilt Meter with Motion Cut-Out: Alerts you if things get a little too tilted.

• Foldable Guardrails: Easier storage and transport without the wrestling match.

• Battery Level Control with Low Voltage Protection: No surprises — you’ll know when it’s time to recharge.

• Electric Scissor and Pot Hole Protection: Built-in safety that thinks ahead.

• Platform Weight Management System: Because safety isn’t just a suggestion.

• ANSI 92.20 / CSA / CE & EN280 Approved: Certified safe and ready for serious work.

• Flashing Beacon and Proportional Controls: Full visibility and pinpoint control for every move.

• AC Power to Platform: Keep your tools juiced up even at full height.

Specifications

• Platform Height: 32 ft 9¾ in

• Working Height: 39 ft 4½ in

• Stowed Height: 8 ft 2 in

• Height to Platform Bottom: 4 ft 5½ in

• Height with Guardrails Folded: 6 ft 6 in

• Base Width (Outside Tires): 35 in

• Platform Length – Extended: 11 ft 8 in

• Platform Length: 7 ft 5 in

• Extension Platform Length: 4 ft 3 in

• Capacity / Number of People: 660 lb / 3

• Electric Drive Motors: 24V / 4.0 HP

• Lifting Power Pack: 24V / 4.0 HP Hydraulic

• Lifting/Lowering Time (Loaded): 70 sec up / 45 sec down

• Battery (Traction Battery) C5: 24V / 250Ah

• Battery Charger: 24V / 30A

• Hydraulic Tank Capacity: 4.9 gal

• Drive Speed: 2.5 mph (safety speed 0.4 mph)

• Gradeability: 25%

• Internal Steering Radius: 0 ft (zero-turn magic)

• External Steering Radius: 7 ft 2½ in

• Tire Size: 16 in x 5 in

• Wheel Type: Cushion

• Max Tilt Angles: Side tilt 1.5°, Longitudinal tilt 2.5°

• Total Weight: 6,250 lb

Optional Equipment (Because Customization Is King)

• 120V Cable with Plug, Socket & Safety Cut-Out (Standard for US models)

• Gel Battery Kit for the IM 35 Series

• Additional Flashing Beacon Kit (for the "look at me" moments)

• Compressed Air Line at the platform

• IMERVIEW GPS Remote Monitor System to keep an eye on your lift even when you're not around
