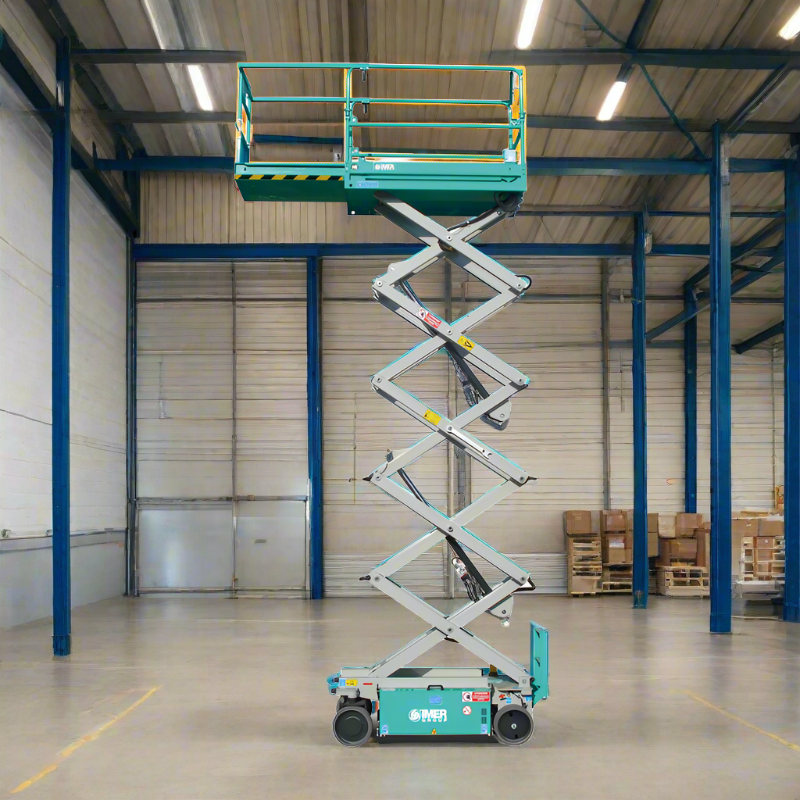

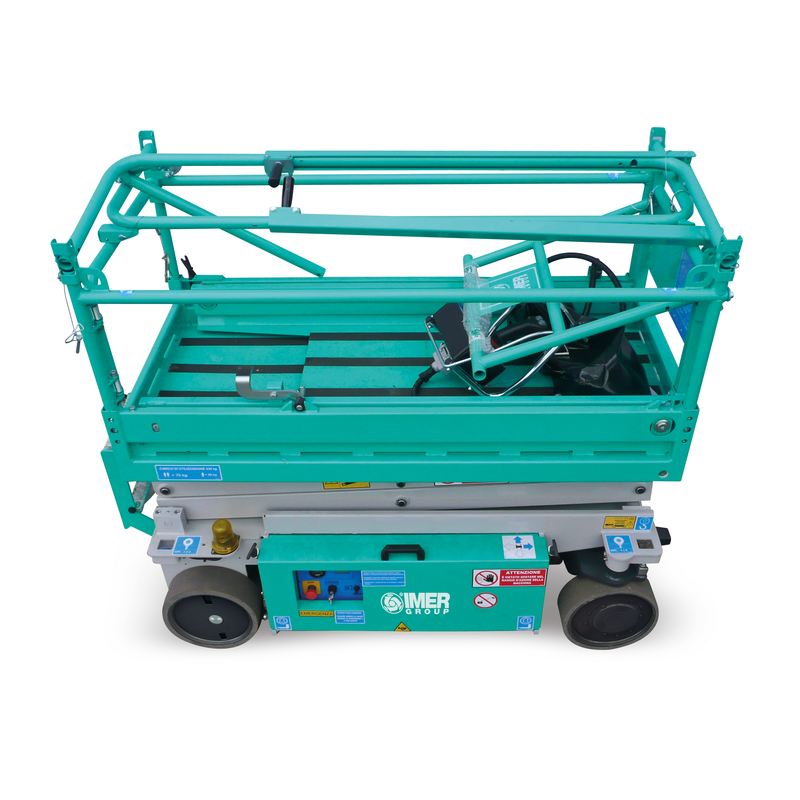

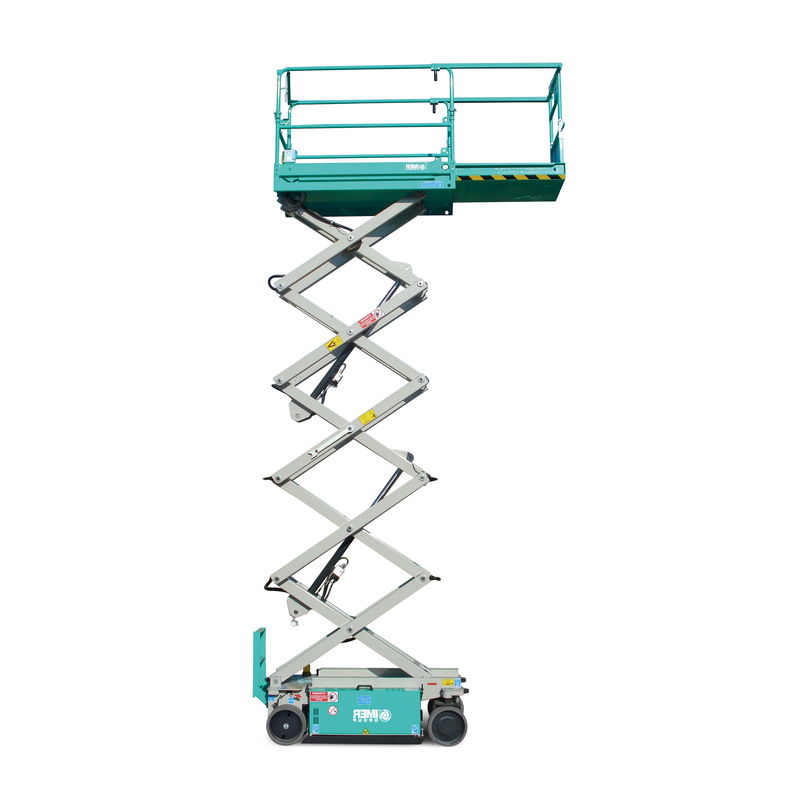

IMER Electric Scissor Lift | 30 Ft Working Height | 1128416

Go Higher, Stay Lighter—Power Meets Precision in Every Lift

When your project calls for big performance in a tight space, the IMER IM 3224 E Electric Scissor Lift delivers without breaking a sweat—or your back. With a working height of 30 feet and a sturdy 510-pound load capacity, this compact powerhouse sneaks into the tightest spots while offering stability that inspires confidence.

Whether you’re indoors dodging door frames or outdoors navigating uneven ground, its zero internal steering radius, proportional controls, and quick lift/lower times keep your team moving efficiently. Plus, with ANSI, CSA, and CE certifications in its back pocket, this lift proves it's not just tough—it’s officially approved to show off.

Features

• Compact, Lightweight Build
  Designed for easy clearance and effortless maneuverability—even in spaces where "tight squeeze" feels like an understatement.

• Electric Drive Motors for Smooth Handling
  Dual 24V electric motors deliver 3.2 HP of reliable power to get you from ground to platform and back again—without the engine noise drama.

• Generous Platform Size
  A 5'5" platform length, extended to 8'8" with a manual deck extension, gives you and a partner plenty of workspace without feeling like sardines.

• Zero Internal Steering Radius
  Turn on a dime (or rather, turn without moving an inch)—ideal for warehouses, construction sites, or anywhere you need slick precision.

• Quick Lift and Lower Times
  Loaded lift in 36 seconds, descent in 35 seconds—because coffee breaks shouldn't be longer than necessary.

• Top-Tier Safety Systems
  Includes pothole protection, tilt meters, overload protection, electric scissor protection, and emergency lowering for peace of mind, even when you’re working up high.

• Battery Efficiency That Keeps You Working
  Equipped with 24V 185Ah C5 batteries and a smart 24V/20A battery charger with automatic cut-off, so you can focus on the job instead of battery drama.

• Prepped for Power Tools
  Built-in 120V AC power to the platform keeps your essential tools plugged in and ready.

Specifications

• Platform Height: 23' 7.5"

• Working Height: 30'

• Platform Length (Extended): 8'8"

• Platform Length: 5'5"

• Platform Extension Length: 3'3"

• Load Capacity: 510 lb (2 persons)

• Electric Drive Motors: 24V / 3.2 HP

• Hydraulic Lift Motor: 24V / 2.8 HP

• Lift/Lower Time (Loaded): 36 sec up / 35 sec down

• Batteries: 24V 185Ah (C5 traction batteries)

• Battery Charger: 24V / 20A automatic shut-off

• Hydraulic Tank Capacity: 1.8 gallons

• Drive Speed: 2.5 mph (0.4 mph in safety traction mode)

• Gradeability: 25%

• Internal Steering Radius: 0 ft

• External Steering Radius: 5'7"

• Tire Size: 13" x 4" solid rubber cushion tires (non-marking)

• Max Tilt Angles: 1.5° side / 2.5° longitudinal

• Total Machine Weight: 4045 lb

Standard Equipment

• Electric traction on front wheels

• 90° wheel steering for tight turns

• Manual emergency lowering system

• Tilt meter with cut-out alarm

• Solid rubber non-marking tires

• Foldable guardrails for easier storage

• Manual platform extension (39.5")

• Full battery management system with low voltage protection

• Platform weight management system

• ANSI 92.20 / CSA / CE & EN280 certification

• Flashing safety beacon

• Proportional controls with diagnostics

• AC power outlet to platform

Optional Equipment

• 120V cable with socket, plug, and cut-out (standard for U.S. models)

• Additional flashing beacon kit

• Compressed air line to platform

• Gel battery upgrade for extended life

• IMERVIEW GPS Remote Monitoring System
