IMER Continuous Mixer | 208V 3 Phase & 220V Single Phase | 9 HP | Koine Dual 1106312

Tired of machines that can’t keep up with your fast-paced jobsite? Meet the IMER Koine Dual Continuous Mixer: a smart, rugged, and flexible powerhouse that laughs in the face of changing power supplies. Whether you’re mixing mortars, plasters, or even fireproofing materials, the Koine Dual keeps the flow going—no drama, no downtime.

This adaptable continuous mixer automatically configures itself to available power sources (single or three-phase) and offers adjustable speed settings for different materials. Best of all? You can monitor everything in real-time with your smartphone using the IMER CONNECT app. Because if you're going to be covered in mortar, you might as well be high-tech about it.

Features

• Power Versatility: Runs on both 208V 3-phase and 220V single-phase with 8 speed levels to match your material needs—even skim coats and fine grouts.

• Smart Adaptability: Automatically adjusts to available electric power between 3 to 8 kW. Plug it in, and it figures it out for you. (Like the intern you wish you had.)

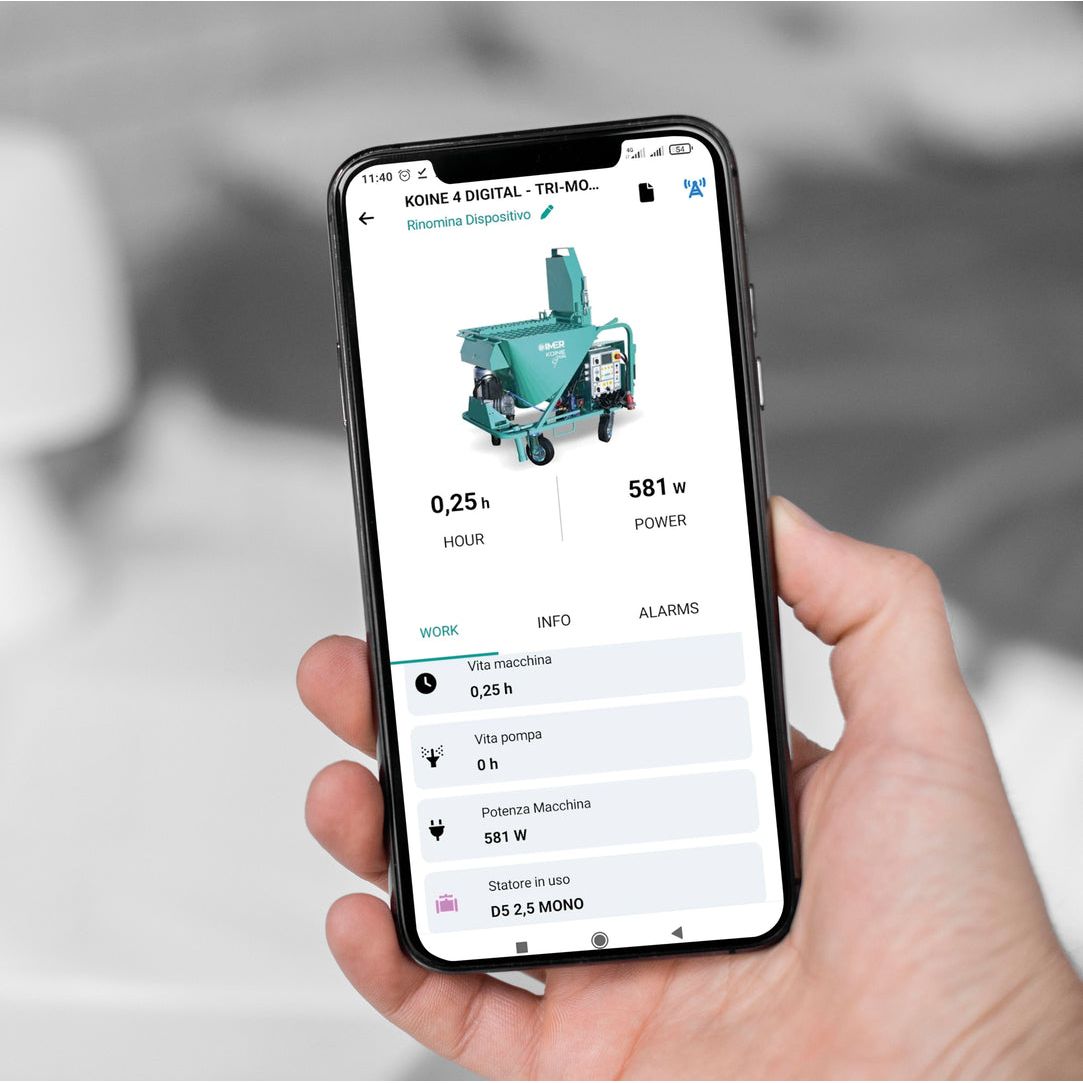

• Bluetooth Monitoring: Real-time machine data straight to your smartphone via the IMER CONNECT app. No more guessing games.

• Precise Water Control: Stainless steel water pump with flow meter and micrometric valve ensures your mix is just right—not too soupy, not too stiff.

• On-the-Go Adjustments: Push-button remote gives you control right from the spray gun.

• Minimal Clean-Up: Only the mixing area needs cleaning—save your energy for the job, not the mess.

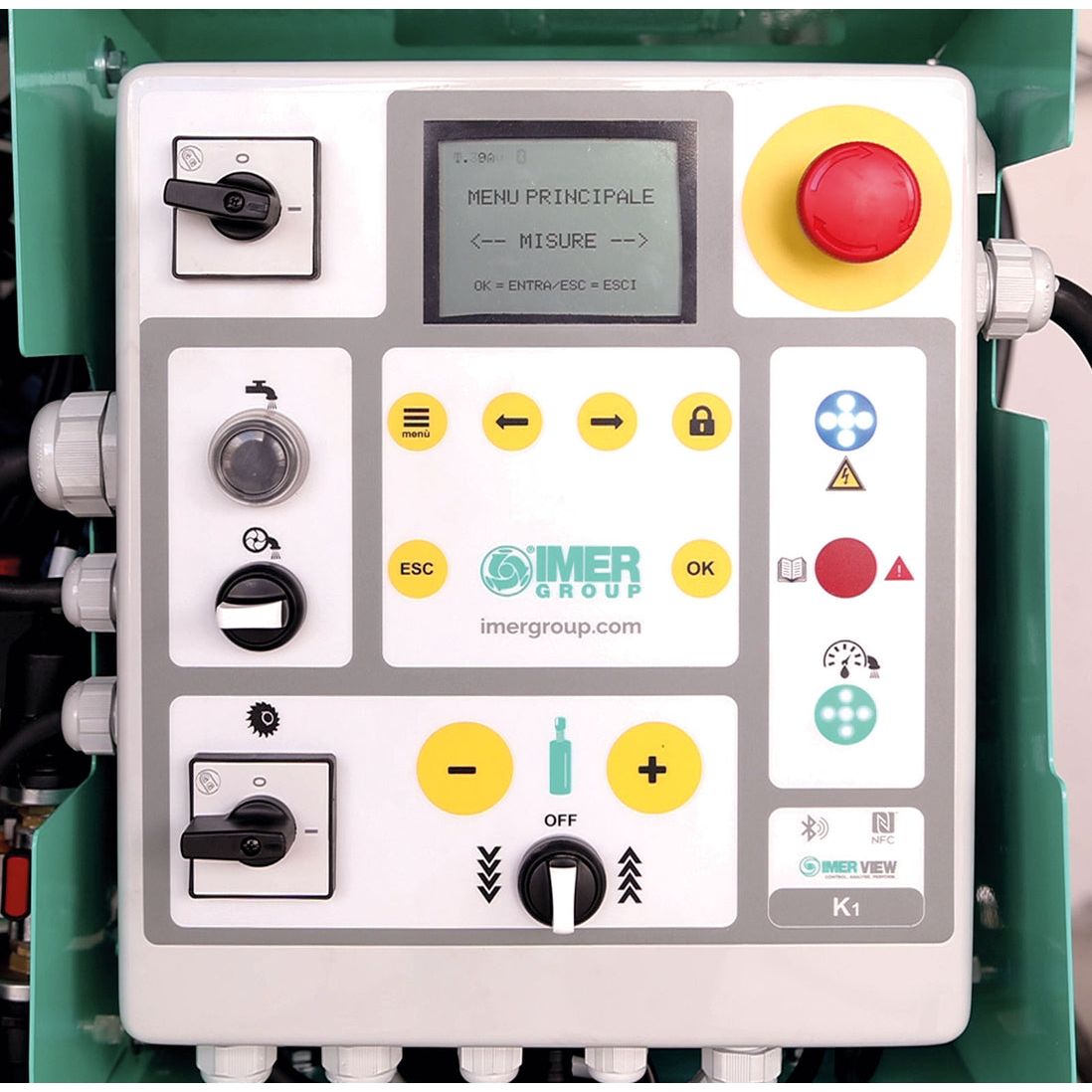

• Status Diagnostics: 5-inch TFT display shows voltage, power, consumption, work hours, stator type, and even alerts you if something’s off.

• Turbo Mixing Kit: Includes material delivery pressure gauge for optimized performance.

Specifications

• Motor Power: 9 HP

• Electrical Requirements:

  • Single-Phase: 220V

  • Three-Phase: 208V

• Power Consumption: 3–8 kW

• Mixing System: Continuous cycle with gear-driven feed impeller

• Water System:

  • Self-priming stainless steel pump

  • Flow meter with drainage valves

• Hose Lengths:

  • Material Hose: 33" (35 mm diameter, with camlock fittings)

  • Water Hose: 130" (19 mm diameter)

• Remote Control: 50" push button remote

• Material Output: Adjustable based on speed settings

• Dimensions: Compact footprint for tight spaces (exact size not listed, but ask and we'll brag)

Standard Equipment Included

• Dust grate with vacuum port

• R8 stator and rotor with tab

• Turbo mixer kit with pressure gauge

• Stainless steel water pump system

• 35 mm hose cleanout adapter

• Electric cord (133 inches)

• Water hose (130 inches)

• Material hose (33 inches)

• Integrated tool storage

• Clean-up kit (scraper and sponge)

• Push-button remote control

Applications

• Cement/lime/gypsum-based plaster spraying

• Structural reinforcement mortars

• Anti-humidity and restorative plasters

• Insulating plasters (polystyrene or cork based)

• Fireproofing mortars

• Thermal insulating screeds

• Grout and core-fill grout injection

• Cement or anhydrite-based self-leveling screeds

• Glues for thermal insulation coatings

How It Works (Quick Version)

• Power Up: Connect to available network, and the Koine Dual sets its own limits.

• Mix It Right: Hopper feeds the material automatically; stainless steel pump delivers water; mixing happens in real-time.

• Spray or Pump: Material is transported through hoses and applied via the spray gun using a built-in compressor.

• Smart Monitoring: Diagnostics and Bluetooth app keep you informed and connected.

• Clean Up Fast: Only the mixing chamber needs washing—less time cleaning, more time billing.

Documents

Data Sheet
