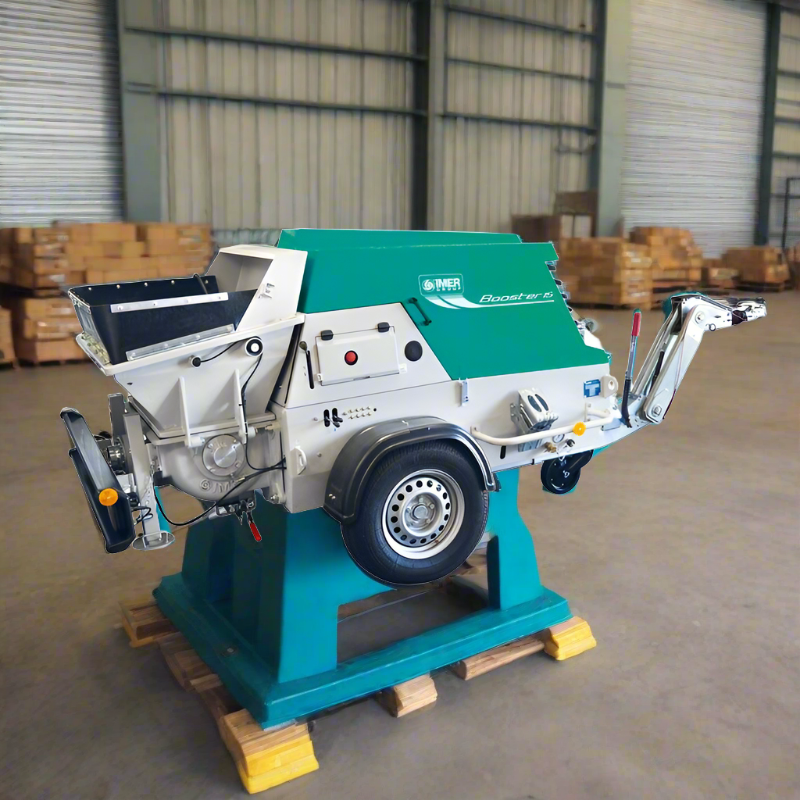

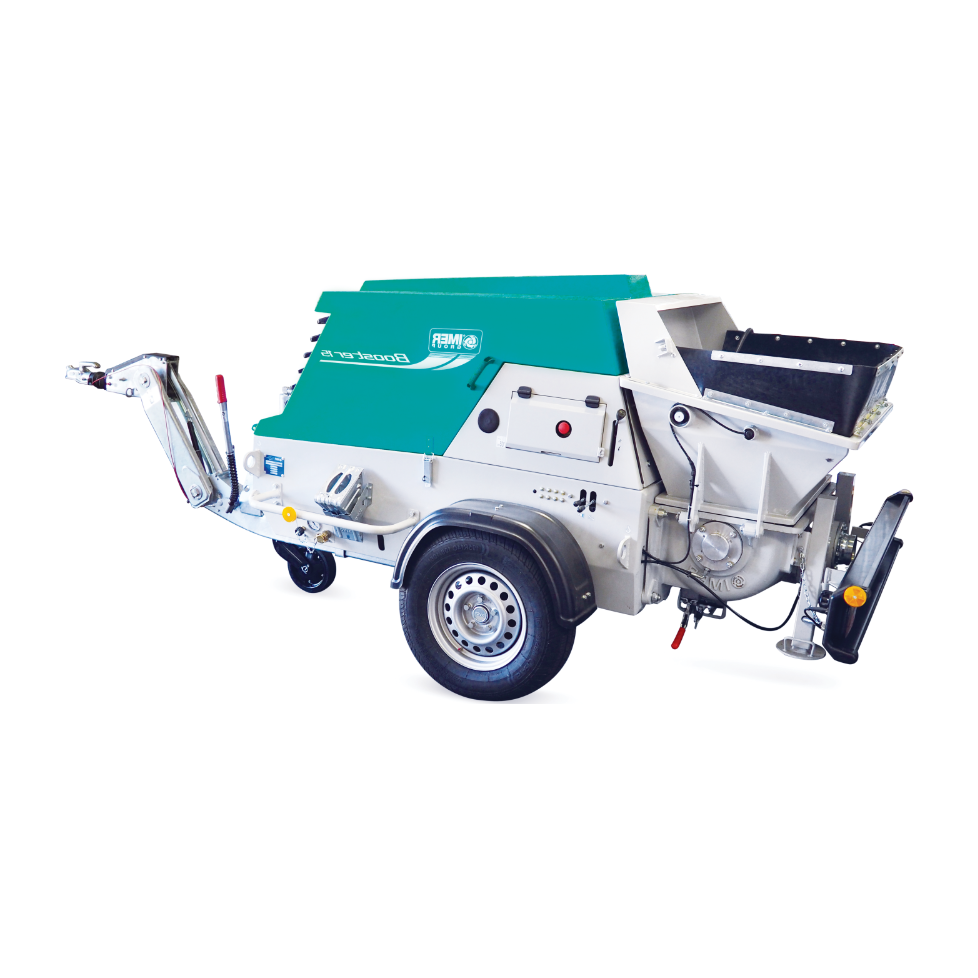

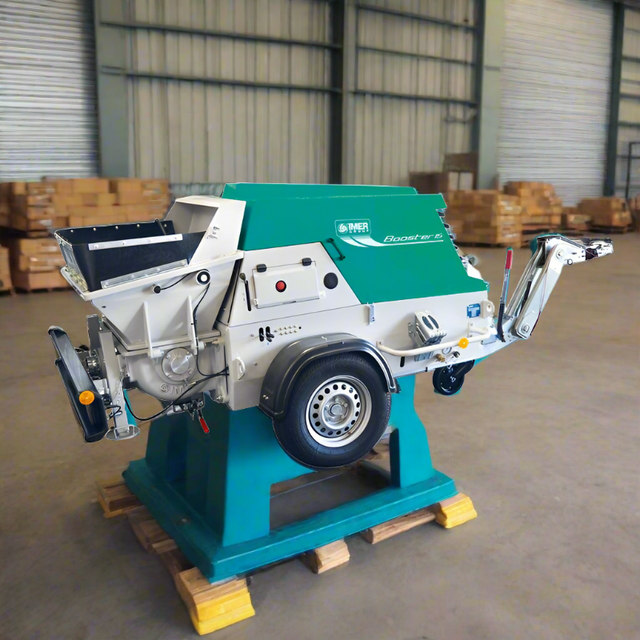

IMER Concrete Pump | 28 HP | Hydraulic Control | Booster 20 1106126

When tight spaces challenge the big jobs, the IMER Booster 20 steps up without breaking a sweat—or taking up half the block. Despite its compact footprint, this powerhouse hydraulic piston pump can deliver up to 20 cubic yards per hour of concrete, shotcrete, and high-strength grout. If your job site is short on space but big on demands, the Booster 20 is the ultimate heavy hitter.

Built tough, engineered smart, and designed to squeeze into places other pumps wouldn’t dare, the Booster 20 redefines performance on the move.

Features

• Compact Yet Mighty: Engineered for maximum output even in the most confined spaces—small footprint, massive results.

• Reliable Diesel Power: Equipped with a 28 HP Yanmar 3-cylinder diesel engine for consistent and efficient performance.

• Hydraulic Control System: Two-cylinder pumping action with hydraulic reverse ensures smooth, dependable operation with minimal downtime.

• Automatic Greasing System: Keeps critical components lubricated and happy, so you don’t have to babysit the machine.

• Concrete Hopper with Agitator: Designed to keep the mix moving and prevent clogs.

• Vibrating Grate (12V): Helps screen out oversized material, ensuring smooth and efficient pumping.

• Heavy-Duty 4" Delivery Pipe: Built to handle tough materials and heavy wear.

• Easy Maintenance: Hinged hopper and removable rear light panel for quick service access.

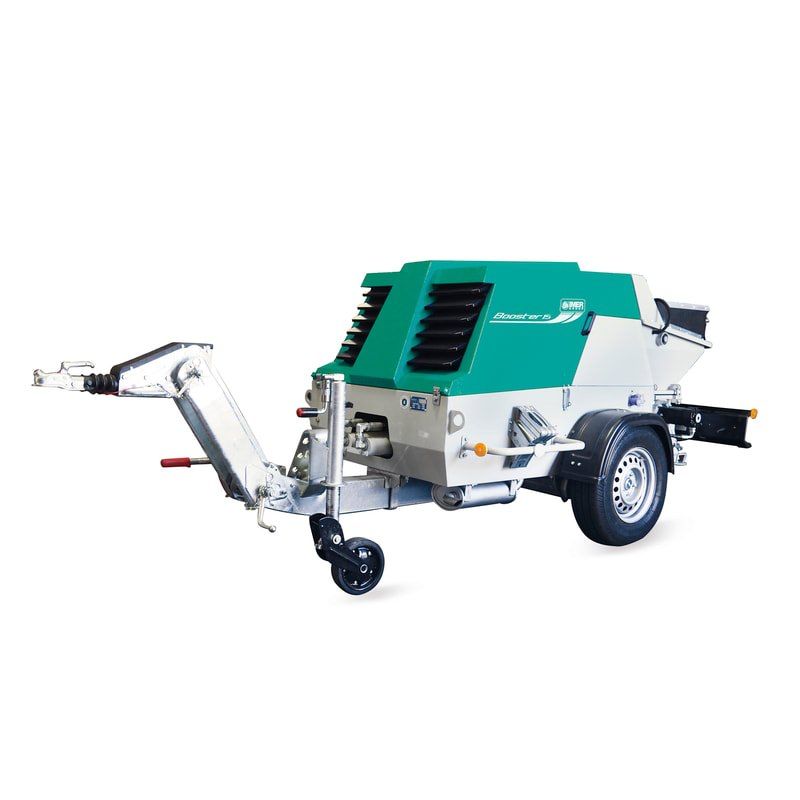

• Tow-Ready Design: Heavy-duty highway tow package with articulated tow bar, surge brakes, wheel chocks, and torsion bar suspension for a smooth ride.

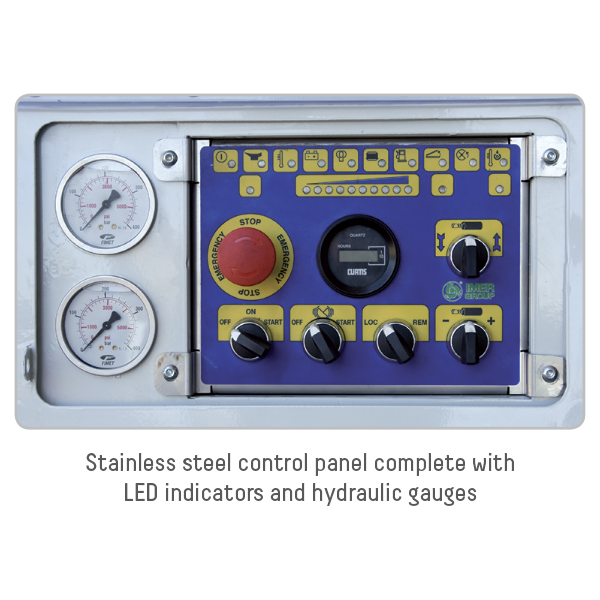

• Full Electric Control Panel: Operator-friendly interface to manage performance settings at a glance.

• Parking Brake and Hand Brake: Safety first—locks the unit securely in place during operation and towing.

Specifications

• Engine: Diesel Yanmar 3TNV80F-SMIMI, 3-cylinder, liquid-cooled

• Installed Power Rating: 28 HP

• Pumping System: 2-cylinder with hydraulic control and reverse function

• Max Aggregate Size: 1 inch

• Flow Rate: Adjustable from 3 to 20 cubic yards per hour

• Pumping Pressure: Up to 1,000 psi

• Pipe Outlet: 4-inch heavy-duty concrete pipe

• Hopper Capacity: 7 cubic feet (with optional extension kits available)

• Loading Height: 42.5 inches

• Machine Width: 58 inches

• Machine Length: 161 inches

• Machine Height: 60 inches

• Weight: 3,100 lbs

Standard Equipment

• 20 cubic yards (15.3 cubic meters) per hour output capability

• Automatic greasing system

• 12V vibrating grate

• Concrete hopper with built-in agitator

• Hydraulic reverse function

• S-valve with automatic wear compensation

• 4" heavy-duty delivery manifold

• Full-function electric control panel

• Piston head installation and removal tool kit

• Heavy-duty tow package with surge brakes

• Accessory box with grease pump

• Centralized grease ports for easier maintenance

• 4" cleaning balls for pipe maintenance

• Parking brake and wheel chocks included

• Long-lasting rear light panel (removable for service)

• Hand brake for locking unit securely during operation

Optional Equipment

• Hydraulic Power Washer – Part #1107208: For keeping your equipment spotless and running smooth.

• 5-Function Radio Remote – Part #1107001: Control the pump wirelessly from a distance.

• 4-Function Remote Control – Part #1107086: Simplified remote management for essential operations.

• Rubber Hopper Extension Kit (13 cu ft) – Part #1107196: More material, fewer stops.

• Steel Hopper Extension Kit (17 cu ft) – Part #1107197: Heavy-duty upgrade for serious material demands.

Document

Product sheet
