IMER Articulated & Telescopic Lift | 42 ft. Working Height | IM R 13

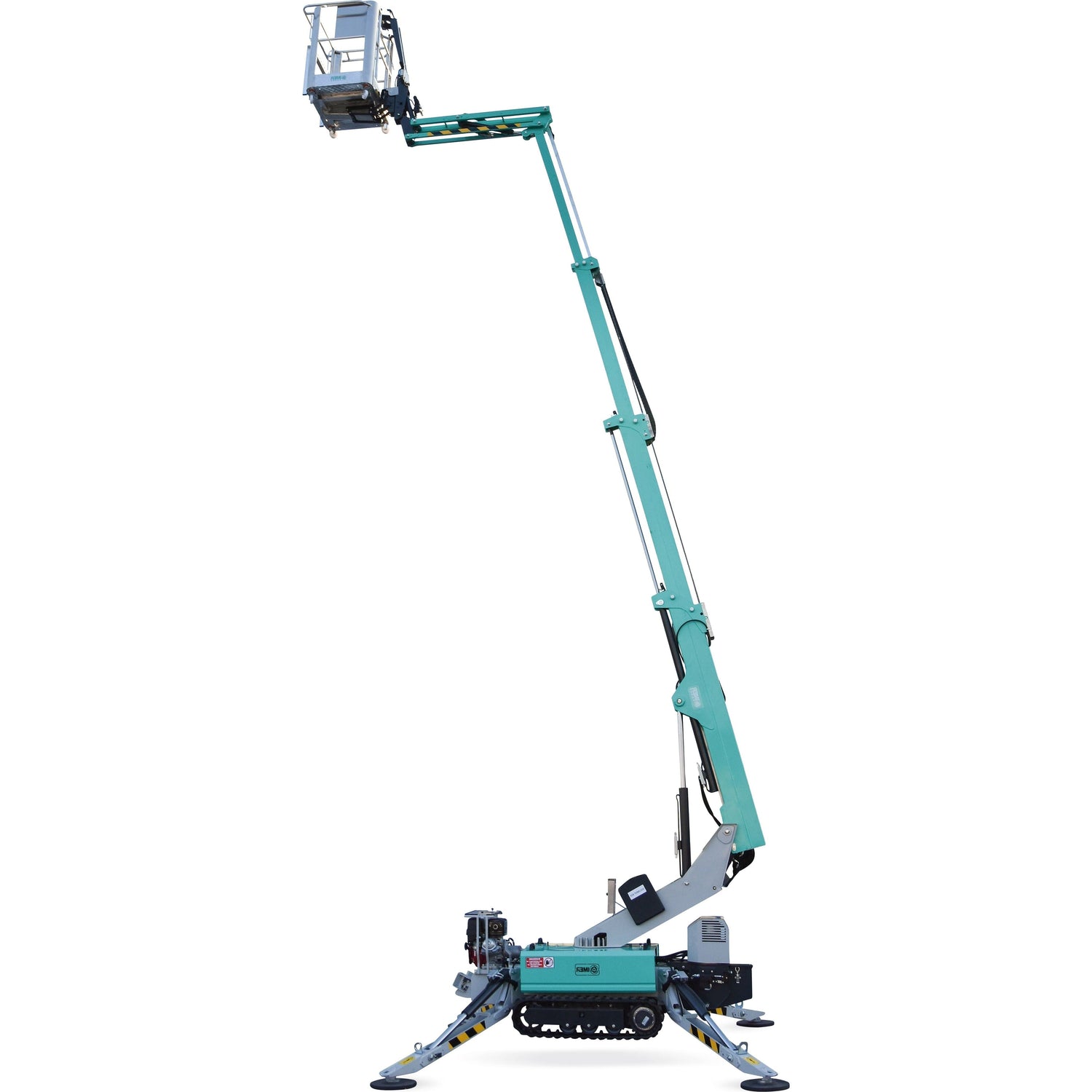

IMER IM R-13 – 42 FT Articulating Telescopic Boom Lift (Model: 1128728)

Compact, Powerful, and Versatile – Ideal for Tight Spaces & Heavy Loads

Key Features & Benefits

✔ 42 FT Working Height – Reaches elevated work areas with precision.
✔ 510 LB Platform Capacity – Handles heavy tools, materials, and multiple workers.
✔ Articulating & Telescopic Boom – Combines flexibility and extended reach for complex job sites.
✔ Compact & Track-Driven – Superior maneuverability in tight spaces (indoor/outdoor).

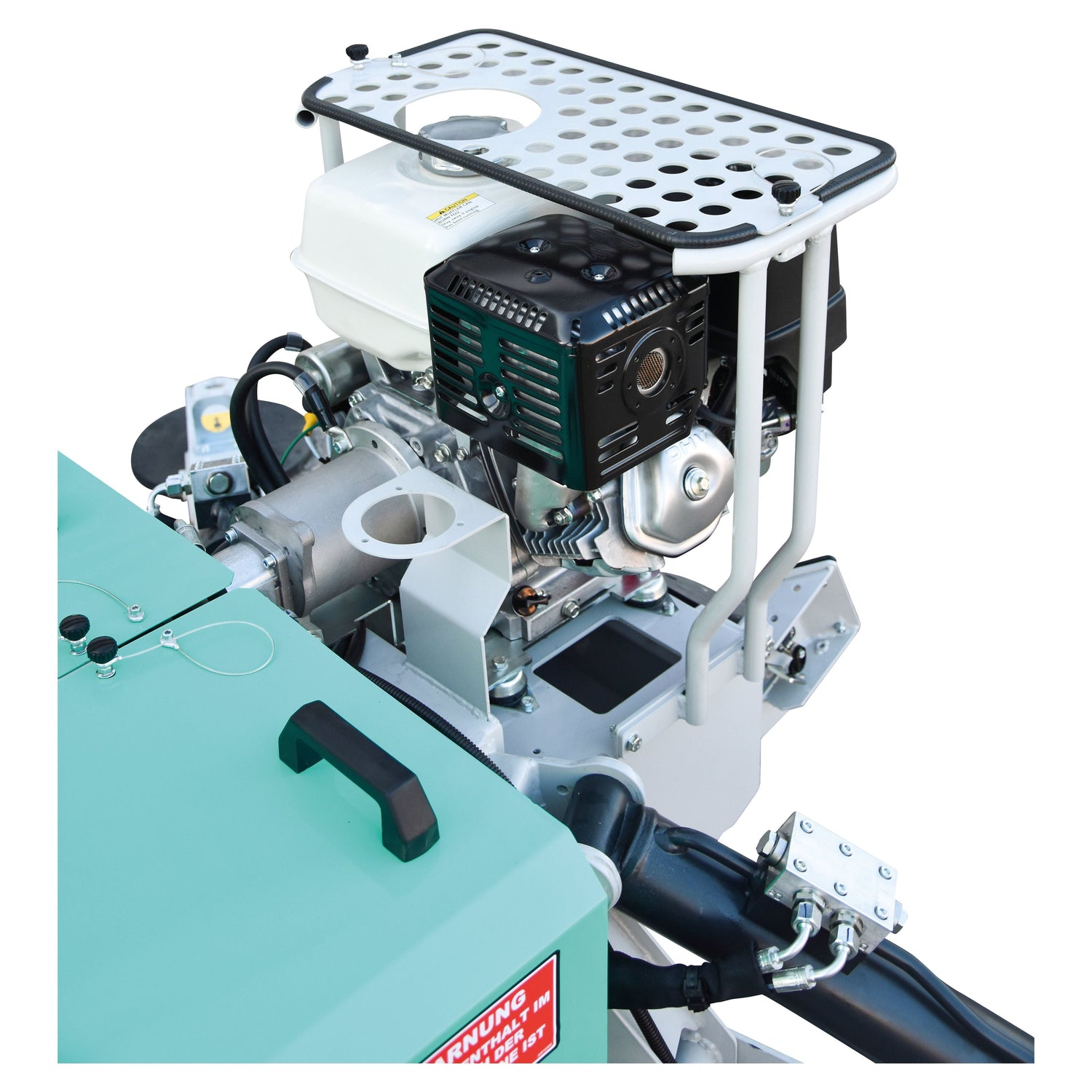

✔ Honda GX390 Gas Engine – Reliable power for all-day operation.
✔ 360° Non-Continuous Rotation – Full-range positioning without blind spots.
✔ Auto-Leveling Outriggers – Ensures stability on uneven terrain.
✔ Rubber Tracks – Minimizes ground damage and enhances traction.

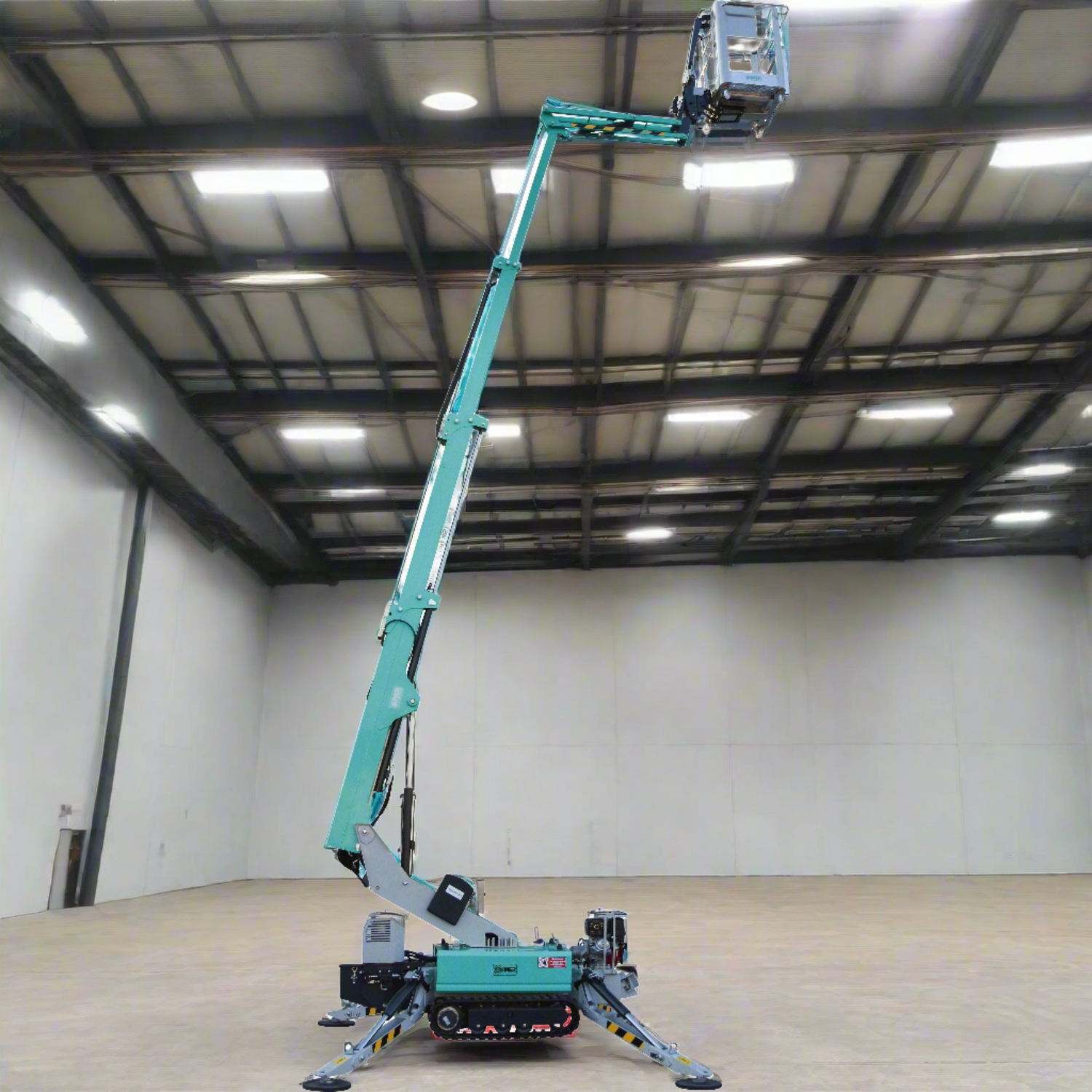

✔ Indoor/Outdoor Ready – Includes electric motor option for indoor use (zero emissions).

Technical Specifications

• Max Working Height: 42 ft (13 m)

• Platform Height: 36 ft (11 m)

• Side Outreach:

  • 17 ft @ 510 lbs (max capacity)

  • 20.5 ft @ 308 lbs (extended reach)

• Basket Dimensions: 57" L x 27.5" W x 43" H

• Basket Rotation: 124°

• Machine Rotation: 355° (non-continuous)

• Drive Speed: 0-1 mph

• Max Gradeability: 30%

• Stabilizer Load Capacity: 2,496 psf

• Machine Weight: 3,410 lbs

• Power Options:

  • Honda GX390 Gas Engine (standard)

  • Electric Motor (indoor use)

Standard Equipment

• Automatic outrigger leveling system

• Emergency hand pump (manual override)

• Load & tip detection sensors

• Hydraulic jib for precise positioning

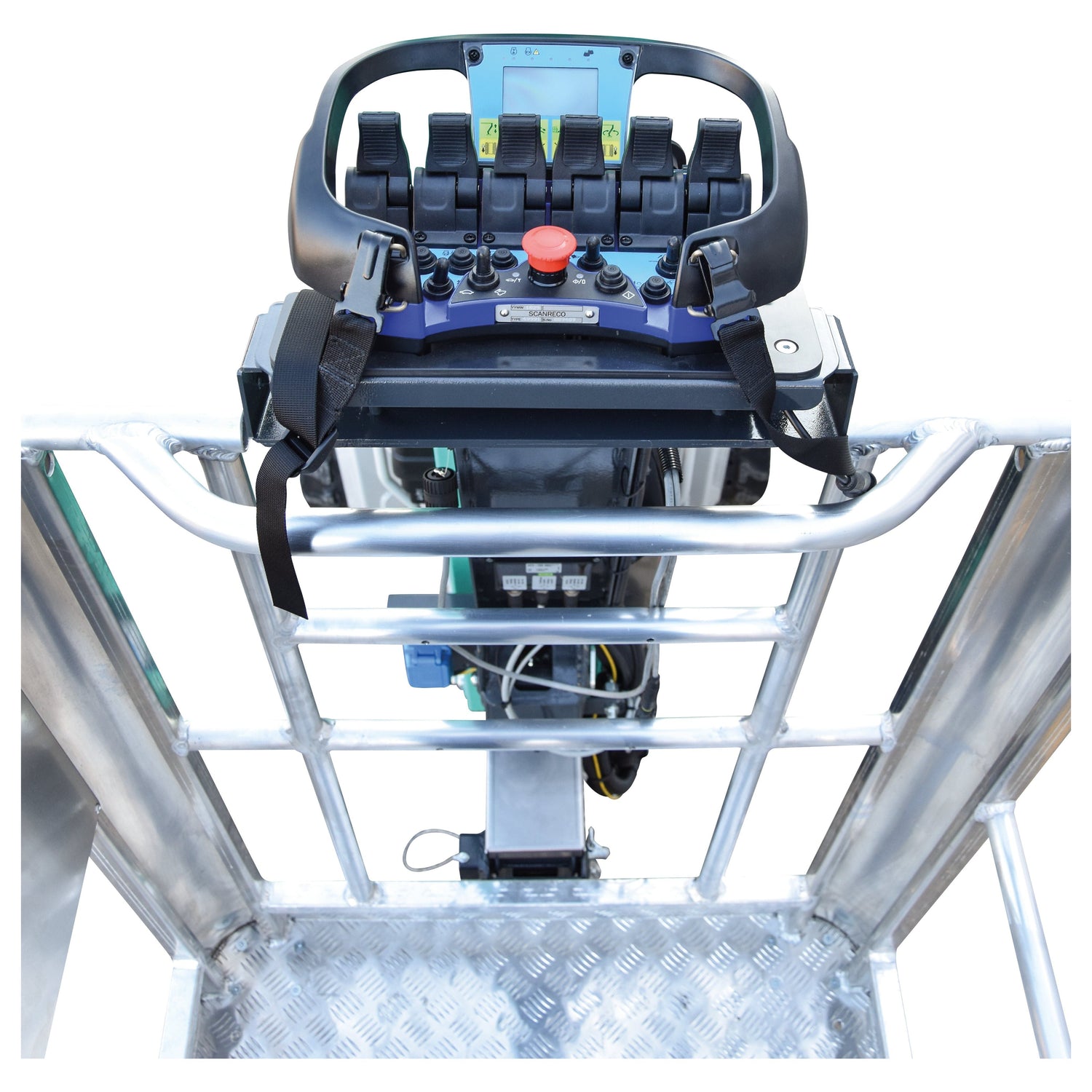

• Removable wired control box

• Proportional controls with diagnostics

• 120V onboard battery charger

• Air/water outlet in basket (for tools)

• AC power in platform

• 3-speed travel settings

• Rubber tracks (minimizes ground damage)

Optional Upgrades

• Wireless Remote Control – For solo operation

• Non-Marking Tracks – Protects sensitive floors

• Hydraulic Track Width Adjustment – Enhanced stability

• 12V Emergency Pump – Backup power redundancy

• LED Work Lights – For low-light conditions

Why Choose the IMER IM R-13?

✅ Unmatched Maneuverability – Fits through standard doorways (min. transport width: 2.5 ft).
✅ Heavy-Duty Performance – 510 lb capacity outperforms competitors in its class.
✅ All-Environment Ready – Tracks handle mud, gravel, and indoor floors.
✅ Safety-First Design – Load sensors, auto-leveling, and emergency protocols.
✅ Multi-Industry Application – Construction, maintenance, warehousing, and more.

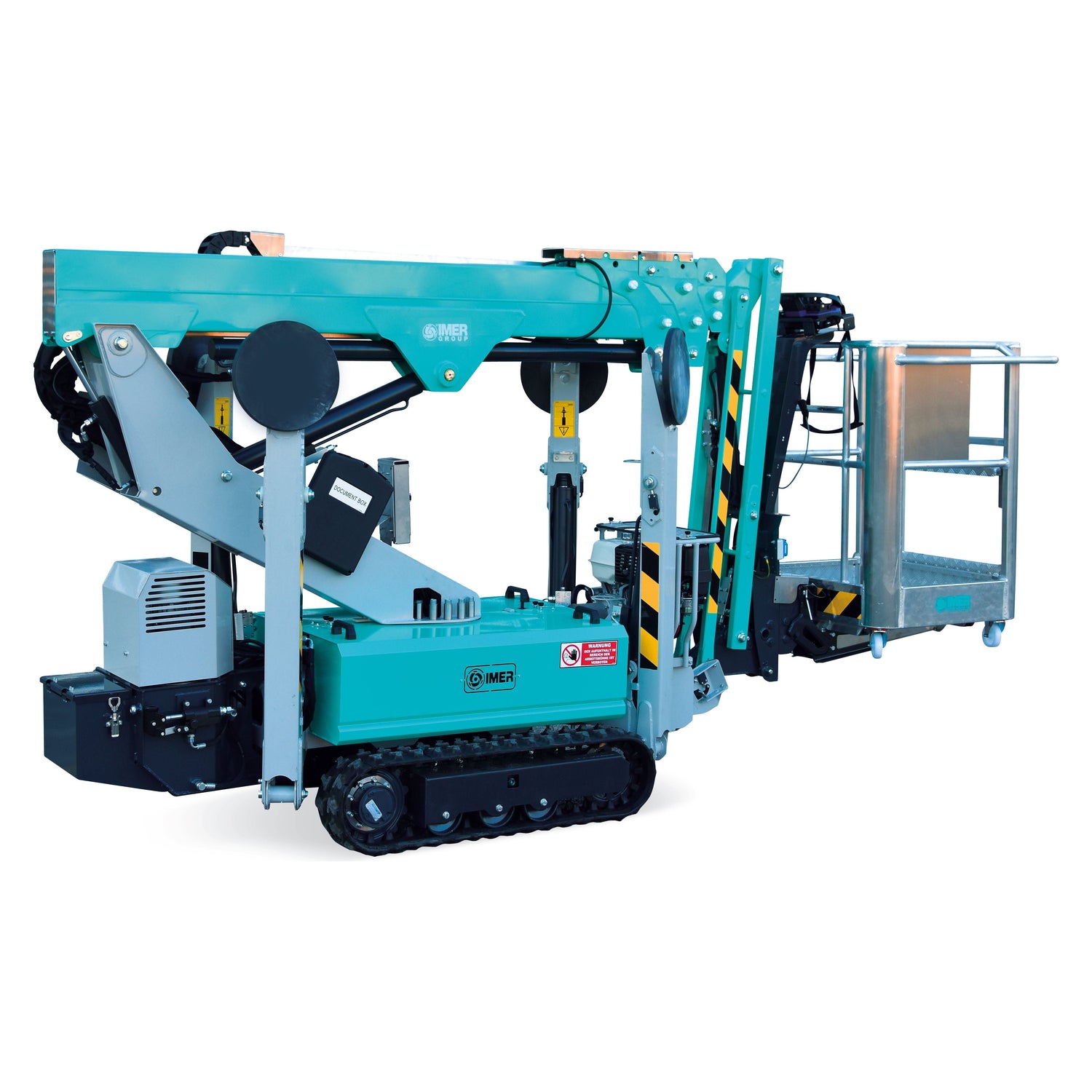

Dimensions & Transport

• Stowed Height: 6.6 ft (min) – 6.11 ft (max)

• Transport Length (without basket): 12.3 ft

• Outrigger Footprint: 8.8 ft x 9.2 ft

Perfect For:

• Construction – Facade work, steel erection

• Industrial Maintenance – HVAC, piping, lighting

• Warehousing – High shelving access

• Landscaping – Tree trimming, signage
