IMER 3 Phase Continuous Mixer & Pump | 9 HP | KOINE 4 1106304

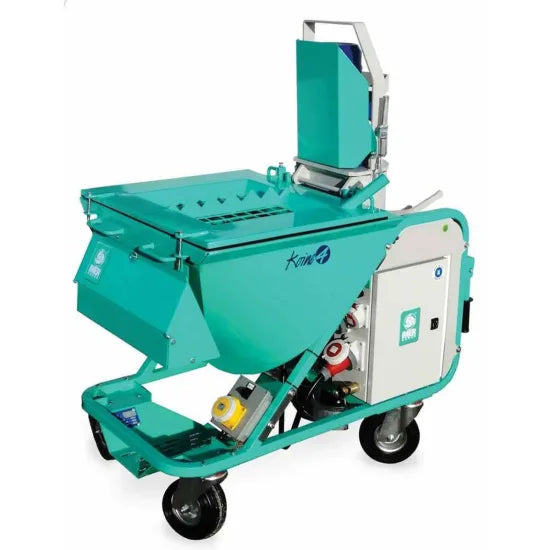

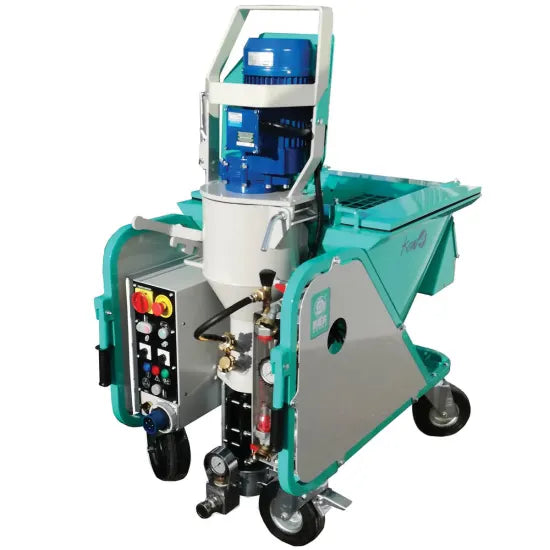

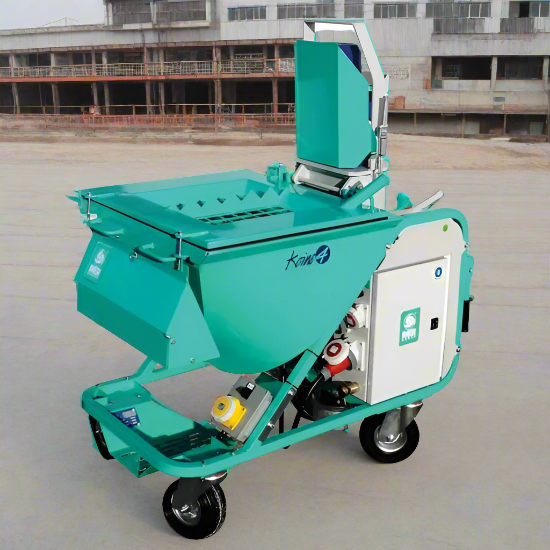

The IMER KOINE 4 is a heavy-duty, continuous mixer-pump engineered for maximum productivity in large-scale applications. Designed for high-volume mixing and pumping, it excels in handling wall grouts, self-leveling underlayments, fireproofing slurries, and other viscous materials with unmatched efficiency. Its quiet operation makes it ideal for indoor job sites, while its robust construction ensures reliability in demanding environments.

Key Features & Benefits

✔ High-Capacity Mixing & Pumping – Delivers 140 cu ft/h material flow rate for rapid project completion.
✔ Powerful 9 HP Tri-Phase Motor – Ensures consistent performance under heavy loads (208-220V/60Hz).
✔ Turbo Mixer Kit – Enhances material homogenization for smooth, clump-free output.
✔ Self-Priming Stainless Steel Water Pump – Provides 70 PSI boost for optimal water-material blending.
✔ Gear-Driven Feed Impeller (1 HP) – Maintains steady material flow without clogging.
✔ Long-Distance Pumping – Capable of 200+ ft for grouting/fireproofing and 300+ ft for self-leveling compounds.

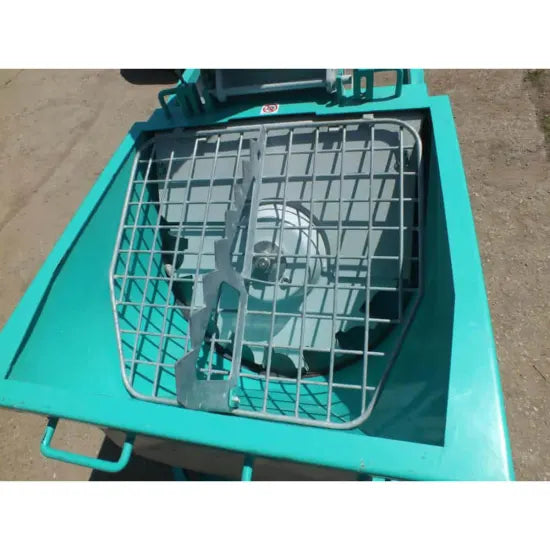

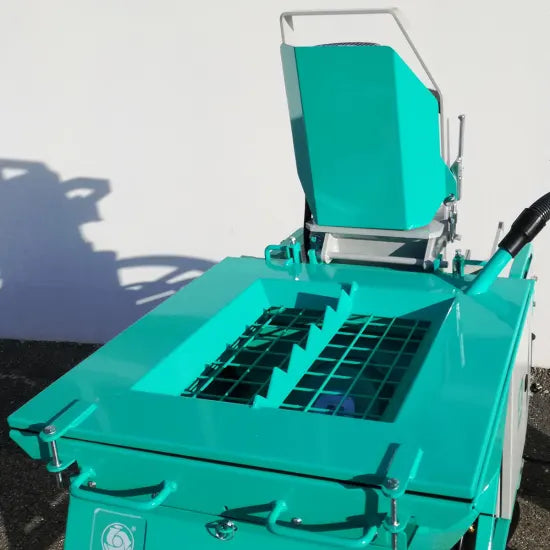

✔ Integrated Dust Grate with Vacuum Port – Reduces airborne particles for a cleaner workspace.

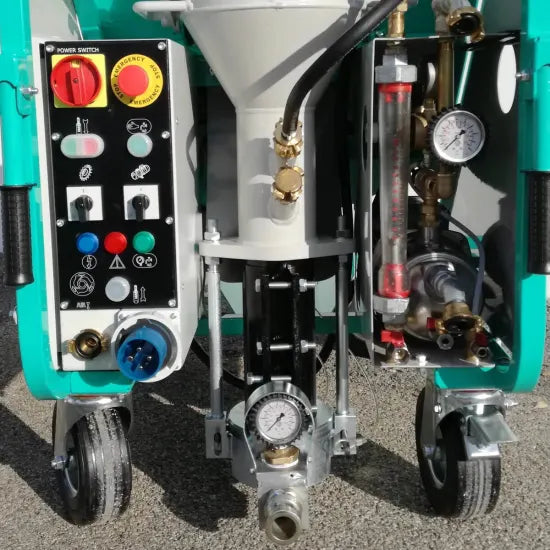

✔ Precision Water Flow Meter & No-Freeze Discharge Valve – Ensures accurate water-to-material ratios.
✔ Heavy-Duty Hose System – Includes 35mm (1-3/8") material hose with quick connects and 19mm (3/4") water hose.
✔ Convenient Cleanup & Storage – Features a 35mm hose clean-out adapter, scraper, sponge, and built-in tool storage.
✔ Durable Construction – Stainless steel components and heavy-gauge frame for long-term durability.

Technical Specifications

• Power Supply: 208-220V/60Hz, 3-Phase

• Total Power: 9 HP

  • Mixing Motor: 7.5 HP

  • Feeding Impeller Motor: 1 HP

  • Water Booster Pump: 70 PSI

• Material Flow Rate: 140 cu ft/h

• Max Pumping Distance:

  • Grouting/Fireproofing: 200+ ft

  • Self-Leveling Underlayments: 300+ ft

• Gearbox Speed: 400 RPM

• Loading Height: 35.5 in

• Dimensions (W x L x H): 29" x 47" x 61.5"

• Weight: 510 lbs

Standard Equipment Included

• Dust Grate with Vacuum Port

• R8 Stator & Rotor (with tab)

• Turbo Mixer Kit

• Material Pressure Gauge

• Gear-Driven Feed Impeller

• Self-Priming Stainless Steel Water Pump

• 35mm Hose Clean-Out Adapter

• Water Flow Meter & No-Freeze Discharge Valve

• 130" Electric Cord

• 130" Water Hose (19mm / 3/4")

• 33" Material Hose (35mm / 1-3/8") with Quick Connects

• Integrated Tool Storage Box

• Cleanup Kit (Scraper & Sponge)

Optional Accessories (Sold Separately)

• Dual Diaphragm Compressor (3-Phase) – Part #1107640

• Koine Spray Gun Kit – Part #1107005

• 5" Overhead Wand – Part #1107549

• Extra 35mm Material Hose (33") – Part #1107528

• 35mm-to-25mm Reducer – Part #1107565

• R7-1.5 Rotor & Stator Set – Part #1107625 / #1107624

• Mixing Paddle (Light Materials) – Part #1107541

• 35mm Female Spray Gun – Part #1107641

Ideal Applications

• Self-Leveling Flooring – High-speed pumping for large areas.

• Wall Grouting & Fireproofing – Consistent material delivery over long distances.

• Commercial & Industrial Projects – Where high-volume output and reliability are critical.

The IMER KOINE 4 is the ultimate solution for contractors who demand power, precision, and efficiency in continuous mixing and pumping operations.
