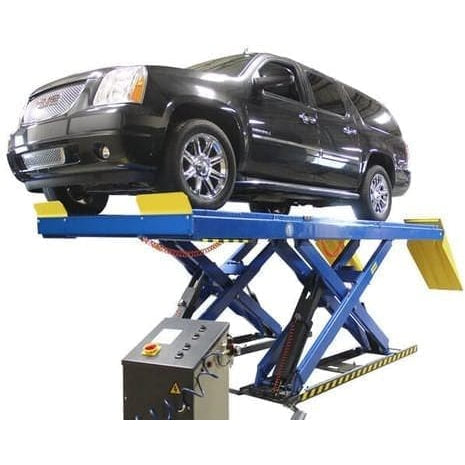

AtlasĀ® PX16A 16,000 lb. Capacity Scissor Alignment Lift

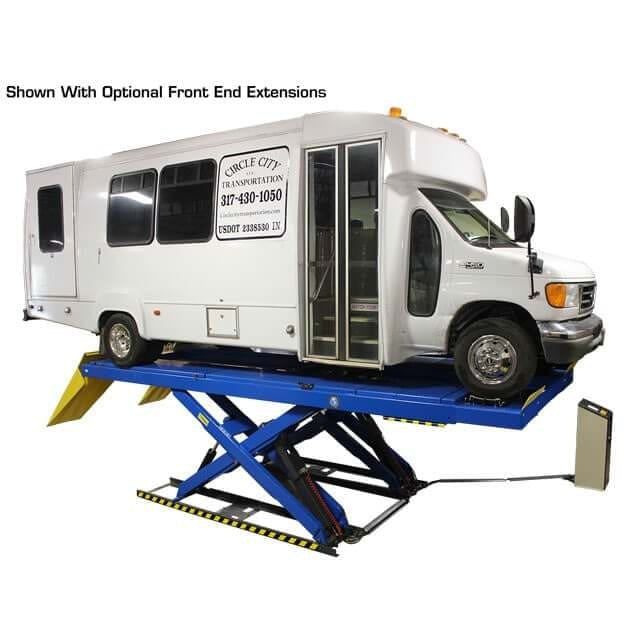

The AtlasĀ® PX16A Scissor Alignment Lift is the ideal solution for service shops seeking a space-saving, narrow-width alignment lift that can handle a wide range of vehicles, from passenger cars to heavy-duty long wheelbase trucks and vans. With a 16,000 lb. capacity, this lift allows you to perform 4-wheel alignments on vehicles with wheelbases from 96 inches to 184 inches.

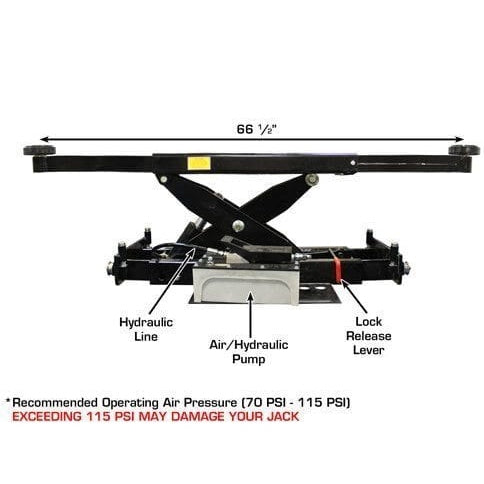

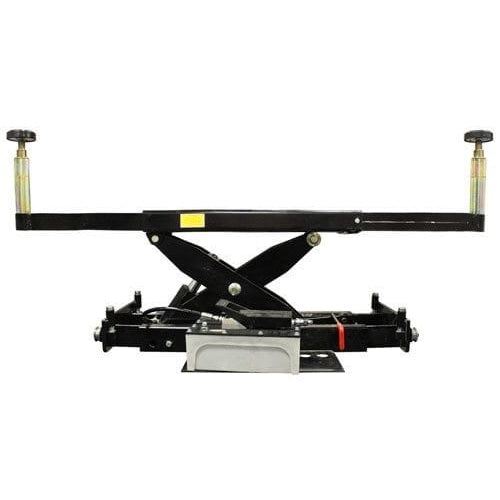

Equipped with turntables, built-in slip plates, and a semi-enclosed airline routing system, the AtlasĀ® PX16A is designed for seamless operation. The system includes an optional airline kit to power rolling jacks without cluttering the shop floor. This combo package also includes two AtlasĀ® RJ8 Rolling Bridge Jacksāperfect for lifting vehiclesā wheels off the runways for tire and brake service.
Features of the AtlasĀ® PX16A Scissor Alignment Lift
-
16,000 lb. Capacity
Heavy-duty design to accommodate most vehicles, from passenger cars to larger trucks and vans. -

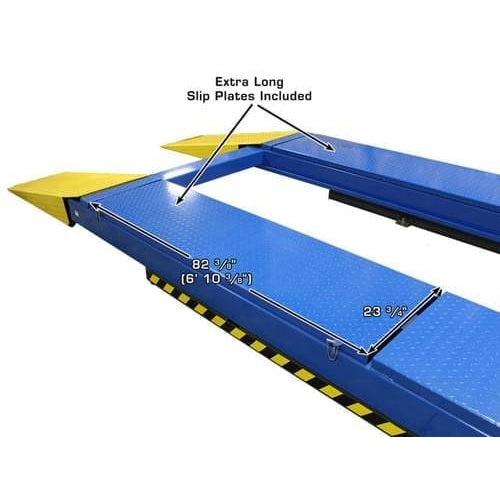

Built-in Slip Plates & Alignment Turntables
Includes everything you need to perform precise 4-wheel alignments. -

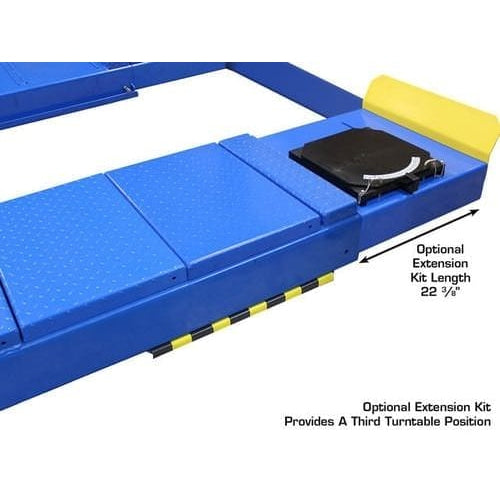

Recessed Positions for Turntables
Keeps the platform organized and avoids clutter. -
Scissor Mechanism with Precision Leveling
Ensures smooth, stable operation and perfect wheel alignment. -

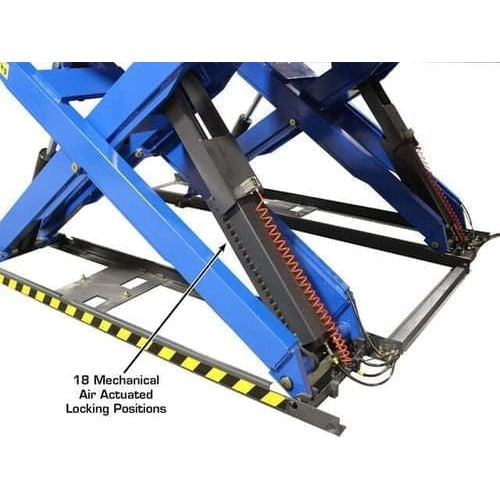

Air Operated Mechanical Safety Locks
Engages automatically with an external air supply (90-120 PSI) for secure operation. -
Emergency Manual Pump
Provides a backup for lowering the platform in case of air pressure loss. -
Heavy-Duty Construction
Designed for long-lasting performance in commercial environments. -

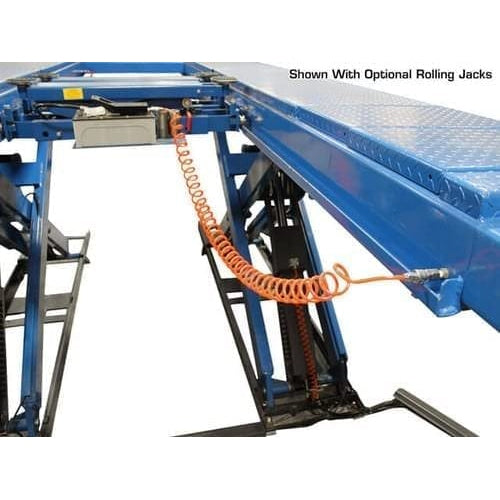

Includes Optional Airline Kit
Prevents hoses from cluttering the shop floor while powering the rolling jacks. -

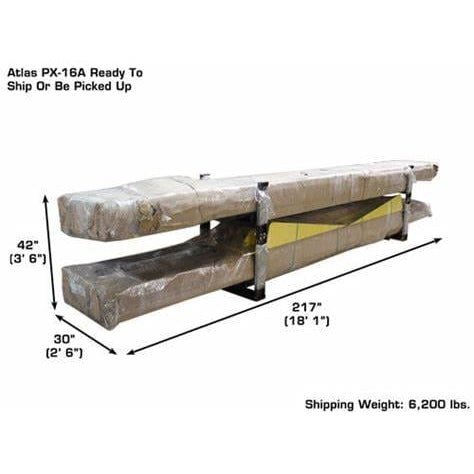

Shipping Weight: 6,200 lbs.
Requires a minimum of 6" concrete with a 3000 PSI rating for installation.
Specifications of the AtlasĀ® PX16A Scissor Alignment Lift
| Spec | Details |
|---|---|
| Lifting Capacity | 16,000 lb. |
| Lifting Height | 71 1/2" (5' 11 1/2") |
| Lowered Height | 13 1/4" |
| Overall Width | 94" (7' 10") |
| Overall Length with Approach Ramps | 271" (22' 7") |

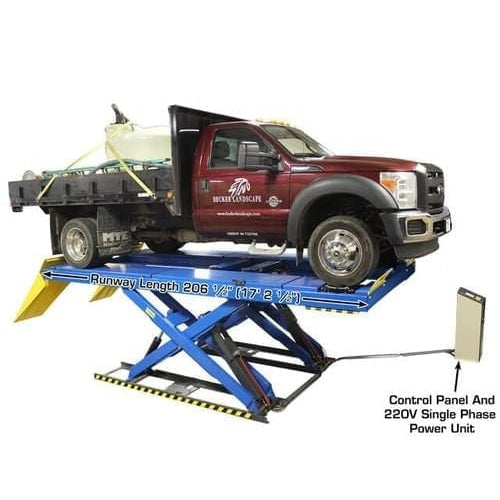

| Overall Length without Ramps | 206 1/2" (17' 2 1/2") |
| Approach Ramp Length | 66" (5' 6") |
| 4-Wheel Alignment Wheelbase Max | 184" |
| 4-Wheel Alignment Wheelbase Min | 96" |
| Runway Width | 23 3/4" (1' 11 3/4") |
| Width Between Runways | 44 7/8" |
| Width Between Runway Rails | 41 3/8" |
| Air Requirement | 90-120 PSI |

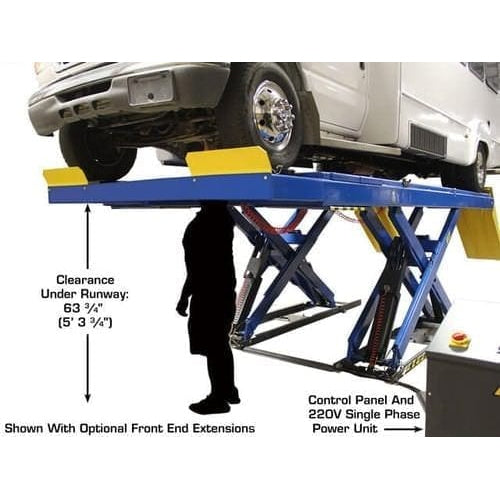

| Motor/Electrical Requirement | 220V +/- 5%, Single Phase, 30 Amp Breaker Required |
| Oil Requirement | 3.5 Gallons AW32/AW46 |
| Shipping Weight | 6,200 lbs. |
