The Atlas® 12AWFSL 12,000 LB Alignment Scissor Lift is designed for commercial-grade use, offering both strength and precision with a lifting height of over seven feet. Perfect for alignment shops with limited space, this lift can be floor-mounted or recessed for a flush mount installation. With its extra-long 53” approach ramps, it’s easy to load low-riding vehicles and maintain precision.

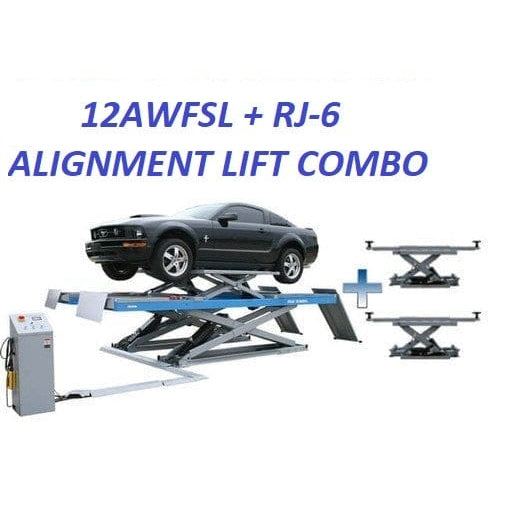

This scissor lift comes equipped with an integrated “Wheels Free” lifting system, slip plates, and alignment turntables, along with a rear cross beam for extra stability. Ideal for handling everything from small foreign cars to one-ton dual rear-wheel pickup trucks, the Atlas® 12AWFSL allows for easy operation and a safe working environment. The RJ-6 rolling jack ensures smooth action with a 6,000 lb. capacity and is engineered for air/hydraulic operation.
Features
-
12,000 lb. Capacity – Ideal for heavy-duty alignment needs
-
Commercial Grade – Built to last with rugged performance
-
“Wheels Free” Lifting System – Provides easier and more efficient lifting
-

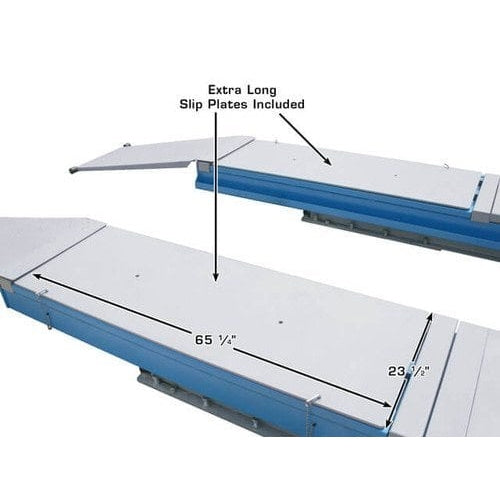

Slip Plates & Alignment Turntables – Includes turntable covers for added protection
-

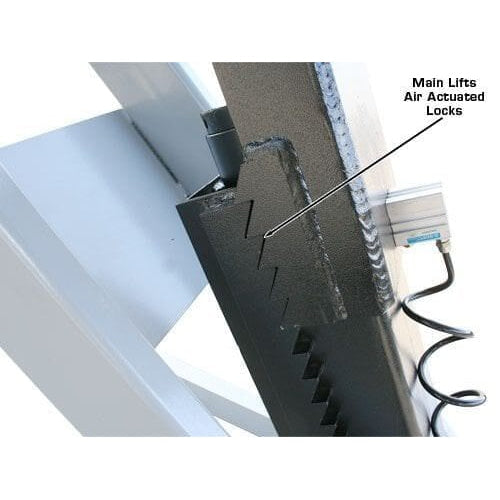

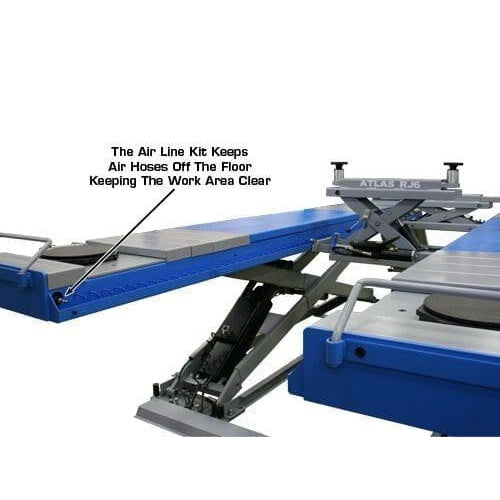

Air-Operated Single Point Lock Release – Requires external air supply
-
Precise Platform Leveling Accuracy – For accurate tire alignments
-
Rear Cross Beam for Extra Stability – Added support for heavy-duty lifting
-
Emergency Manual Pump – Manual lowering in case of emergency
-
CE Certified – Compliant with European standards
-
Surface or Flush Mountable – Flexible installation options
-
220V, 1-Phase Electric Operation – Requires 30amp breaker
-
Shipping Weight: 5,500 lbs.
-
2 Year Structural Warranty, 1 Year Hydraulic Warranty (Parts Only)
Specifications
-
Lifting Capacity: 12,000 lbs.
-

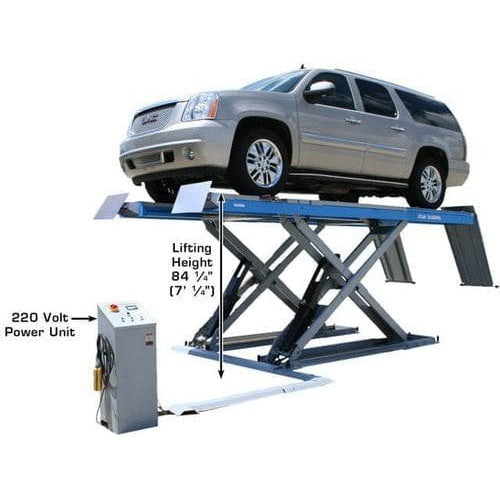

Lifting Height: 84 1/4” (7' 1/4”)
-

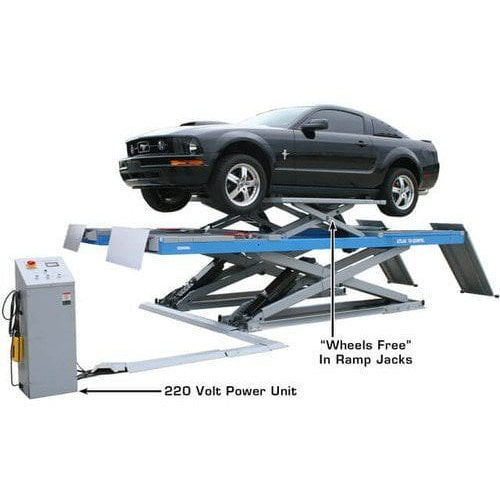

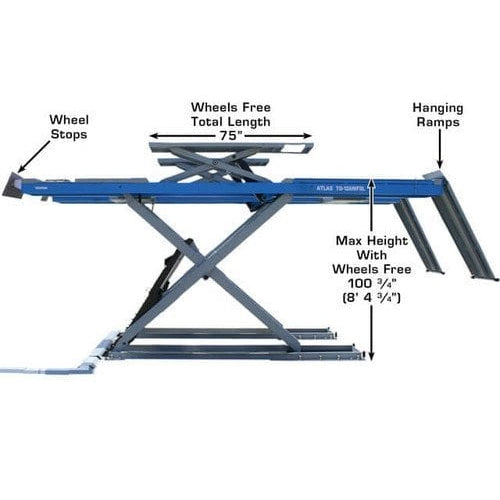

“Wheels Free” in Ramp Jack System Height: 17”
-

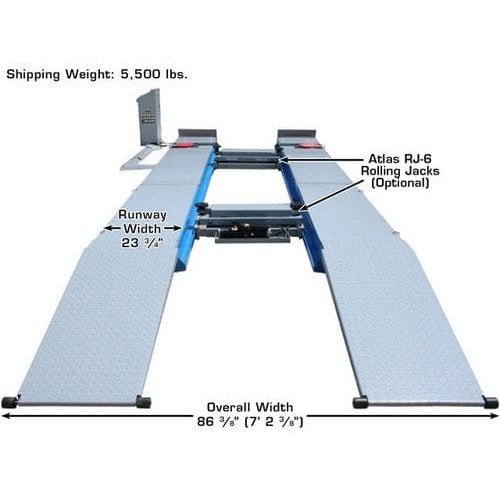

Overall Width: 86 3/8” (7' 2 3/8”)
-
Overall Length (with Approach Ramps): 250” (20' 10”)
-
Overall Length (without Approach Ramps): 197” (16' 5”)
-
Approach Ramp Length: 53” (4' 5”)
-
Runway Width: 23 3/4” (1' 11 3/4”)
-
Lowered Height: 11 1/2”
-

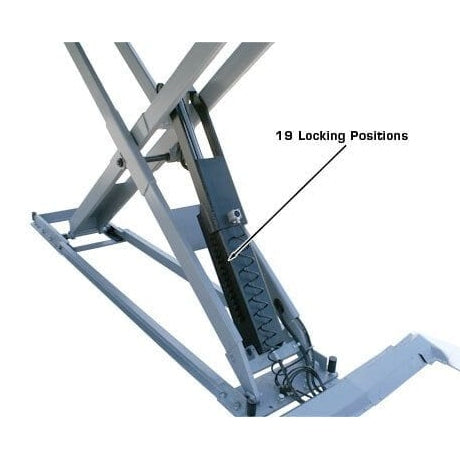

Locking Positions: 19
-
Width Between Runways: 39”
-
Motor/Electrical Requirement: 220V +/- 5% (209-231V) single phase, 30amp breaker required
-
Shipping Weight: 5,500 lbs.

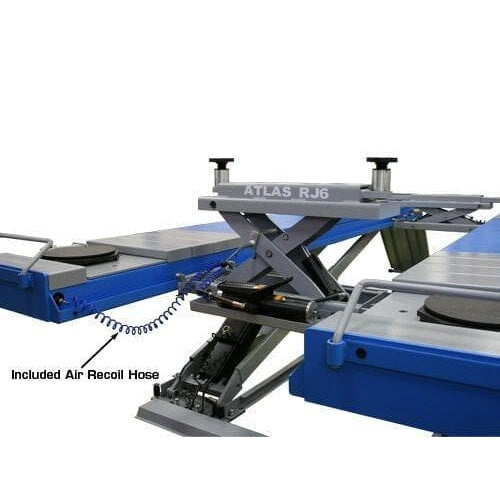

Atlas® RJ-6 Rolling Jack Specifications
-
Max. Width: 64 1/2”
-
Min. Width: 30 1/2”
-

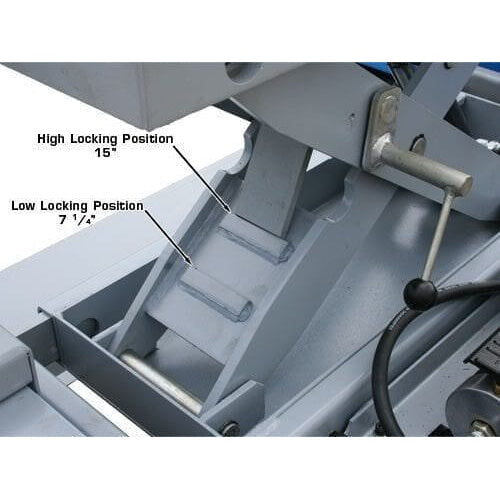

First Locking Position: 7 1/4”
-
Second Locking Position: 15”
-
Max. Lifting Height: 17 5/8”
-
Max. Capacity: 6,000 lbs.
-
Recommended Operating Air Pressure: 70-105 PSI
-
Shipping Weight: 350 lbs.
