The Atlas® BP8000 Baseplate 2-Post Lift is the ideal lifting solution for home garages or smaller professional setups with limited ceiling height. With a compact overall height of just 108 inches, it fits comfortably under a 9'3" ceiling while still boasting an 8,000 lb. capacity—more than enough for most cars, SUVs, and light-duty trucks.
Designed for hobbyists and light-duty applications, the BP8000 packs pro-level features like super-symmetric arms, single-point lock release, and automatic arm restraints—making it a dependable choice that punches above its weight class.
Features
-
8,000 lb. Capacity: Strong enough to handle most cars, SUVs, and light-duty trucks.
-
Low Ceiling Ready: Just 108″ tall, fits in garages with ceilings as low as 9'3".
-
Baseplate/Open-Top Design: Ideal for low-clearance garages without overhead obstructions.
-

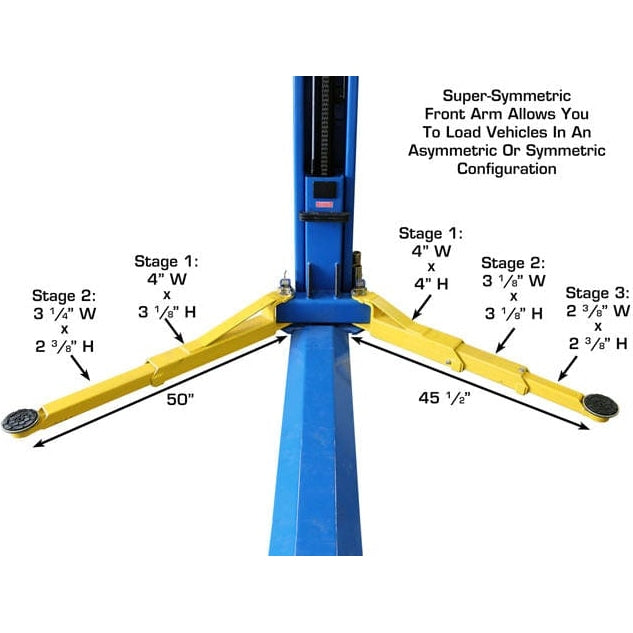

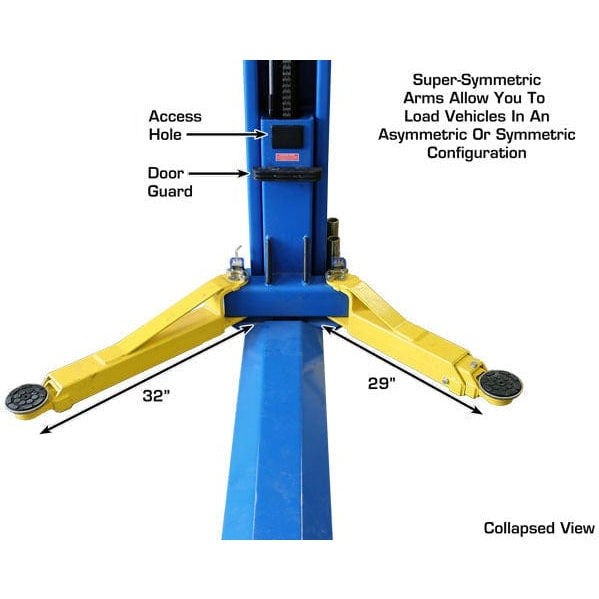

3-Stage Front Arms / 2-Stage Rear Arms: Enhanced reach and flexibility for different vehicle sizes.
-

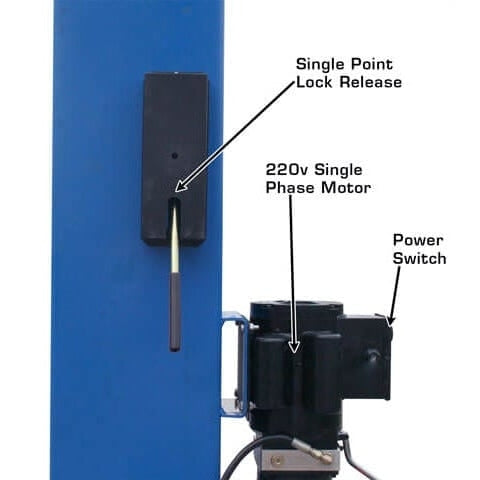

Single-Point Lock Release: Unlocks both columns with a single control.
-

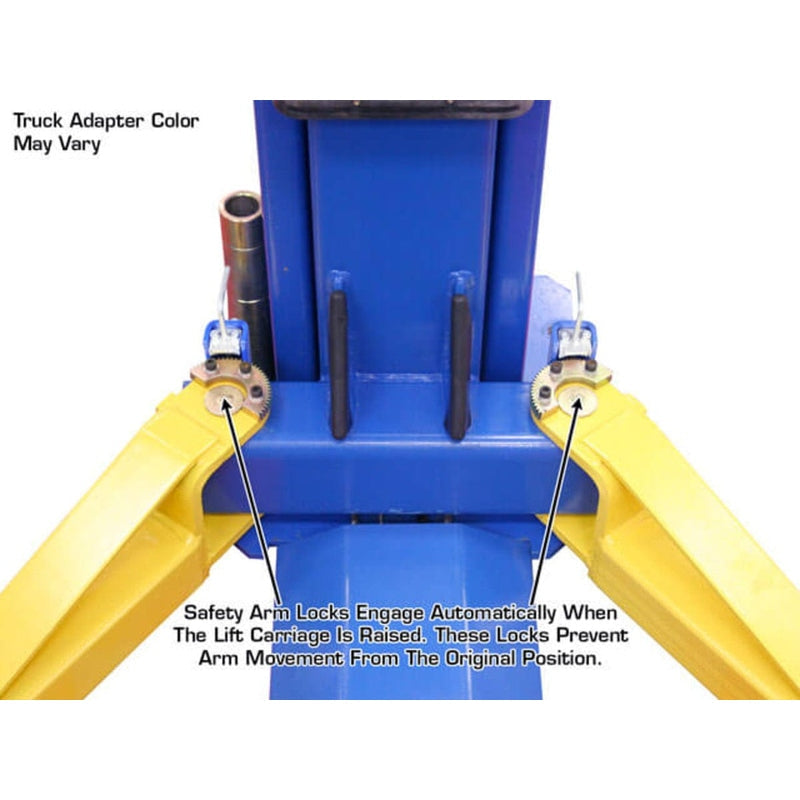

Automatic Arm Restraints: Keeps arms securely in place during lifts.
-
Double Safety Lock System: Provides an extra layer of safety while lifting.
-

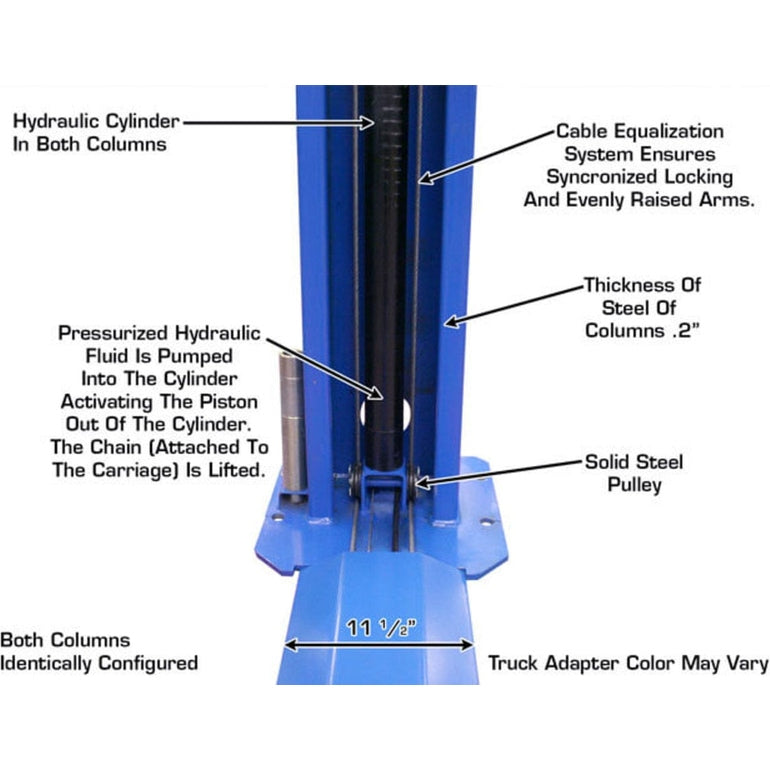

Dual Hydraulic Chain-Drive Cylinders: Delivers smooth lifting action, built to ANSI standards.
-
Powder Coat Finish: Durable, shop-tough protection that resists rust and wear.
-
12-Piece Truck Adapter Set Included: Ready to handle a variety of vehicle frames.
-
Mounting Hardware Included: Everything you need for installation is in the box.
Specifications
| Specification | Details |
|---|---|
| Lift Capacity | 8,000 lb. |

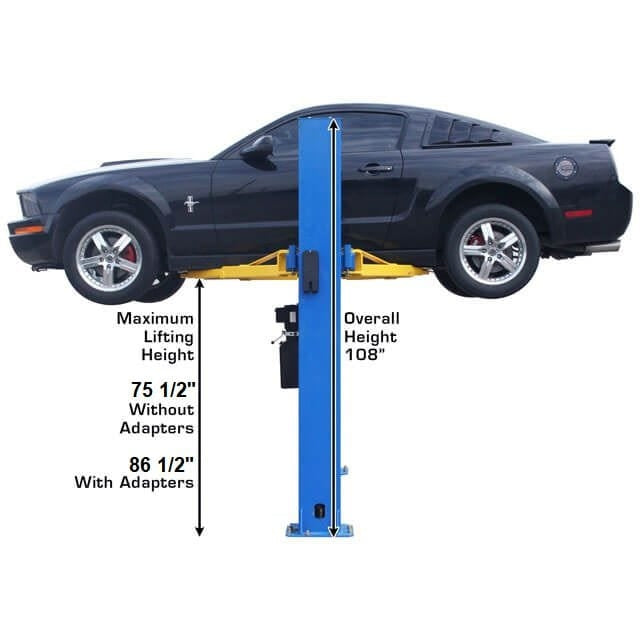

| Overall Height | 108″ (9′) |
| Floor Width | 132″ (11′) |

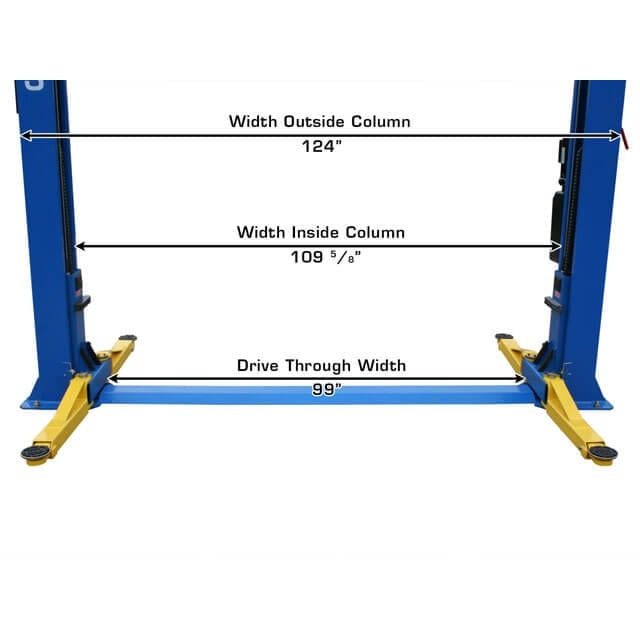

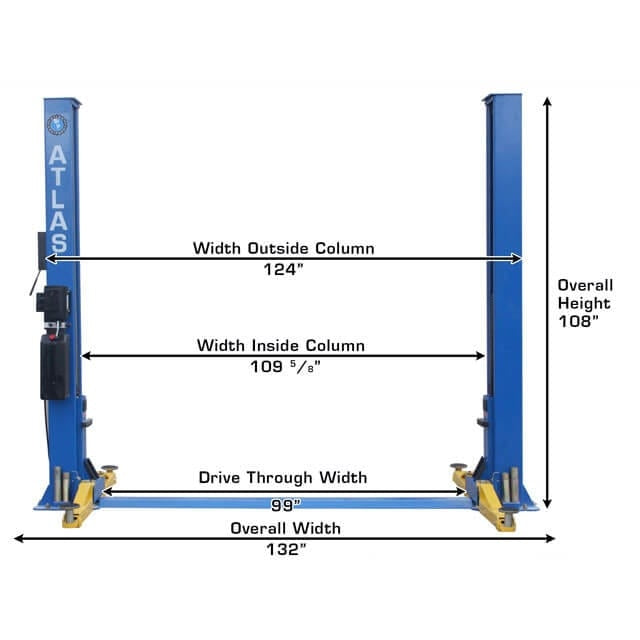

| Outside Column Width | 124″ (10′ 4″) |

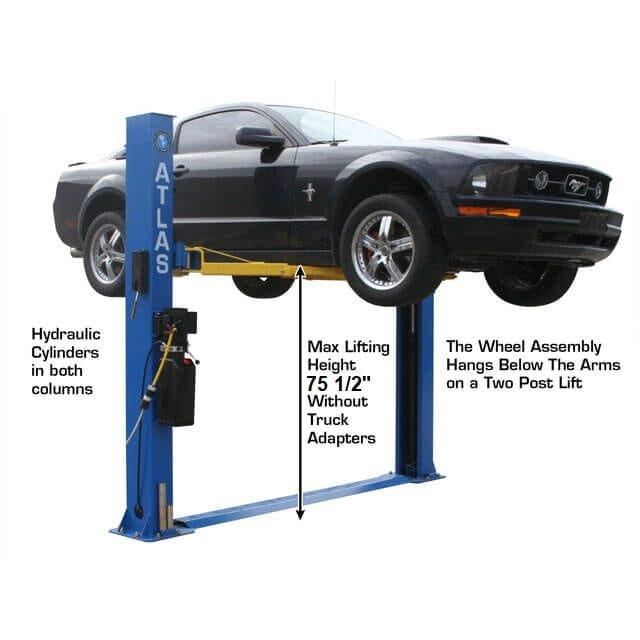

| Lift Height (No Adapters) | 75 1/2″ |

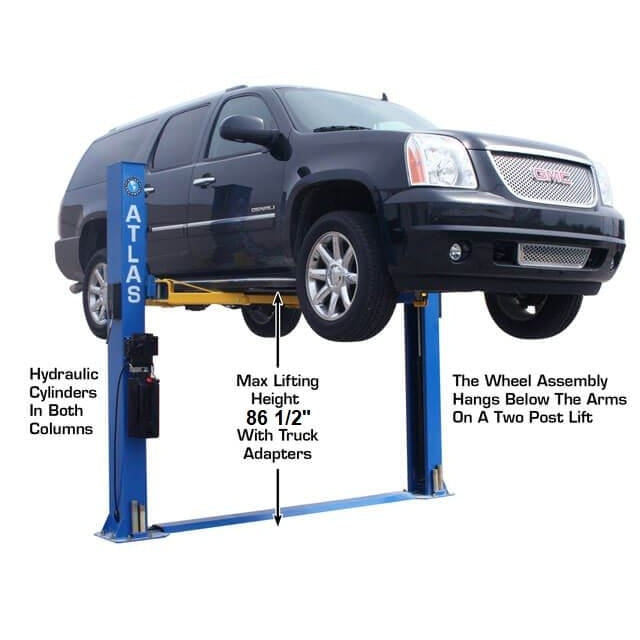

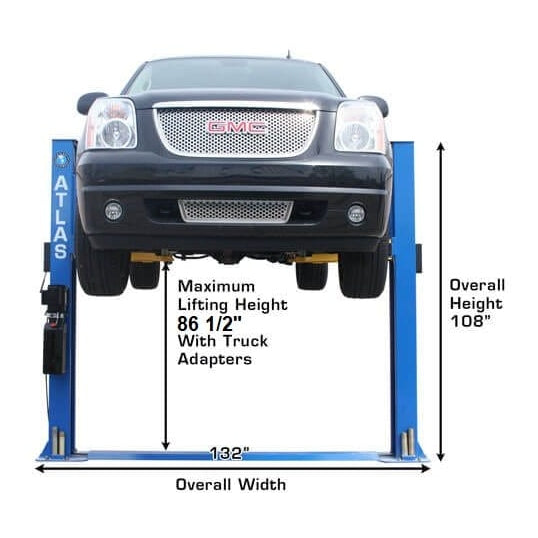

| Lift Height (With Adapters) | 86 1/2″ |
| Minimum Arm Height | 4″ |
| Inside Column Height | 109 1/8″ |

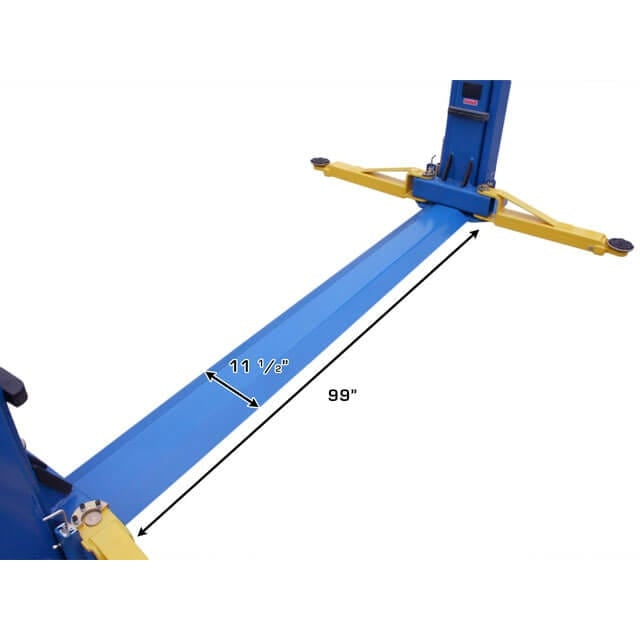

| Drive-Thru Clearance | 99″ (8′ 3″) |

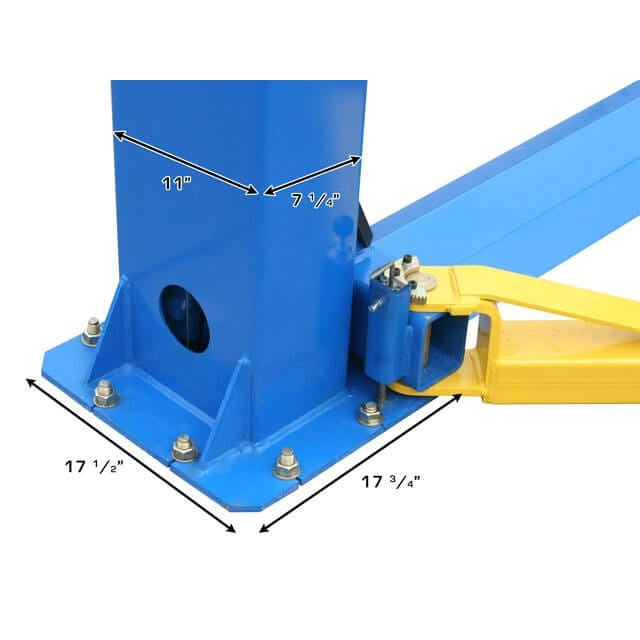

| Column Dimensions | 7 1/4″ x 11″ |
| Steel Thickness | 6mm |

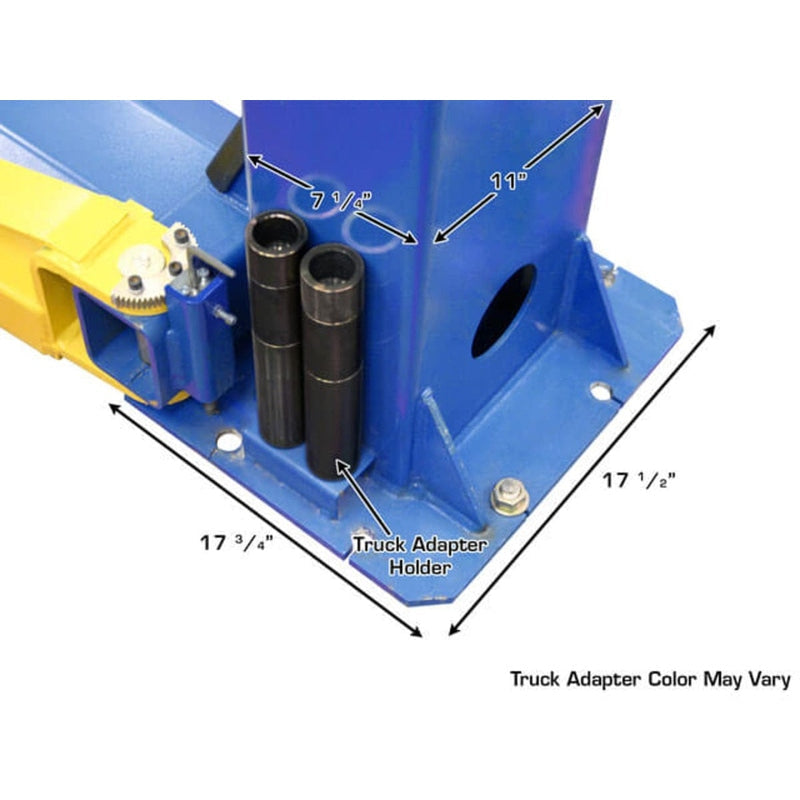

| Baseplate Dimensions | 17 1/2″ x 17 3/4″ |

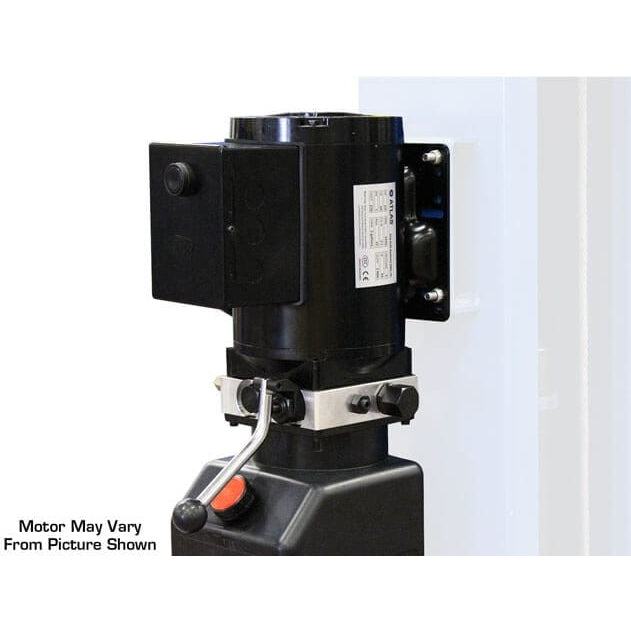

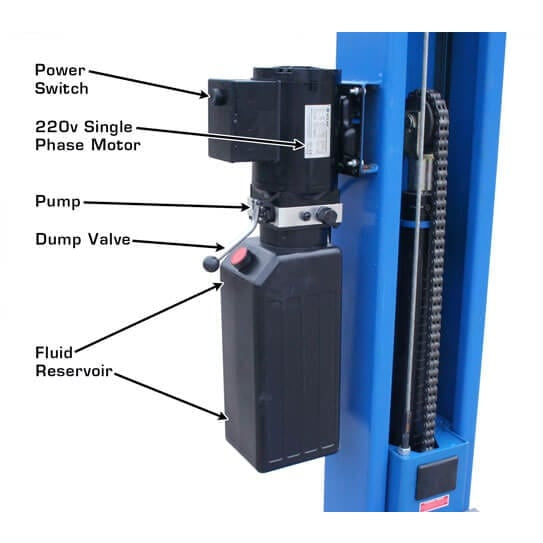

| Motor Requirements | 220V Single Phase, 30 Amp |
| Oil Requirement | 3–5 gallons AW32/AW46 (Not Included) |
| Adapter Peg Size | 1.5″ |

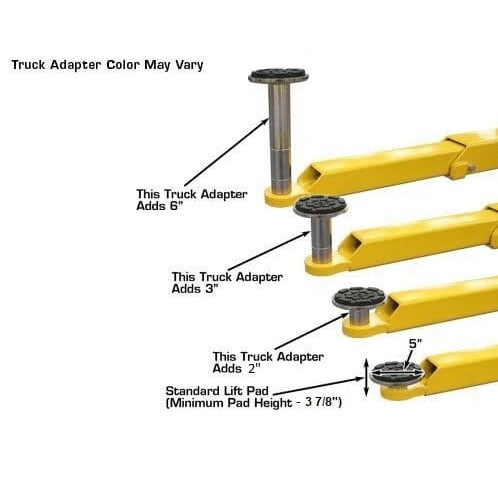

| Adapter Heights | (4) 2″, (4) 3″, (4) 6″ |

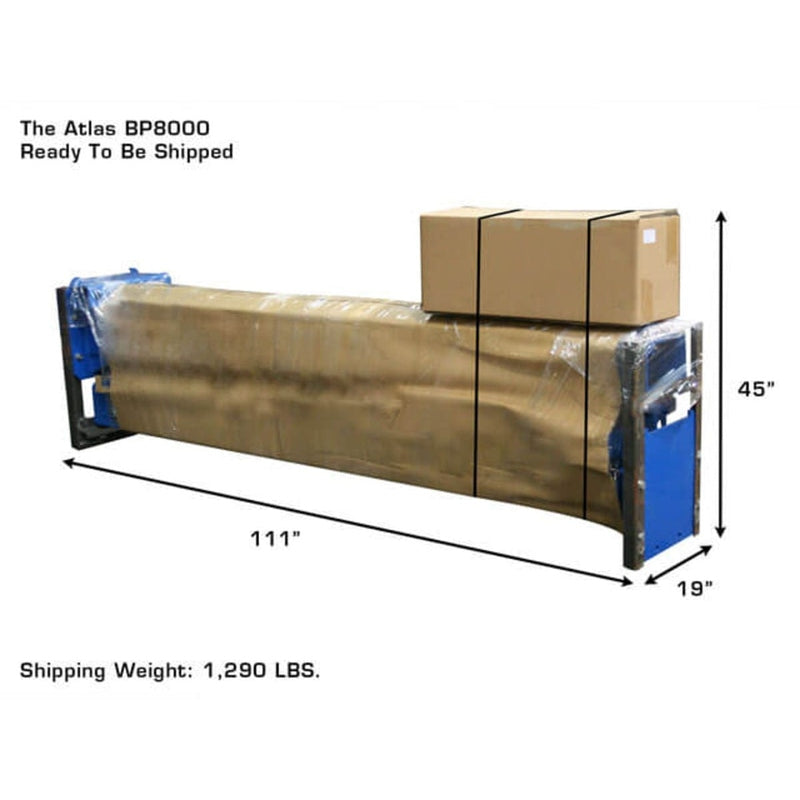

| Shipping Weight | 1,300 lbs. |
| Concrete Requirement | Minimum 4″ @ 3000 PSI |
Documents
Atlas® BP8000 Cylinder Bleeding Procedure (Do this immediately after installation)
