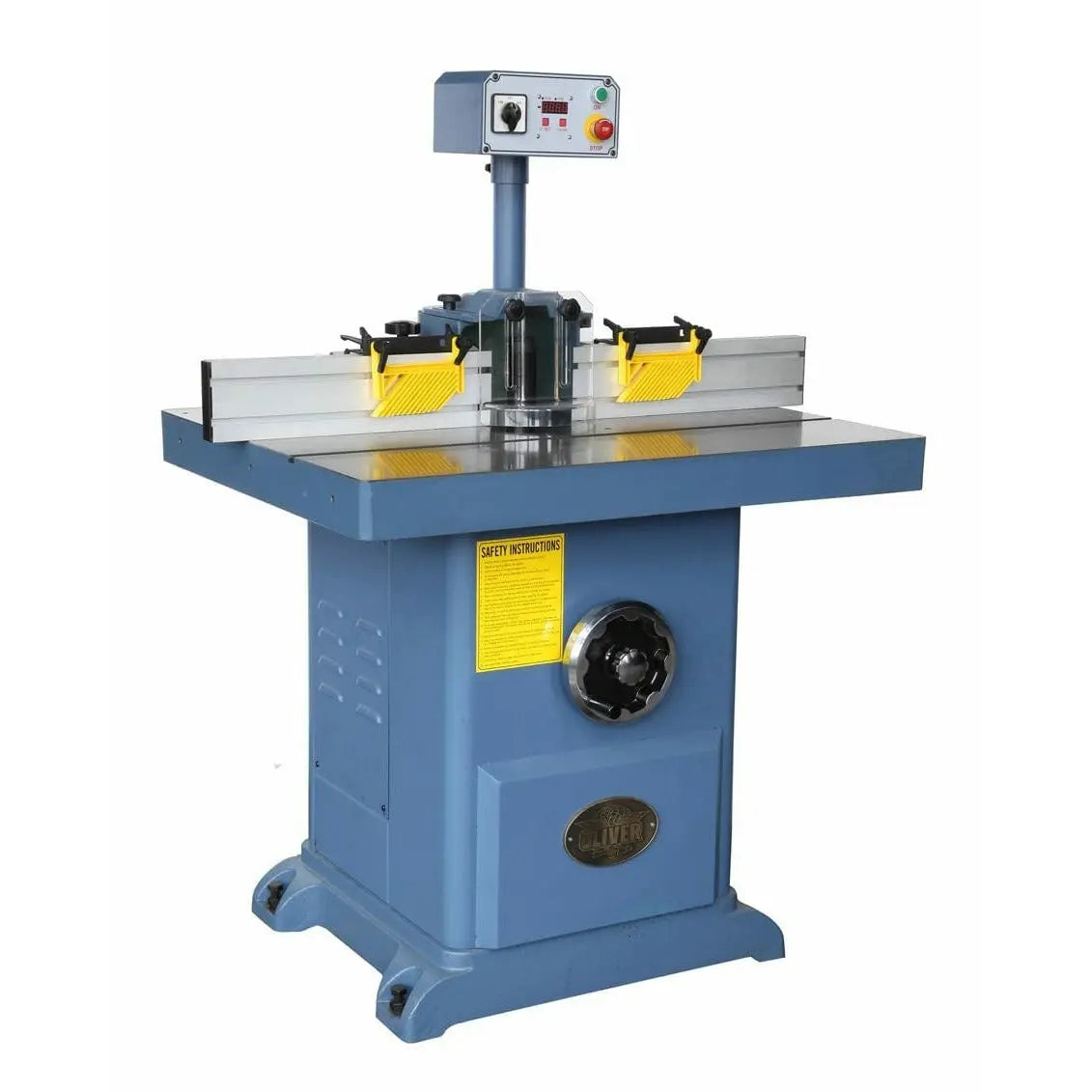

Oliver Machinery Shaper - 4705
Take your woodworking to the next level with the Oliver Machinery Shaper - 4705. Designed for precision, power, and versatility, this professional-grade shaper is built to handle intricate shaping tasks with ease. Whether you're a seasoned woodworker or an ambitious hobbyist, the 4705 delivers top-tier performance for flawless results.
Engineered for Efficiency
- Uncompromising Power – The 5HP TEFC motor powers through hardwoods and complex shapes, ensuring smooth, consistent cuts.
- Expansive Work Surface – A large precision-ground cast iron table (36" x 24") provides stability for projects of all sizes.

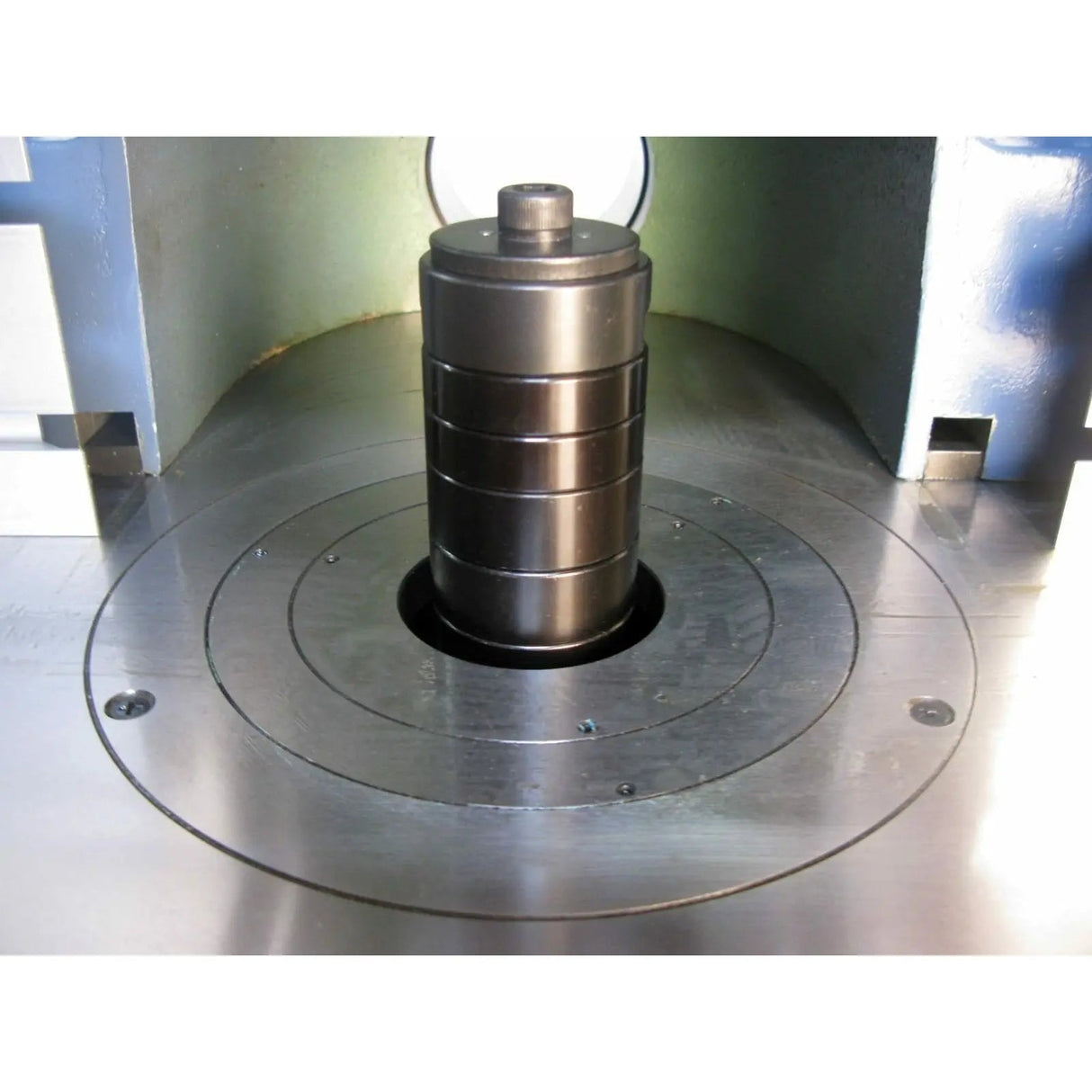

- Interchangeable Spindles – Includes 3/4" and 1-1/4" spindles with optional router bit collets for added versatility.
- Quick Belt Changes – The innovative tensioner system simplifies belt changes, reducing downtime.

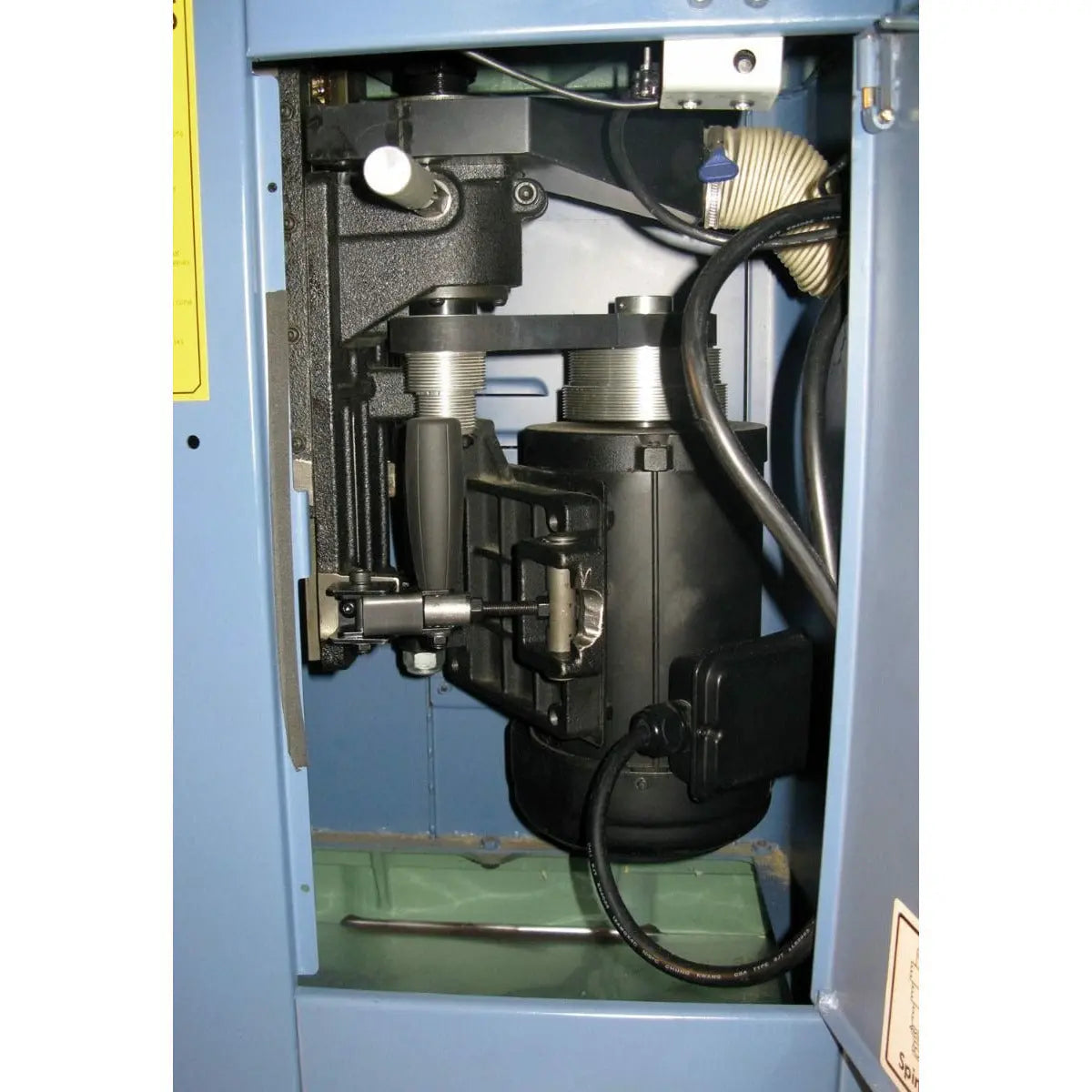

- Smooth Operation – A Poly V-belt drive system minimizes vibration for enhanced accuracy.
- Reversible Spindle – Increase control with reverse functionality for complex cuts.
- Adjustable Speeds – Three spindle speeds (2,200, 4,400, and 7,000 RPM) accommodate various materials and shaping needs.
- Extended Spindle Travel – The 4" spindle travel provides greater flexibility for diverse applications.
- Starting Pin Included – Achieve precision shaping of irregular pieces with ease.

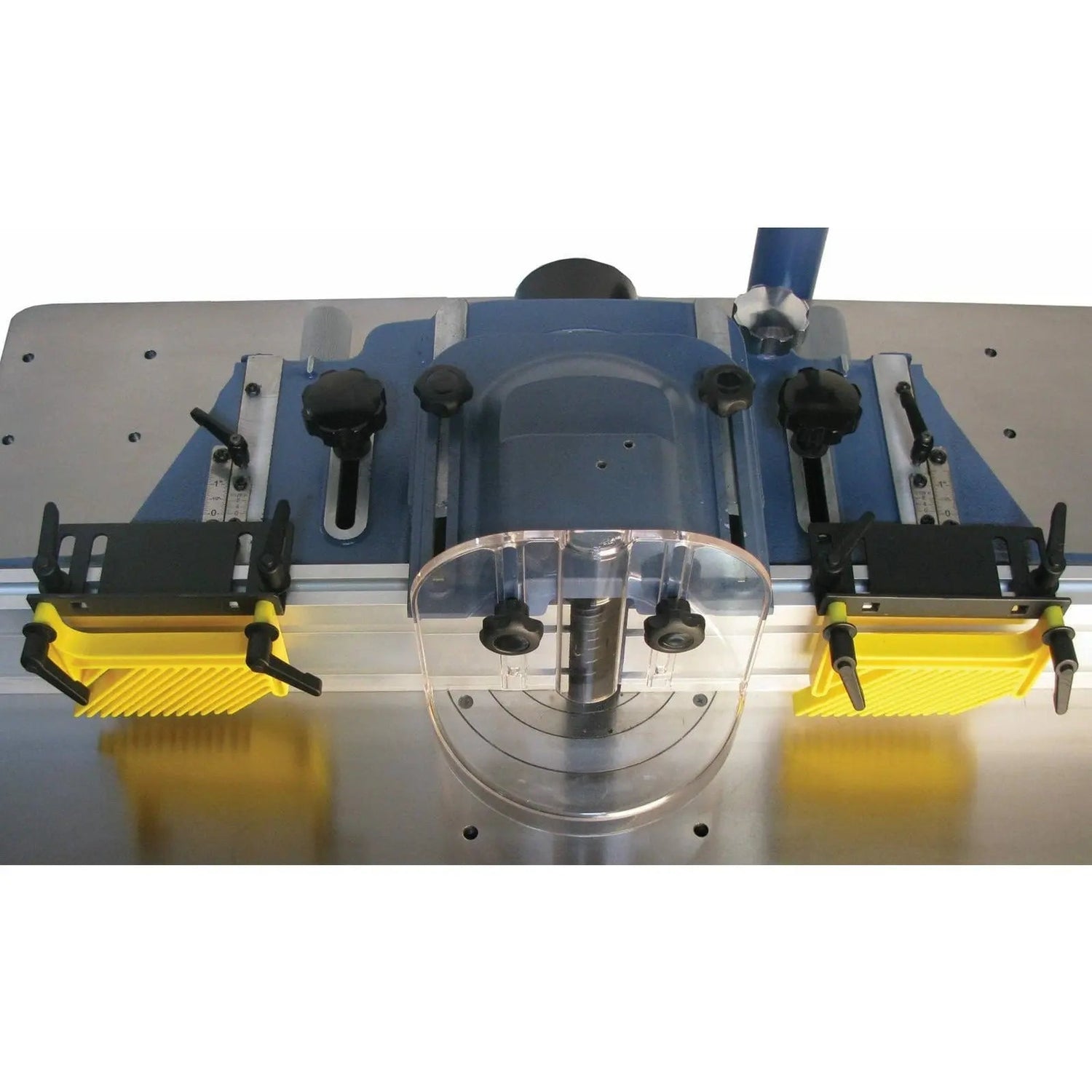

- Independent Fence with Micro Adjustments – Fine-tune settings for pinpoint accuracy and repeatability.

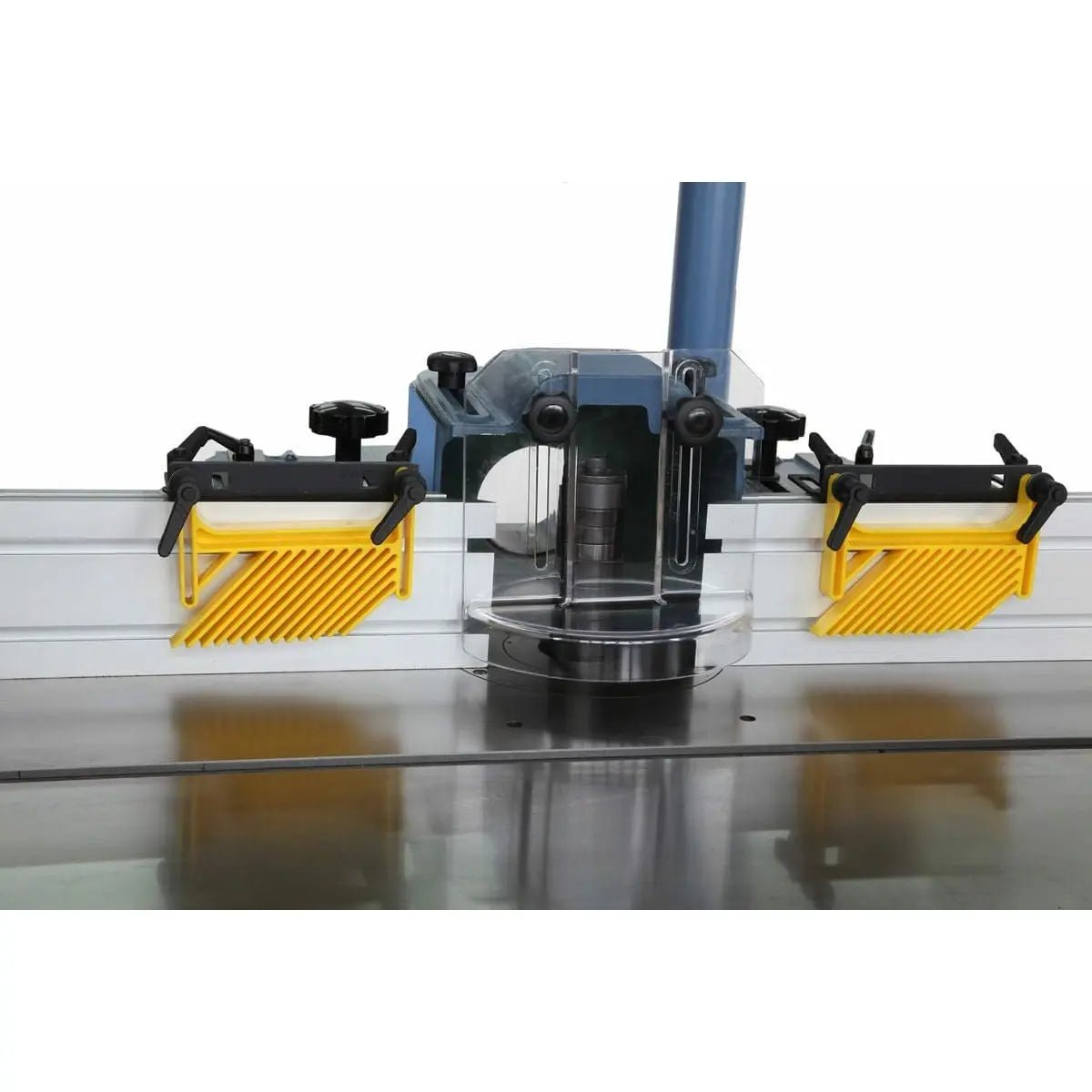

- Adjustable Hold Downs – Keep workpieces secure for safer, more efficient operation.
- Extra-Large Hand Wheel – Easily adjust spindle height with the oversized hand wheel.
- Miter Gauge Included – Perform precise angled cuts effortlessly.
- Optional Digital Readout (DRO) – Enhance accuracy with an optional DRO for spindle height control.
- Magnetic Controls – Improve safety and ease of use with magnetic controls.
Ideal For
- Professional Woodworkers – Handle intricate designs with confidence.
- Cabinetmakers & Furniture Builders – Achieve high-quality, professional-grade results.
- Serious Hobbyists – Upgrade your woodworking game with a powerful shaper.
- Woodworking Schools & Shops – Equip students with essential shaping experience.
Features
- Heavy-duty cast iron table for a solid, vibration-free work surface.
- Pre-drilled holes for power feeder compatibility.
- Sturdy cast iron base for enhanced stability.
- Three spindle speeds (5,000, 7,000, 10,000 RPM) for precision control.
- Reversible spindle for flexible setup options.
- Dovetail spindle adjustment for precision height control.
- Independent fence with micro adjustments for quick setup.

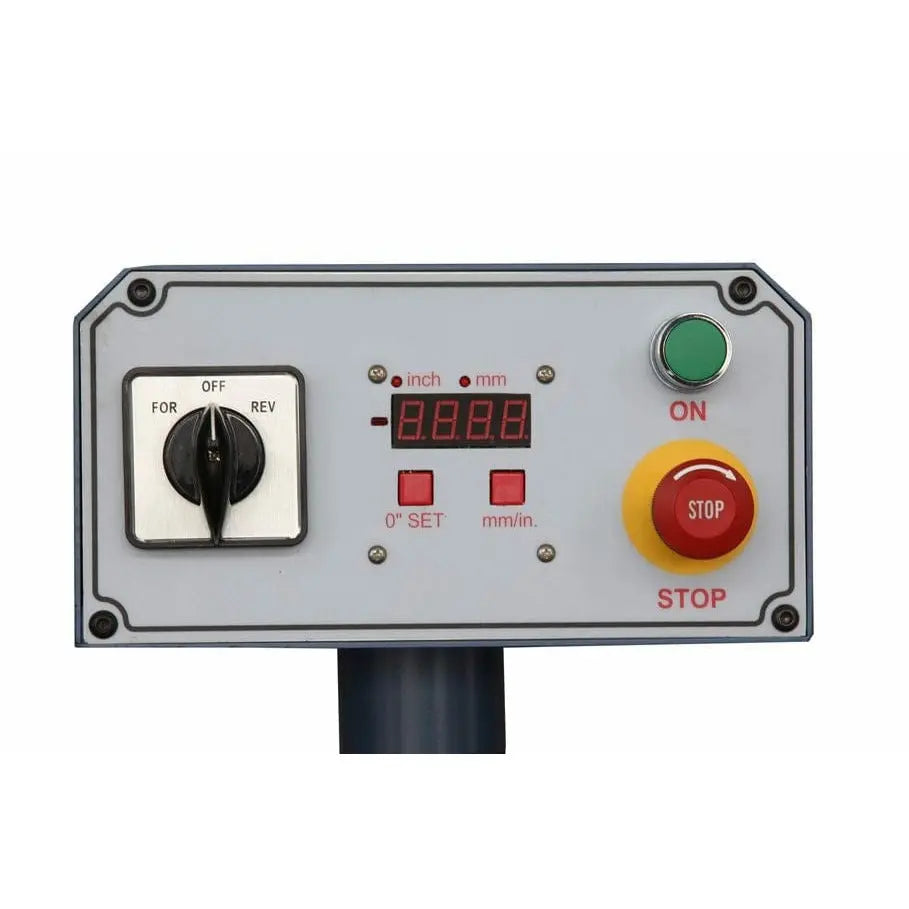

- Top-mounted control panel with optional digital readout.
- Magnetic safety controls with emergency shutoff.
- Available in 5HP single-phase or 7.5HP three-phase models.
Specifications
| Model Number | 4705 |
|---|---|
| Stock No. (5HP, 1Ph) | 4705.001 |
| Stock No. (7.5HP, 3Ph) | 4705.002 |
| Spindle Speeds | 5,000, 7,000, 10,000 RPM |
| Max Tool Diameter | 7” Below Table, 8” Above Table |
| Spindle Diameter | 1-1/4” & 3/4” (Interchangeable) |
| Vertical Spindle Travel | 4" |
| Spindle Direction | Reversible |
| Table Height | 36-1/2” |
| T-Slot | 3/4” x 3/8” |
| Dust Port Diameter | 4” (800 CFM minimum) |
| Footprint | 28-1/2”L x 24-3/4”W |
| Table Dimensions | 39”L x 31-1/2”W |
| Motor (1Ph) | 5HP, 220V (18 Amp) |
| Motor (3Ph) | 7.5HP, 220/440V (Prewired 220V, 16.8/8.4 Amp) |
| Net Weight | 660 lbs. |
| Gross Weight | 800 lbs. |
