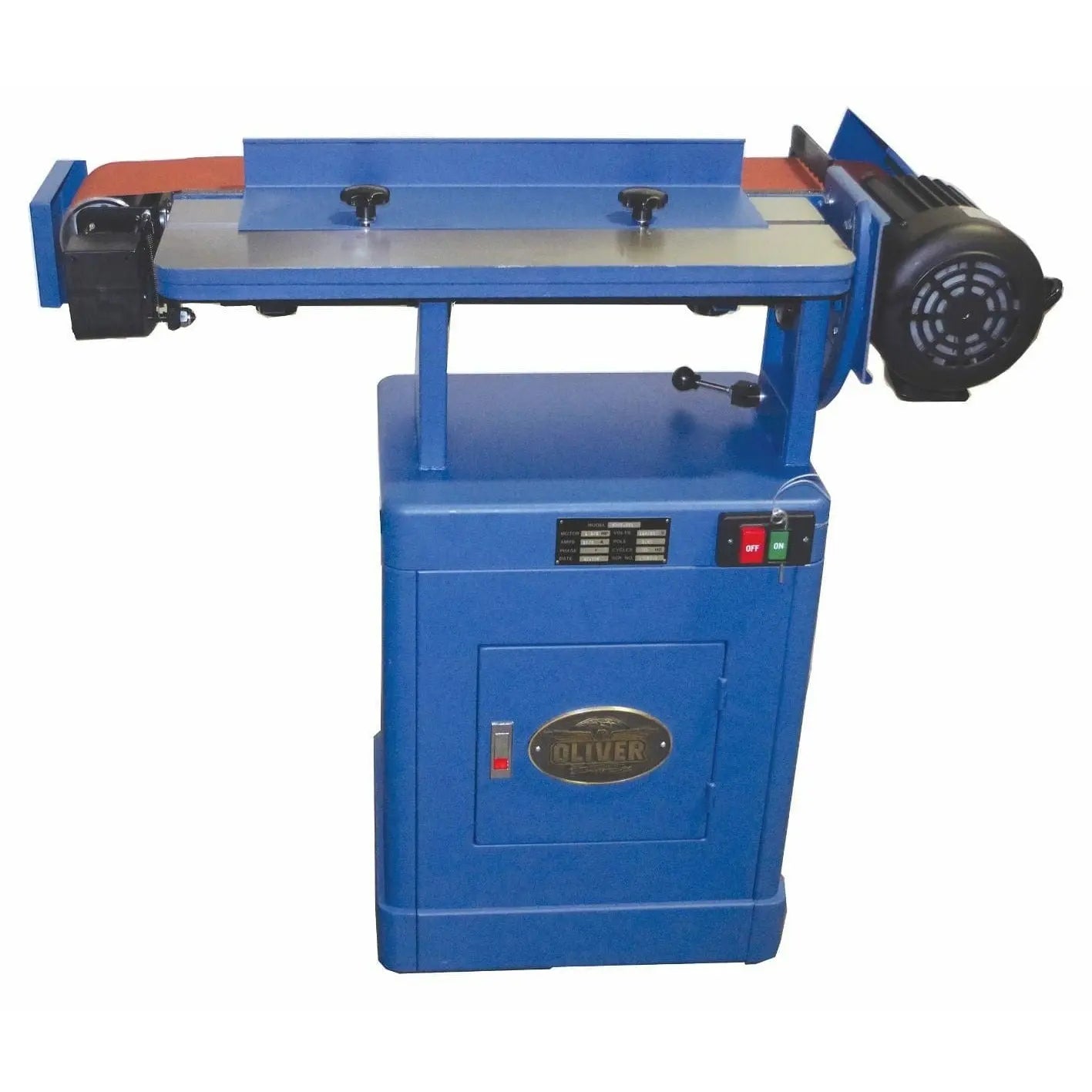

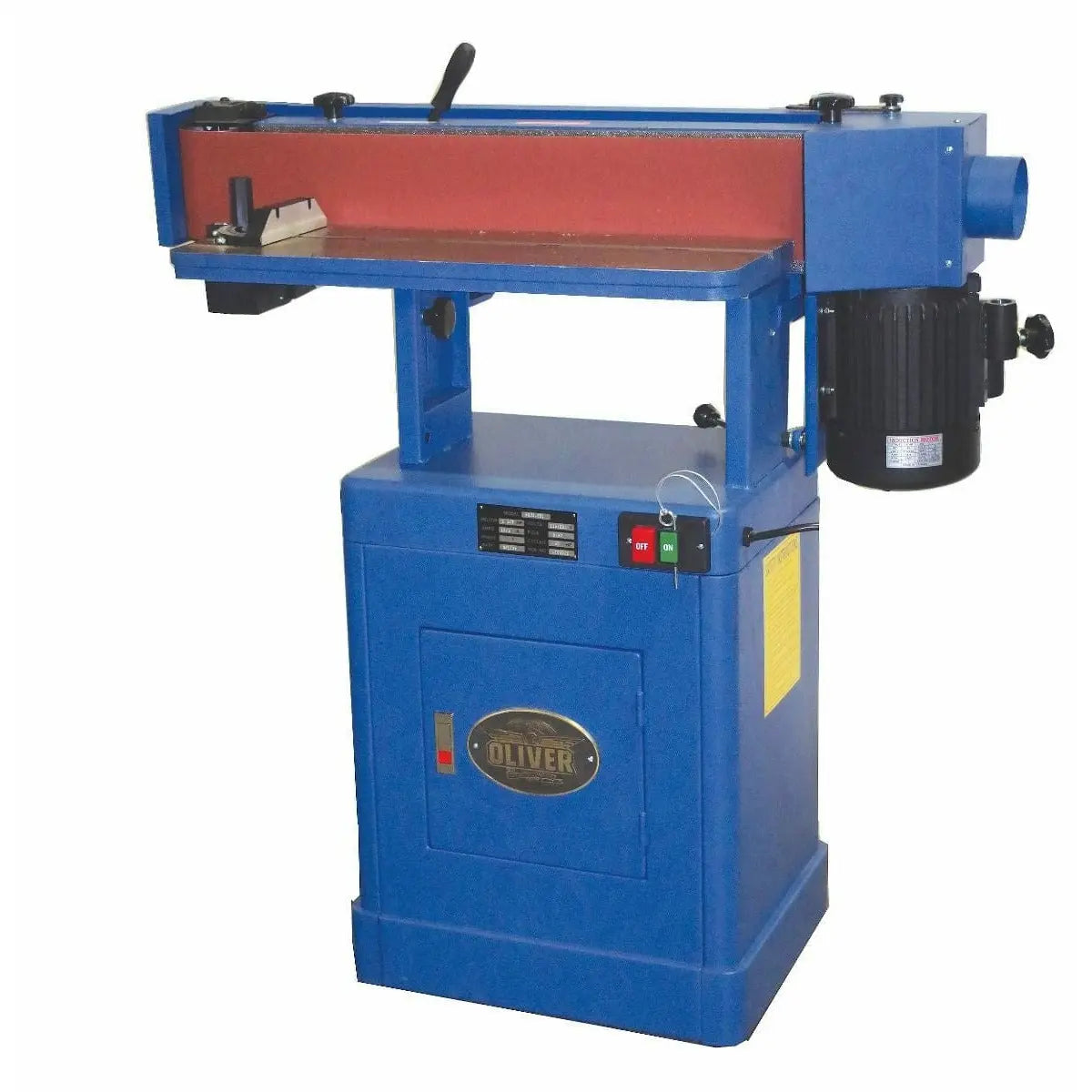

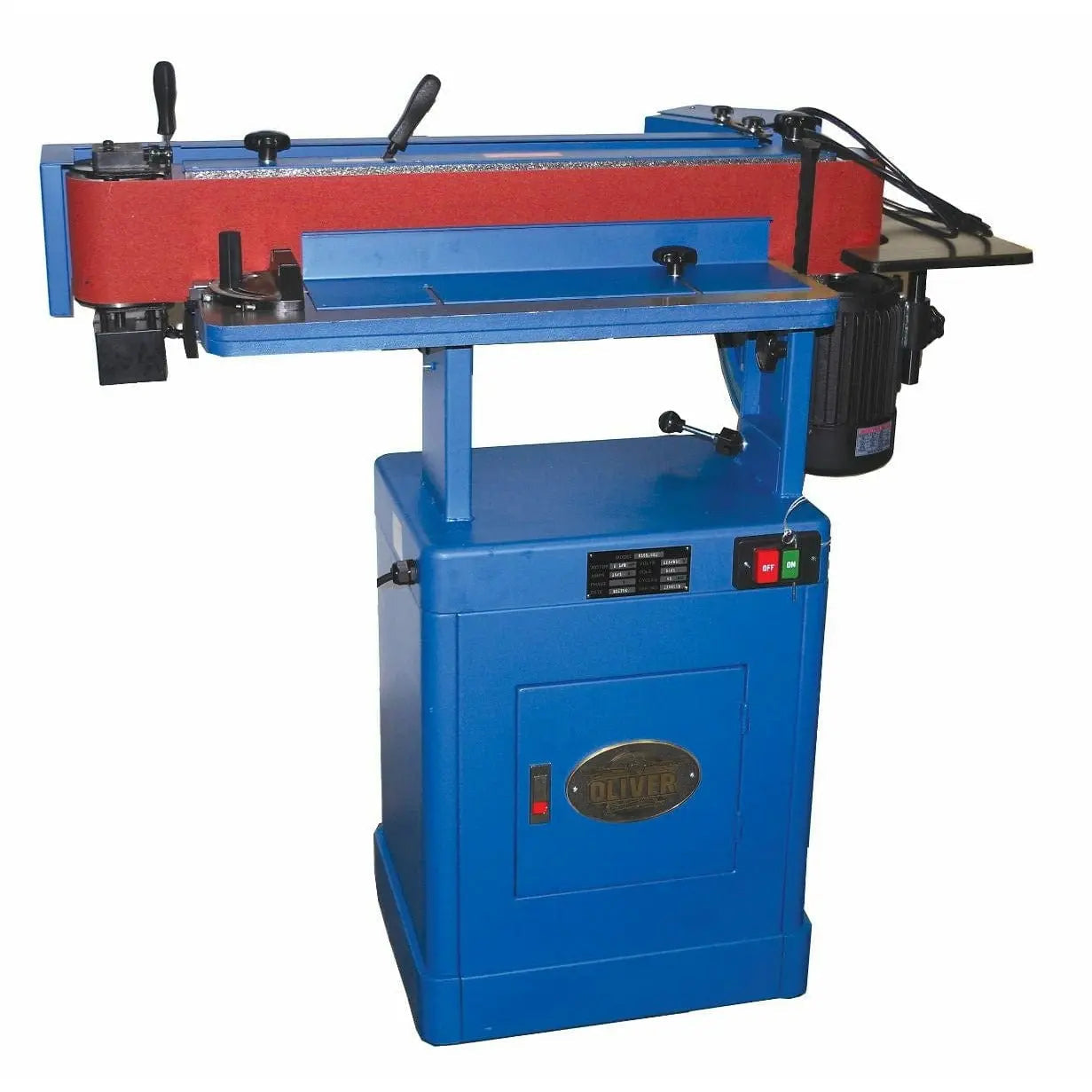

Oliver Machinery 6" x 89" Oscillating Edge Sander - Model 6303: Precision and Power for Flawless Edge Sanding
Achieve professional-grade finishes with theĀ Oliver Machinery 6" x 89" Oscillating Edge Sander - Model 6303. Designed for woodworkers of all skill levels, this oscillating edge sander combines unmatched sanding performance, versatility, and user-friendly features to deliver flawless results on curved edges, complex profiles, and flat surfaces. Whether you're a professional cabinetmaker, furniture builder, or serious hobbyist, the 6303 ensures superior finishes and effortless operation, making it an essential tool for any workshop.
Key Features and Benefits:
-
Oscillating Belt Action for Superior Finishes
The innovative oscillating belt action eliminates sanding marks and ensures a smooth, consistent finish, even on complex profiles and curved edges. -
Large 6" x 89" Sanding Belt
The expansive sanding belt maximizes surface area coverage, reducing sanding time and enabling you to handle large projects with ease. -
Powerful 1.5HP Motor
Equipped with a robustĀ 1.5HP single-phase or three-phase motor, the 6303 effortlessly sands even the toughest hardwoods, delivering efficient material removal and smooth operation. -
Multi-Angle Belt Tracking System
The versatile belt tracking system allows you to sand at any angle from horizontal to vertical, providing optimal results for a variety of applications. -
Graphite-Covered Steel Platen
The graphite-coated platen reduces friction and prevents burning, ensuring consistent sanding performance and extending the life of your sanding belts. -
Effortless Belt Changes
The user-friendly belt changing system minimizes downtime, allowing you to swap belts quickly and get back to work. -
Precise Table Adjustments
Achieve consistent sanding thickness with the independent table adjustments, featuring micro-adjust capabilities for ultimate control. -
Integrated Dust Collection Port
The built-inĀ 4" dust portĀ is compatible with standard dust collection systems, helping you maintain a cleaner workspace and improve air quality. -
Heavy-Duty Cast Iron Tables
The precision-ground cast iron tables provide exceptional stability and flatness, ensuring accurate sanding across all your projects. -
Adjustable End Table and Miter Gauge
The included adjustable end table and miter gauge enhance versatility, allowing for contour sanding and precise angle work.
Specifications at a Glance:
- Model Number:Ā 6303
- Table Material:Ā Cast Iron
- Main Table Size:Ā 10ā x 29-1/2ā
- End Table Size:Ā 9-3/4ā x 11-3/4ā
- Main Table Working Height:Ā 38ā - 41-1/2ā
- End Table Working Height:Ā 37-1/2ā - 42ā
- Belt Size:Ā 6ā x 89ā
- Belt Speed:Ā 3,900 FPM
- Oscillation Stroke:Ā 1/2ā
- Fence Size:Ā 3ā x 23-1/2ā
- Dust Port Diameter:Ā 4ā
- Minimum CFM Required:Ā 650 CFM
- Motor:Ā 1.5HP, 115/230V 1Ph (Prewired 115V w/Plug, 18/9 Amp)
- Overall Dimensions:Ā 50ā x 24ā x 49ā
- Net Weight:Ā 247 lbs.
- Gross Weight:Ā 270 lbs.
Ideal Applications:
- Professional Woodworkers:Ā Achieve flawless finishes on curved edges, moldings, veneers, and intricate woodworking projects.
- Cabinetmakers and Furniture Builders:Ā Ensure seamless edge sanding for high-quality furniture components and craftsmanship.
- Serious Hobbyists:Ā Elevate your woodworking skills and projects with the power, precision, and versatility of a professional edge sander.
- Woodworking Schools and Shops:Ā Equip students with the tools to master edge sanding techniques across various angles and profiles.
Additional Features:
- Horizontal and Vertical Belt Positioning:Ā Use the belt in horizontal, vertical, or any angle in between for maximum flexibility.
- Easy Belt Tracking and Tension Adjustment:Ā Quickly adjust belt tracking and tension for optimal performance.
- Lockable On/Off Switch:Ā Ensures safety and convenience during operation.
- Heavy-Duty Enclosed Cabinet:Ā Provides stability and includes a storage area for added convenience.
- Durable Construction:Ā Built to withstand the rigors of professional use, ensuring long-lasting performance.
