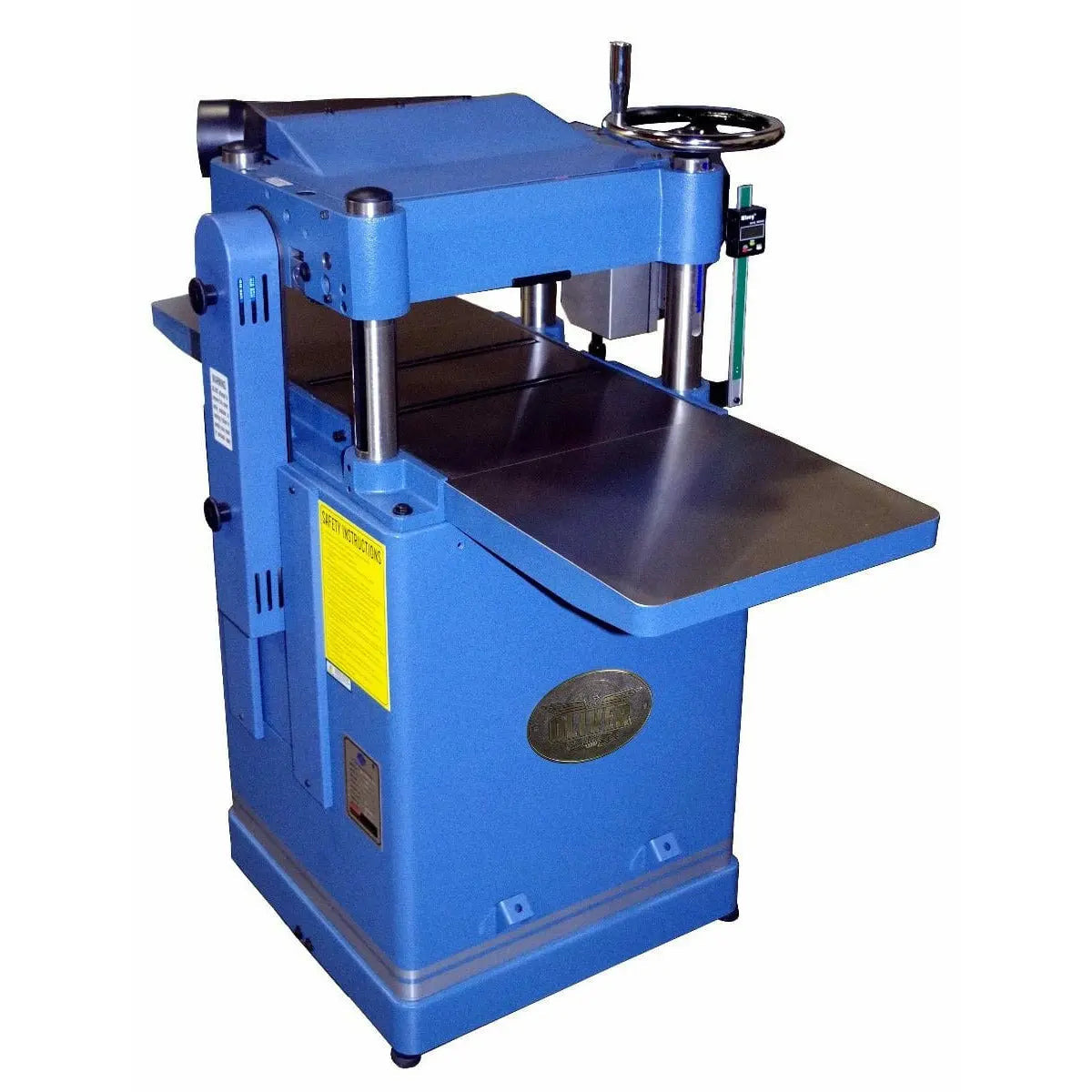

Oliver Machinery 3HP Single Phase 15" Inch Planer with Helical Cutterhead 10014

Oliver Machinery 3HP Single Phase 15" Planer with Helical Cutterhead - Model 10014: Precision and Power for Professional Woodworking

The Oliver Machinery 3HP Single Phase 15" Planer with Helical Cutterhead (10014) is an industrial-grade planer designed to deliver unmatched precision, power, and efficiency. Whether you're a professional woodworker, cabinetmaker, or serious hobbyist, this planer is engineered to handle the most demanding applications with ease. Featuring a helical cutterhead, robust construction, and user-friendly design, the 10014 ensures flawless results on a wide range of projects, from furniture components to thick slabs.

Key Features and Benefits:

1. Powerful 3HP Single-Phase Motor
   The 3HP motor effortlessly tackles hardwoods and thick stock, delivering smooth, efficient passes and consistent material removal.
2. Helical Cutterhead for Superior Performance
   The helical cutterhead features 52 premium carbide inserts, providing quieter operation, reduced tear-out, and extended blade life. Each insert is indexable for easy rotation or replacement, minimizing downtime and maximizing efficiency.

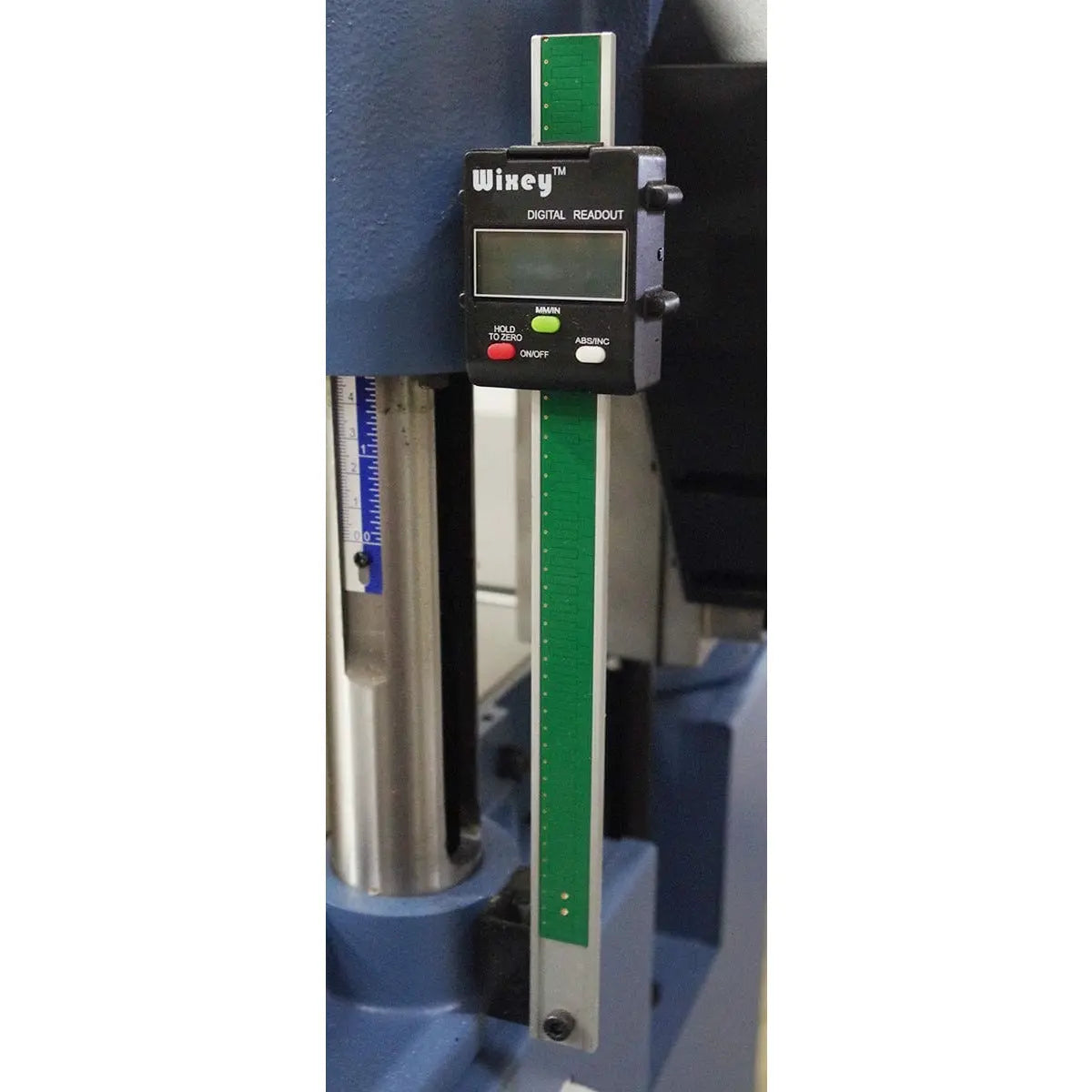

3. Wixey Digital Readout for Precision
   Achieve accurate thickness control with the Wixey digital readout, ensuring quick setup and consistent results throughout your project.
4. Heavy-Duty Cast Iron Construction
   The robust cast iron construction minimizes vibration and deflection, guaranteeing smooth, chip-free results even with demanding cuts.
5. Generous Planing Capacity
   With a 15" maximum planing width and a 7-1/2" depth of cut, this planer handles everything from furniture components to thick slabs with ease.
6. User-Friendly Design
   Intuitive controls, onboard wrench storage, and easy-to-read depth gauges simplify operation and reduce setup time.
7. Auto-Depth Lock with Twin Nitrogen Cylinders
   The auto-depth lock virtually eliminates snipe, ensuring consistent results across the entire length of your workpiece.

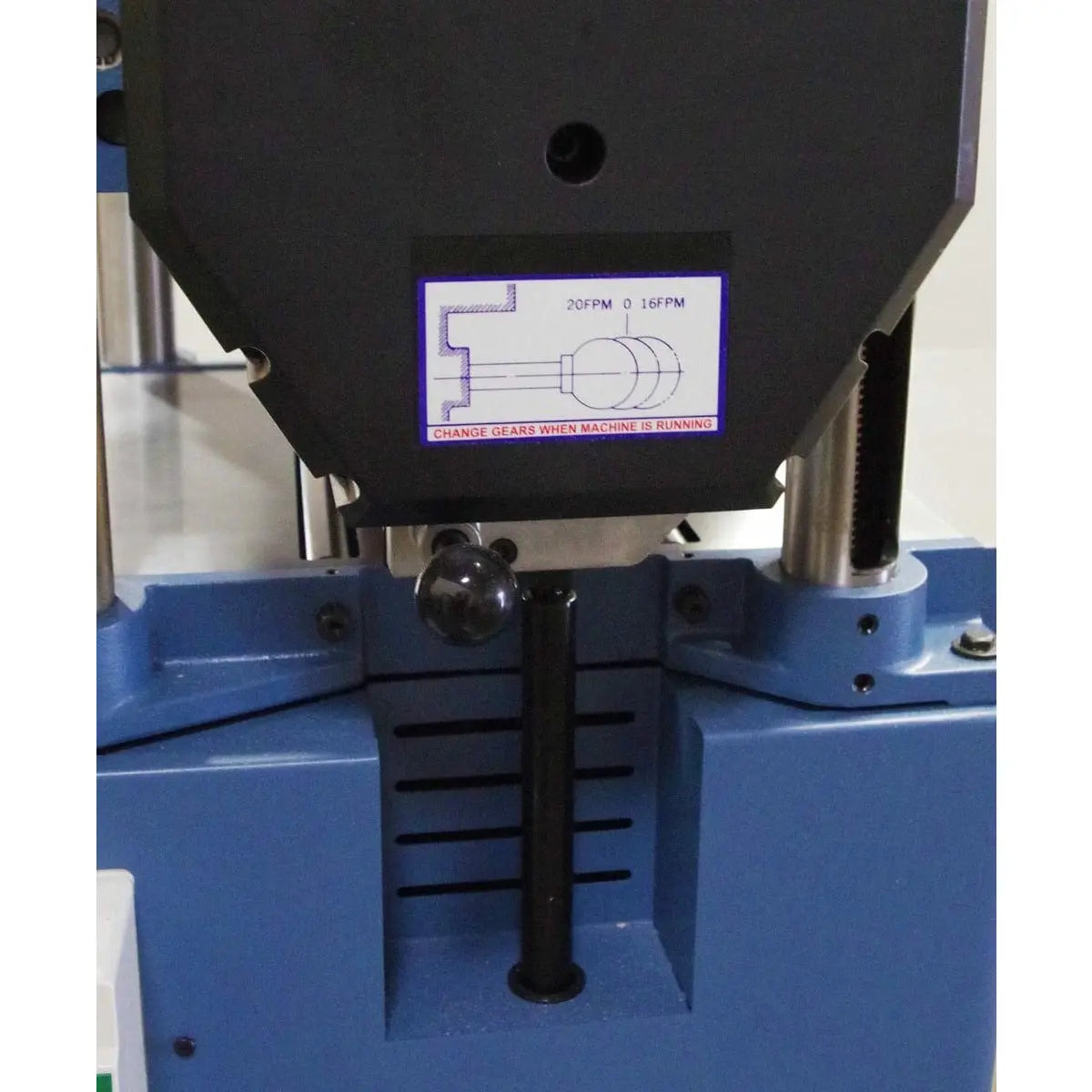

8. Two-Speed Feed Gearbox
   Choose between 16 or 20 FPM feed speeds for optimal results, whether you're working on delicate finishes or heavy material removal.

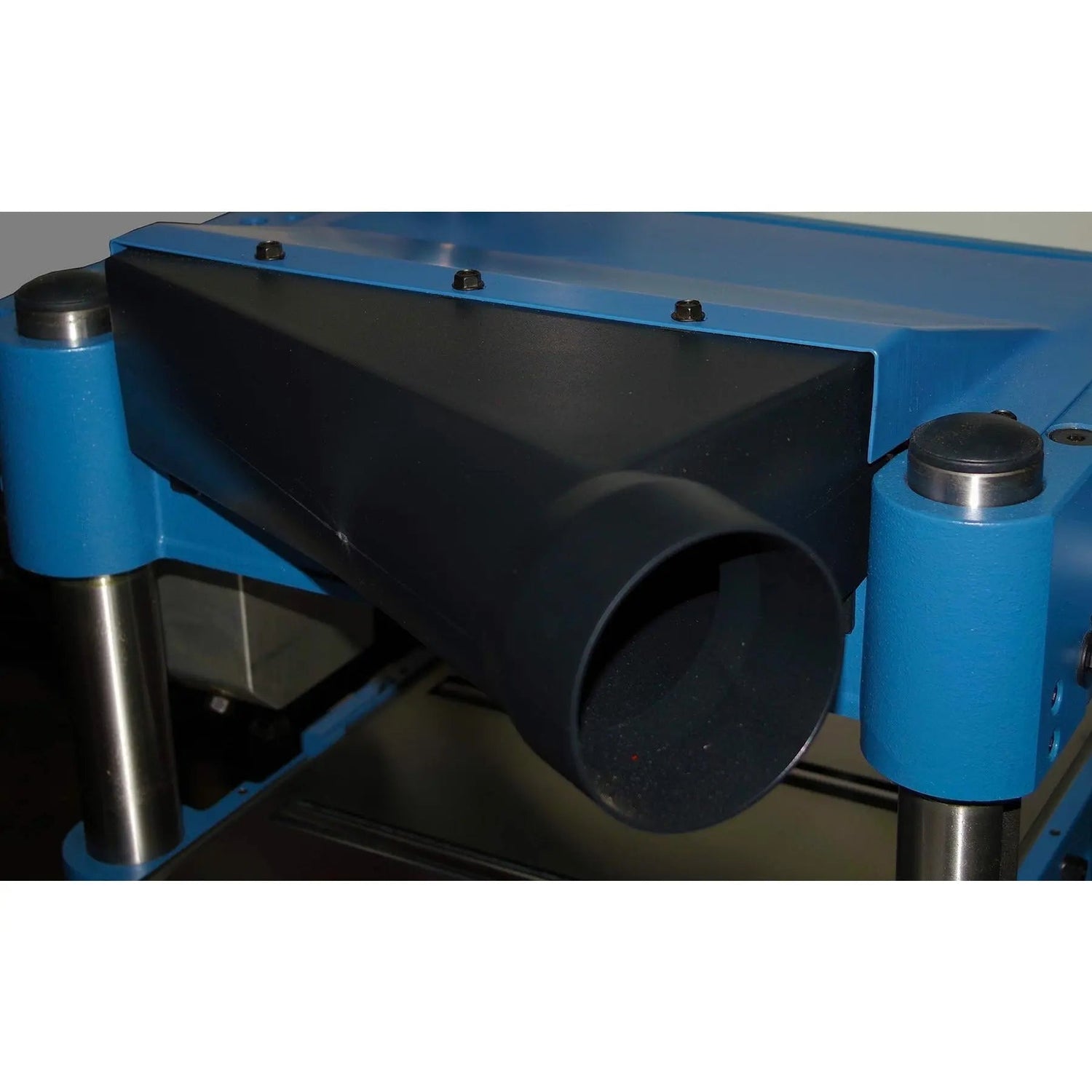

9. Built-In Dust Collection Port
   The 4" dust port ensures efficient dust management, keeping your workspace clean and improving air quality.

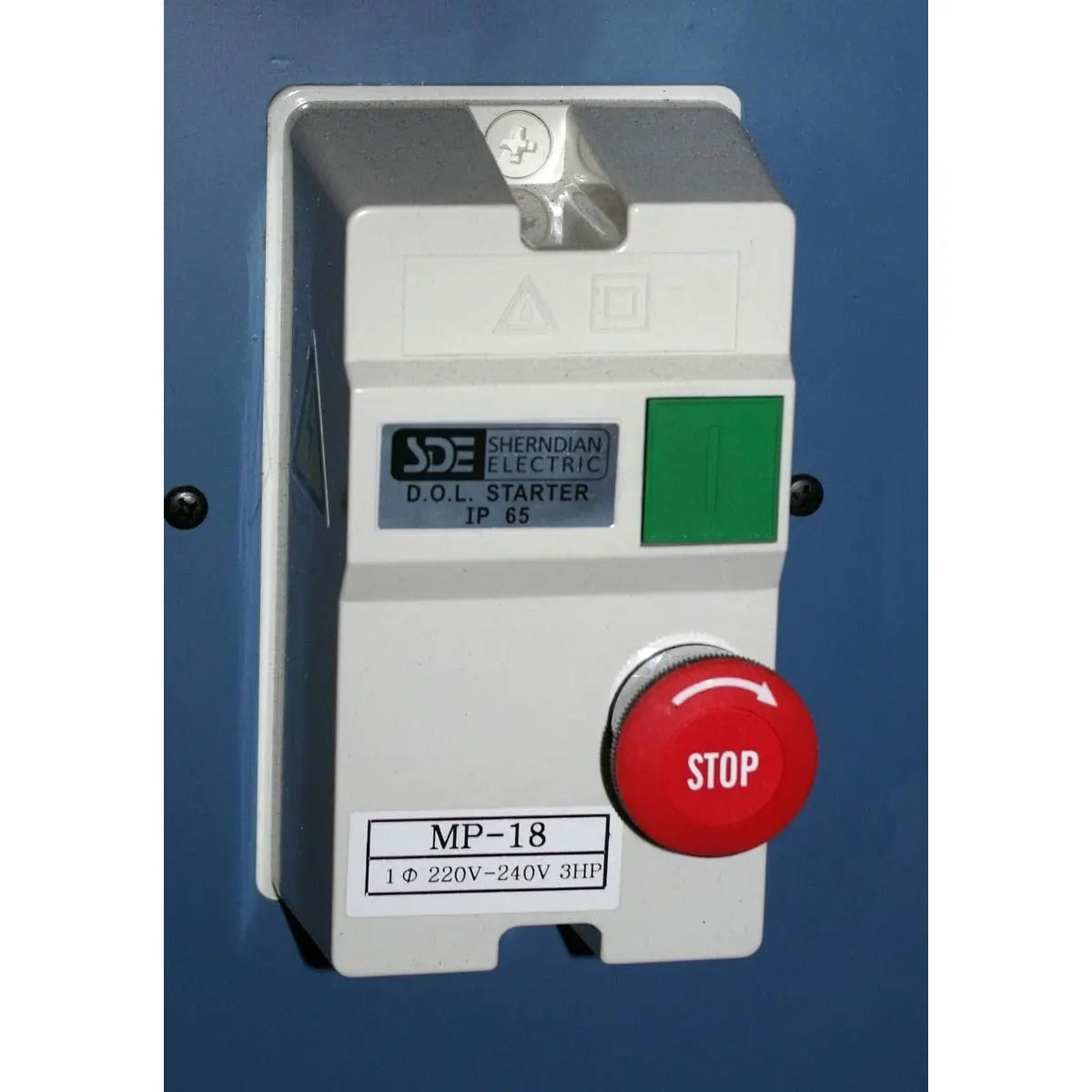

10. Magnetic Switch for Safety
    The magnetic switch provides added protection, ensuring safe and reliable operation.

Specifications at a Glance:

• Model Number: 10014
• Maximum Stock Width: 15”
• Maximum Depth of Cut: 1/8”
• Maximum Stock Thickness: 6”
• Minimum Stock Thickness: 3/16”
• Minimum Stock Length: 6”
• Dust Port Diameter: 4”
• Feed Speeds: 16/20 FPM
• Table Size: 15” x 19-5/8”
• Table Size w/Extension Wings: 15” x 47-5/8”
• Table Height: 30-1/8”
• Cutterhead Diameter: 3”
• Cutterhead Speed: 5,000 RPM
• Number of Knives: 52 (helical carbide inserts)
• Motor: 3HP, 220V (1Ph, 12 Amp)
• Overall Dimensions: 28” x 47-1/2” x 52”
• Net Weight: 401 lbs.
• Gross Weight: 470 lbs.

Ideal Applications:

• Professional Woodworkers: Achieve flawless results on furniture components, cabinetry, and custom woodworking projects.
• Cabinetmakers and Furniture Builders: Ensure precise dimensioning and smooth finishes for high-quality craftsmanship.
• Serious Hobbyists: Elevate your woodworking skills and tackle ambitious projects with confidence.
• Woodworking Schools and Shops: Provide students with a reliable and safe tool to master planing techniques.

Additional Features:

• Four-Post Design: Ensures head alignment regardless of stock thickness.
• Oil Bath Gear Lubrication: Provides years of smooth, reliable performance.

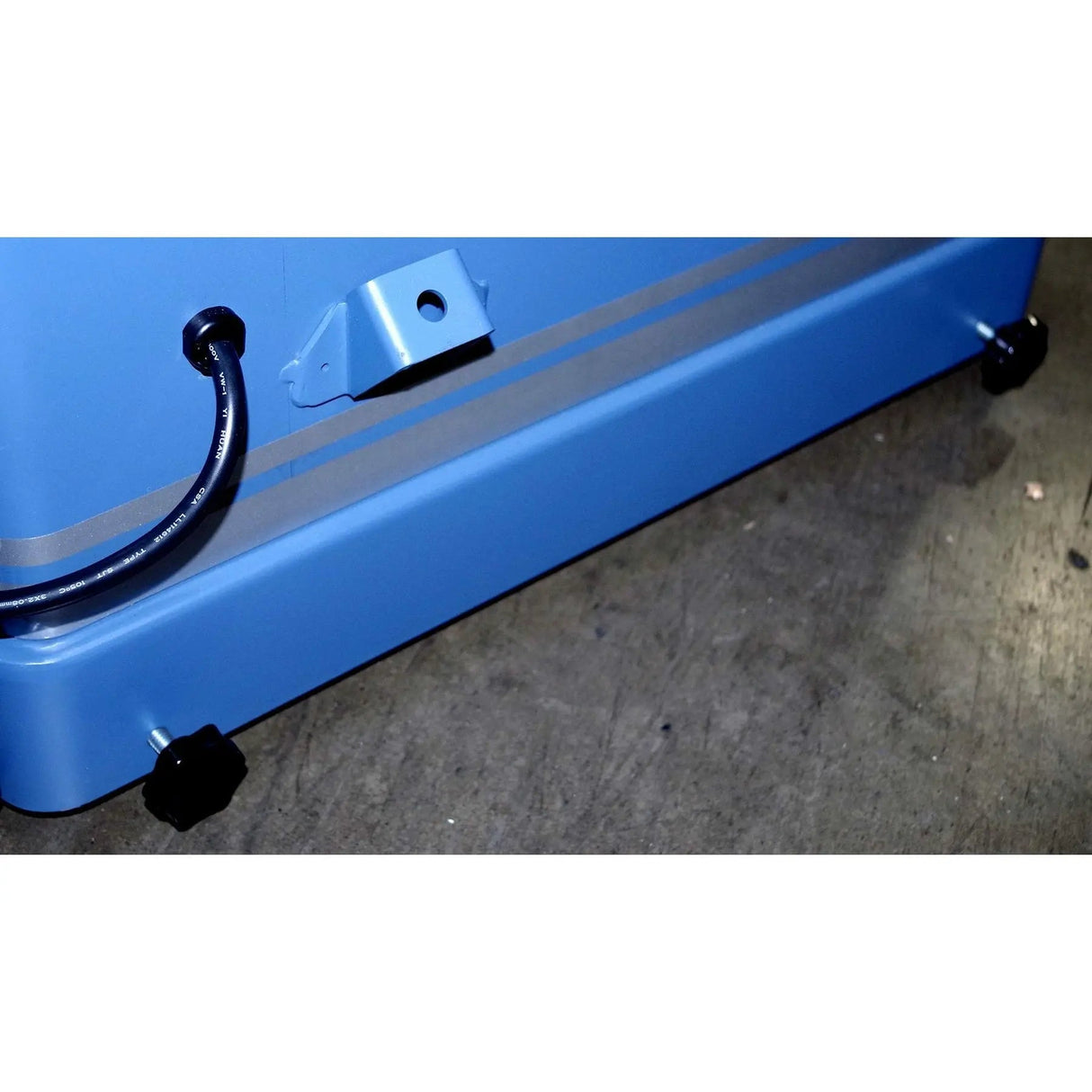

• Built-In Mobile Base: Enhances portability and maneuverability in your workshop.
• Precision-Ground Table and Extension Wings: Ensures smooth stock feeding and consistent results.
