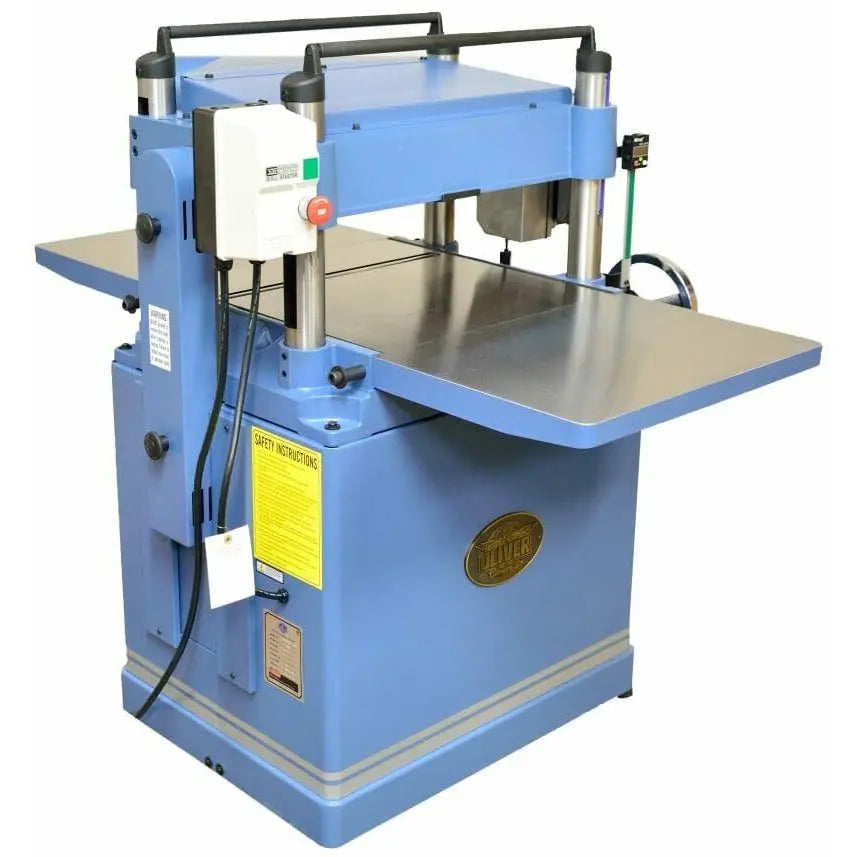

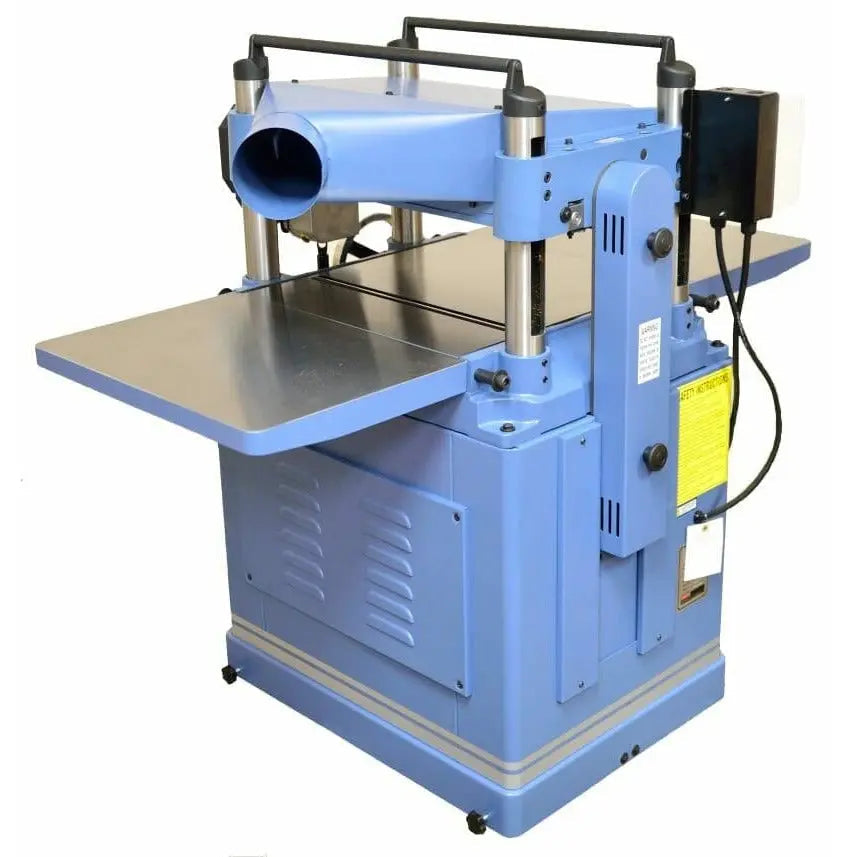

Oliver Machinery 20” Planer with Helical Cutterhead 4430
Precision, Power, and Performance in Every Pass
Experience professional-grade woodworking with the Oliver Machinery 20” Planer with Helical Cutterhead (4430). Designed for serious woodworkers and industrial applications, this powerhouse delivers smooth, precise, and efficient planing, ensuring every project meets the highest standards.
Key Benefits
Unmatched Power & Efficiency

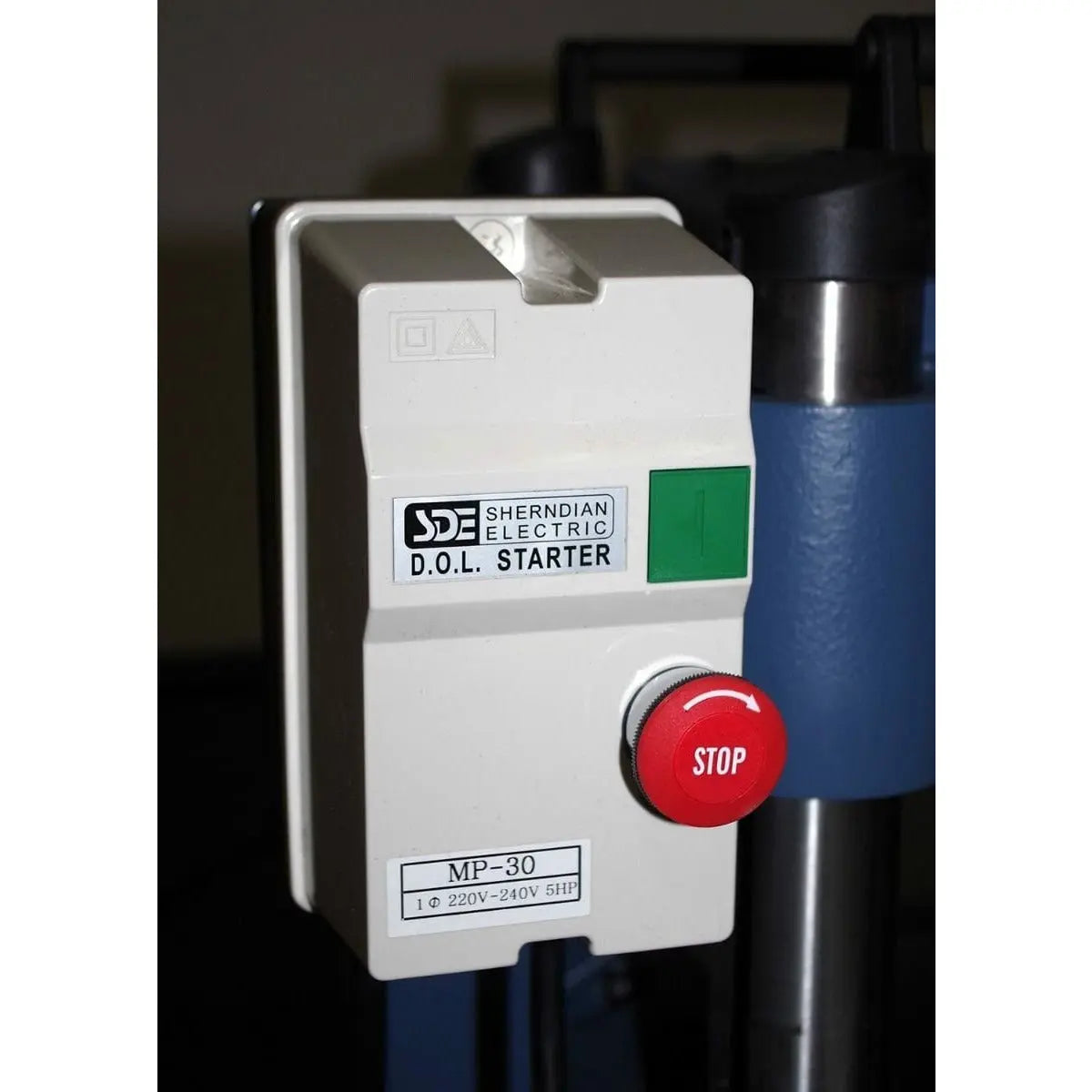

- Equipped with a 5HP single-phase motor, this planer handles even the toughest hardwoods with ease, delivering clean, consistent passes.

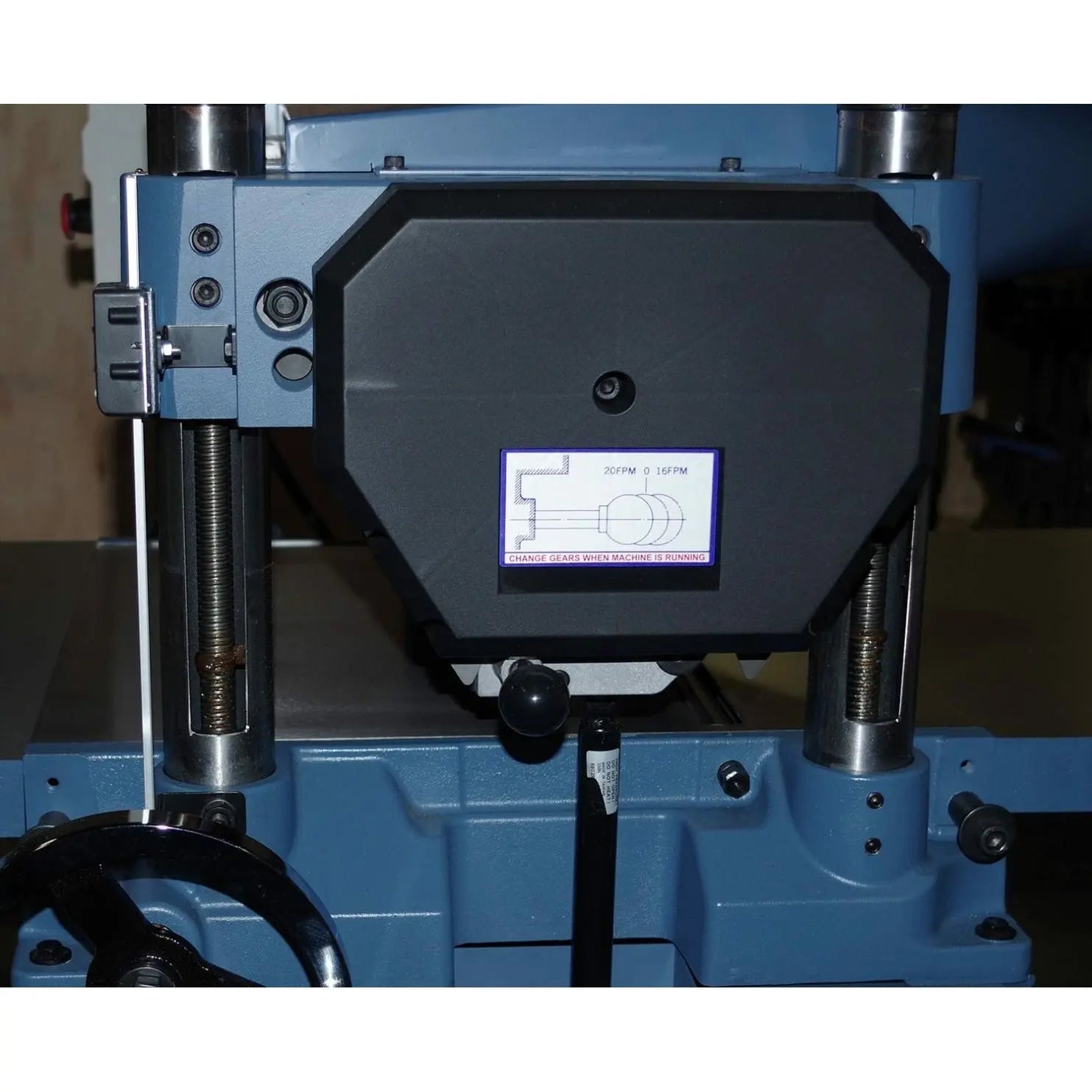

- Two-speed feed gearbox (16/20 FPM) ensures optimal control for different wood types and project requirements.
Helical Cutterhead Advantage

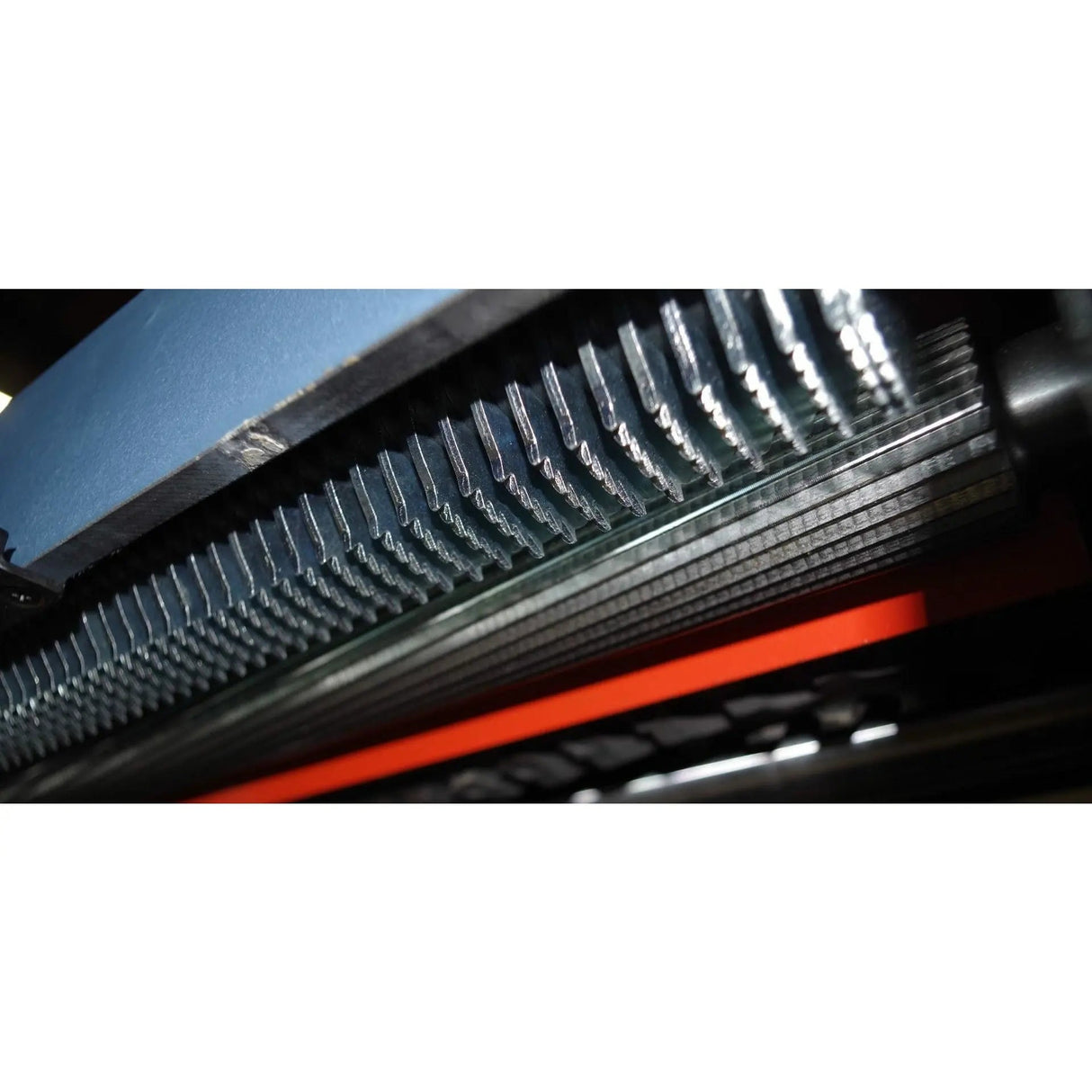

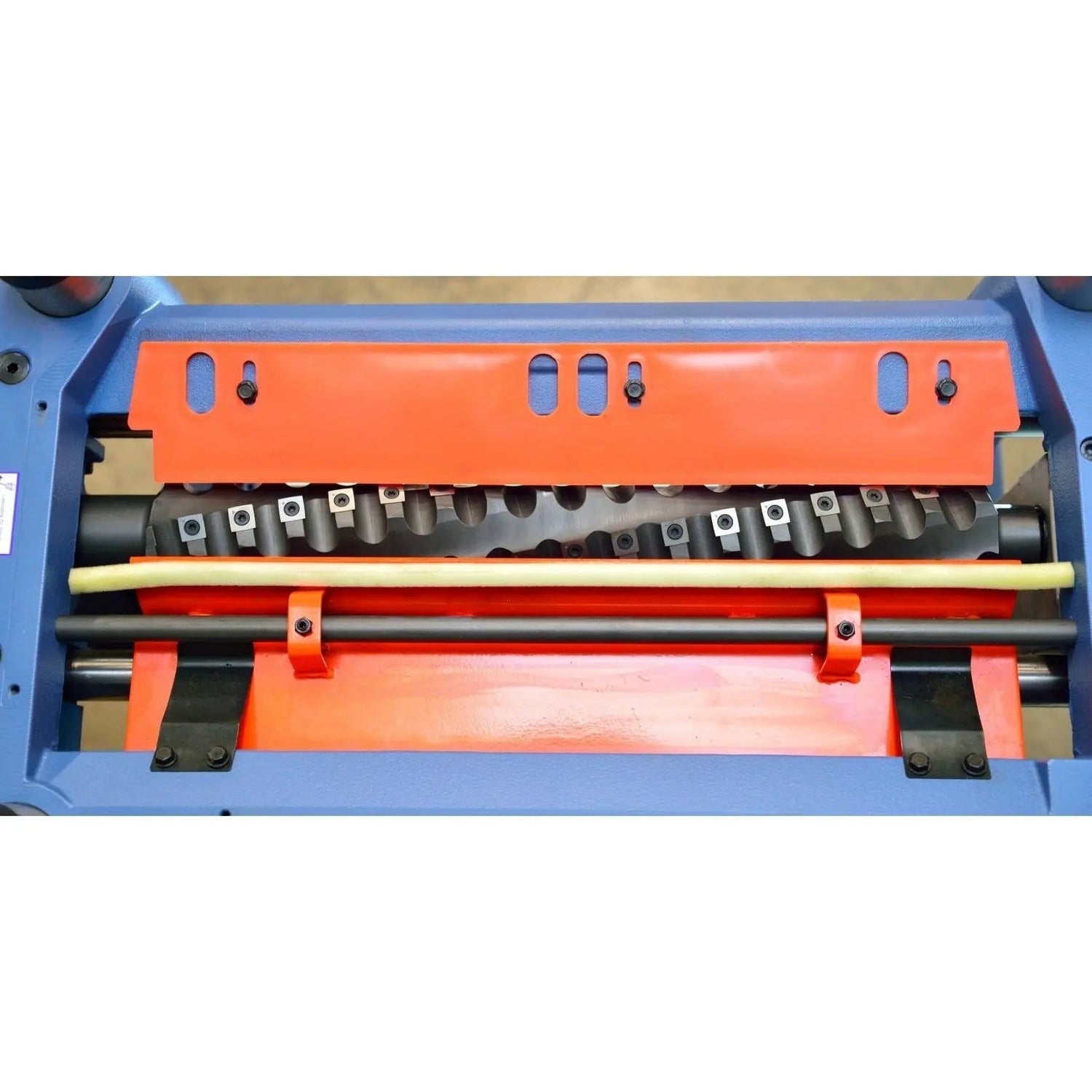

- The helical cutterhead features 68 premium carbide inserts, providing quieter operation, reduced tear-out, and extended blade life.
- Each insert is indexable and replaceable, making maintenance quick and cost-effective.
Precision & Accuracy

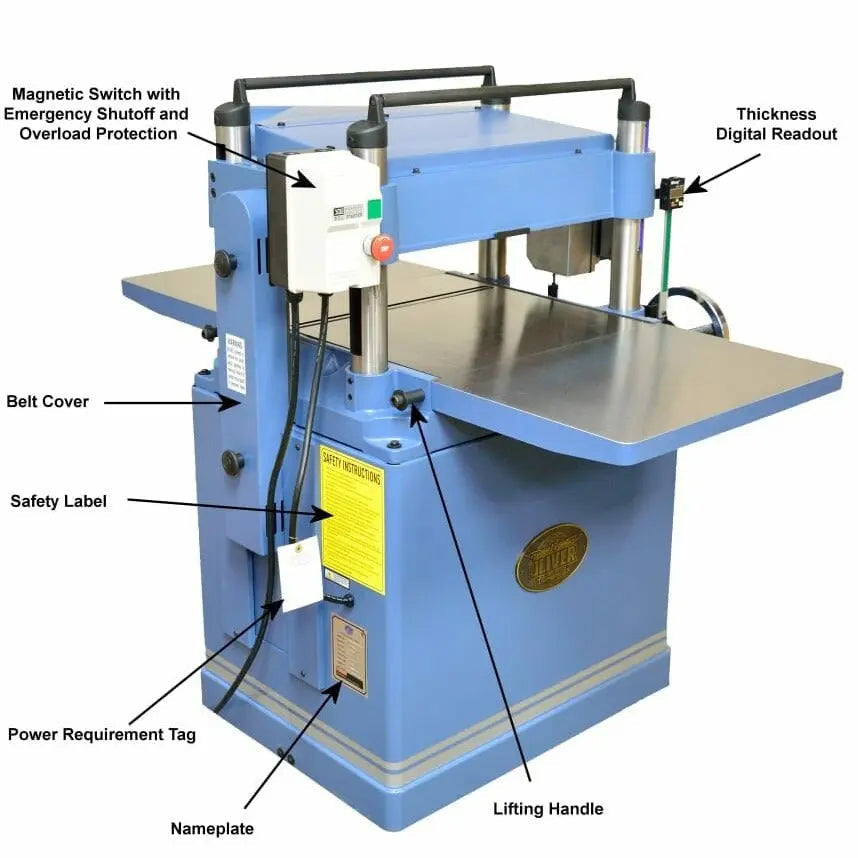

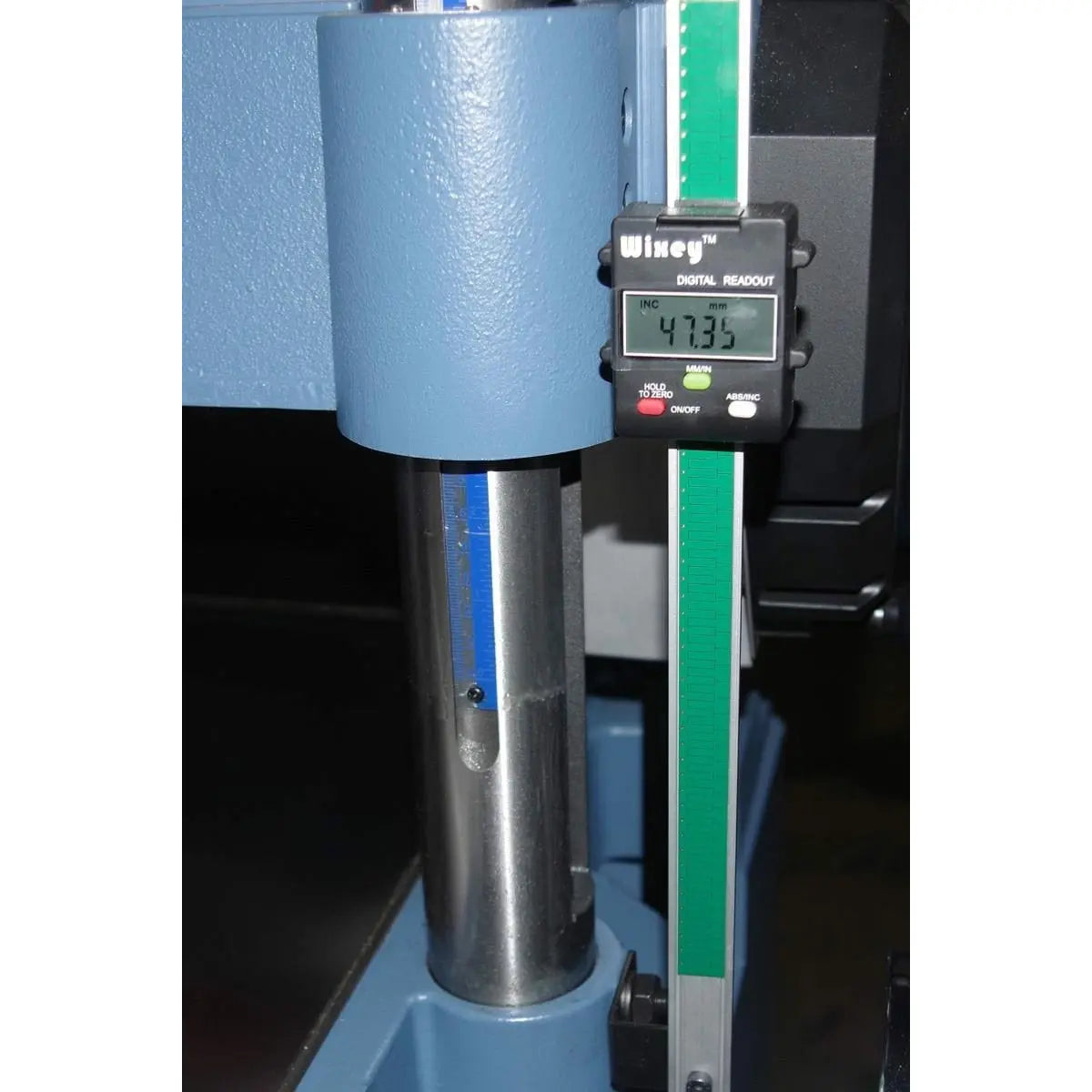

- The Wixey digital readout allows for quick setup and precise thickness control, ensuring uniform results.

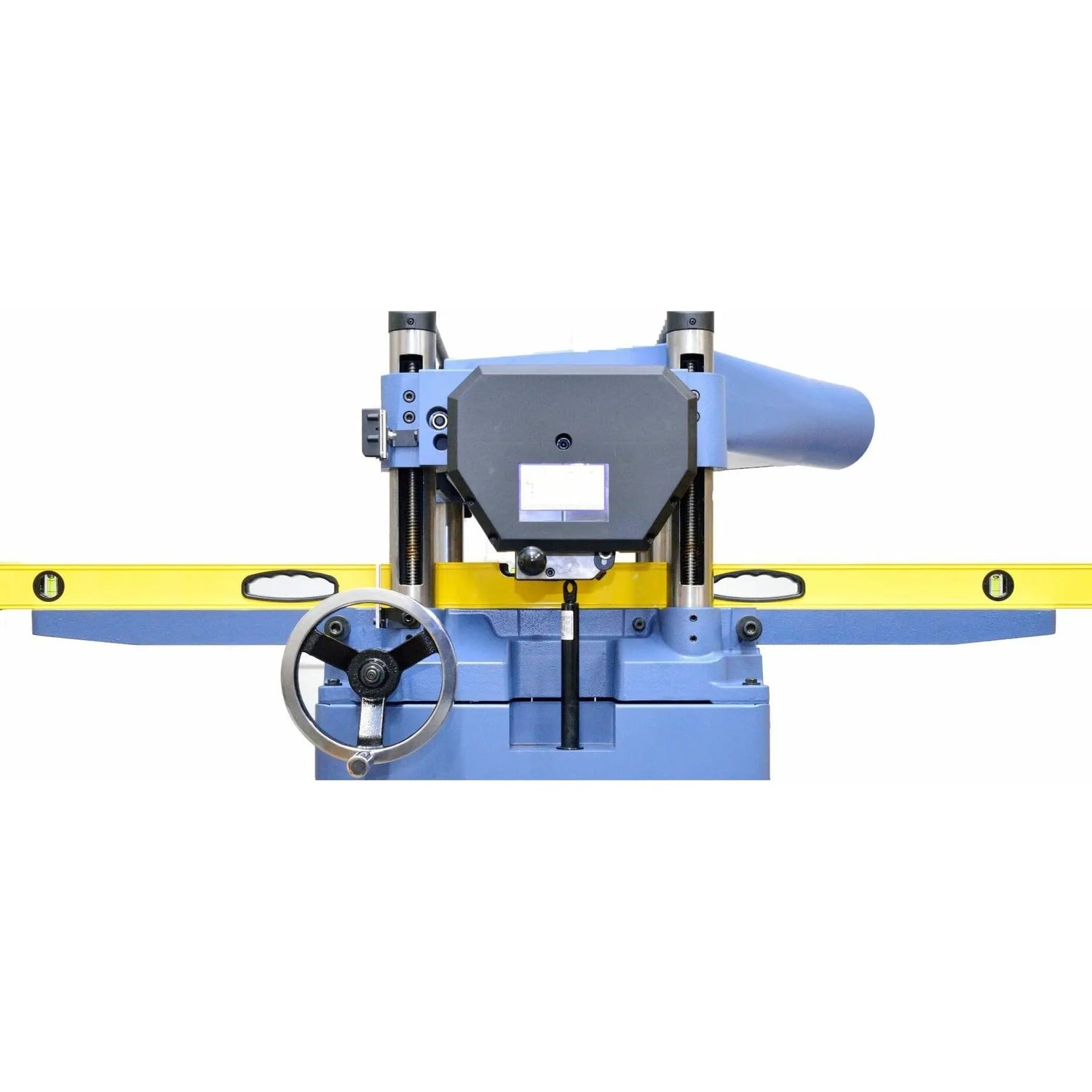

- The four-post design maintains head alignment, delivering consistent planing regardless of stock thickness.
Heavy-Duty Construction for Stability
- Solid cast iron construction, including extension wings, minimizes vibration and ensures smooth, chip-free results.

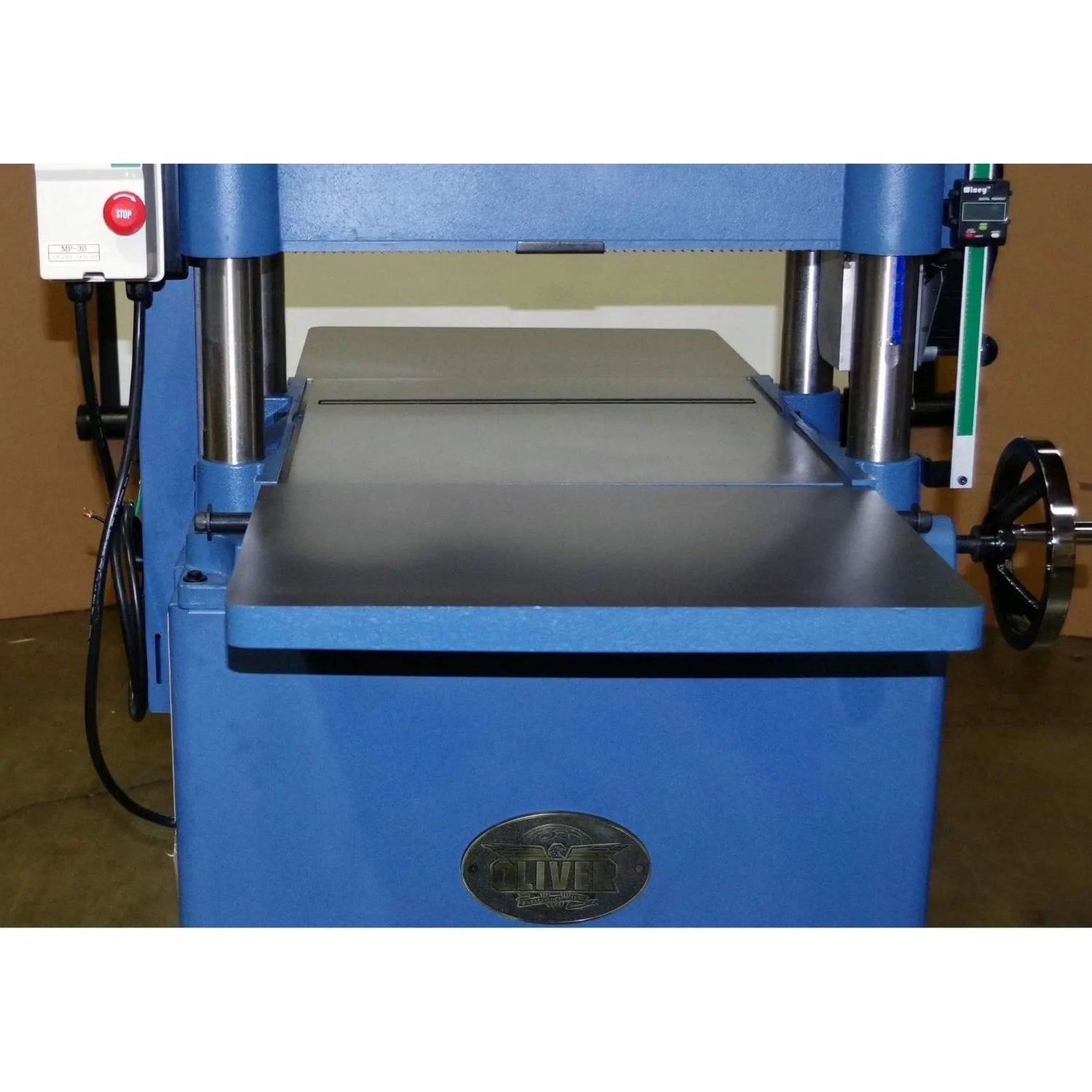

- A precision-ground table guarantees reliable stock feeding for superior finishes.
User-Friendly Operation
- Auto-depth lock with nitrogen cylinders eliminates sniping, improving cut accuracy.

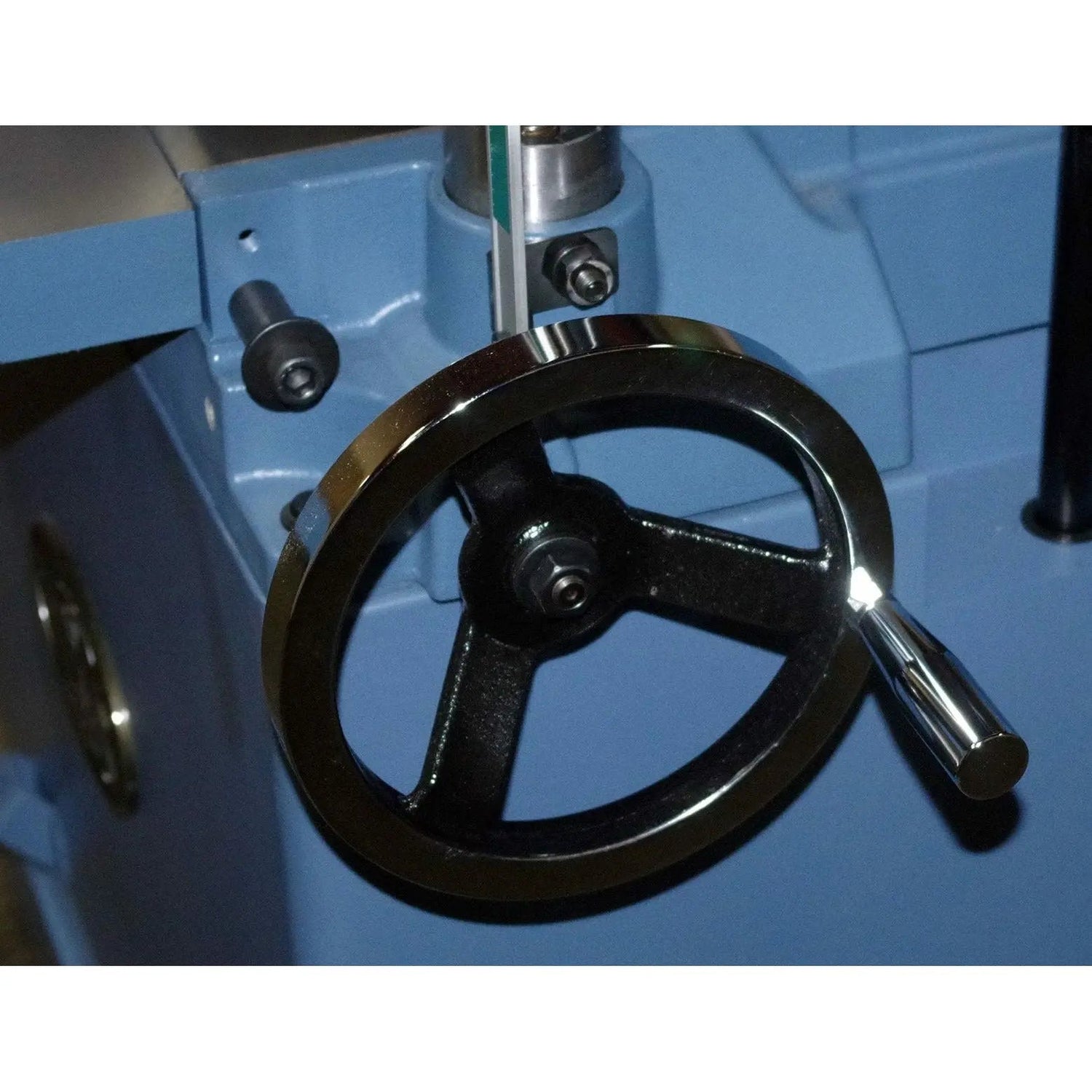

- Large handwheel and support struts provide effortless height adjustments.
- Top-mounted roller allows for easy multiple passes, boosting productivity.
Specifications
| Feature | Specification |
|---|---|
| Model Number | 4430 |
| Stock No. (5HP, 1Ph) | 4430.201 |
| Max Stock Width | 20” |
| Max Depth of Cut | 1/8” |
| Max Stock Thickness | 8” |
| Min Stock Thickness | 1/4” |
| Min Stock Length | 7” |

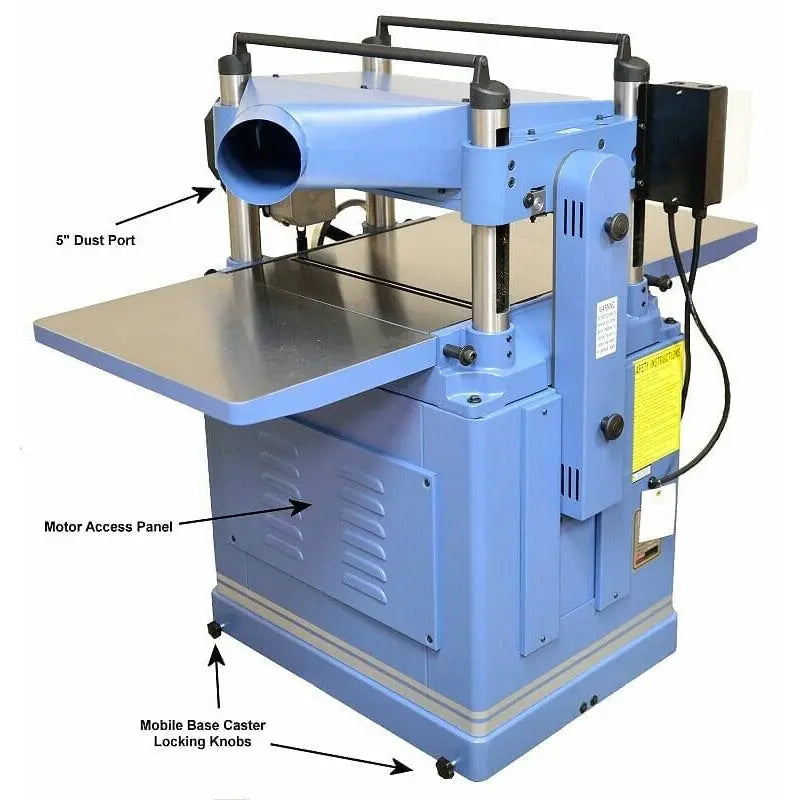

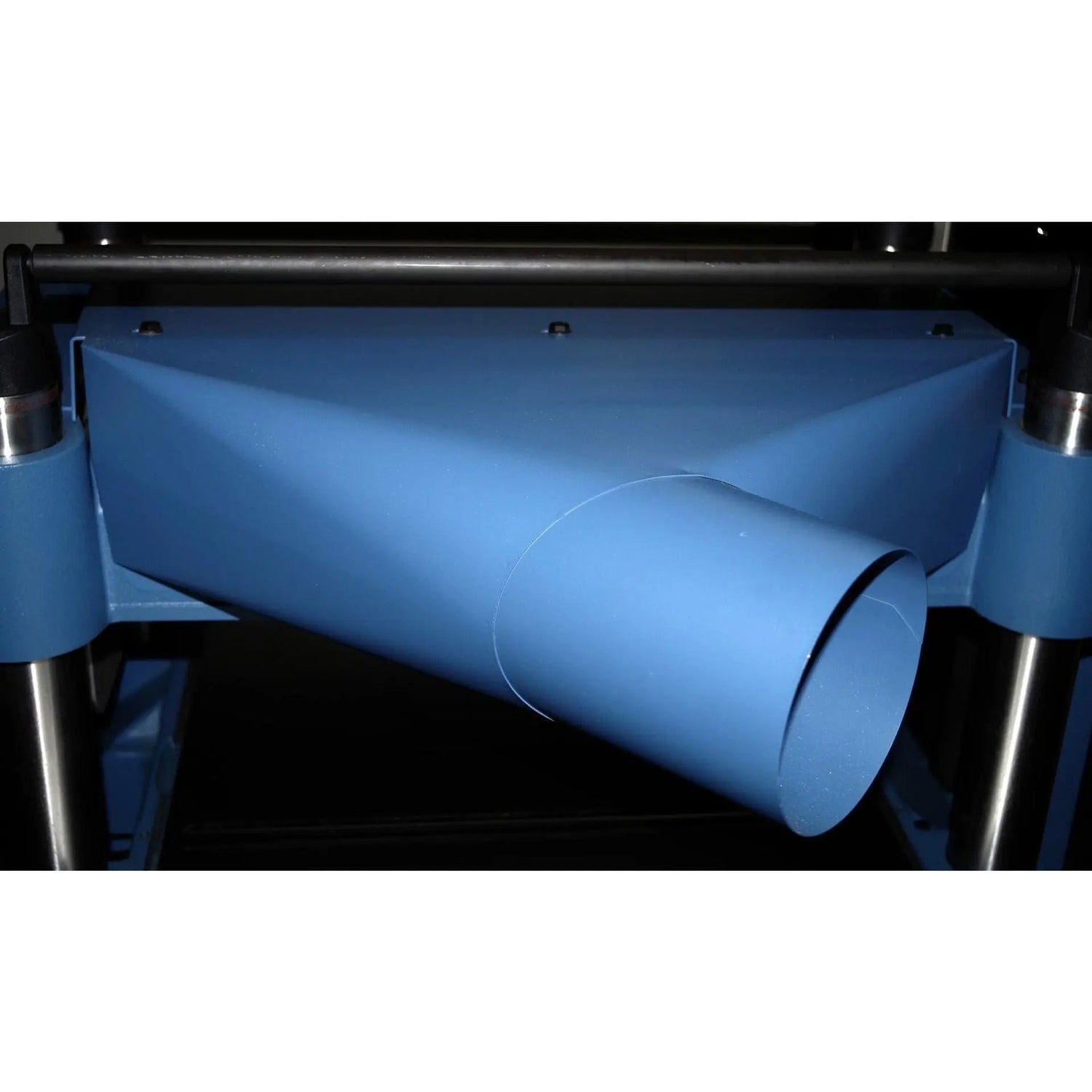

| Dust Port Diameter | 5” |
| Feed Speeds | 16/20 FPM |
| Bed Rollers | 1, Adjustable |
| Table Size | 20” x 21” |
| Table Size w/ Extension Wings | 20” x 51” |
| Cutterhead Diameter | 3-1/4” |
| Cutterhead Speed | 5,000 RPM |
| Number of Knives | 68 |
| Motor | 5HP 1Ph 230V (18 Amp) |
| Overall Dimensions | 45” x 35” x 43.5” |
| Net Weight | 528 lbs. |
| Gross Weight | 625 lbs. |
Ideal For:
- Professional woodworkers needing industrial-grade accuracy.
- Cabinetmakers & furniture builders ensuring perfectly dimensioned lumber.
- Serious hobbyists upgrading to pro-level precision and power.
- Production shops demanding efficiency without compromising quality.
