Oliver Machinery 17" Swing Floor Model Drill Press – 10062
Power, Precision, and Performance in One Robust Machine

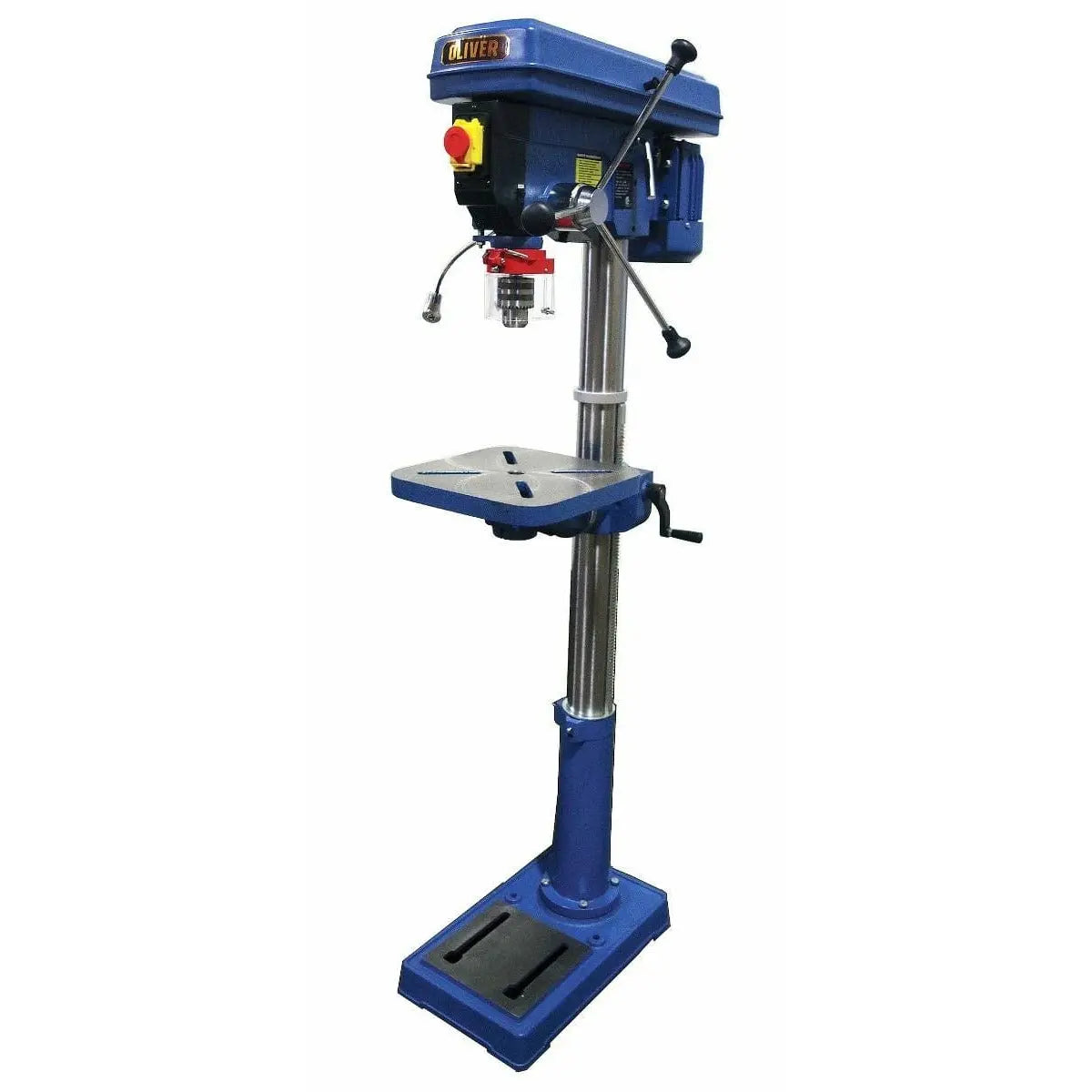

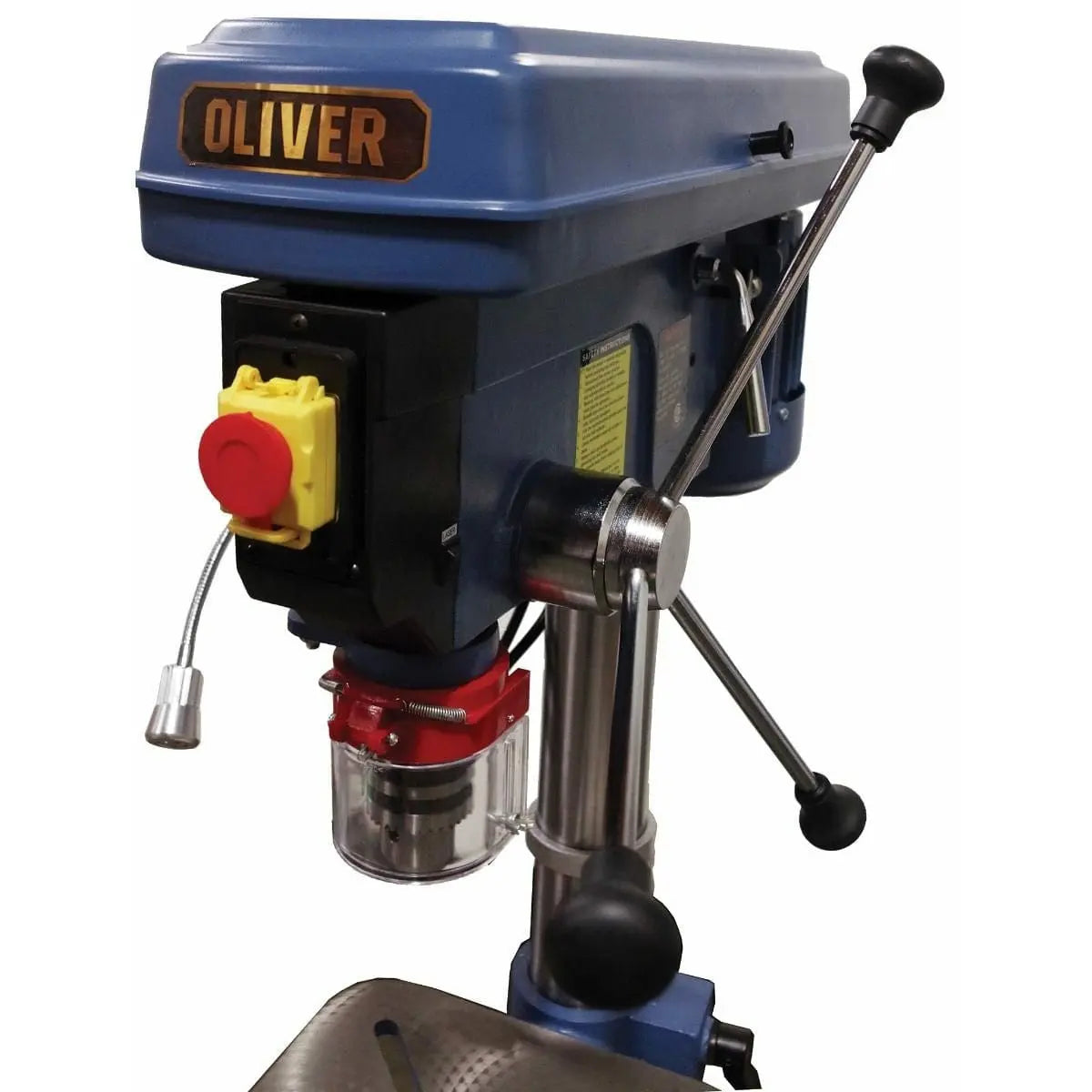

The Oliver Machinery 17" Swing Floor Model Drill Press (Model 10062) is built for serious drilling tasks, whether in a professional workshop or a dedicated home garage. Featuring a powerful 3/4 HP motor and an impressive 17" swing capacity, this drill press delivers high-speed precision with variable speed control, allowing you to drill effortlessly through wood, metal, and other materials.
Designed with durability in mind, it boasts a sturdy cast iron construction, a high-precision spindle supported by sealed ball bearings, and an LED work light for improved visibility. The built-in laser pointer ensures accuracy, while the tilting and rotating table provides maximum flexibility for complex drilling angles.
Key Features
- Reliable Performance – 3/4 HP motor delivers up to 3,450 RPM for smooth, accurate drilling.
- Variable Speed Control – Adjust the speed to match your material, with a range of 240 to 3,400 RPM.

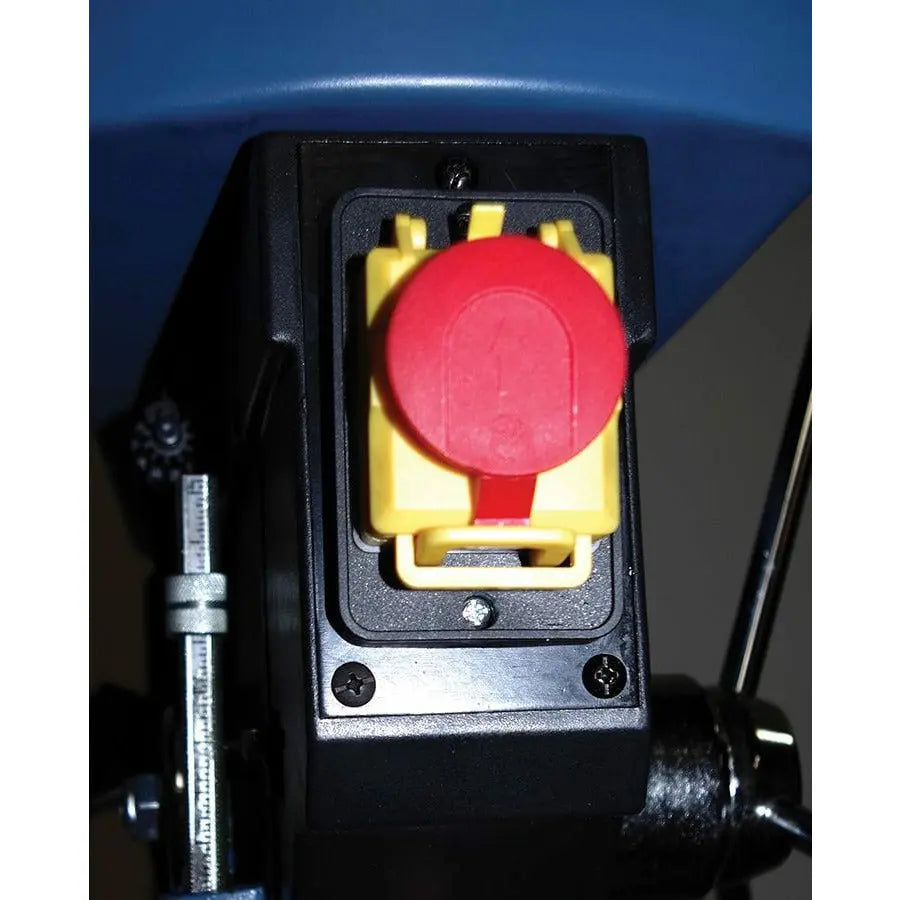

- Built-in Safety – Line interrupt switch prevents automatic restart after power loss.
- Precision Engineering – Spindle is supported by high-quality sealed ball bearings for long-lasting accuracy.
- Superior Visibility – LED lamp provides a well-lit workspace.
- Versatile Worktable – 12" x 12" table rotates 360° and tilts 45° for complex drilling angles.
- Easy Adjustments – Crank-operated table height adjustment with locking clamp for stability.

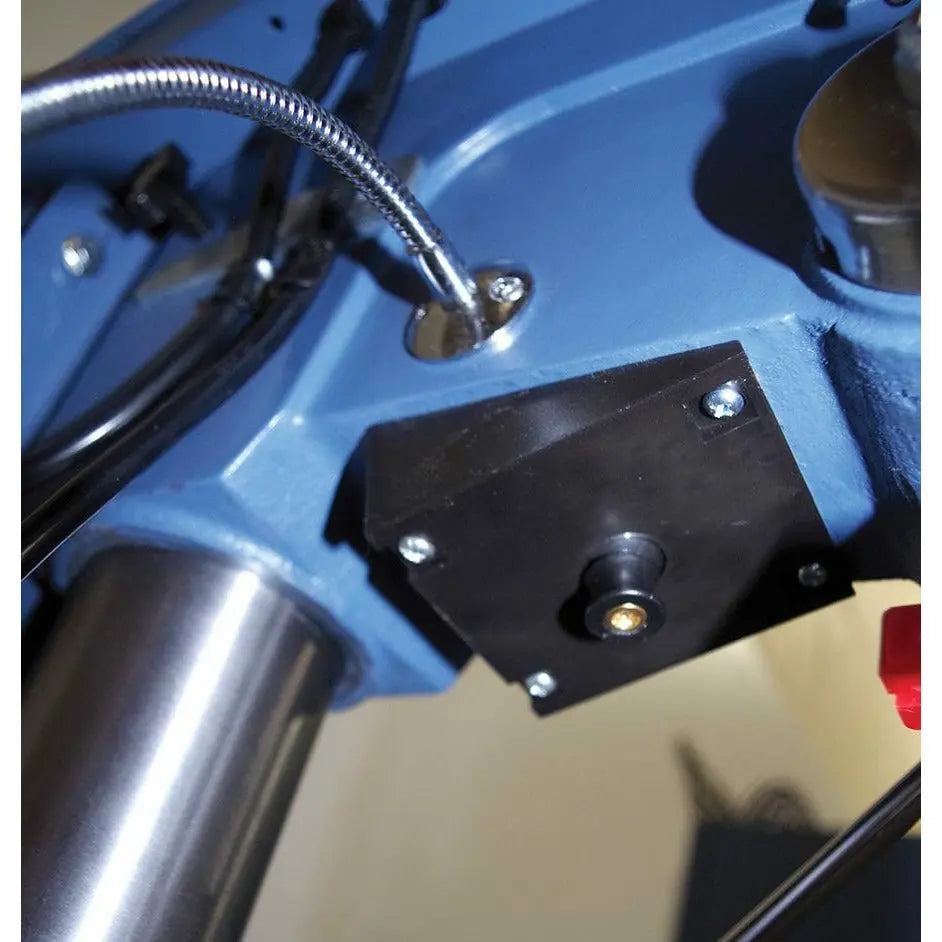

- Laser Precision – Built-in laser pointer ensures accurate repeat drilling.

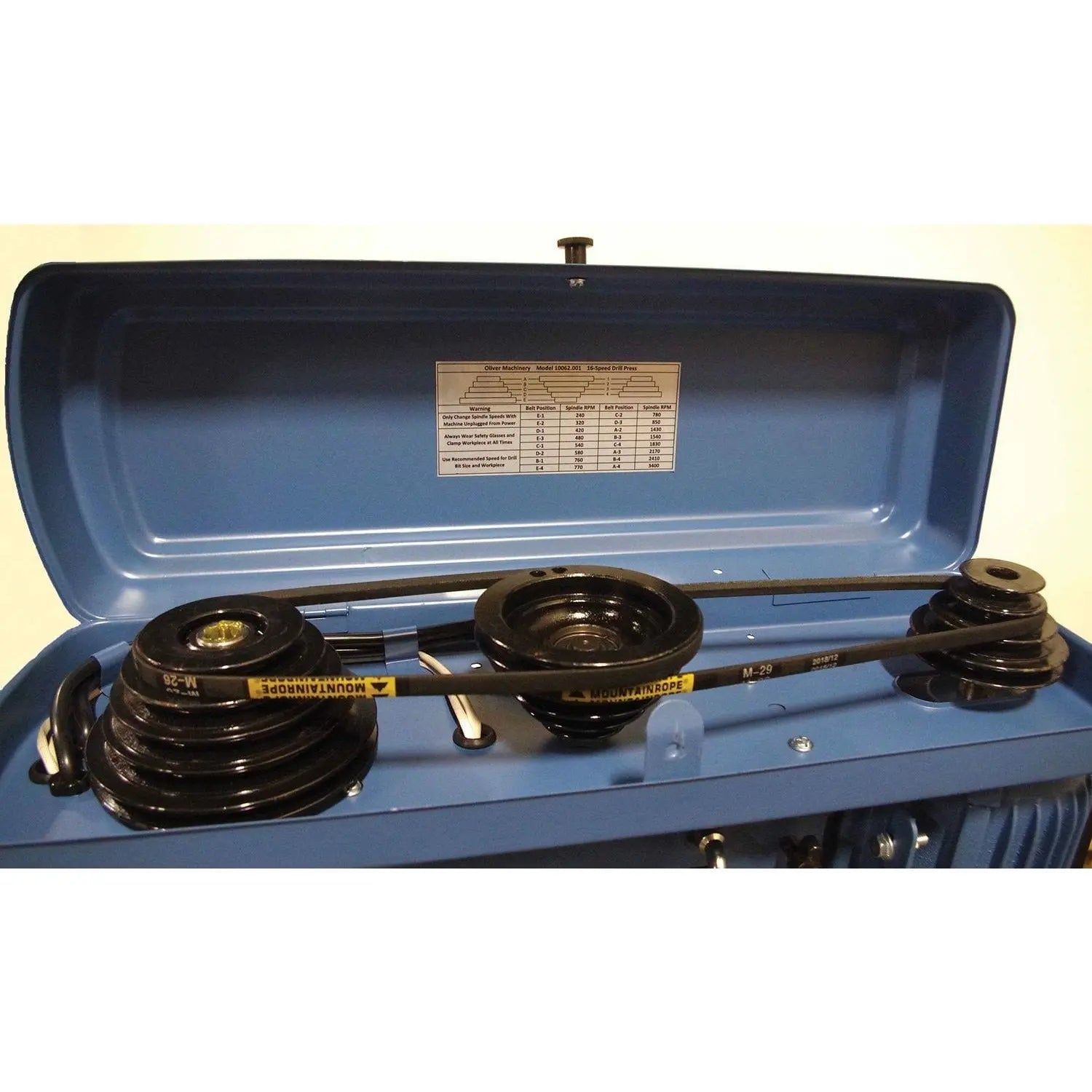

- Smooth Operation – Cast iron pulleys reduce vibration for consistent performance.
- Convenient Accessories – Includes a 5/8” chuck, key holder, and drill chuck guard for added safety.
Specifications
- Model Number: 10062
- Swing: 17”
- Drilling Capacity: 3/4”
- Chuck Capacity: 5/8”
- Chuck Taper: JT-3
- Table Size: 12” x 12”
- Table Tilt: ± 45°
- Spindle Taper: MT-2
- Spindle Travel: 3-1/8”
- Spindle Speeds: 16 settings
- Speed Range: 240 - 3,400 RPM
- Spindle to Table Distance: 28”
- Spindle to Base Distance: 48-1/2”
- Column Diameter: 3-1/8”
- Base Size: 11-3/4” x 19-5/8”
- Overall Height: 64-1/2”
- Motor: 3/4 HP, 1-Phase, 115V (12 Amps)
- Net Weight: 200 lbs.
- Gross Weight: 215 lbs.
Downloads
