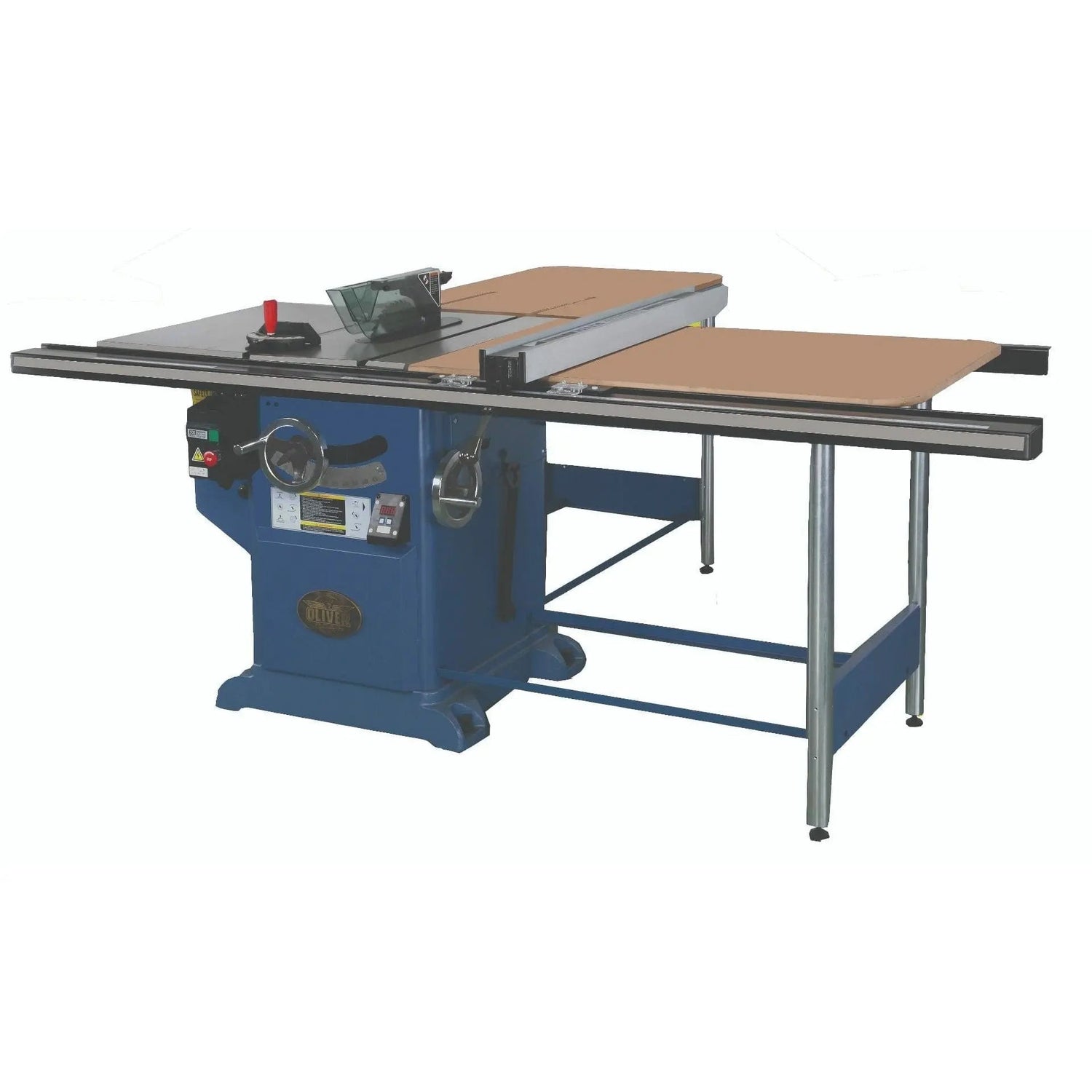

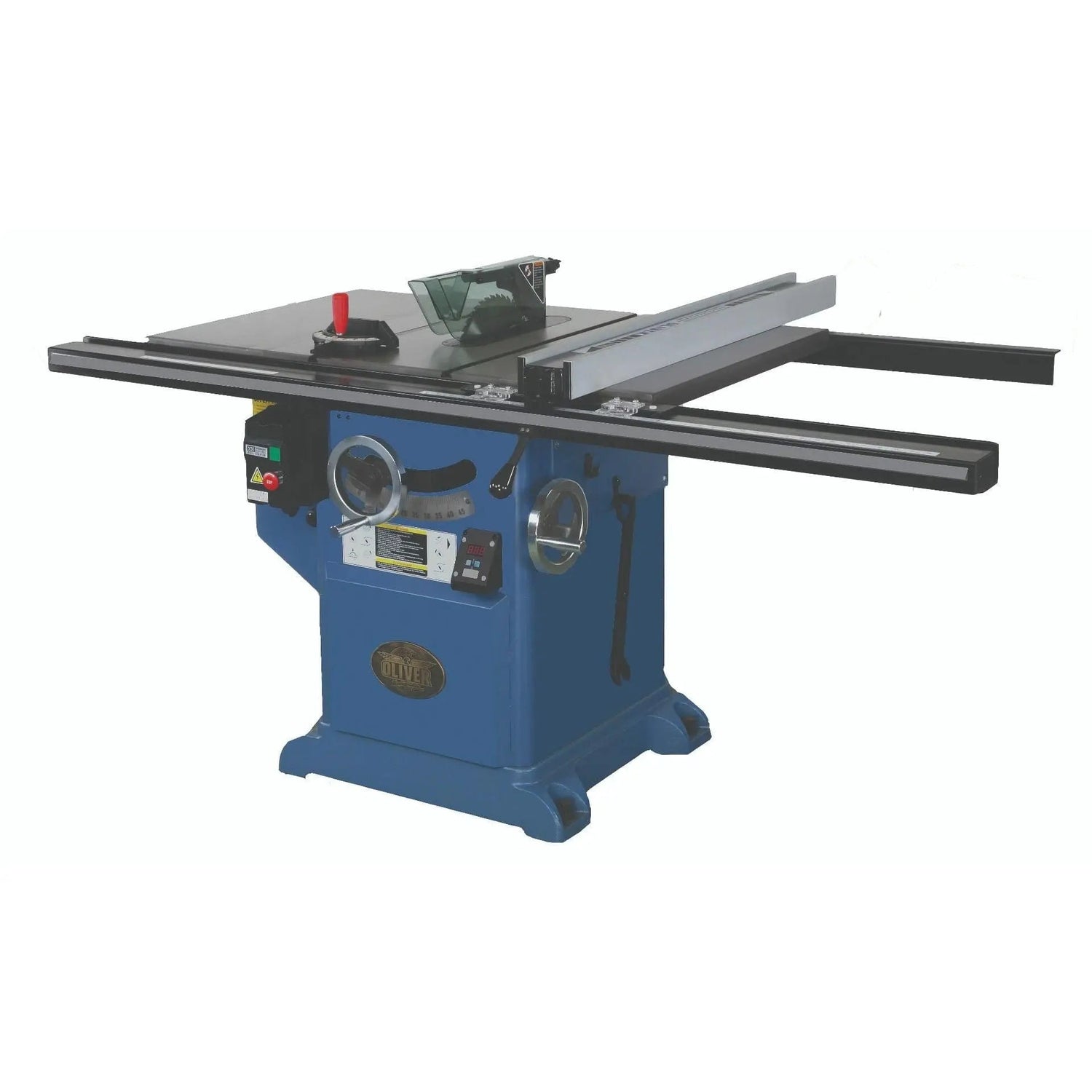

Oliver Machinery 12” Three Phase 7.5 HP Professional Heavy-Duty Table Saw
Elevate your woodworking to industrial-grade perfection with the Oliver Machinery 12" Three Phase 7.5 HP Professional Heavy-Duty Table Saw. This powerhouse machine delivers unmatched cutting power, unwavering precision, and rock-solid stability, built to handle the most demanding projects with ease.
Unleash the Beast Within:
- Industrial-Grade Muscle – The robust 7.5 HP three-phase motor tackles even the densest hardwoods and thickest materials with effortless power, guaranteeing flawless cuts and smooth ripping.
- Ironclad Stability – The heavy-duty cast iron base and precision-ground table provide an unshakeable foundation, minimizing deflection and vibration for accurate cuts.
- Surgical Precision – The large, cast iron table and fence system ensure splinter-free, consistent cuts every time.
- Expansive Capacity – Rip through oversized projects with confidence, featuring a generous 36" (or optional 52") rip capacity with an extension table.

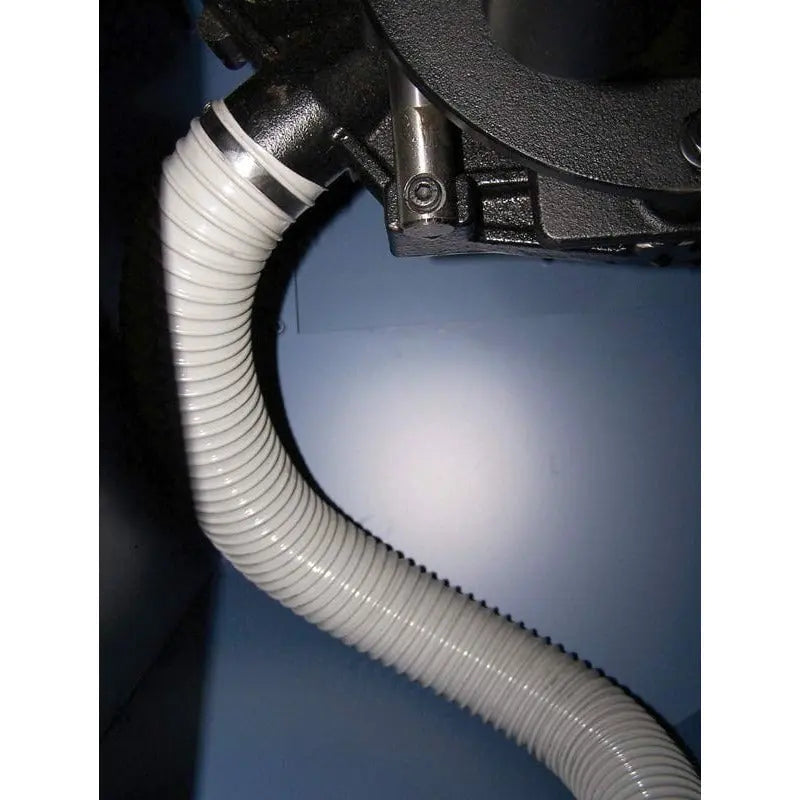

- Dust Management Mastery – The fully enclosed cabinet and blade dust shroud effectively capture dust and debris, keeping your workspace clean.
- Built for Generations – Crafted from premium materials and components, this table saw is designed for years of reliable operation.
Features:
- Large precision-ground table for a stable work surface
- Cast iron base for a steady platform
- Fully enclosed cabinet and blade dust shroud for better dust management
- Precision-ground 1” arbor
- Wide stance trunnion with a left-tilt blade
- Poly V-belt drive for smooth power transfer to the blade
- Hydraulic-assisted blade lift mechanism for easy movement
- Large chrome hand wheels for effortless adjustments

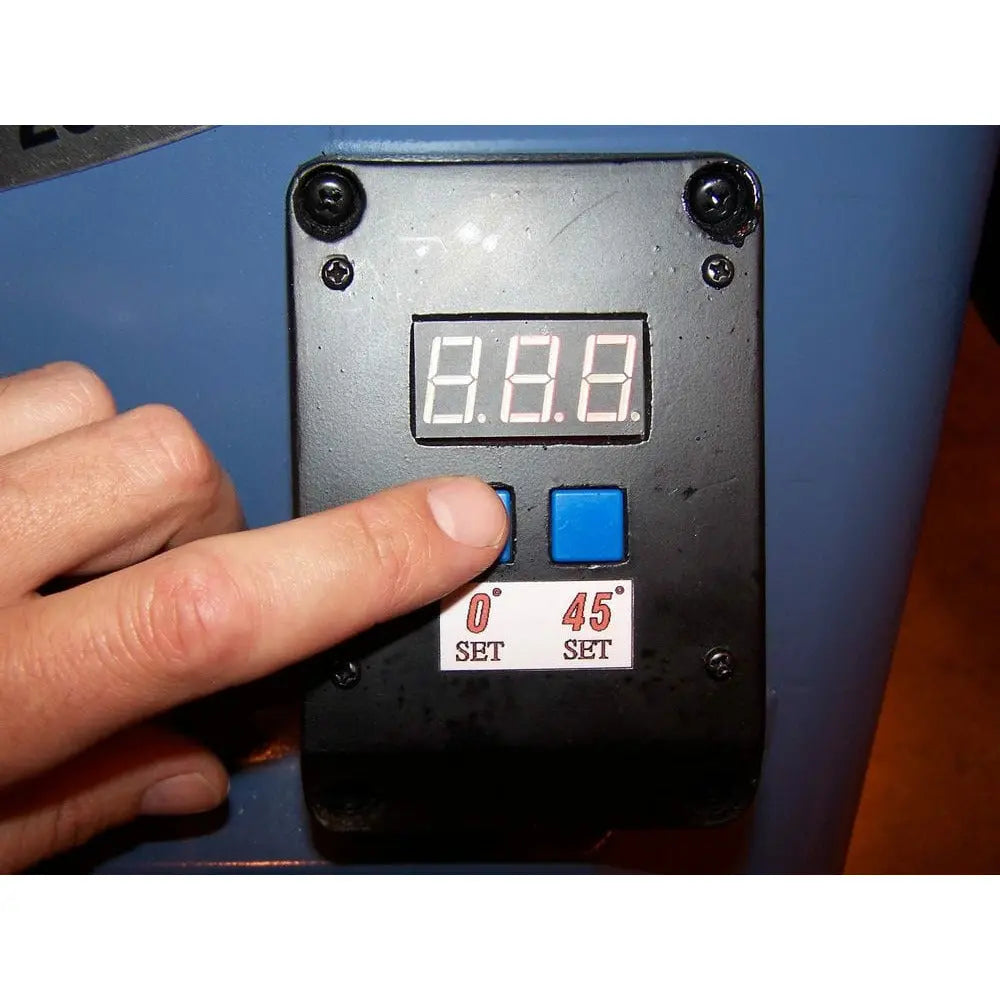

- Digital readout for blade tilt
- Riving knife splitter for added safety against kickback
- Optimus T-square fence available in 36” or 52” rip capacity
- 36” rail includes (2) cast iron extension wings
- 52” rail includes wood side table and (1) cast iron extension wing
- Optional rear support table available
- Magnetic controls with an emergency off switch
- Powerful TEFC motor available in single or three-phase

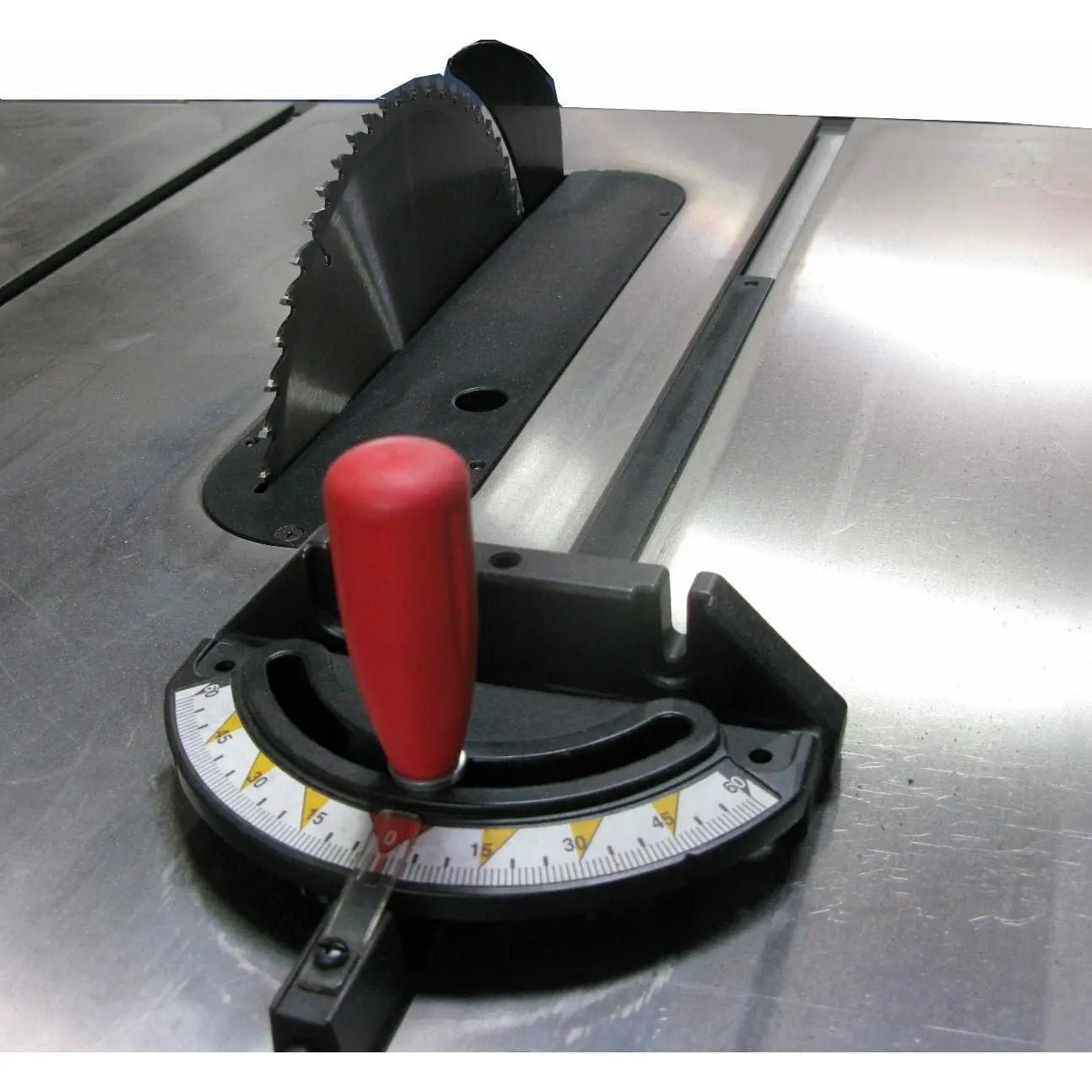

- Miter gauge included
- Blade not included
Specifications:
- Model Number: 4045
- Stock No. (5HP, 1Ph): 4045.003
- Stock No. (7.5HP, 3Ph): 4045.004
- Blade Diameter: 12"
- Arbor Diameter: 1”
- Blade Tilt: Left
- Arbor Speed: 3,450 RPM
- Maximum Depth of Cut at 90°: 4"
- Maximum Depth of Cut at 45°: 2-2/3"
- Maximum Width of Dado: 13/16"
- Maximum Cut to Right of Blade: 36” or 52” with side table
- Maximum Cut to Left of Blade: 12"
- Dust Port Diameter: 4"
- Table Dimensions (without extensions): 30-3/4”D x 24”W
- Wing Size: 30-3/4” x 12”
- Table Height: 36"
- Motor (1Ph): 5HP, 1Ph, 220V Only (18 Amp)
- Motor (3Ph): 7.5HP, 3Ph, 220V/440V* Prewired 220V (20/10 Amp)
- Overall Dimensions: 75”L x 45”W x 41”H
- Net Weight: 550 lbs.
- Gross Weight: 750 lbs.
