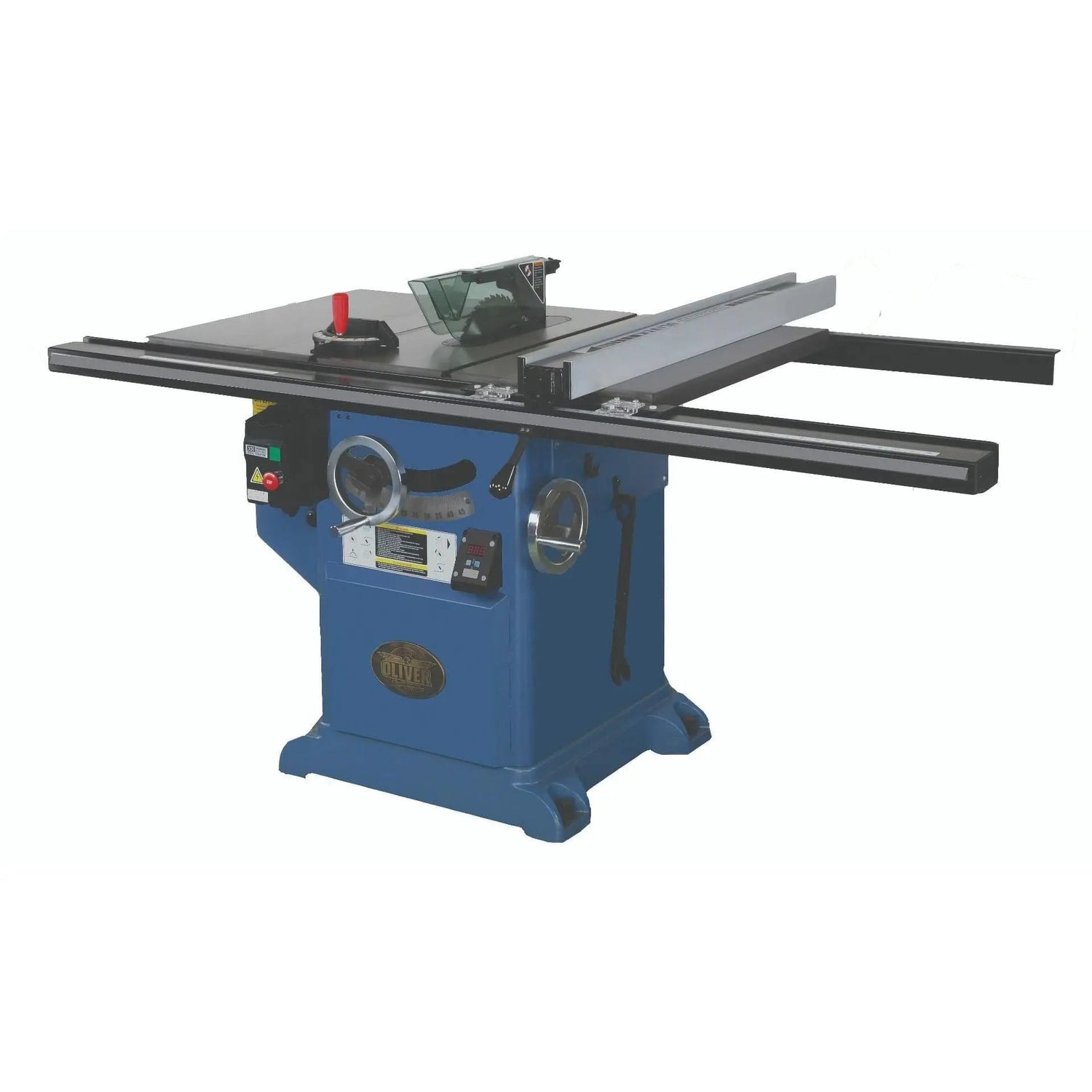

Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw
Unleash your woodworking potential with the Oliver Machinery 12" Single Phase 5 HP Professional Heavy-Duty Table Saw. Designed for industrial-grade performance, this powerhouse delivers exceptional power, unwavering precision, and unmatched durability. Whether you're a seasoned professional or an ambitious hobbyist, this saw will take your woodworking projects to the next level.
Features
- Large precision-ground table provides a stable work surface.
- Cast iron base ensures a steady platform.

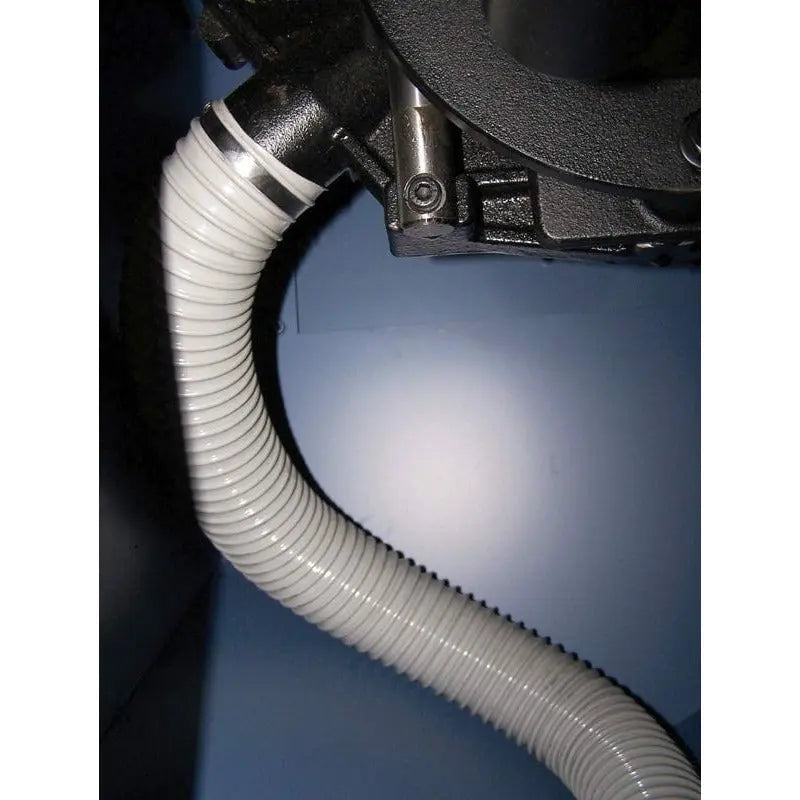

- Fully enclosed cabinet and blade dust shroud for superior dust management.
- Precision-ground 1” arbor for accurate blade positioning.
- Wide stance trunnion features a left-tilt blade for better control.
- Poly V-belt drive smoothly transfers power to the blade.
- Hydraulic-assisted blade lift mechanism for easy adjustments.
- Large chrome handwheels allow smooth and precise movement.

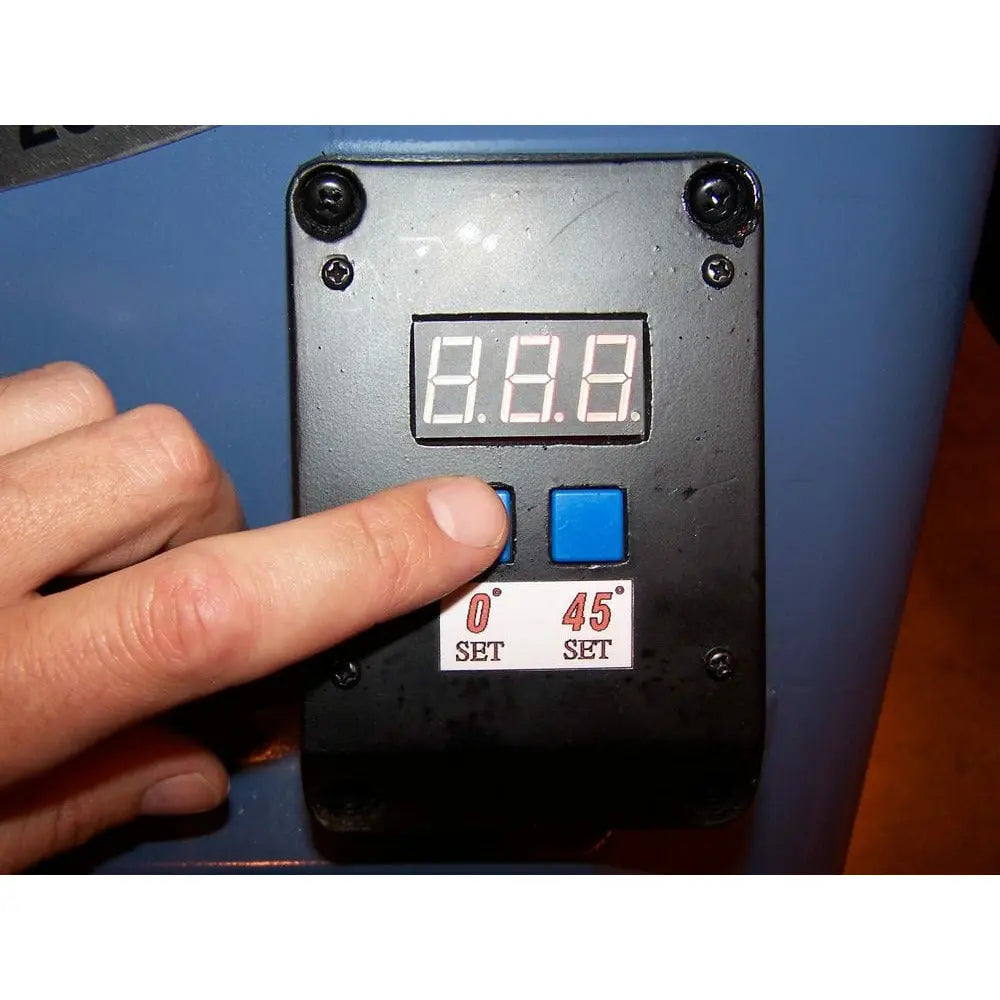

- Digital readout for blade tilt adjustments.
- Riving knife splitter enhances safety by preventing kickback.
- Optimus T-square fence available in 36” or 52” rip capacity.
- 36” rail includes two cast iron extension wings.

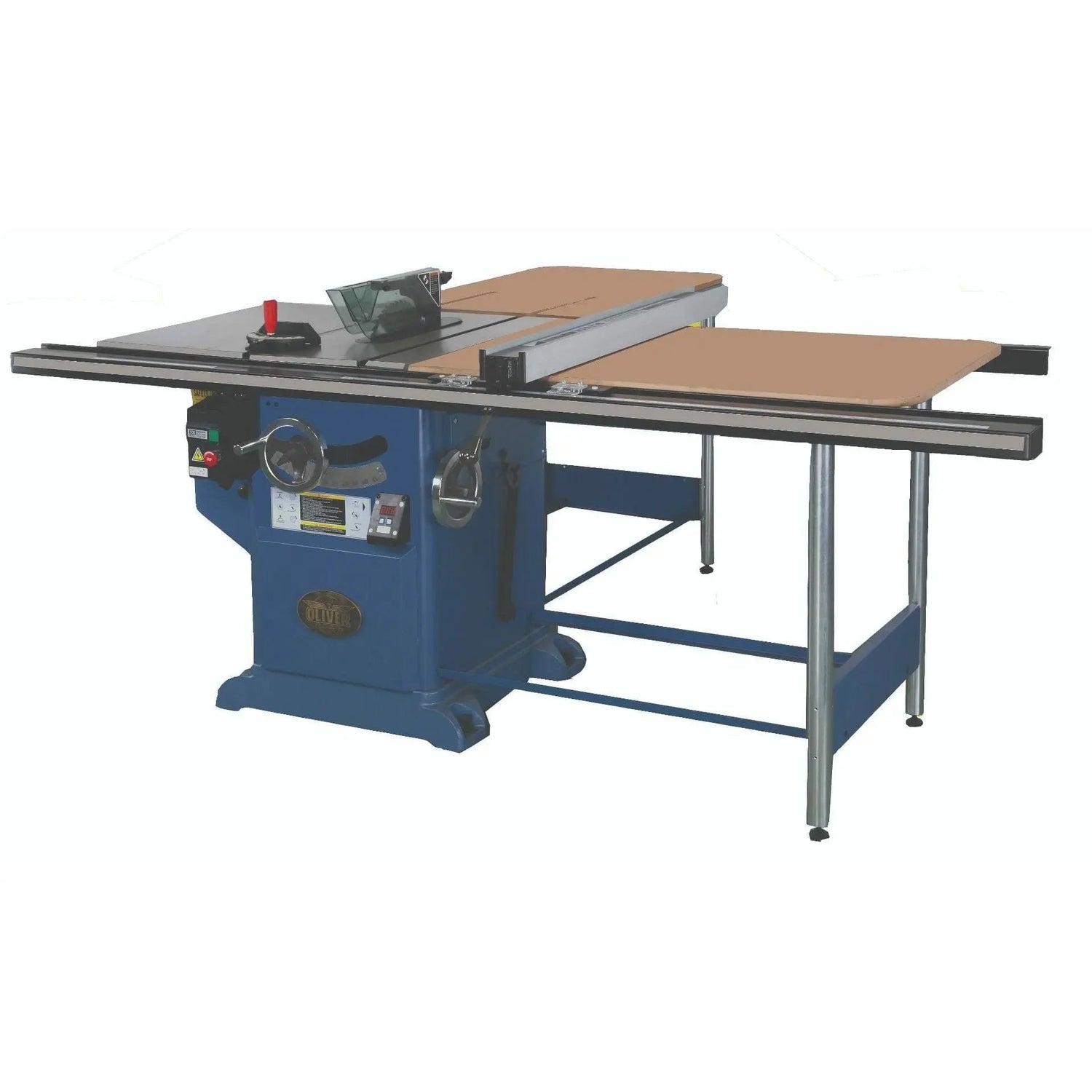

- 52” rail includes a wood side table and one cast iron extension wing.
- Optional rear support table available.
- Magnetic controls with an emergency off switch for added safety.
- Powerful TEFC motor available in single or three-phase options.

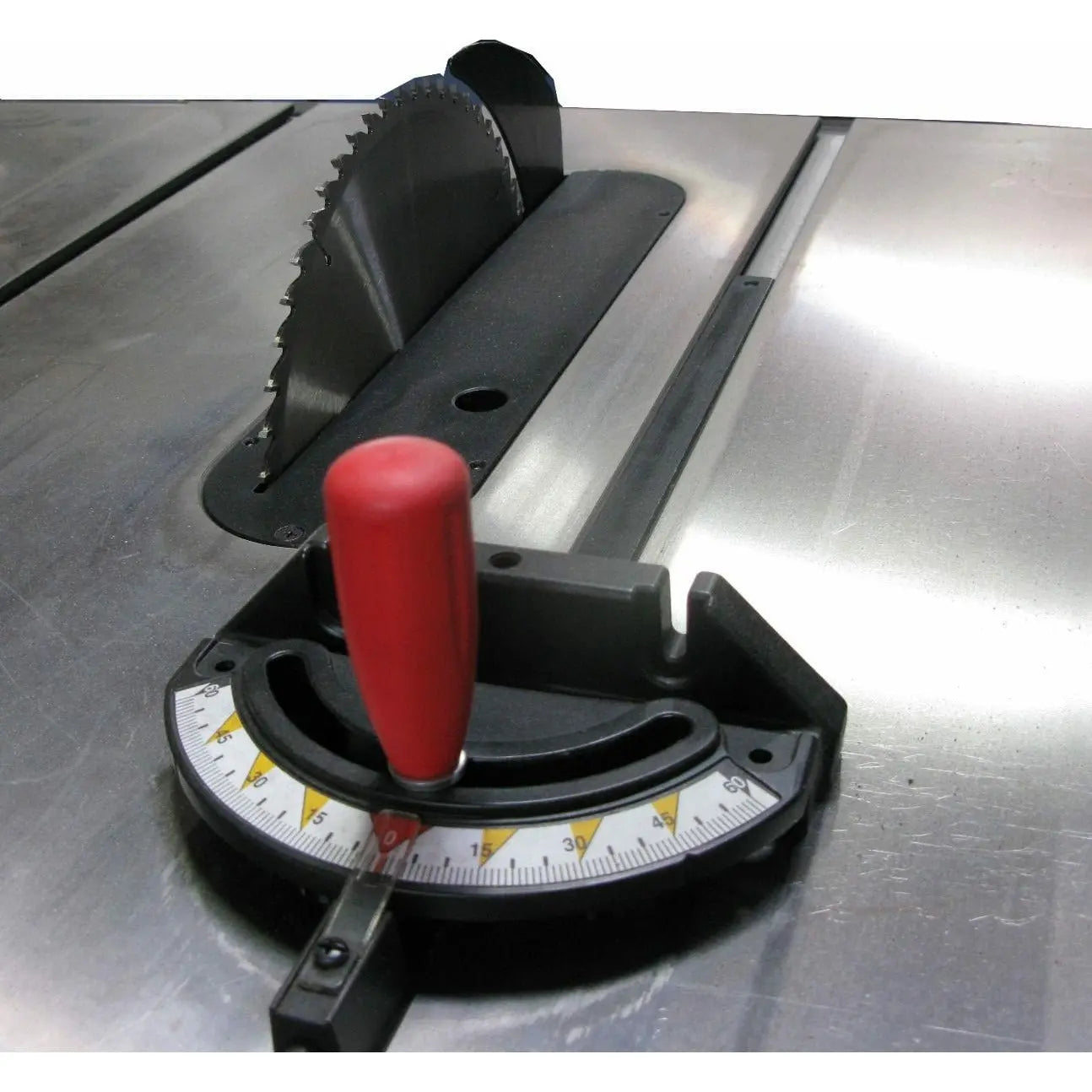

- Miter gauge included.
- Blade not included.
Specifications
- Model Number: 4045
- Stock No. (5HP, 1Ph): 4045.003
- Stock No. (7.5HP, 3Ph): 4045.004
- Blade Diameter: 12"
- Arbor Diameter: 1”
- Blade Tilt: Left
- Arbor Speed: 3,450 RPM
- Max Depth of Cut at 90°: 4"
- Max Depth of Cut at 45°: 2-2/3"
- Max Width of Dado: 13/16"
- Max Cut to Right of Blade: 36” or 52” (with side table)
- Max Cut to Left of Blade: 12"
- Dust Port Diameter: 4"
- Table Dimensions (w/o Extensions): 30-3/4”D x 24”W
- Wing Size: 30-3/4” x 12”
- Table Height: 36"
- Motor (1Ph): 5HP, 1Ph, 220V Only (18 Amp)
- Motor (3Ph): 7.5HP, 3Ph, 220V/440V* Prewired 220V (20/10 Amp)
- Overall Dimensions: 75”L x 45”W x 41”H
- Net Weight: 550 lbs.
- Gross Weight: 750 lbs.
