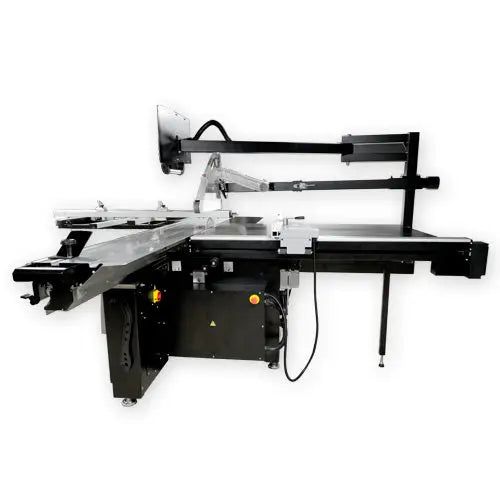

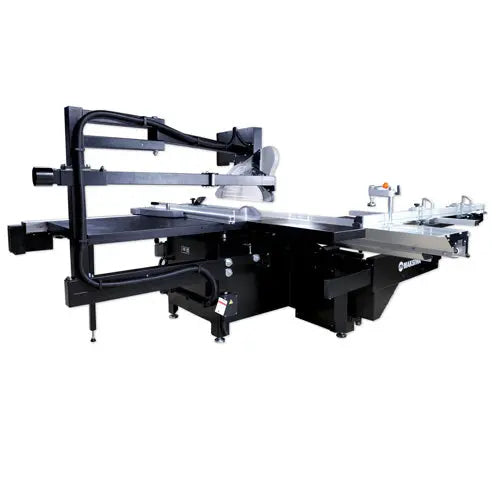

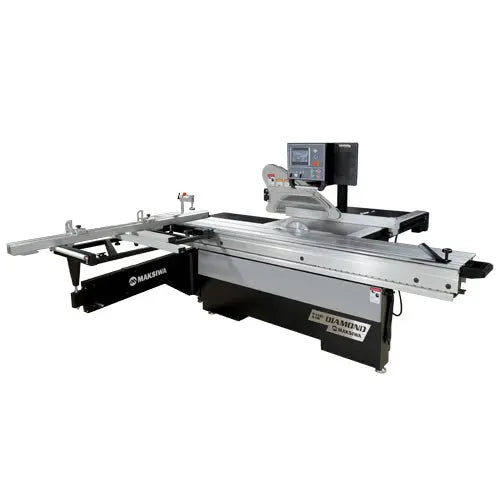

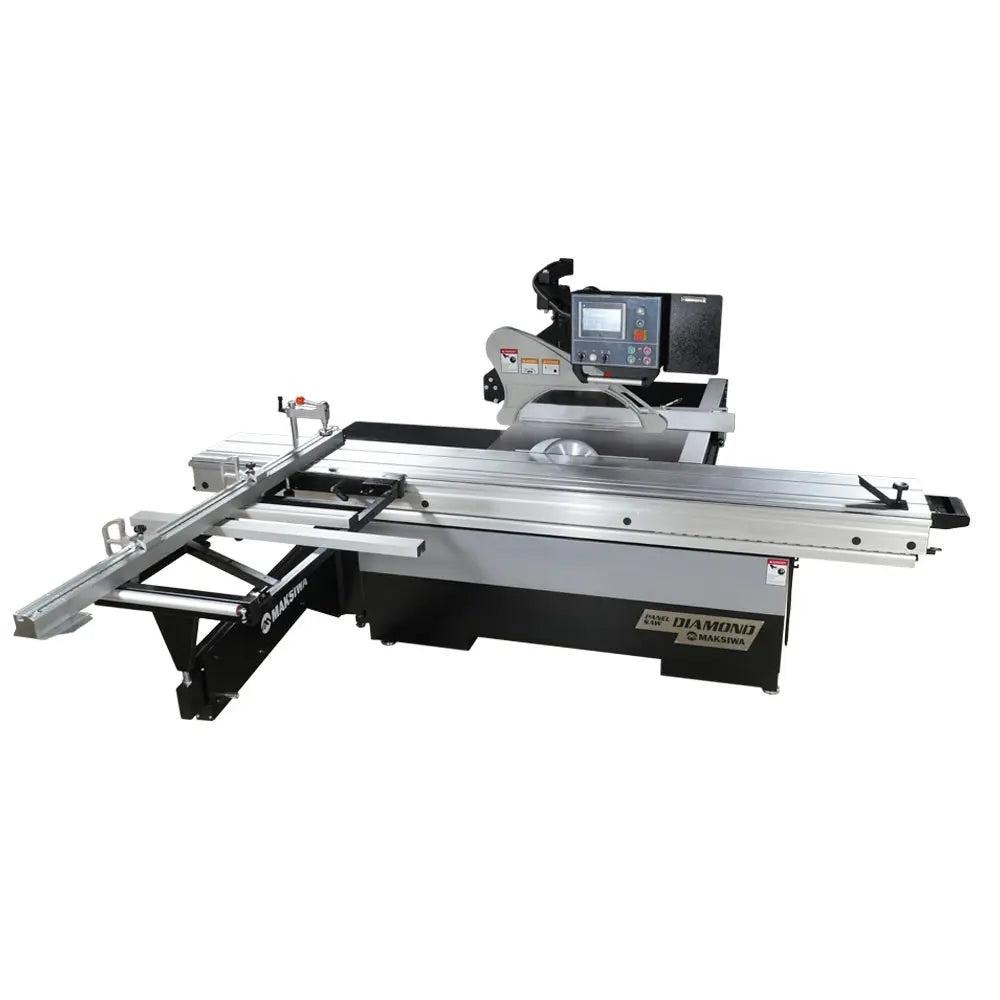

Maksiwa BMD.3200.IR Sliding Panel Saw
With over 30 years of experience in developing and manufacturing high-performance sliding panel saws, Maksiwa continues to push the boundaries of precision and durability. The BMD.3200.IR Sliding Panel Saw is engineered to deliver exceptional cutting accuracy, effortless operation, and unmatched reliability. Designed with premium materials and cutting-edge technology, this machine is one of the most advanced in its category.
Key Features

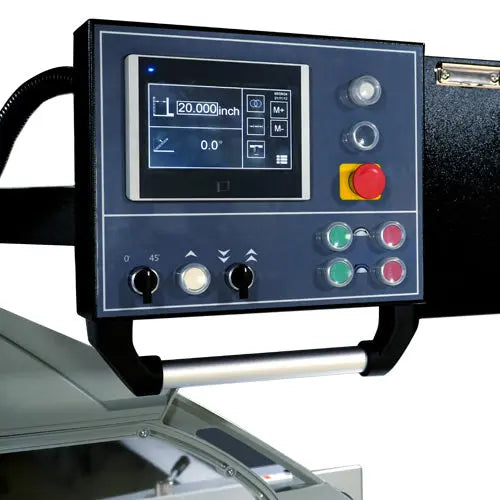

- Programmable Rip Fence – Ensures precision and repeatability.
- Powerful 10HP Motor – 3-phase 220V for heavy-duty performance.
- Scoring Blade System – 1HP motor (0.75kW) for flawless edge cuts.

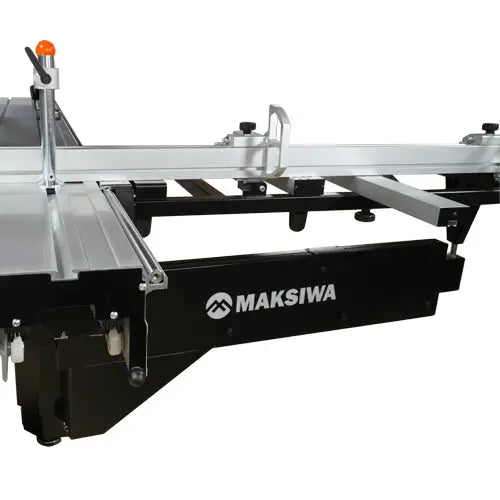

- Large Sliding Table – 126” x 15” for smooth material handling.
- Heavy-Duty Cast Iron Table – Provides superior stability.
- Multi-Speed Blade Control – Adjusts between 3,000, 4,000, and 5,000 RPM.

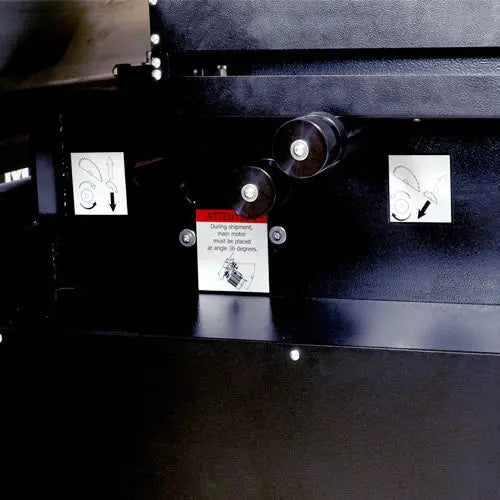

- Adjustable Blade Tilting – Manual adjustment from 0° to 45°.

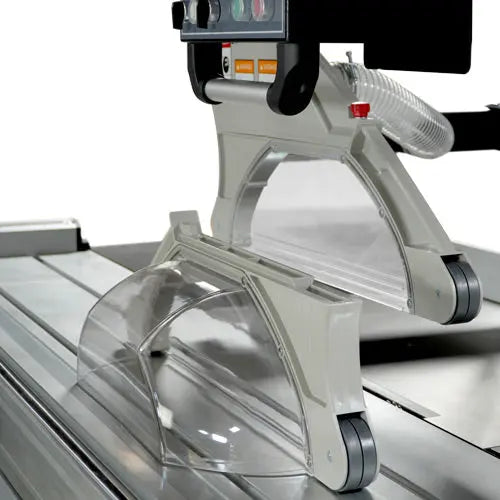

- Dual Blade Protection Cover – Enhances safety during operation.

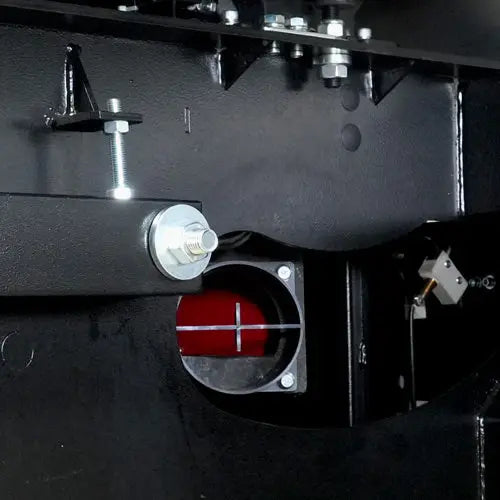

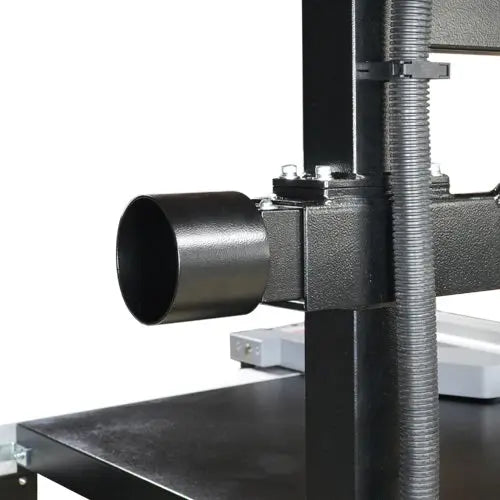

- Advanced Dust Collection – Two ports (4” and 4¾”) for a cleaner workspace.
- Comes with a Set of Blades – Everything you need to get started.
Specifications
- Main Motor Power: 10HP, 3-phase 220V
- Scoring Blade Motor Power: 1HP (0.75kW)
- Max Blade Diameter: 16” (400mm)
- Main Blade Speed: 3,000 / 4,000 / 5,000 RPM
- Scoring Blade Speed: 8,000 RPM
- Max Cutting Height at 90°: 5” (130mm)
- Max Cutting Height at 45°: 3.5” (90mm)
- Max Cut Capacity: 51” (1300mm)
- Main Table Size: 35” x 21” (896 x 548mm)
- Sliding Table Size: 126” x 15” (3200 x 378mm)
- Total Table Size: 68” x 59” (1726 x 1500mm)
- Dust Collection Ports: 4” (100mm) overhead, 4¾” (120mm) main
- Machine Dimensions: 82” x 47” x 43¾” (2100 x 1200 x 1110mm)
- Net Weight: 1,179 lbs (535kg)
- Gross Weight: 1,400 lbs (635kg)
For woodworkers and manufacturers seeking absolute precision, durability, and efficiency, the Maksiwa BMD.3200.IR is a top-tier investment.
Description
Maksiwa BMD.3200.IR Sliding Panel Saw
With over 30 years of experience in developing and manufacturing high-performance sliding panel saws, Maksiwa continues to push the boundaries of precision and durability. The BMD.3200.IR Sliding Panel Saw is engineered to deliver exceptional cutting accuracy, effortless operation, and unmatched reliability. Designed with premium materials and cutting-edge technology, this machine is one of the most advanced in its category.
Key Features
- Programmable Rip Fence – Ensures precision and repeatability.
- Powerful 10HP Motor – 3-phase 220V for heavy-duty performance.
- Scoring Blade System – 1HP motor (0.75kW) for flawless edge cuts.
- Large Sliding Table – 126” x 15” for smooth material handling.
- Heavy-Duty Cast Iron Table – Provides superior stability.
- Multi-Speed Blade Control – Adjusts between 3,000, 4,000, and 5,000 RPM.
- Adjustable Blade Tilting – Manual adjustment from 0° to 45°.
- Dual Blade Protection Cover – Enhances safety during operation.
- Advanced Dust Collection – Two ports (4” and 4¾”) for a cleaner workspace.
- Comes with a Set of Blades – Everything you need to get started.
Specifications
- Main Motor Power: 10HP, 3-phase 220V
- Scoring Blade Motor Power: 1HP (0.75kW)
- Max Blade Diameter: 16” (400mm)
- Main Blade Speed: 3,000 / 4,000 / 5,000 RPM
- Scoring Blade Speed: 8,000 RPM
- Max Cutting Height at 90°: 5” (130mm)
- Max Cutting Height at 45°: 3.5” (90mm)
- Max Cut Capacity: 51” (1300mm)
- Main Table Size: 35” x 21” (896 x 548mm)
- Sliding Table Size: 126” x 15” (3200 x 378mm)
- Total Table Size: 68” x 59” (1726 x 1500mm)
- Dust Collection Ports: 4” (100mm) overhead, 4¾” (120mm) main
- Machine Dimensions: 82” x 47” x 43¾” (2100 x 1200 x 1110mm)
- Net Weight: 1,179 lbs (535kg)
- Gross Weight: 1,400 lbs (635kg)
For woodworkers and manufacturers seeking absolute precision, durability, and efficiency, the Maksiwa BMD.3200.IR is a top-tier investment.
