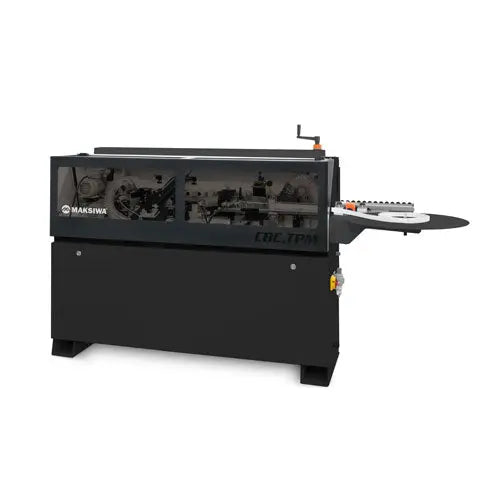

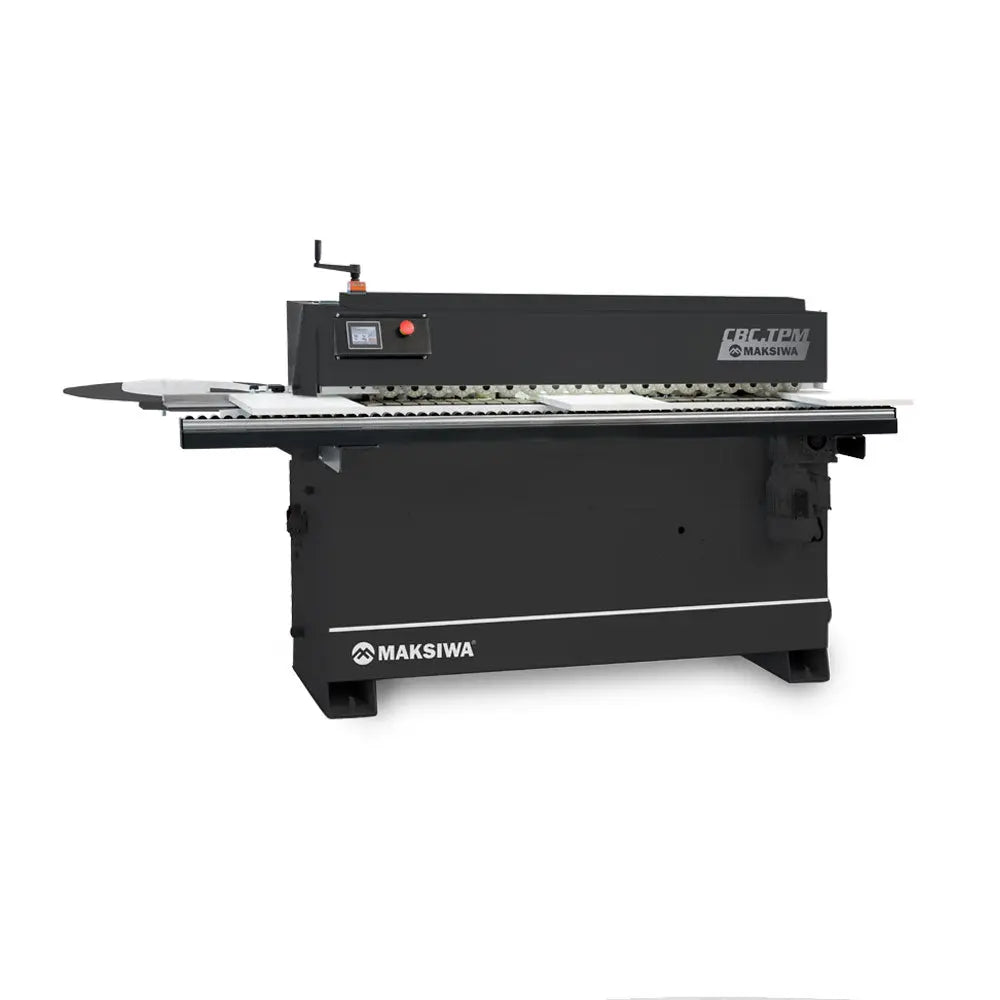

Maksiwa CBC.TPM Automatic Edgebander – Precision in a Compact Design

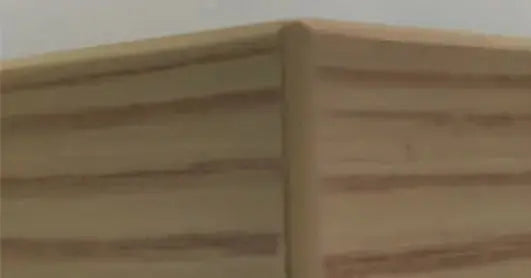

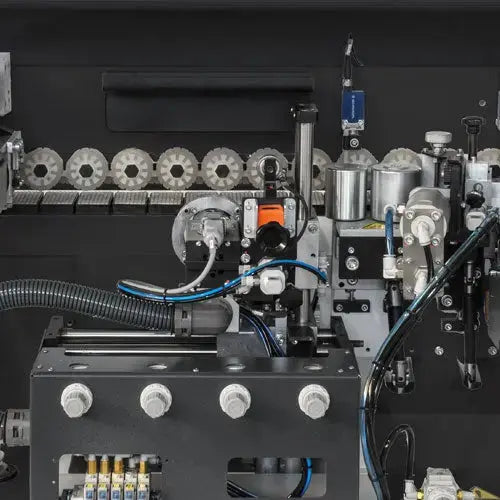

The NEW Maksiwa CBC.TPM Automatic Edgebander delivers high-end precision and efficiency in a space-saving design, making it perfect for workshops where every inch counts. Built for seamless operation, this edgebander integrates pre-milling, gluing, end trimming, top & bottom trimming, glue scraping, buffing, and vertical rounding, ensuring a flawless finish on melamine, PVC, ABS, and PP edgebands.

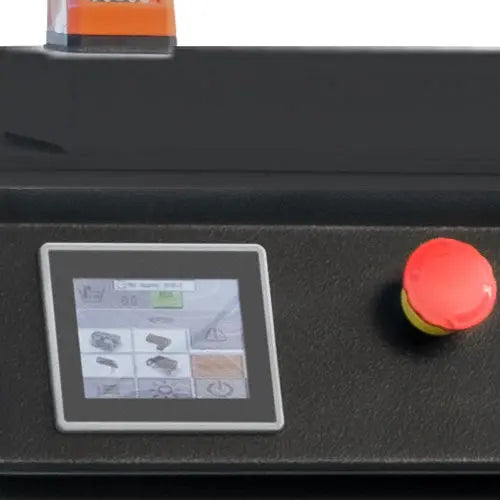

Equipped with a user-friendly touchscreen panel, this machine offers smooth automation while maintaining top-notch performance. With a high-frequency end trimming motor, Teflon-coated glue pot, and automatic feeding at 21 ft/min, the CBC.TPM provides superior adhesion and clean edges, even on challenging materials.
Key Features

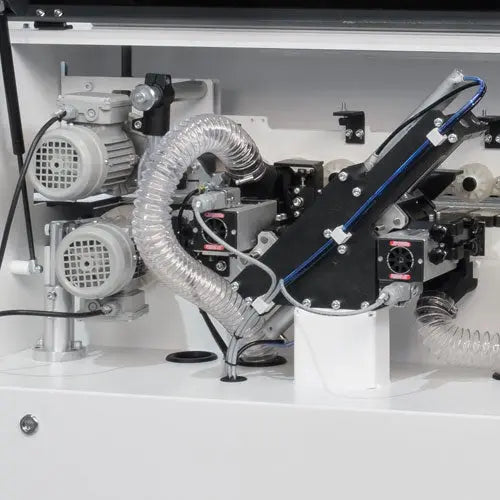

- Pre-Milling for a Perfect Fit – Ensures a clean, smooth panel edge before applying the edgeband.
- Versatile Edge Tape Compatibility – Works with 0.4–2 mm thick edgebanding materials.
- Wide Panel Thickness Range – Supports panels from 10–45 mm thick.
- Automatic Feeding at 21 ft/min – Boosts productivity with consistent speed.

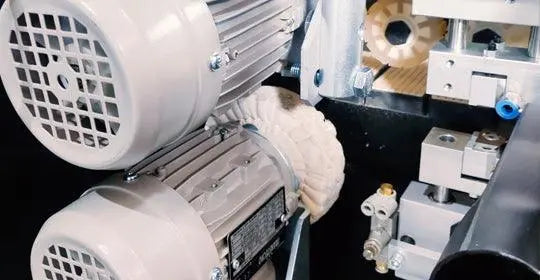

- Precision End Trimming & Buffing – Ensures sharp, professional-grade finishes.
- Teflon-Coated Glue Pot – 1 lb (0.5 kg) capacity, designed for granulated hot-melt EVA glue.
- High-Efficiency Dust Collection – 6" (150 mm) port, requiring 1236 CFM for a clean workspace.
- Heavy-Duty Build – Weighs 1191 lbs (540 kg) for unmatched stability.
Specifications
- Automatic Feeding Speed: 21 ft/min (6.5 m/min)
- Panel Thickness: 10–45 mm
- Max Edgebanding Height: 1" (30 mm)
- Minimum Panel Size: 4 ¾” (120 mm) L x 1 ¾” (45 mm) W
- Glue Type: Granulated Hot-Melt EVA
- Power Requirement: 1 Phase, 220V, 30 Amps, 60Hz
- Machine Dimensions (LxWxH): 93 ½” x 40 13/16” x 53” (2376 x 1028 x 1347 mm)
- Shipping Dimensions (LxWxH): 91” x 30” x 57” (2320 x 760 x 1448 mm)
- Sound Rating: 80 dB
Whether you're a small workshop or a high-production facility, the Maksiwa CBC.TPM delivers industrial-grade performance in a compact footprint. Upgrade your edgebanding efficiency today.
