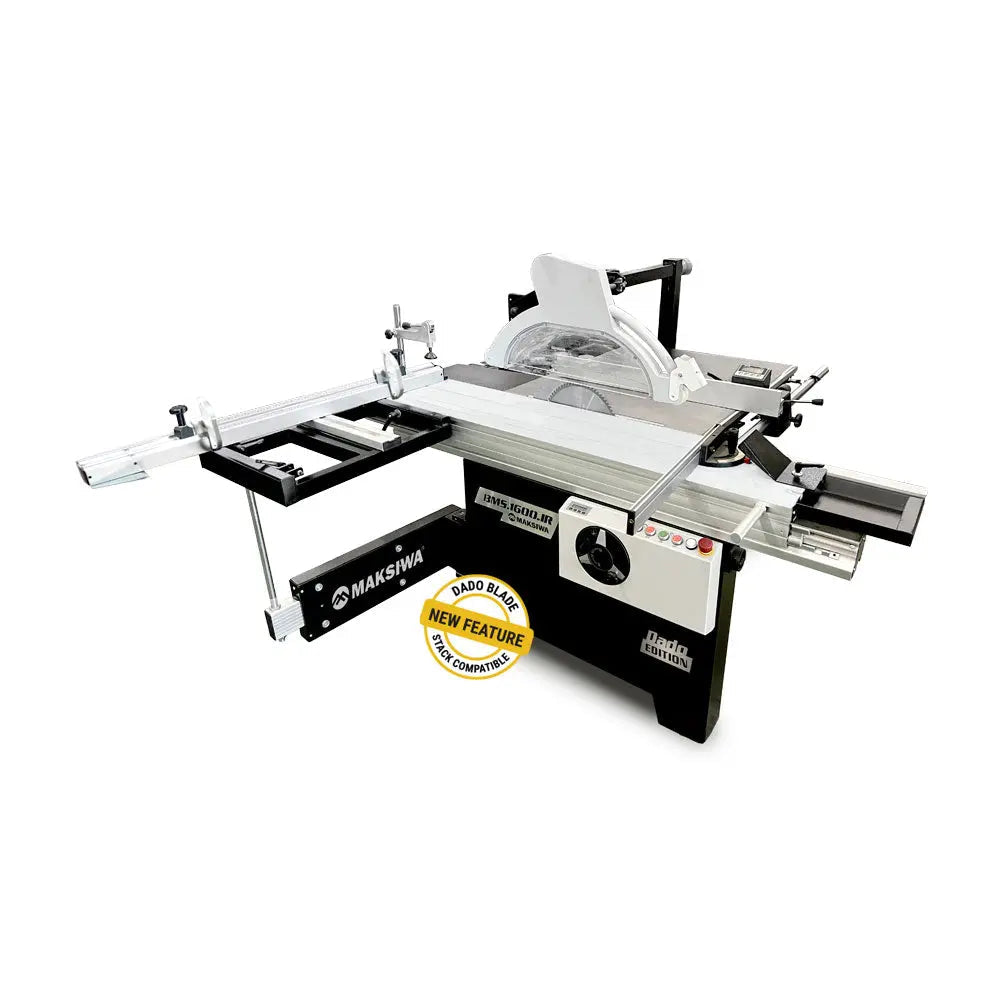

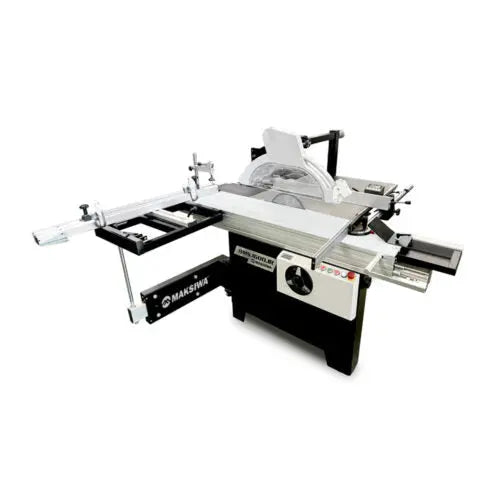

Maksiwa BMS.1600.IR Dado Edition – Precision Meets Versatility
The Maksiwa BMS.1600.IR Dado Edition is an advanced upgrade of our renowned sliding panel saw, now engineered to support dado blade stacks for superior joinery and cabinetmaking applications. Compact yet powerful, this saw delivers exceptional cutting precision, making it an ideal choice for workshops that demand efficiency without compromising space.

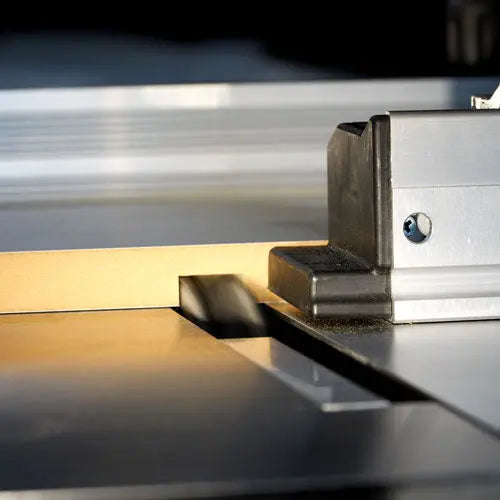

Equipped to accommodate dado stacks up to 1-1/4" with an 8" blade, this model ensures chip-free precision, perfect for crafting strong, clean-cut joints. The quick-change blade system allows seamless transitions between standard and dado blades, maximizing workflow efficiency.
Key Features

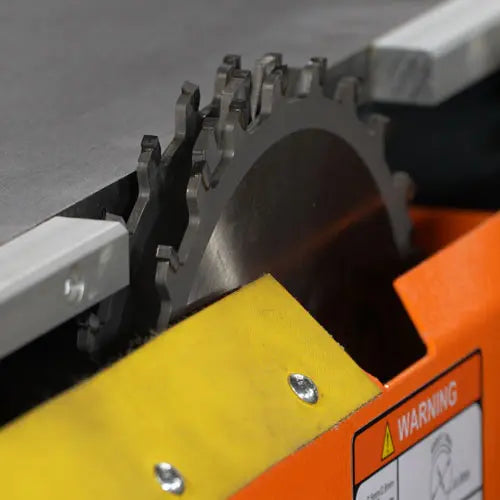

- Dado Blade Compatibility – Supports dado stacks up to 3/4" wide, ideal for precision joinery.
- Powerful 5 HP Motor – Delivers 4000 RPM for smooth, high-speed cutting.
- Large Cutting Capacity – Handles 12" blades with a 3-1/2" max cutting height at 90°.
- Scoring Blade System – Includes a 1 HP scoring motor to prevent material tear-out.

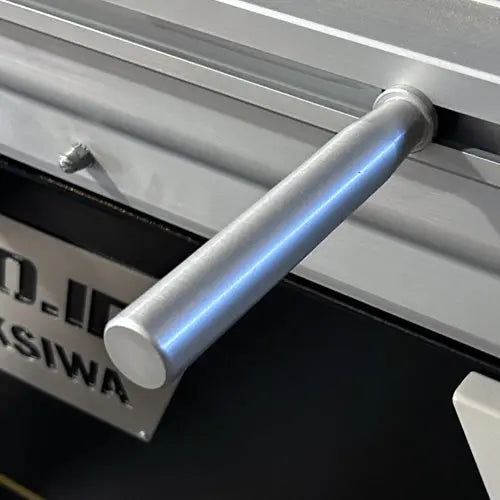

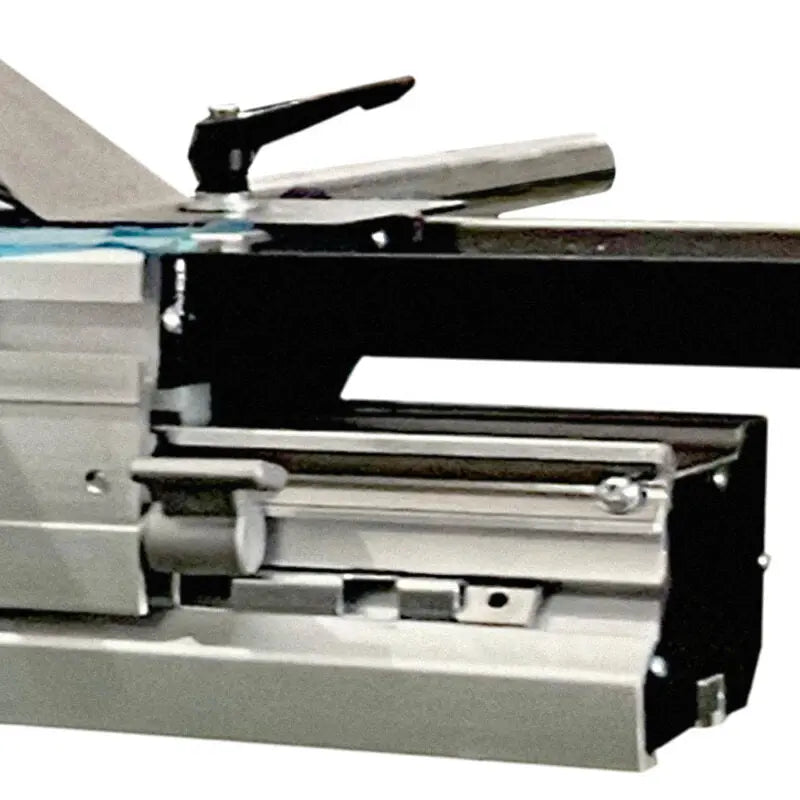

- Sliding Table Design – Enhances control with a 63" x 12" aluminum table for accurate crosscuts.
- Cast Iron Work Surface – Provides a stable, vibration-free platform for precise cuts.

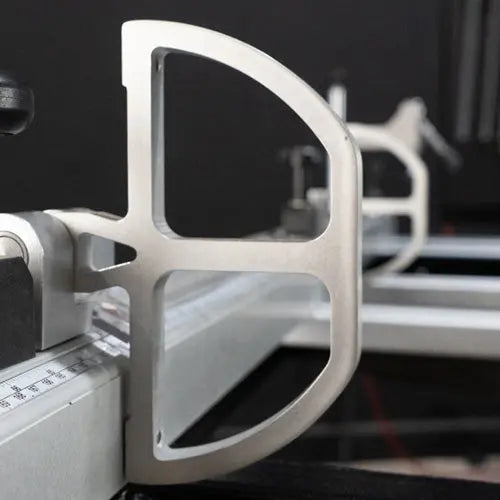

- Adjustable Crosscut Fence – Extends from 48" to 80" for versatile material handling.

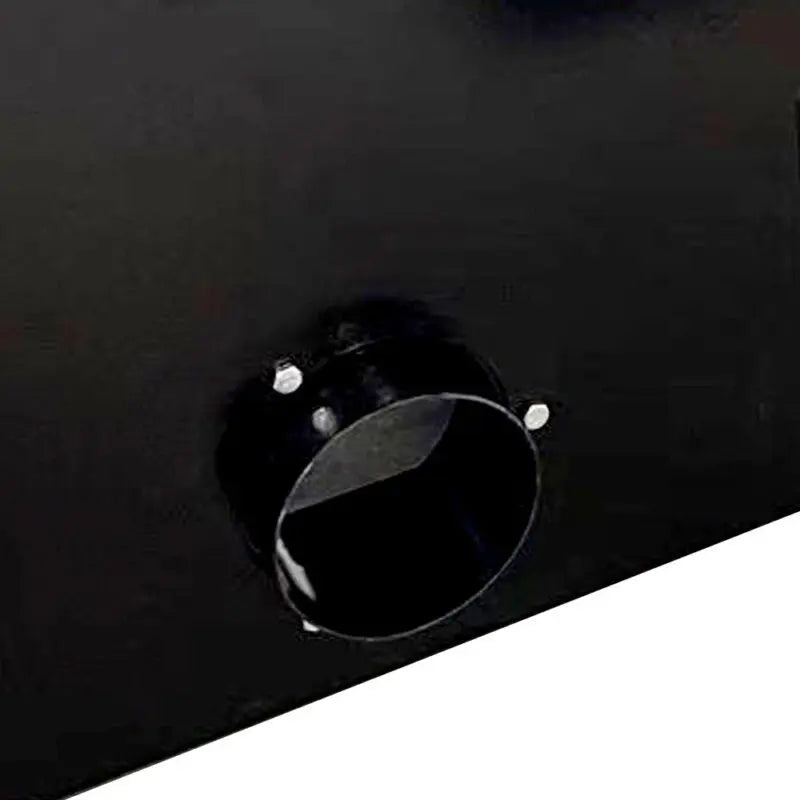

- Optimized Dust Collection – Features a 4" dust port to maintain a cleaner workspace.
- Tilting Blade Functionality – Achieves bevel cuts up to 45° with ease.
- Heavy-Duty Build – Weighing 1000 lbs, it ensures durability and stability for professional use.
Specifications
| Specification | Details |
|---|---|
| Main Motor | 5 HP, 4000 RPM, 3.7 kW |
| Blade Diameter (Max) | 12" |
| Main Blade Arbor | 30mm |
| Max Cutting Height (90°) | 3-1/2" |
| Max Cutting Height (45°) | 2-1/2" |
| Dado Capacity | 3/4" max width, 8" max blade diameter |

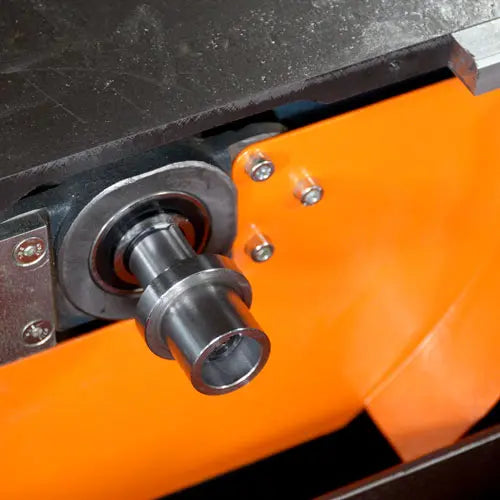

| Dado Arbor Size | 1-3/16" |
| Scoring Motor | 1 HP, 8000 RPM, 0.74 kW |
| Scoring Blade | 4-3/4" conical, 3/4" arbor |
| Ripping Capacity | 35-1/2" |
| Crosscut Capacity | 63" |
| Sliding Table Dimensions | 63" x 12" |
| Cast Iron Table Dimensions | 32-1/2" x 21" x 35-1/2" |
| Blade Tilt | 0° - 45° |
| Dust Port Size | 4" |
| Electrical Requirements | 1PH, 220V, 30 Amps, 60Hz |
| Weight | 1000 lbs |
Take your shop’s cutting capabilities to the next level with the Maksiwa BMS.1600.IR Dado Edition—where power, precision, and versatility meet.
