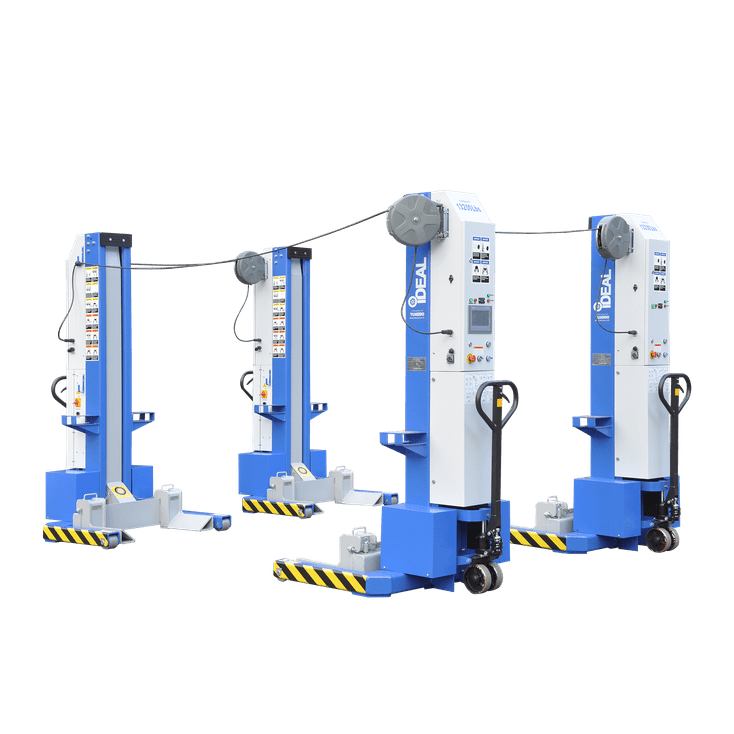

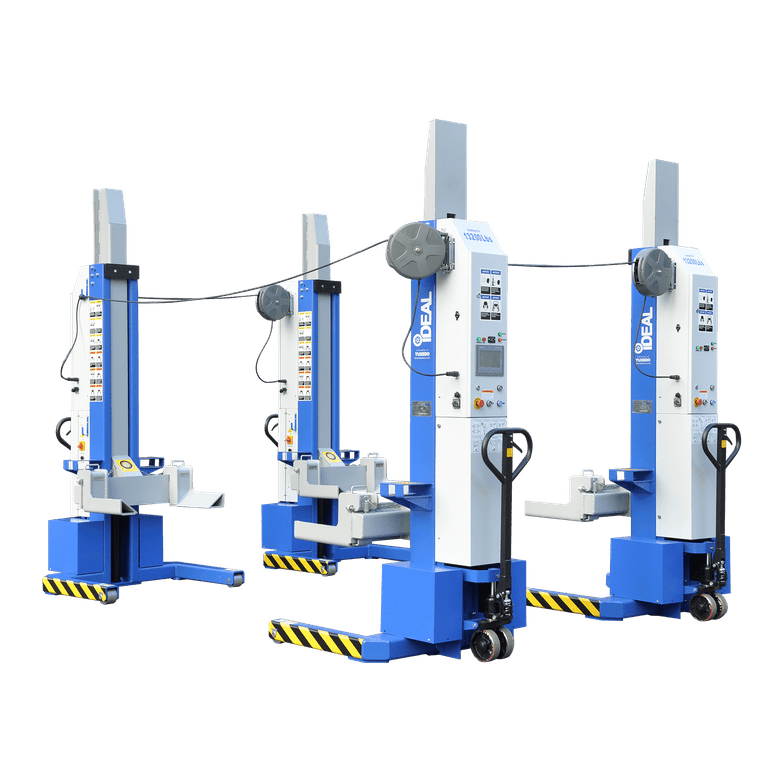

iDEAL Wheel Engaging Mobile Column Set — Powerful Lifting Made Portable (Set of 4)
Looking for heavy-duty lifting that’s as flexible as your workspace? The iDEAL MSC-13K-B-452 Mobile Column Set in a 4-column configuration offers a robust 52,000 lbs lifting capacity without taking up permanent real estate in your shop. Compact and mobile, this system can be deployed quickly in any flat bay or tucked away when space is tight or lifting isn’t needed.
Perfect for everything from passenger cars and light pickups (with optional accessories) to larger vehicles like school buses and fire trucks, the iDEAL mobile column set offers safe, reliable lifting with user-friendly controls and adaptable forks that handle many wheel sizes.
Features
-
Up to 52,000 lbs Lifting Capacity across 4 columns — enough muscle for heavy-duty service
-
User-Friendly Control Panel — control from any column, because convenience matters
-
Adjustable Forks — fits a wide range of wheel sizes effortlessly
-
Direct Drive Hydraulic Cylinders — smooth, powerful lifts every time
-
Independent Mechanical Locking System — rock-solid safety on every lift
-
Battery Operated with Optional Onboard Charger — cordless freedom for flexible use (batteries sold separately)
-
Mobile Design — easily moved between bays and stashed out of the way when not in use
-
Small Footprint — maximum performance with minimal space impact
-
Configurable Sets — choose 2, 4, or 6 columns depending on your needs
-
Optional Accessories Available — expand your service capabilities when required
Specifications
| Model | MSC-13K-B-452 |
| Column Configuration | 4 Columns |
| Total Capacity | 52,000 lbs |
| Charging Voltage | 100-140VAC, 60Hz, Single Phase |
| Lifting Height | 67.1" |
| Column Heights (Min/Max) | Min 88.6" / Max 155.5" |
| Column Width | 44.1" |
| Fork Adjustable Range | 6.3" – 22" |
| Fork Length | 14" |
| Fork to Column Clearance | 9.3" |
| Rise Time | 75 seconds |
| Max Distance Between Columns | 32.8 ft |
| Minimum Concrete Surface Strength | 3,000 PSI |
| Operation Environment | Indoors |
| Recommended Battery Type* | 12VDC Sealed Deep Cycle (BCI Group 31, AH 105) |
| Batteries Not Included | * |
| Ship Weight (Per Column) | 1,210 lbs |
