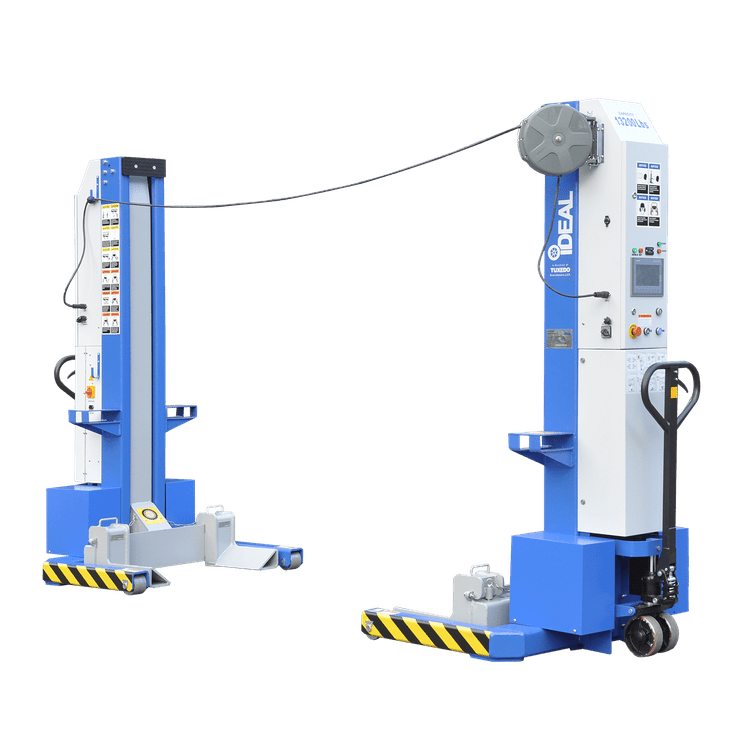

iDEAL MSC-13K-B-226 Mobile Column Lift — Compact Power, Big Lifting Muscle
Need heavy lifting that fits in tight spaces? The iDEAL MSC-13K-B-226 mobile column set delivers up to 26,000 lbs of lifting power per column with the flexibility to scale up to six columns for a whopping 78,000 lbs capacity. Whether it’s passenger cars, light pickups, or even school buses and fire trucks, this mobile powerhouse has you covered.
Its compact, mobile design means you can set it up quickly in a flat bay, then tuck it away when it’s time to get hands-on with service jobs that don’t require lifting. Versatility and strength — all rolled into one easy-to-move, space-saving package.
Features
-
Heavy-Duty Mobile Column Lift — Durable, reliable, and ready for serious jobs.
-
Scalable Capacity — Available in 2, 4, or 6 columns, lifting up to 78,000 lbs total.
-
User-Friendly Control Panel — Operate easily from any column for ultimate convenience.
-
Adjustable Forks — Fit a variety of wheel sizes with ease.
-
Direct Drive Hydraulic Cylinder — Smooth, powerful lifting every time.
-
Independent Mechanical Locking System — Safety first with secure locks on each column.
-
Battery Operated with Optional Onboard Charging — Cordless freedom (battery & charger sold separately).
-
Compact & Mobile — Easily moved between bays with a small footprint for smart storage.
-
Optional Accessories Available — Customize for expanded service needs.
Specifications
| Specification | Details |
|---|---|
| Model | MSC-13K-B-226 |
| Column Configuration | 2 Columns |
| Capacity Per Column | 26,000 lbs |
| AC Power Input (Per Column) | 100-140VAC, 60Hz, 1PH |
| DC Power Output (Per Column) | 24VDC |
| Lifting Height | Min 88.6" / Max 155.5" |
| Column Height (Min/Max) | 44.1" |
| Fork Adjustable Range | 6.3" – 22" |
| Fork Length | 14" |
| Fork to Column Clearance | 9.3" |
| Rise Time | 75 seconds |
| Descent Time | 60 seconds |
| Max Distance Between Columns | 32.8" |
| Min Concrete Surface Strength | 3000 PSI |
| Noise Level | 70 dB(A) |
| Operation Environment | Indoors |
| Battery Type (Not Included) | 12VDC Sealed Deep Cycle (BCI Group 31, AH-105) |
| Ship Weight (Per Column) | 1,210 lbs |
Manual
