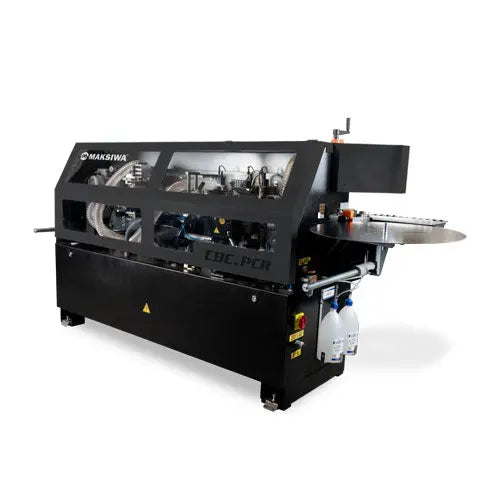

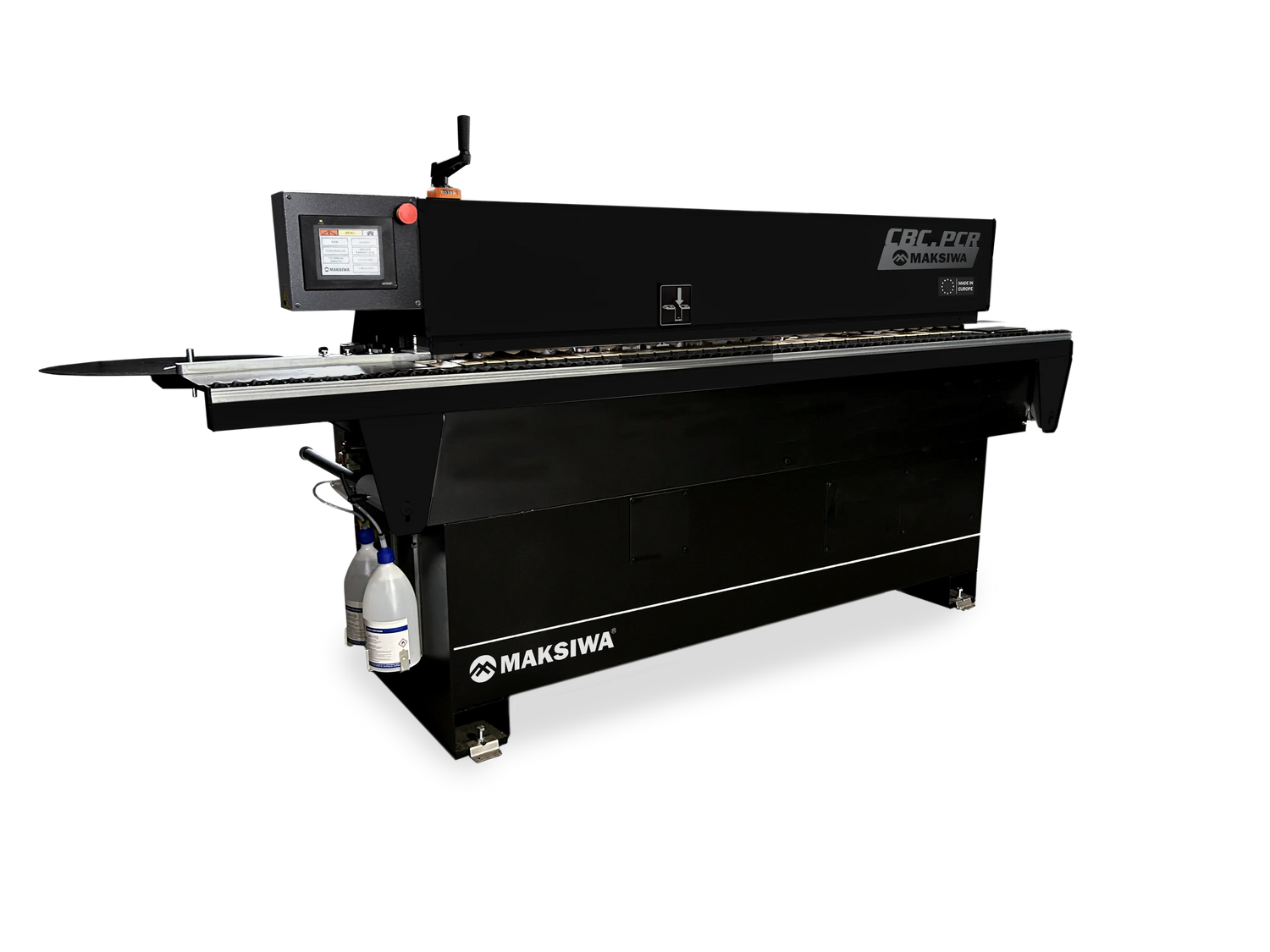

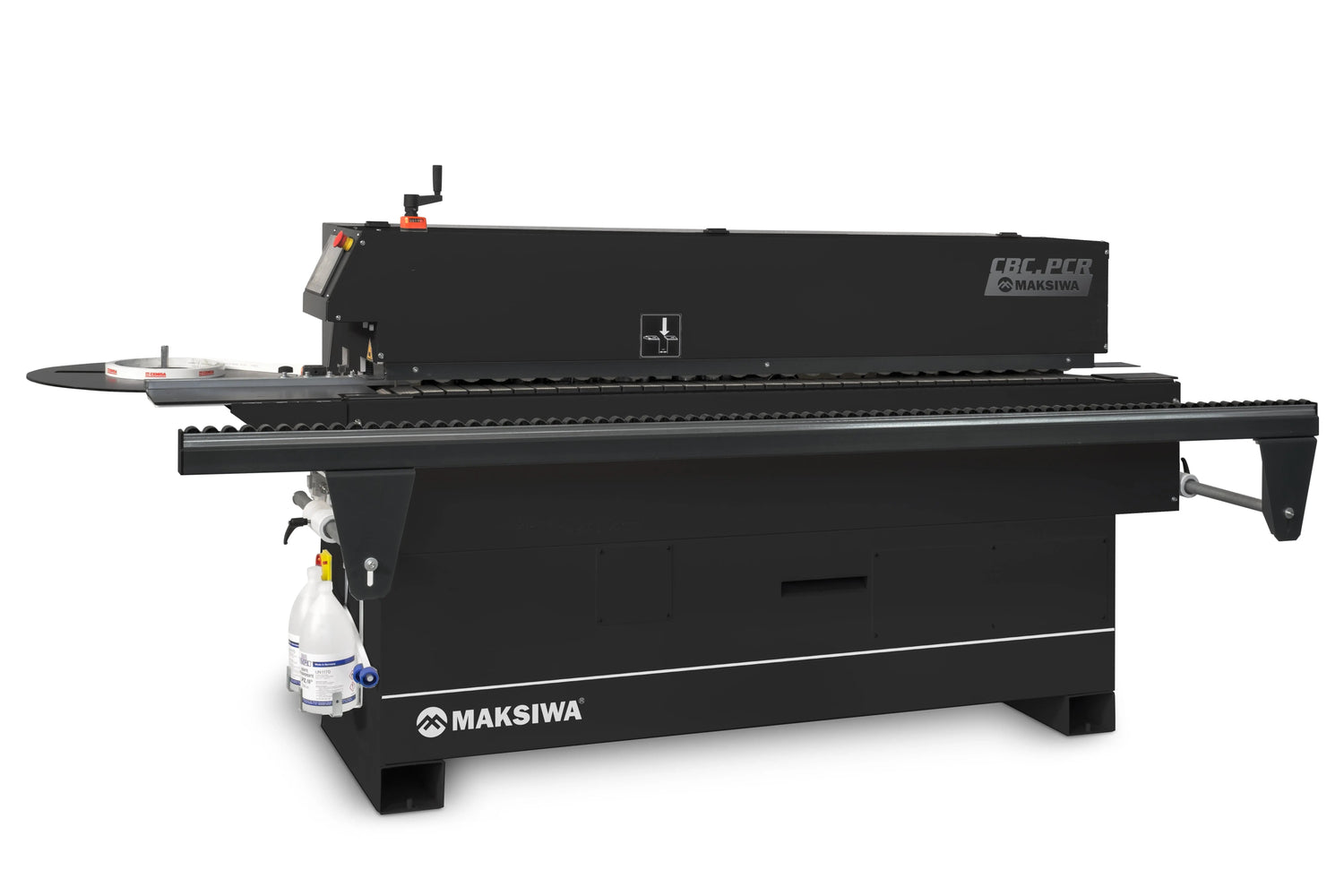

Maksiwa Platinum CBC.PCR Automatic Edgebander – Precision with Corner Rounding
The NEW Maksiwa Platinum CBC.PCR Automatic Edgebander brings industrial-grade performance in a compact design with the highly requested corner rounding feature. Designed for superior edge finishing, this machine includes pre-milling, trimming, glue scraping, and buffing for a seamless, professional finish.
Equipped with an XMELT glue pot system, it supports both EVA and PUR adhesives, offering easy drainage for effortless maintenance. The 8HP motor and user-friendly PLC touchscreen provide smooth operation and precise control. Capable of handling edge tapes from 0.4mm to 3mm and panel thicknesses from 10mm to 50mm, this edgebander is built for high efficiency and versatility.
Key Features

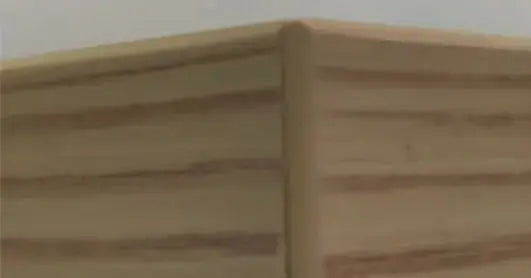

- Corner Rounding & Pre-Milling – Achieve flawless edges with built-in precision.
- Edge Tape Compatibility – Supports 0.4mm to 3mm edgebanding materials.
- Panel Thickness Range – Works with panels from 8mm to 50mm thick.
- Automatic Feeding Speed – 18 ft/min (5.5 m/min) for optimal productivity.

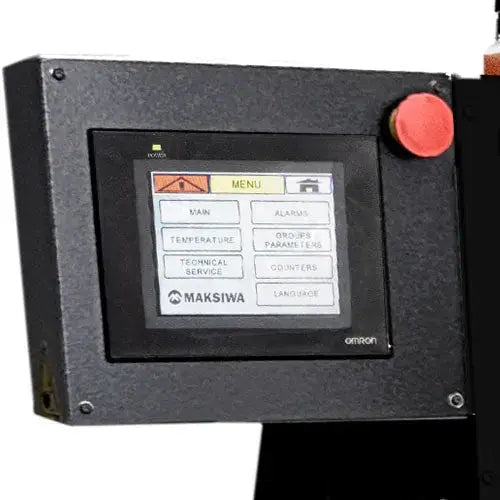

- PLC Touchscreen Control – TFT display for intuitive operation.
- XMELT Glue Pot System – Works with EVA & PUR adhesives, featuring easy drainage.

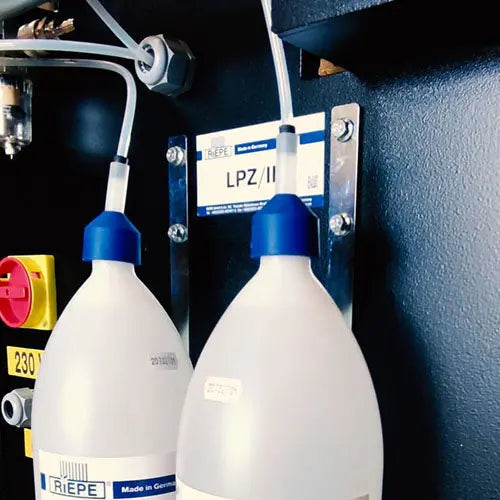

- C.A.S.S – Cleaning Agent Spraying System – Maintains clean application surfaces.
- Glue Scraper & Buffing Units – Enhances the finish for a polished look.
- Conveyor Chain Feed System – Ensures smooth material handling.
- HF Motors with Independent Electronic Converters – Provides precise performance.
Specifications
- Feeding Speed: 18 ft/min (5.5 m/min)
- Panel Thickness: 8mm – 50mm
- Max Pre-Milling Height: 30mm
- Edgebanding Thickness: 0.4mm – 3mm
- Max Edgebanding Height: 51mm
- Glue Pot Capacity: 3.3 lbs (1.5 kg), Teflon-coated
- Minimum Panel Width: 75mm
- Minimum Panel Length: 200mm
- Extendable Panel Support Rail: 2627mm
- Extension Table Max Width: 1371mm
- Dust Collection Ports: 150mm diameter
- Minimum Dust Collection Requirements: 1236 CFM (2100 m³/h)
- Air Pressure Requirement: 14 SCFM @ 87 PSI (0.7 MPa)
- Edgebanding Coil Support Diameter: 1498mm
- Recommended Glue Temperature: 180°C – 210°C
- Sound Rating: 80 dB
Electrical & Motor Specs
- Electrical Requirement: 1 Phase, 220V, 40 Amps, 60 Hz
- Conveyor Motor: 60 Hz, 1390 RPM, 0.66 kW
- Top/Bottom Trimmer Motor: 200 Hz, 12,000 RPM, 0.27 kW
- End/Corner Rounding Trimmer Motor: 200 Hz, 12,000 RPM, 0.27 kW
- Front/Rear Pre-Milling Motor: 150 Hz, 9000 RPM, 0.75/0.25 kW
- Top Buffing Motor: 60 Hz, 1680 RPM, 0.11 kW
- Bottom Buffing Motor: 60 Hz, 1680 RPM, 0.11 kW
Machine Dimensions & Weight
- Max Machine Dimensions (LxWxH): 3026mm x 1036mm x 1230mm
- Net Weight: 1411 lbs (640 kg)
- Shipping Dimensions (LxWxH): 2820mm x 760mm x 1448mm
Built for workshops demanding precision, durability, and efficiency, the Maksiwa Platinum CBC.PCR is a game-changer in edgebanding technology. Upgrade your production today.
