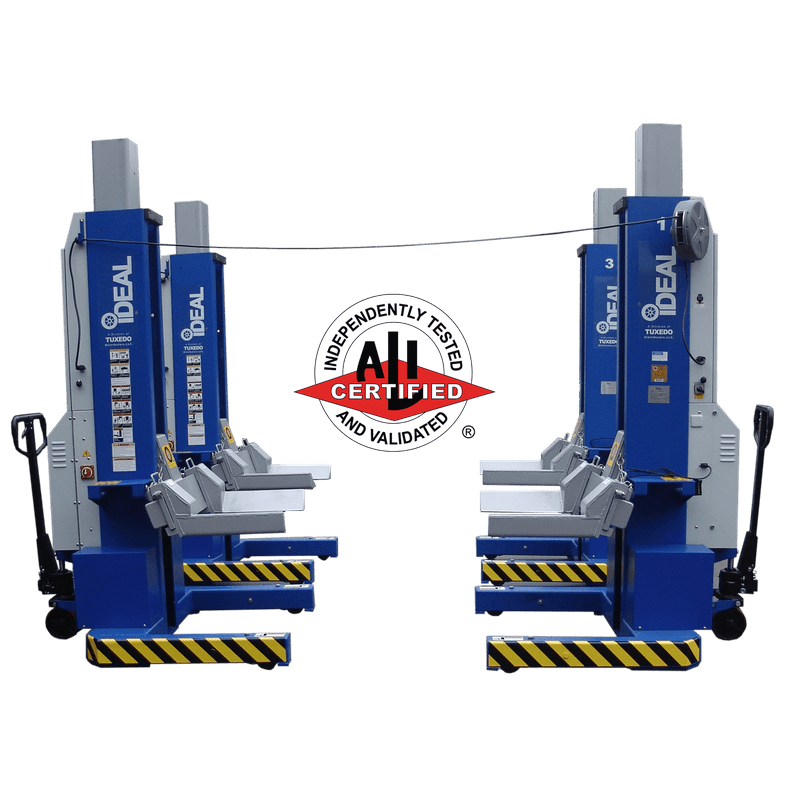

iDEAL MSC-18K-X-472 — ALI Certified Mobile Column Set with 72,000 lbs Lifting Power

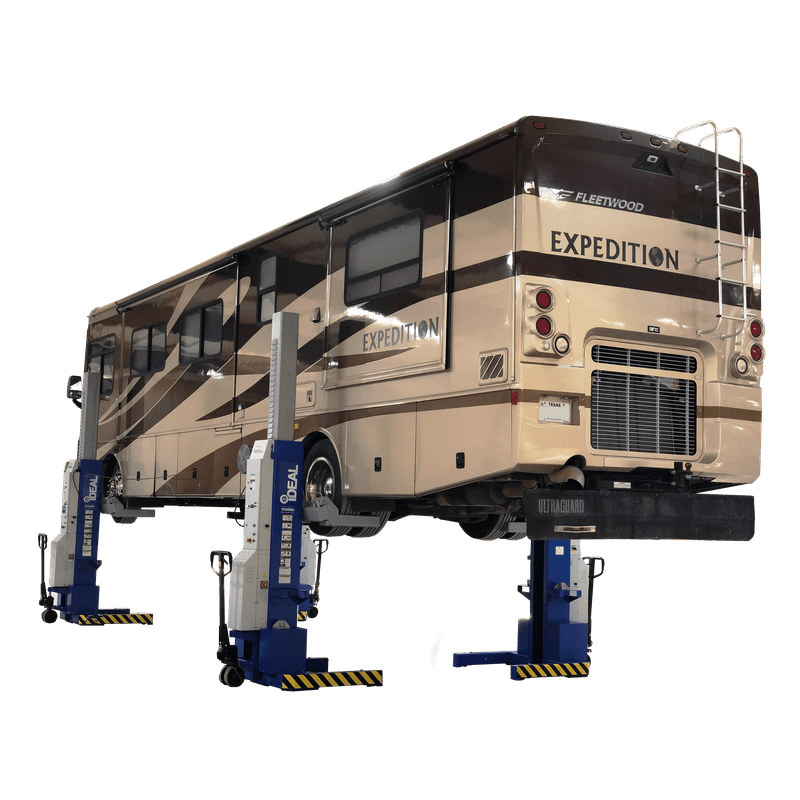

Need a lift that’s as serious as your toughest jobs? The iDEAL MSC-18K-X-472 brings ALI-certified muscle in a set of four mobile columns, delivering a combined lifting capacity of 72,000 lbs. From fire trucks to school buses and heavy commercial vehicles, this mobile column set lifts by the wheels with precision and safety, turning any flat bay into a high-capacity lift zone.
Its smart design lets technicians operate from any column, while adjustable forks and optional accessories expand its range to lighter vehicles and wheels-free lifting. And when the job’s done? It rolls away smoothly, saving you precious shop space.
Features
-
ALI Certified — safety and performance standards you can trust
-
72,000 lbs Capacity — enough power for heavy commercial vehicles
-
24VDC Battery Operation with onboard charger (batteries not included) — cordless convenience with reliable power
-
Communication Cable with Retractable Reels — no more cable clutter
-
U-Shape Wiring Configuration — quick entry and exit for busy shops
-
Operate From Any Column — total control, anywhere you need it
-
Independent Mechanical Locking System — locking safety on each column
-
Optical Encoder Synchronization — smooth, continuous lift coordination
-
Portable Pallet Jack Style Base — easy to move and store out of the way
-
Adjustable Forks — fit a variety of wheel sizes effortlessly
-
Emergency Shutoff on Each Column — instant safety when needed
-
Master Control Panel — operate columns individually or paired for flexible use
-
Simple LCD Screen and Keypad Operation — user-friendly control system
-
LED Light with Magnetic Base (1 per two columns) — brightens up your work, literally
-
Available in 2, 4, or 6 Column Sets — choose the size that fits your shop
-
Optional ALI Certified Accessories — expand your service capabilities
Specifications
| Specification | MSC-18K-X-236 (2 Columns) | MSC-18K-X-472 (4 Columns) | MSC-18K-X-6108 (6 Columns) |
|---|---|---|---|
| Capacity | 36,000 lbs | 72,000 lbs | 108,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH | 100-140VAC, 60Hz, 1 PH | 100-140VAC, 60Hz, 1 PH |
| DC Power (Output, Per Column) | 24VDC | 24VDC | 24VDC |
| Lifting Height | 67.1" | 67.1" | 67.1" |
| Column Heights Min/Max | Min 88.6" / Max 155.5" | Min 88.6" / Max 155.5" | Min 88.6" / Max 155.5" |
| Overall Width | 44.1" | 44.1" | 44.1" |
| Fork Adjustable Range | 12.6" – 22" | 12.6" – 22" | 12.6" – 22" |
| Fork Length | 17.9" | 17.9" | 17.9" |
| Fork to Column Clearance | 10" | 10" | 10" |
| Rise Time | 100 seconds | 100 seconds | 100 seconds |
| Descent Time | 60 seconds | 60 seconds | 60 seconds |
| Maximum Distance Between Columns | 32' 8" | 32' 8" | 32' 8" |
| Minimum Concrete Surface Strength | 3,000 PSI | 3,000 PSI | 3,000 PSI |
| Noise Level | 70 dB(A) | 70 dB(A) | 70 dB(A) |
| Set-Up / Operation | Indoors | Indoors | Indoors |
| Battery Type (Not Included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) |
| Ship Weight (Per Column) | 1,584 lbs | 1,584 lbs | 1,584 lbs |
