Built for Tight Spaces and Value

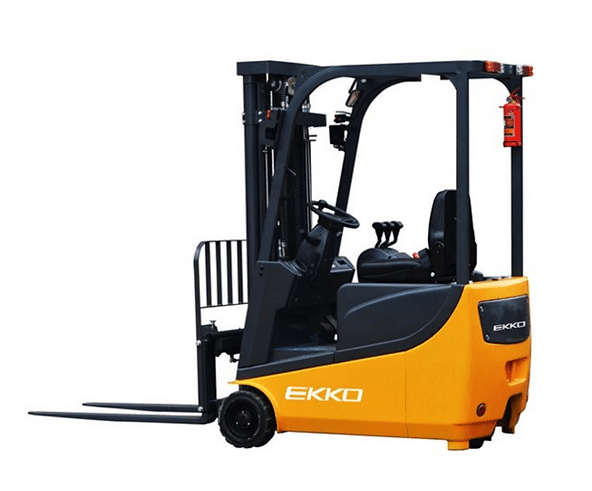

The EKKO EK13A is a compact and powerful electric forklift designed for maneuvering in narrow aisles and budget-conscious operations. It's perfect for tasks like loading and unloading trucks, working on docks, and handling materials in stockrooms, factories, and warehouses.
Durable Design for Indoor Use
While the EKKO EK13A boasts a tough steel frame and industrial-grade components, it's best suited for smooth, flat indoor surfaces. This forklift is built to handle everyday wear and tear, bumps, and changes in direction with confidence.
Key Features
- Lifts up to 3,300 lbs of weight
- Stacks pallets up to 11.5 feet high

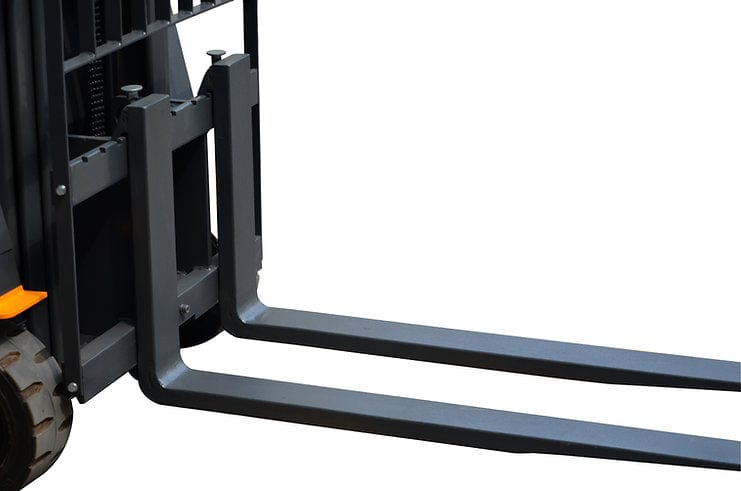

- Precise load handling with side-shifting forks that adjust from 8.7 to 29 inches

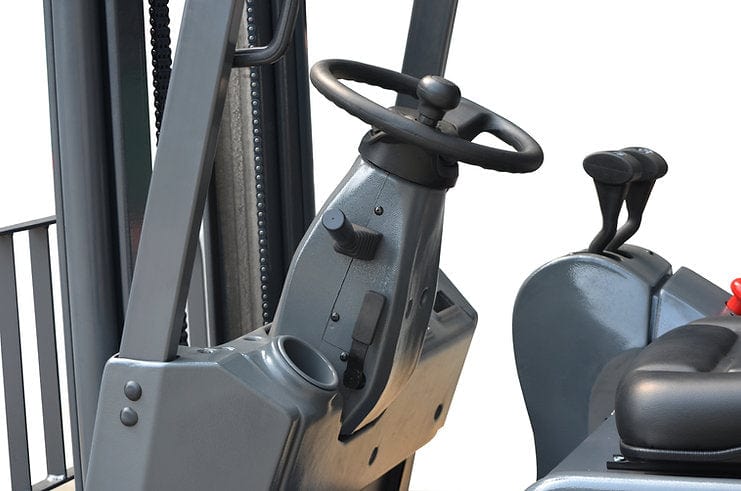

- Comfortable operation with ergonomic controls and electronic power steering
- Reliable power with a 24V AC drive motor and 24V lift motor
- Includes charger and batteries for easy operation
- Backed by a 3-year limited warranty

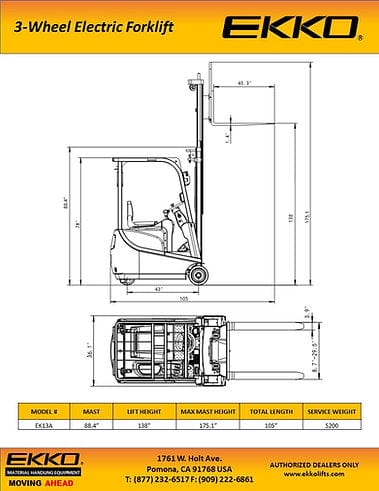

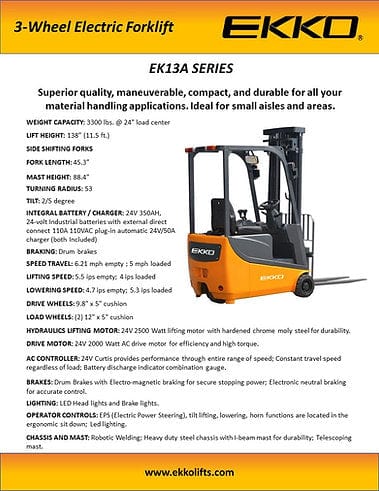

Specification
|
Model |
|
EK13A |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
3300 |
|
Load center distance |
(in) |
24 |
|
Wheel base |
(in) |
43 |
|
Lifting height |
(in) |
138 |
|
Free lifting height |
(in) |
4 |
|
Lowered mast height |
(in) |
88.4 |
|
Mast/Fork carriage tilt forward/backward |
( Ā°) |
2/5 |
|
Side Shifting Forks |
|
3-way valve |
|
Overall length |
(in) |
105 |
|
Overall width |
(in) |
36 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/4/45.3 |
|
Fork adjust width |
(in) |
8.7-29 |
|
Turning radius |
(in) |
53 |
|
Max.gradient performance,Ā laden/unladen |
(%) |
6/8 |
|
Lift speed,laden/unladen |
(in/s) |
4/5.5 |
|
Lowering speed, laden/unladen |
(in/s) |
5.3/4.7 |
|
Charger |
(V/A) |
24V/50A |
|
Driving Motor |
(V/W) |
AC 24V/2000W |
|
Lifting Motor |
(V/W) |
24V/2500W |
|
Battery voltage |
(V/Ah) |
24V/350Ah (Side) |
|
Service Weight |
Ā (lb) |
5200 |
Description
Built for Tight Spaces and Value
The EKKO EK13A is a compact and powerful electric forklift designed for maneuvering in narrow aisles and budget-conscious operations. It's perfect for tasks like loading and unloading trucks, working on docks, and handling materials in stockrooms, factories, and warehouses.
Durable Design for Indoor Use
While the EKKO EK13A boasts a tough steel frame and industrial-grade components, it's best suited for smooth, flat indoor surfaces. This forklift is built to handle everyday wear and tear, bumps, and changes in direction with confidence.
Key Features
- Lifts up to 3,300 lbs of weight
- Stacks pallets up to 11.5 feet high
- Precise load handling with side-shifting forks that adjust from 8.7 to 29 inches
- Comfortable operation with ergonomic controls and electronic power steering
- Reliable power with a 24V AC drive motor and 24V lift motor
- Includes charger and batteries for easy operation
- Backed by a 3-year limited warranty
Specification
|
Model |
|
EK13A |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
3300 |
|
Load center distance |
(in) |
24 |
|
Wheel base |
(in) |
43 |
|
Lifting height |
(in) |
138 |
|
Free lifting height |
(in) |
4 |
|
Lowered mast height |
(in) |
88.4 |
|
Mast/Fork carriage tilt forward/backward |
( Ā°) |
2/5 |
|
Side Shifting Forks |
|
3-way valve |
|
Overall length |
(in) |
105 |
|
Overall width |
(in) |
36 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/4/45.3 |
|
Fork adjust width |
(in) |
8.7-29 |
|
Turning radius |
(in) |
53 |
|
Max.gradient performance,Ā laden/unladen |
(%) |
6/8 |
|
Lift speed,laden/unladen |
(in/s) |
4/5.5 |
|
Lowering speed, laden/unladen |
(in/s) |
5.3/4.7 |
|
Charger |
(V/A) |
24V/50A |
|
Driving Motor |
(V/W) |
AC 24V/2000W |
|
Lifting Motor |
(V/W) |
24V/2500W |
|
Battery voltage |
(V/Ah) |
24V/350Ah (Side) |
|
Service Weight |
Ā (lb) |
5200 |
