Extreme Tools RX Series 24"W x 30"D 3 Drawer and 3 Shelf Side Locker

Extreme Tools® RX Series 24" x 30" 3-Drawer & 3-Shelf Heavy-Duty Side Locker

Maximize your workshop storage with the Extreme Tools® RX Series 24" x 30" Side Locker, engineered to deliver industrial-strength organization and enhanced capacity for professional-grade tool storage. Designed exclusively for RX Series 72"W x 30"D roller cabinets, this side locker provides three heavy-duty drawers and three shelves, ensuring optimal space for large tools and equipment.

Premium Features & Specifications

Robust Storage & Organization

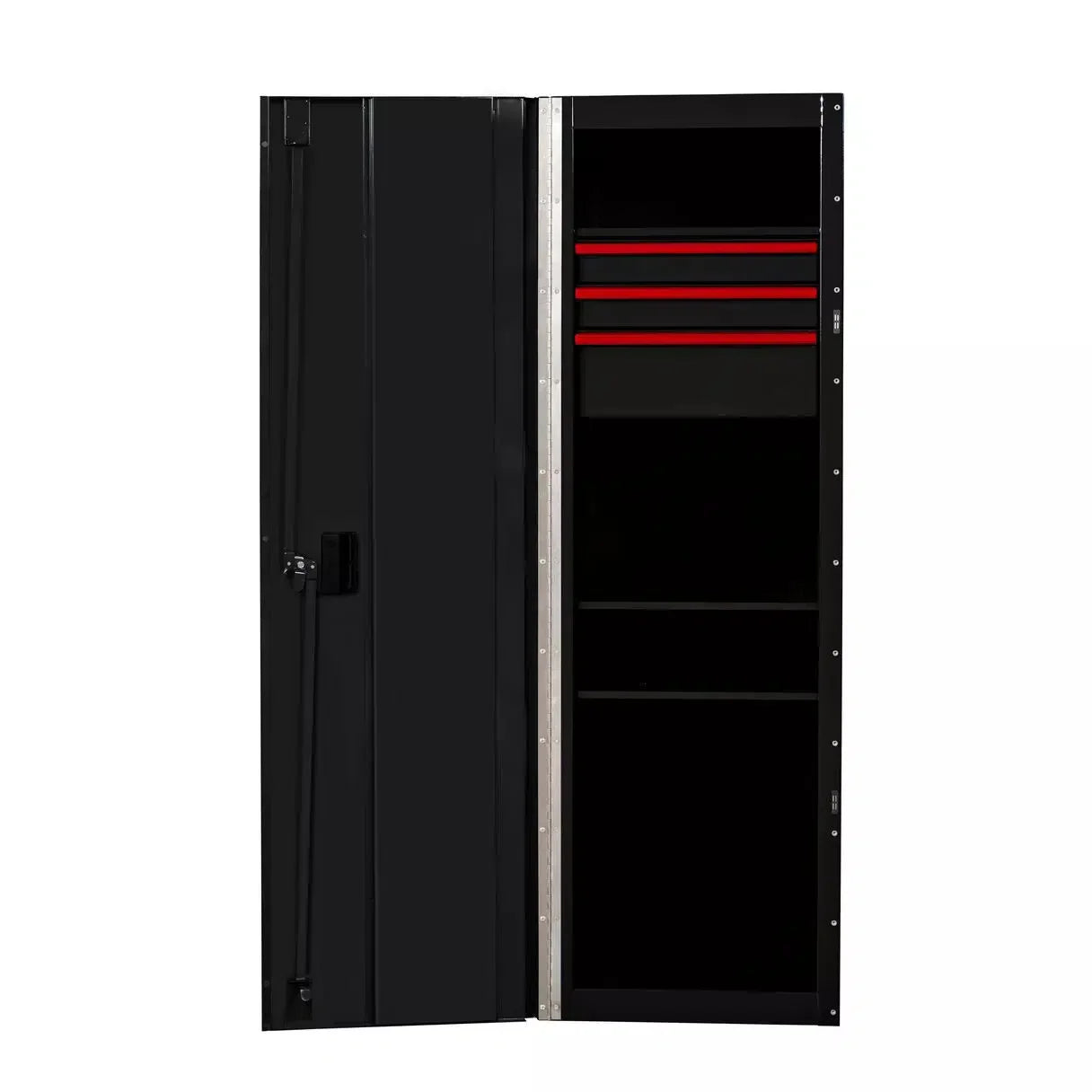

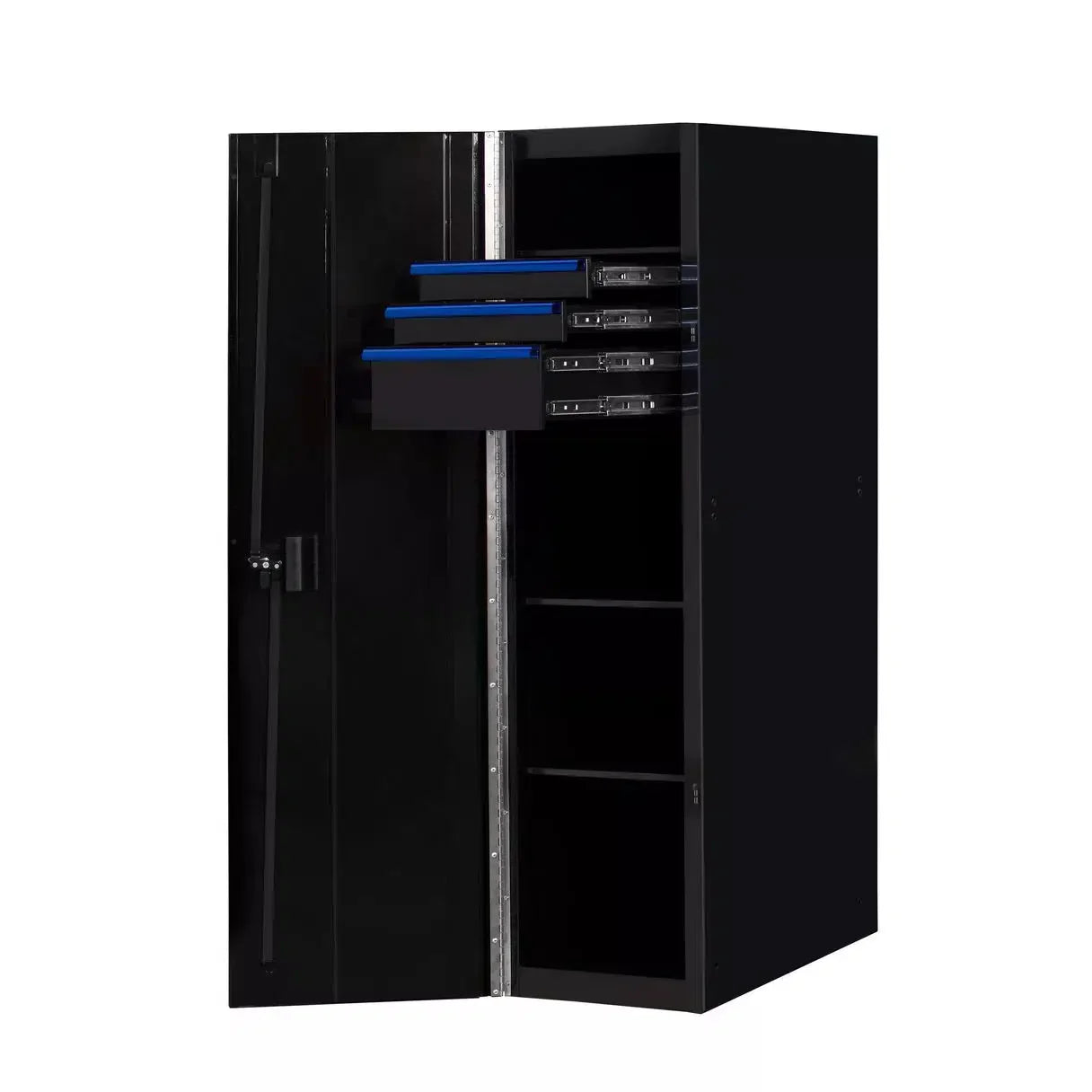

• Three High-Capacity Drawers

  • (1) Standard Drawer – 150 lb load rating (19.9"W x 27.1"D x 2.2"H inside)

  • (2) Deep Drawers – 300 lb load rating each (19.9"W x 27.1"D x 5.1"H inside)

  • Full-extension ball-bearing slides with detent mechanism for smooth, secure operation

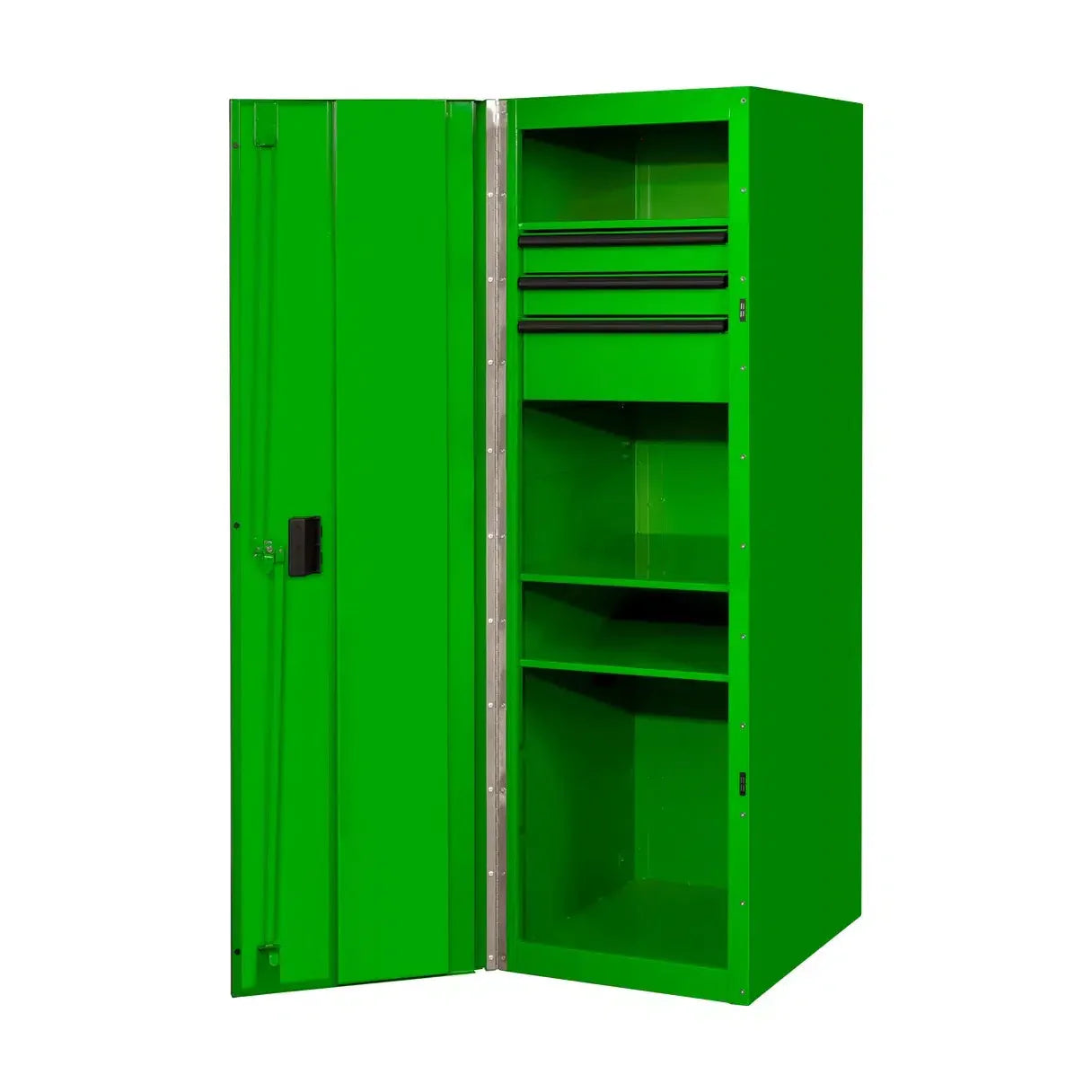

• Versatile Shelving System

  • (2) Adjustable shelves – Customize height for varying storage needs

  • (1) Fixed shelf – Reinforced for heavy items

  • Total Storage Capacity: 21.67 cubic feet

Industrial-Grade Construction

• Reinforced Steel Build

  • 2.0mm bottom frame & caster channels

  • 1.2mm drawer fronts

  • 1.0mm top, back, side, and inner panels

  • 0.8mm drawer body & reinforcing supports

• Ultra-Durable Finish – German AkzoNobel high-gloss powder coat resists scratches, chemicals, and wear

• Heavy-Duty Ball Bearing Slides – Rated for 150 lbs (single sets) and 300 lbs (double sets)

• Full-Width Anodized Aluminum Handles – Polished for a sleek, professional look

Enhanced Security & Protection

• Tubular Coded Lock (ABA Style) – Chrome-plated bezel with key-alignment option (match to your roller cabinet or set a unique key)

• Lockable Drawers & Door – Keep valuable tools secure

• Quiet Ride Foam Drawer Liners – Prevent tool damage and reduce noise

Seamless Installation & Compatibility

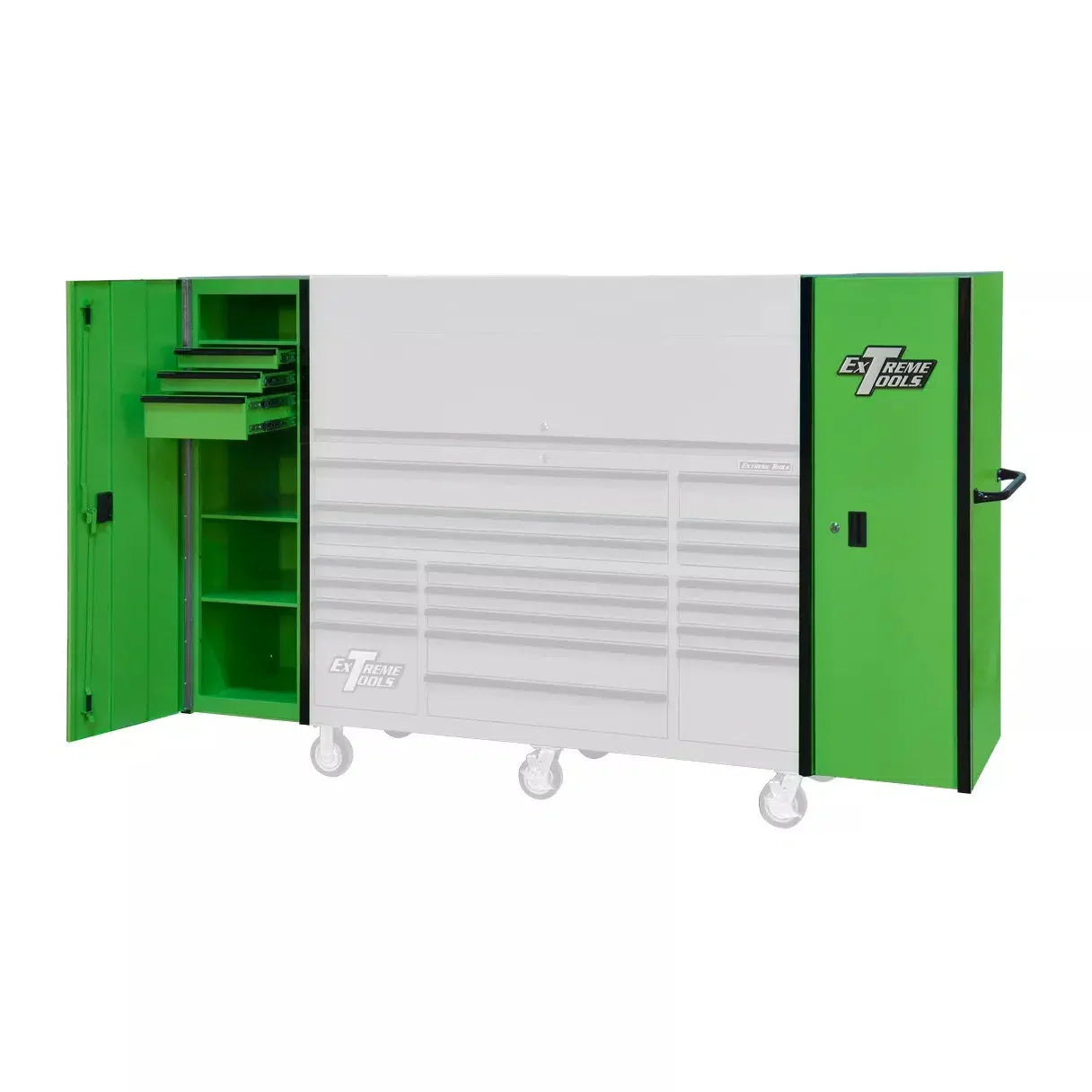

• Exclusive Fit – Designed for RX Series 72"W x 30"D roller cabinets only

• Heavy-Duty Support Bracket – No additional casters needed; bolts securely to the main cabinet

• Optional Caster Mounting – Pre-drilled holes for 6×2" or 5×2" casters (sold separately)

• Left or Right Side Mounting – Flexible placement to suit your workspace

Sleek Color Options

Choose from six premium color combinations:

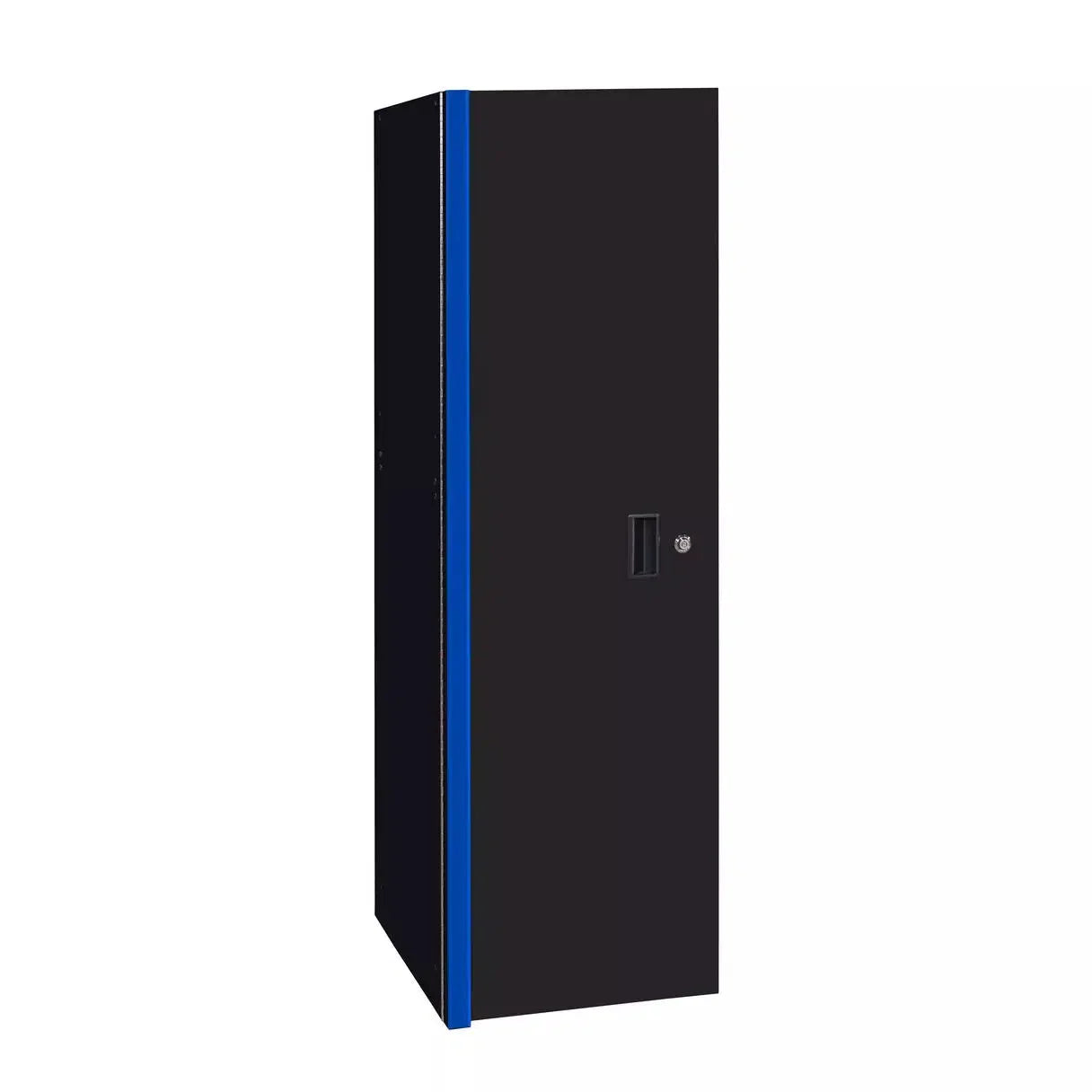

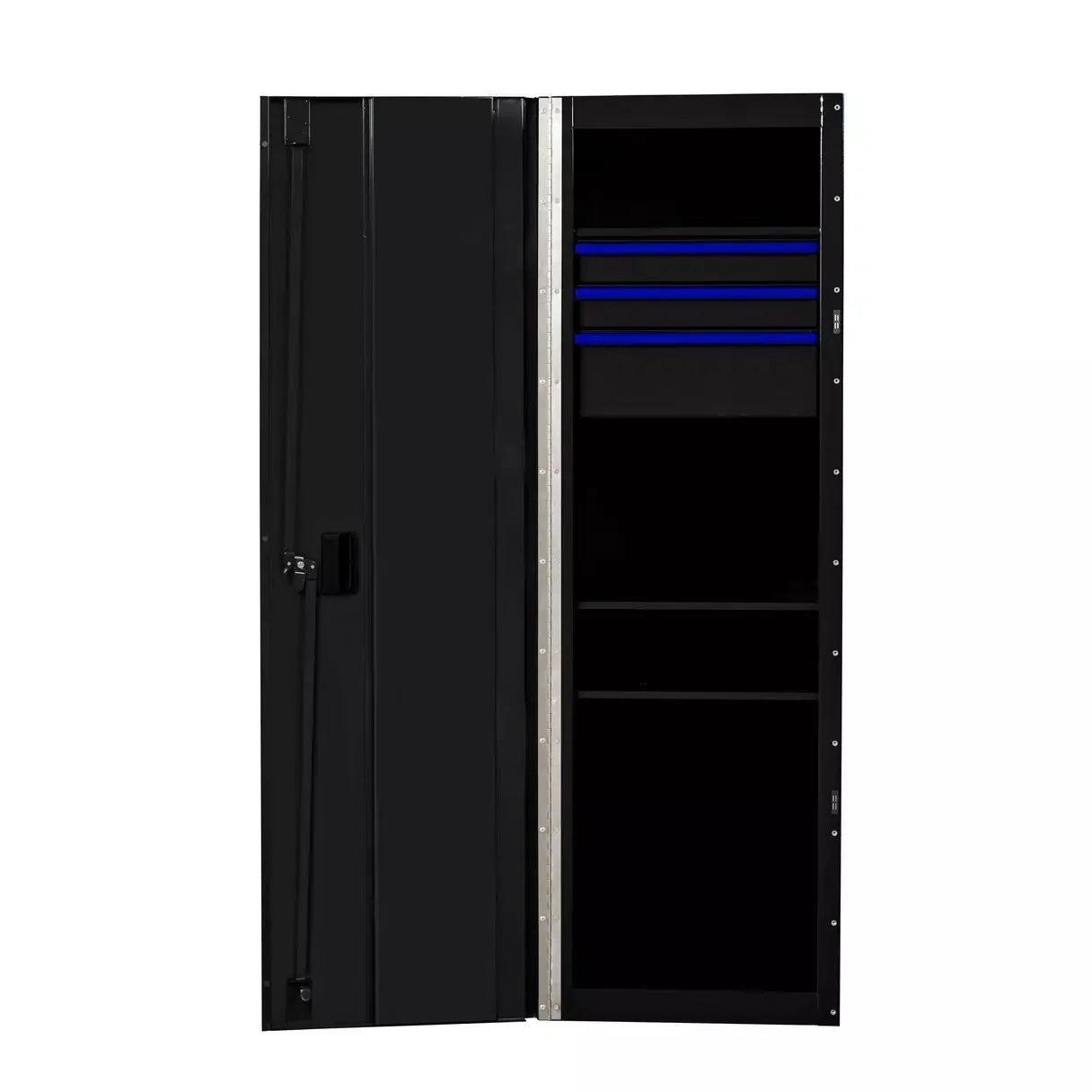

1. Black with Blue Handles (RX243003SLBKBL)

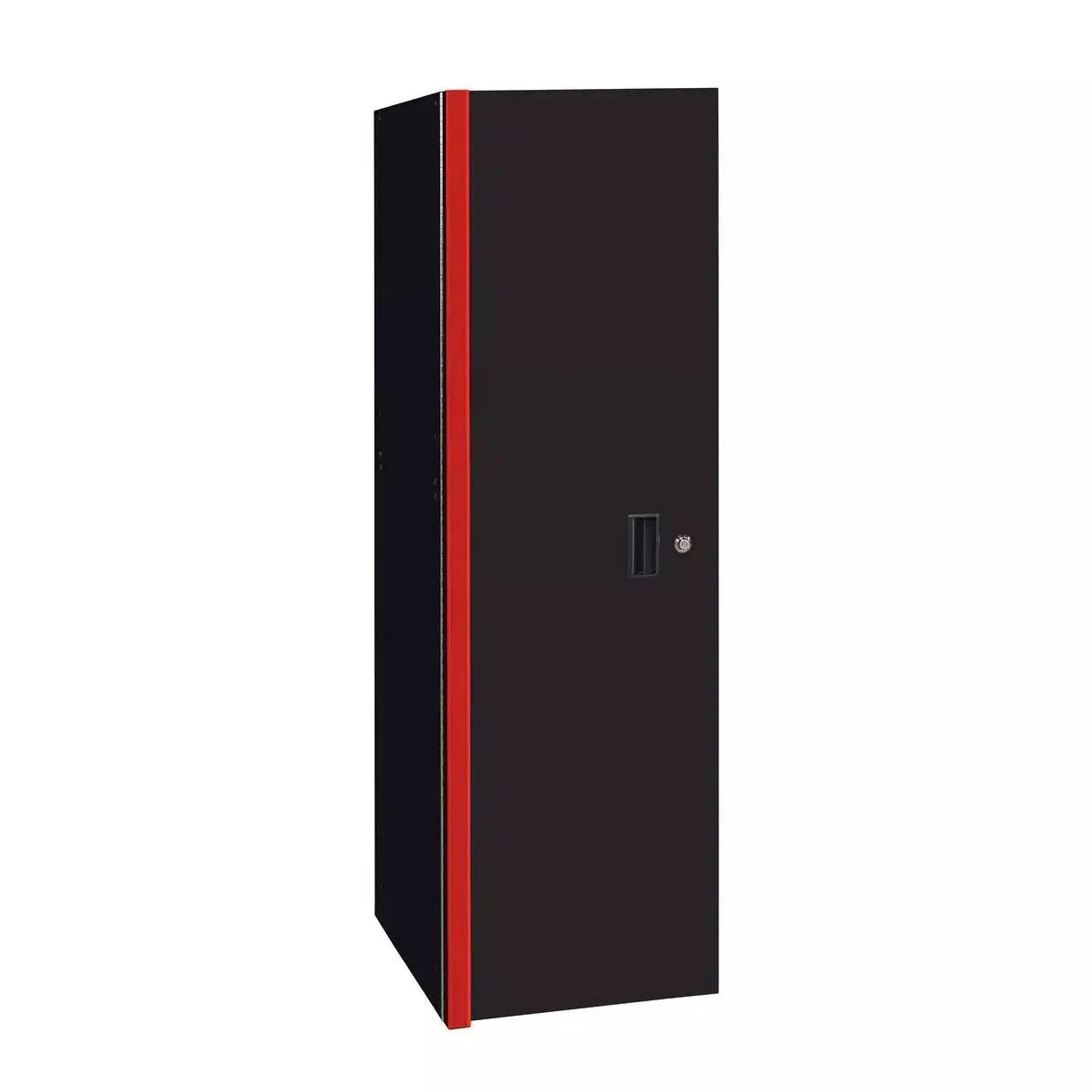

2. Black with Red Handles (RX243003SLBKRD)

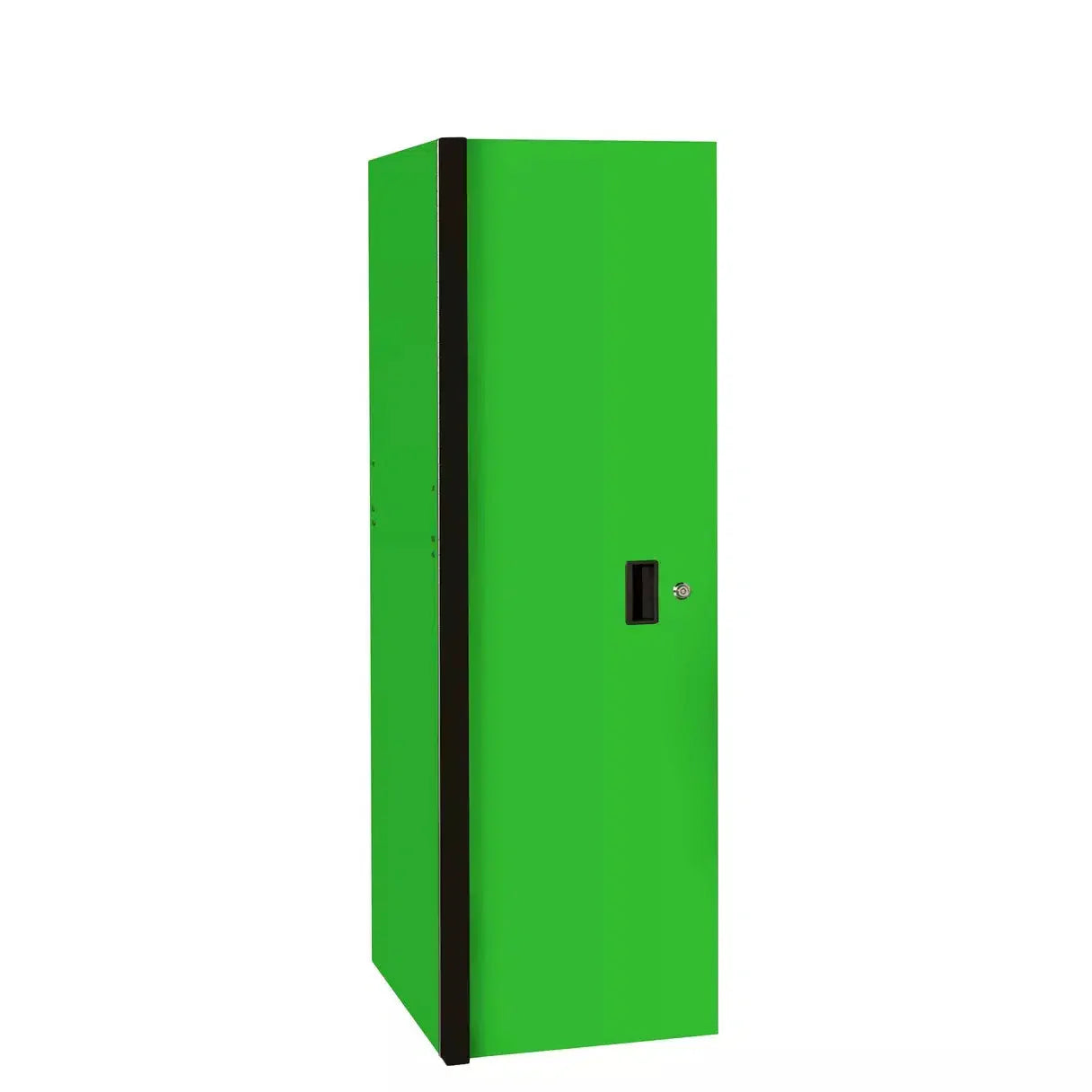

3. Green with Black Handles (RX243003SLGNBK)

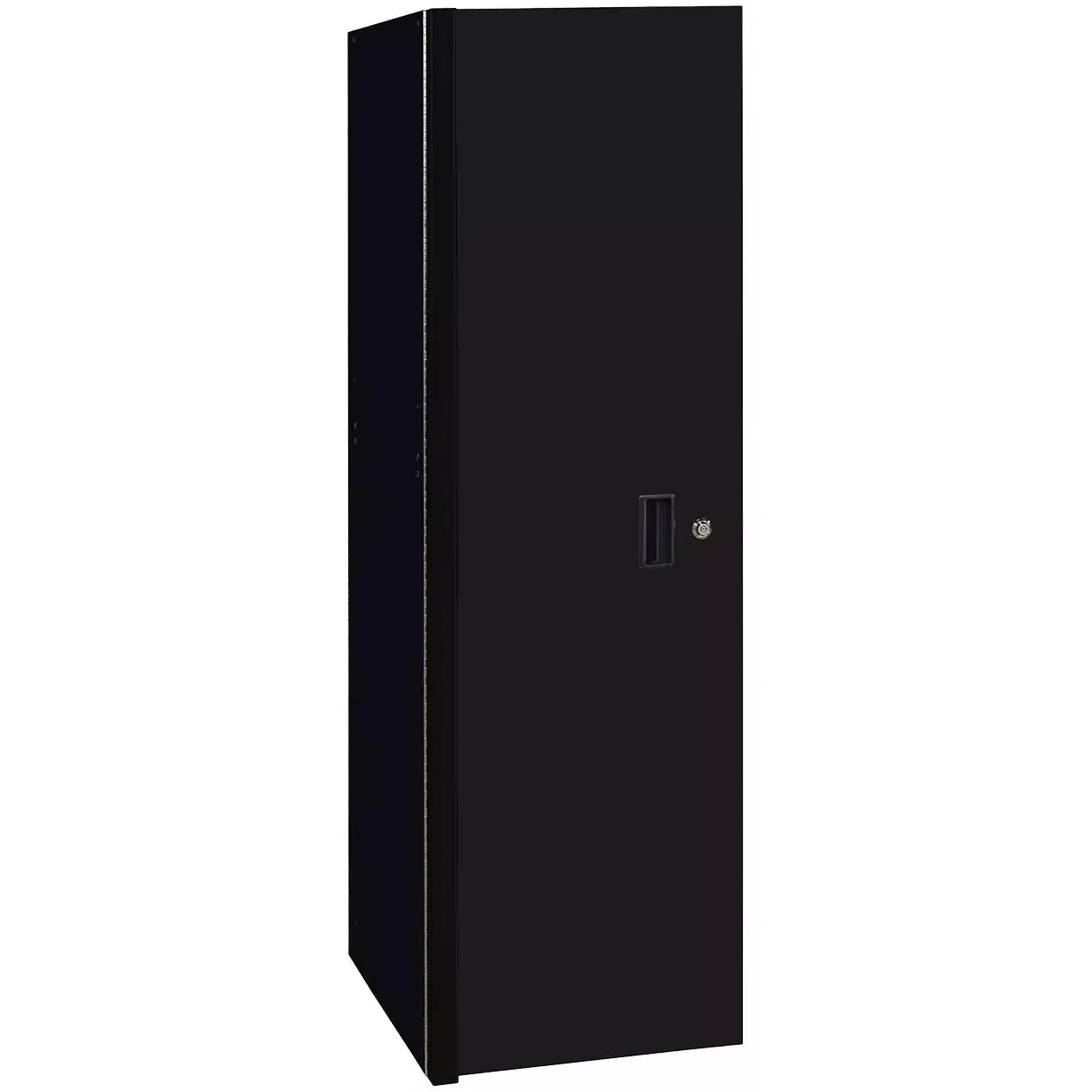

4. Matte Black with Black Handles (RX243003SLMBBK)

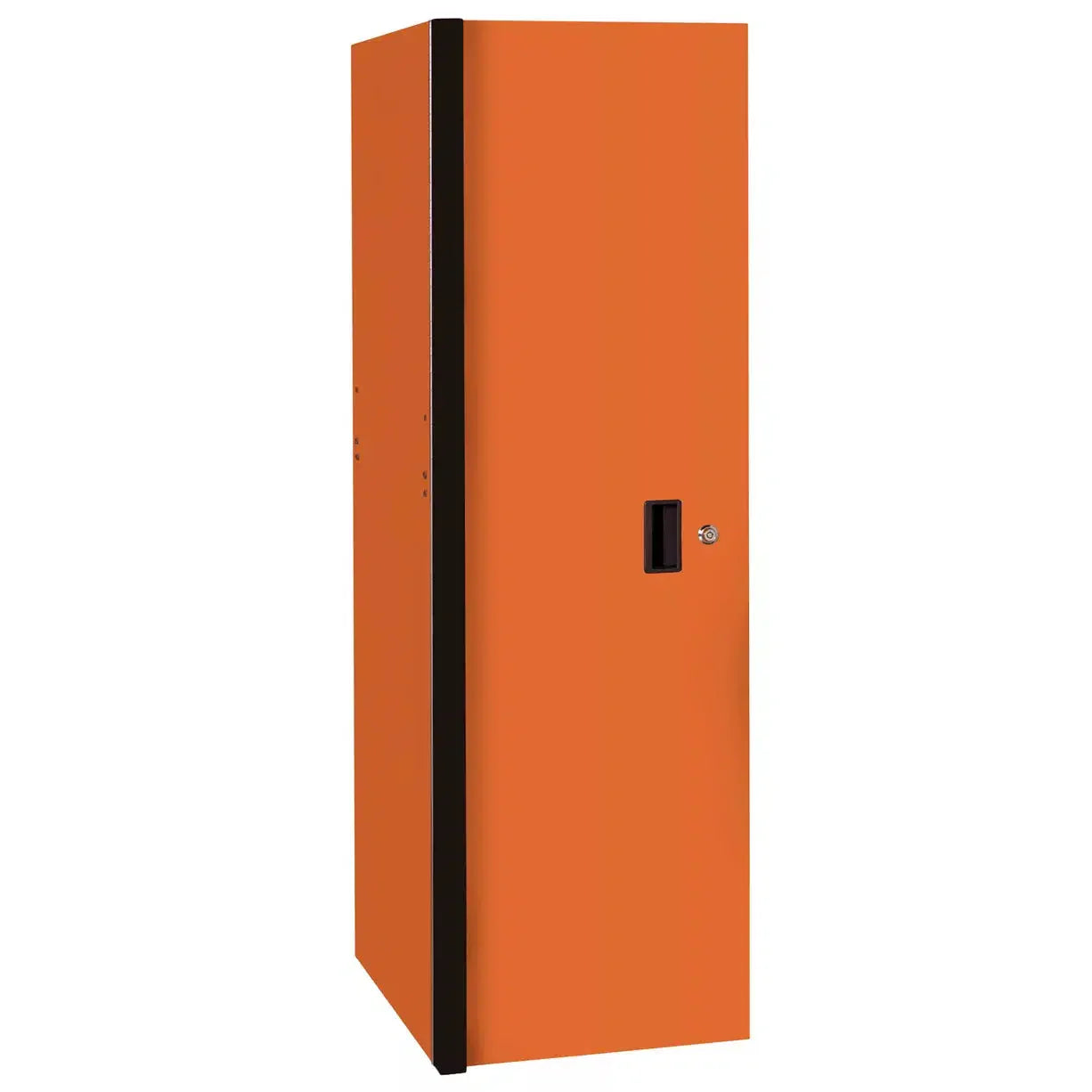

5. Orange with Black Handles (RX243003SLORBK)

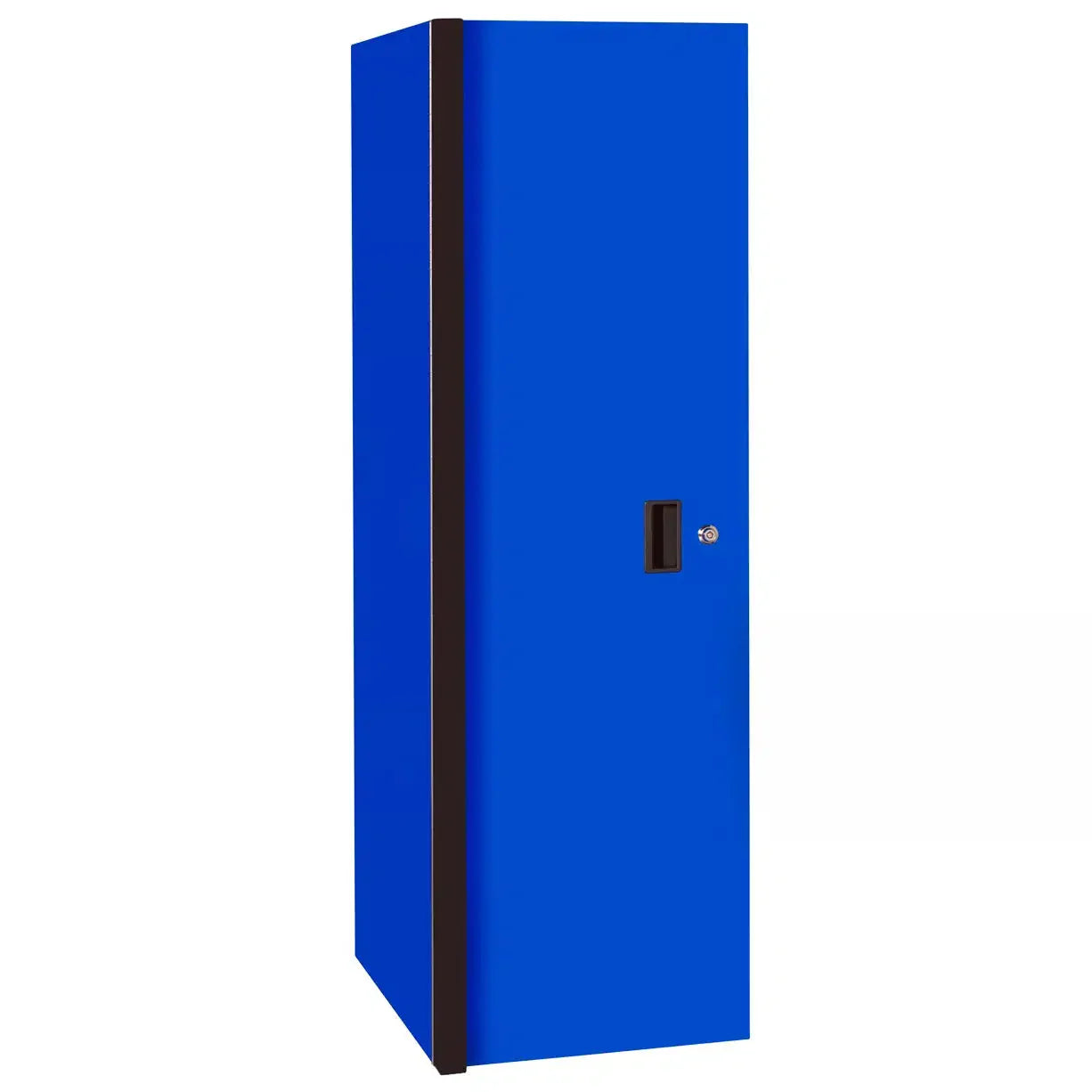

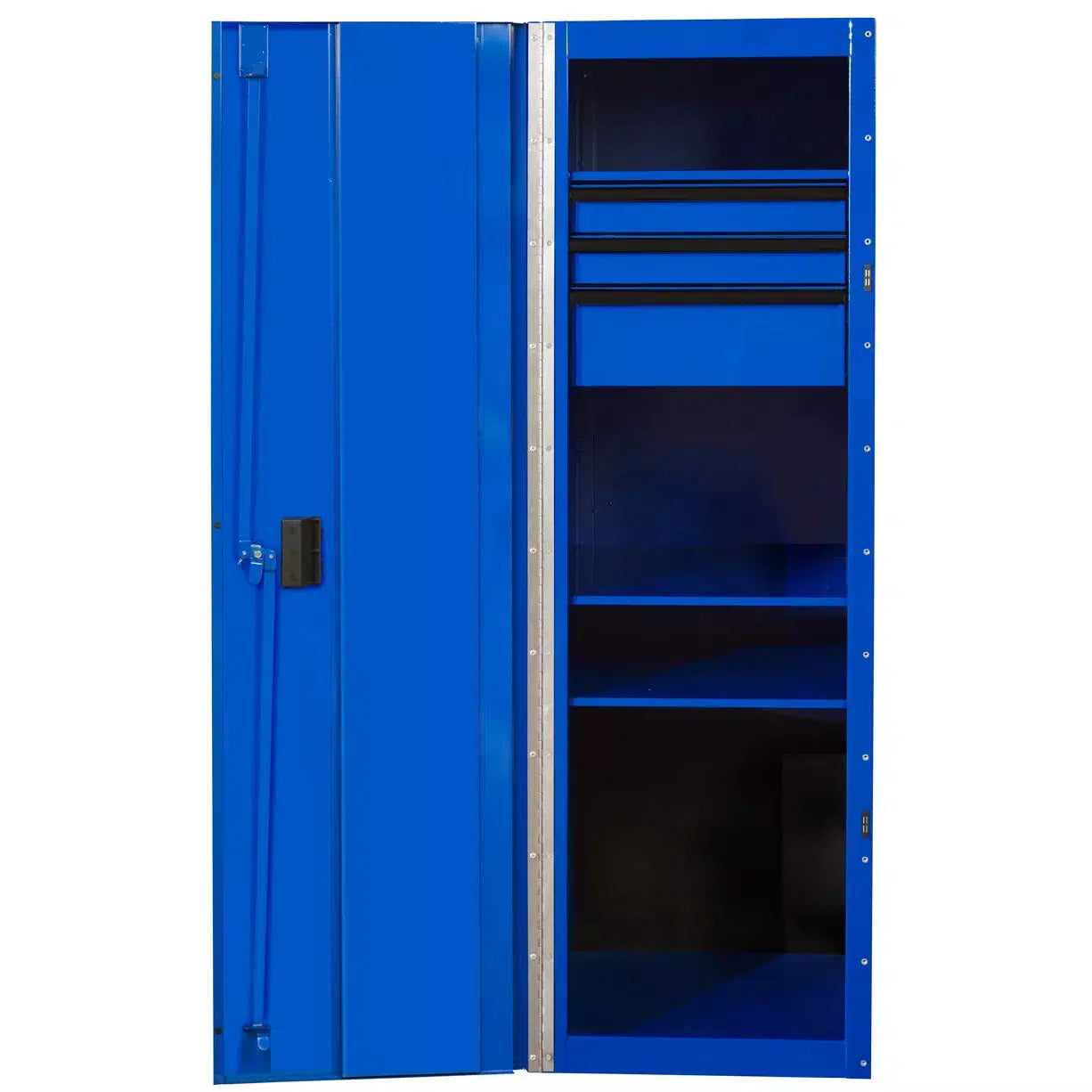

6. Blue with Black Handles (RX243003SLBLBK)

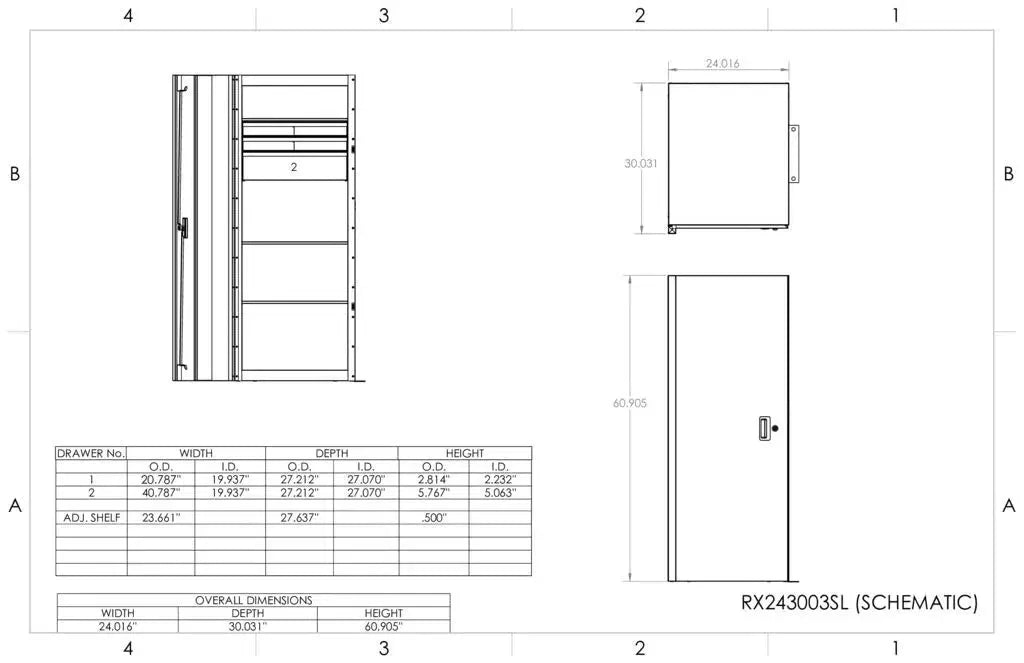

Dimensions & Weight

• Overall Dimensions: 24"W x 30"D x 60.9"H

• Drawer Outside Dimensions:

  • 20.8"W x 27.2"D x 2.8"H (150 lb capacity)

  • 20.8"W x 27.2"D x 5.8"H (300 lb capacity)

• Weight: 256 lbs

Additional Professional Features

• Polished Aluminum Vertical Trim – 3M-adhesive trim for a refined appearance

• 5-Year Limited Warranty – Built to withstand demanding work environments

Why Choose the RX Series 24" x 30" Side Locker?

✔ Heavier Load Capacity – Supports up to 300 lbs per drawer for bulky tools
✔ Deeper Storage (30" Depth) – Fits larger equipment with ease
✔ Secure & Organized – Locking system keeps tools protected
✔ Industrial Durability – Reinforced steel construction for long-term reliability
✔ Sleek & Professional Design – High-gloss finish and anodized aluminum handles

Upgrade your tool storage with the Extreme Tools® RX Series Side Locker—where strength, security, and superior organization meet professional performance.
