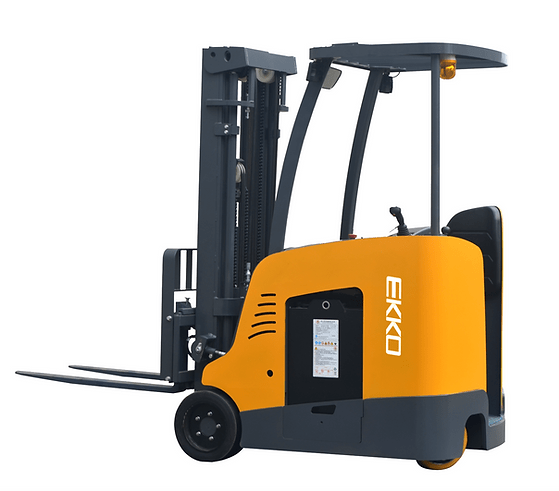

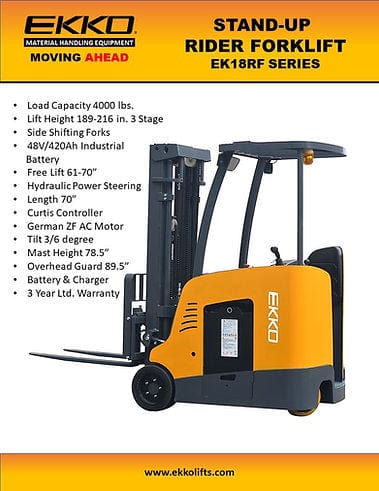

Effortless Efficiency on the Move: EKKO EK18RF Stand-up Rider Forklift
The EKKO EK18RF Stand-up Rider Forklift is a versatile solution designed to streamline material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors. This operator-centric forklift combines a comfortable riding platform with impressive performance, making it ideal for various industrial applications.
Enhanced Operator Experience and Productivity:
- Stand-up Rider Design: The comfortable platform allows for increased visibility, reduces fatigue during extended shifts, and offers greater freedom of movement compared to a seated forklift.
- Hydraulic Steering & Curtis Instrument Controller: Experience smooth, precise handling and effortless control for efficient maneuvering, maximizing productivity.
Powerful Performance and Lifting Capabilities:

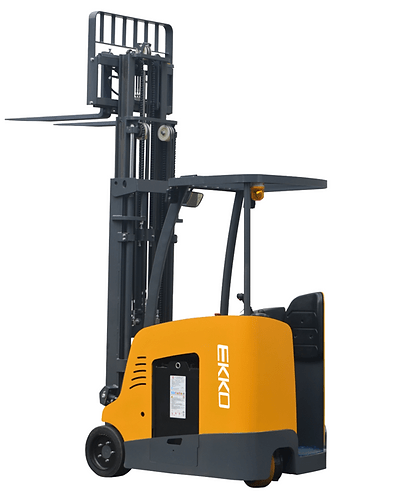

- Impressive Lifting Height: Effortlessly reach and maneuver loads up to 216 inches (18ft) high, ideal for medium-height storage racks.
- Solid Load Capacity: Handle and transport palletized materials weighing up to 4000 lbs with confidence.
- Side Shifting Forks: Enhance load handling versatility for efficient stacking, positioning, and maneuvering of pallets.
Additional Features for Enhanced Functionality:
- Adjustable Forks: Adapt to various pallet sizes with the adjustable forks ranging from 9.4 inches to 35.6 inches.
- German AC Drive Motor and 48V/420Ah Battery (included): Experience powerful performance and extended runtime for demanding tasks.
- Combination Tire Configuration: Solid cushion load tires provide stability and durability, while polyurethane drive tires offer a smooth ride and wear resistance.
- Ergonomic Handle and Controls: Prioritize operator comfort and ease of use.
- Durable Steel Construction with Robotic Welding: Delivers a long-lasting and reliable machine.
- Charger Included: This forklift comes ready to work right out of the box.
- 3-Year Limited Warranty: Provides peace of mind for your investment.

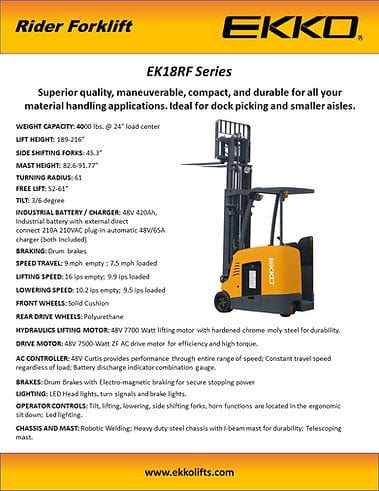

Specification
|
Model |
|
EK18RF |
|
Power unit |
|
Electric |
|
Operation Type |
|
Rider |
|
Loading capacity |
Q (LBS) |
4000 |
|
Load center |
c (Inch) |
24 |
|
Axle centre to fork face |
x (Inch) |
11.5 |
|
Wheelbase |
y (Inch) |
48.8 |
|
Service weight with battery |
LBS |
7940 |
|
Wheels type |
|
Solid wheel |
|
Driving wheel size |
Φ×w(Inch) |
16×7-10.5（15.98*7.01*10.51） |
|
Bearing wheel size |
Φ×w(Inch) |
13.5×5.2 |
|
Wheels, number front/rear |
|
1×/2 |
|
Track width |
b10 (Inch) |
35.04 |
|
Mast/fork carriage tilt, fwd/bwd |
a/b (°) |
3/5 |
|
Lowered mast height |
h1 (Inch) |
91.77 |
|
Free lift height |
h2 (Inch) |
61.34 |
|
Lift height |
h3 (Inch) |
216.54 |
|
Extended mast height |
h4 (Inch) |
248.43 |
|
Height of overhead guard (cabin) |
h6 (Inch) |
90.08 |
|
Height of seat/stand-on platform |
h7 (Inch) |
9.06 |
|
Overall length |
l1 (Inch) |
117.78 |
|
Length to fork face |
l2 (Inch) |
72.52 |
|
Overall width |
b1/ b2 (mm) |
42.52/42.13 |
|
Fork dimensions |
s/e/l (Inch) |
1.58/4.72/45.28 |
|
Width of forks |
b3 (Inch) |
36.22 |
|
Ground clearance under the mast |
m1 (Inch) |
2.95 |
|
Min. Ground clearance |
m2 (Inch) |
3.86 |
|
Aisle width requirement |
Ast (FT) |
10.5 |
|
Min. Turning radius |
Wa (Inch) |
58.5 |
|
Travel speed,laden/unladen |
(km/h) |
12/13 |
|
Lifting speed, with/without load |
(mm/s) |
250/400 |
|
Lowering speed, with/without |
(mm/s) |
240/258 |
|
Climbing ability, with/without |
(%) |
6/10 |
|
Service brake |
|
Hydraulic |
|
Drive motor, 60-minute rating |
(kW) |
6 |
|
Lift motor rating at S3 15% |
(kW) |
7.7 |
|
Battery according to DIN 43531/35/36 A,B,C,no |
|
no |
|
Battery voltage/rated capacity |
(V/Ah) |
48/420 |
|
Battery weight (± 5%) |
(LBS) |
1570 |
|
Power consumption VDI |
(mm) |
38*18.1*29.53 |
|
Type of drive control |
|
AC |
|
Noise level at operator‘s ear |
(dB(A)) |
≤70 |
|
steering type |
|
Hydraulic steering |
