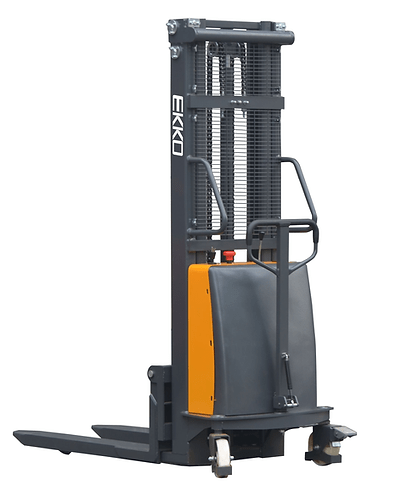

The Effortless Lifter: EKKO EA15C Semi-Electric Fork-Over Stacker
The EKKO EA15C Semi-Electric Fork-Over Stacker combines the power of an electric lift with the maneuverability of a hand stacker, creating a space-saving solution for warehouses, stockrooms, loading docks, and manufacturing floors.
Effortless Lifting and Efficient Maneuvering:
- Electric Lift: Experience effortless lifting of palletized goods up to 3300 lbs with the powerful electric motor, minimizing operator fatigue and maximizing productivity.
- Manual Drive: The manual drive system allows for smooth and precise maneuvering in tight aisles, ideal for applications where space is limited.
Additional Features for Enhanced Functionality and Operator Comfort:
- Impressive Lifting Height: The maximum lifting height of 119.3 inches (almost 10ft) allows operators to reach mid-level storage racks with ease.
- Adjustable Forks: Handle a variety of pallet sizes with the adjustable forks for versatile operation.
- Ergonomic Handle: The ergonomic design prioritizes operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Internal Charger and Battery Included: This stacker comes ready to work with a built-in charger and battery for convenient operation.
- 3-Year Limited Warranty: Delivers peace of mind.

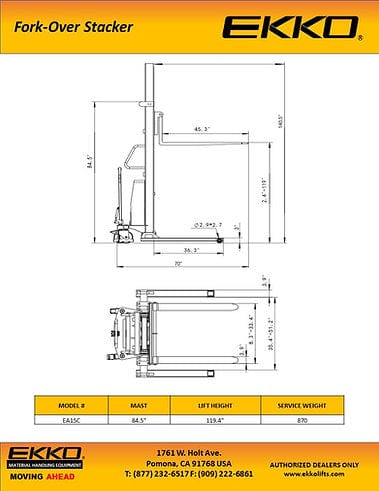

Specification
|
Model |
|
EA15C |
|
Load Capacity |
(lb) |
3300 |
|
Lifting height Max. |
(in) |
119.4 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
5.9 |
|
Overall fork width |
(in) |
24.5 |
|
Lowered fork height |
(in) |
2.4 |
|
Fixed leg length |
(in) |
45.3 |
|
Fixed leg width, single |
(in) |
5.9 |
|
Width between legs |
(in) |
12.75 |
|
Turning radius |
(in) |
53.2 |
|
Overall length |
(in) |
73 |
|
Overall width max |
(in) |
59 |
|
Extended mast height |
(in) |
140.5 |
|
Lowered mast height |
(in) |
81.8 |
|
Battery Voltage |
(V/Ah) |
12V/120Ah |
|
Charger |
(V/A) |
12V/20A |
|
Lift Motor |
(V/W) |
DC 12V/1500W |
|
Service Weight |
(lb) |
870 |
Description
The Effortless Lifter: EKKO EA15C Semi-Electric Fork-Over Stacker
The EKKO EA15C Semi-Electric Fork-Over Stacker combines the power of an electric lift with the maneuverability of a hand stacker, creating a space-saving solution for warehouses, stockrooms, loading docks, and manufacturing floors.
Effortless Lifting and Efficient Maneuvering:
- Electric Lift: Experience effortless lifting of palletized goods up to 3300 lbs with the powerful electric motor, minimizing operator fatigue and maximizing productivity.
- Manual Drive: The manual drive system allows for smooth and precise maneuvering in tight aisles, ideal for applications where space is limited.
Additional Features for Enhanced Functionality and Operator Comfort:
- Impressive Lifting Height: The maximum lifting height of 119.3 inches (almost 10ft) allows operators to reach mid-level storage racks with ease.
- Adjustable Forks: Handle a variety of pallet sizes with the adjustable forks for versatile operation.
- Ergonomic Handle: The ergonomic design prioritizes operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Internal Charger and Battery Included: This stacker comes ready to work with a built-in charger and battery for convenient operation.
- 3-Year Limited Warranty: Delivers peace of mind.
Specification
|
Model |
|
EA15C |
|
Load Capacity |
(lb) |
3300 |
|
Lifting height Max. |
(in) |
119.4 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
5.9 |
|
Overall fork width |
(in) |
24.5 |
|
Lowered fork height |
(in) |
2.4 |
|
Fixed leg length |
(in) |
45.3 |
|
Fixed leg width, single |
(in) |
5.9 |
|
Width between legs |
(in) |
12.75 |
|
Turning radius |
(in) |
53.2 |
|
Overall length |
(in) |
73 |
|
Overall width max |
(in) |
59 |
|
Extended mast height |
(in) |
140.5 |
|
Lowered mast height |
(in) |
81.8 |
|
Battery Voltage |
(V/Ah) |
12V/120Ah |
|
Charger |
(V/A) |
12V/20A |
|
Lift Motor |
(V/W) |
DC 12V/1500W |
|
Service Weight |
(lb) |
870 |
