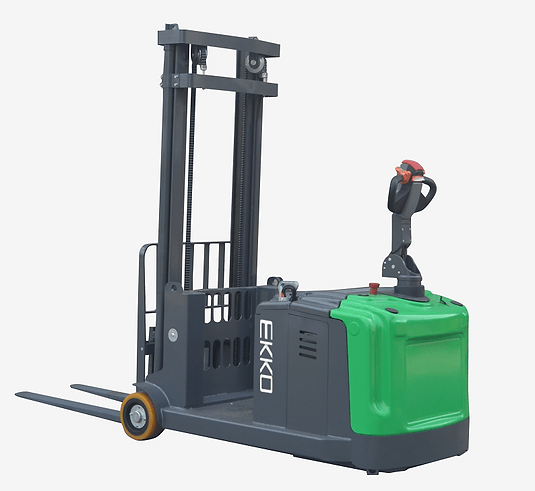

Eco-Powered High-Reach Hero: EKKO EK14-130LI Lithium Walkie Stacker
The EKKO EK14-130LI Lithium Walkie Stacker combines the versatility of a forklift and a walkie stacker with the added benefit of a counterbalanced design for exceptional stability when lifting heavy loads. This electric stacker, powered by a long-lasting 24V Lithium battery, is ideal for tackling various material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors, potentially reducing environmental impact.
Sustainable Power Meets Exceptional Reach:
- Lithium Battery Technology: Equipped with a 24V Lithium battery, the EK14-130LI may offer extended operation on a single charge compared to traditional lead-acid batteries, potentially reducing downtime for battery changes and contributing to a more eco-friendly operation.
- Unmatched Reach for High-Level Palletizing: The impressive maximum lifting height of 130 inches (10.83ft) allows operators to effortlessly reach and handle goods on the highest shelves or in the tallest trucks.
- Superior Load Capacity: Handles up to 3300 lbs of palletized materials with confidence.
Additional Features for Enhanced Functionality and Operator Comfort:
- Adjustable for Versatility: The adjustable forks (from 8.6 inches to 28.3 inches) ensure the EK14-130LI can accommodate various pallet sizes.
- Fine-Tune Load Placement: The 2/5-degree tilt function allows for minor adjustments during operation, enhancing control over load placement.
- Precise Control: The Curtis Controller, 24V center drive motor, and 24V lift motor provide smooth operation and precise control for efficient maneuvering and load handling.
- Ergonomic Design: The handle and controls prioritize operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- Ready to Work: Includes a charger and lithium battery for immediate use.
- 3-Year Limited Warranty: Delivers peace of mind.

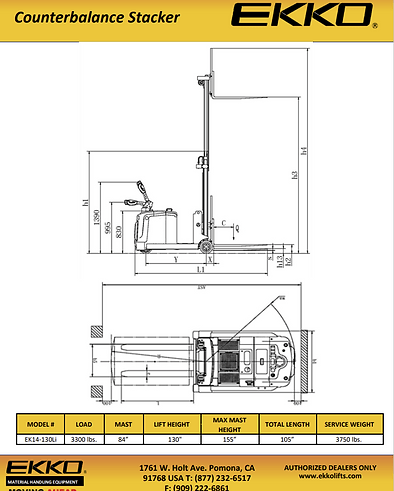

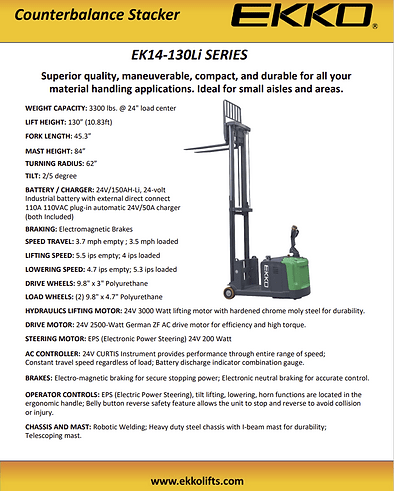

Specification
|
Model |
|
EK14-130Li |
|
Drive type |
|
Electric |
|
Type of operation |
|
Walike type |
|
Load Capacity |
Q (LBS) |
3300 |
|
Load Centre |
c (Inch) |
24 |
|
Distance between fork backrest and front wheel |
x (Inch) |
6 |
|
Wheelbase |
y (Inch) |
47 |
|
Service Weight（with battery） |
LBS |
3750 |
|
Tire material |
|
PU |
|
Driving wheel size |
Φ×w(Inch) |
Φ9.8×3.1 |
|
Front-wheel size |
Φ×w(Inch) |
Φ9.84×4.71 |
|
No of Driving wheel, Balance wheel/Bearing wheel(X=Driving wheel |
|
2/1X |
|
Load capacity |
|
Power |
|
Operator type |
|
Stand |
|
Mast/fork carriage tilt, forward/backward |
α/β (°) |
2/5 |
|
Lowered mast height |
h1 (Inch) |
84 |
|
Free lift height |
h2 (Inch) |
4 |
|
Lift height |
h3 (Inch) |
130 |
|
Extended mast height |
h4 (Inch) |
155 |
|
Height of seat/stand-on platform |
h7 (mm) |
5 |
|
Fork carriage width |
(in) |
3.5 |
|
Overall Length |
l1 (Inch) |
105 |
|
The max driving speed laden/unladen |
(in/h) |
16850/204724 |
|
Overall Width |
b1 (Inch) |
39 |
|
Fork Size |
s/e/l (Inch) |
1.4/4/37 |
|
Fork Width |
b5 (Inch) |
8.7-28 |
|
Ground clearance under mast |
m1 (Inch) |
2.4 |
|
Steering Motor |
|
24V/0.2kw |
|
Aisle width for pallets 1000*1200 crossways |
Ast (Inch) |
119 |
|
Aisle width for pallets 800*1200 lengthways |
Ast (Inch) |
123 |
|
Turing Radius |
Wa (Inch) |
62 |
|
Steering Motor |
|
24V/0.2kw |
|
Lifting Speed load/unload |
(in/s) |
4/5.5 |
|
Lowered Speed load/unload |
(in/s) |
5.3/4.7 |
|
Maximum gradeability load/unload |
(%) |
6/10 |
|
Charger |
|
24V/50A |
|
Drive Motor |
(kW) |
2.5 |
|
Lift Motor |
(kW) |
3.0 |
|
Battery voltage/rate capacity |
(V/Ah) |
24/150AH-Li |
Description
Eco-Powered High-Reach Hero: EKKO EK14-130LI Lithium Walkie Stacker
The EKKO EK14-130LI Lithium Walkie Stacker combines the versatility of a forklift and a walkie stacker with the added benefit of a counterbalanced design for exceptional stability when lifting heavy loads. This electric stacker, powered by a long-lasting 24V Lithium battery, is ideal for tackling various material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors, potentially reducing environmental impact.
Sustainable Power Meets Exceptional Reach:
- Lithium Battery Technology: Equipped with a 24V Lithium battery, the EK14-130LI may offer extended operation on a single charge compared to traditional lead-acid batteries, potentially reducing downtime for battery changes and contributing to a more eco-friendly operation.
- Unmatched Reach for High-Level Palletizing: The impressive maximum lifting height of 130 inches (10.83ft) allows operators to effortlessly reach and handle goods on the highest shelves or in the tallest trucks.
- Superior Load Capacity: Handles up to 3300 lbs of palletized materials with confidence.
Additional Features for Enhanced Functionality and Operator Comfort:
- Adjustable for Versatility: The adjustable forks (from 8.6 inches to 28.3 inches) ensure the EK14-130LI can accommodate various pallet sizes.
- Fine-Tune Load Placement: The 2/5-degree tilt function allows for minor adjustments during operation, enhancing control over load placement.
- Precise Control: The Curtis Controller, 24V center drive motor, and 24V lift motor provide smooth operation and precise control for efficient maneuvering and load handling.
- Ergonomic Design: The handle and controls prioritize operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- Ready to Work: Includes a charger and lithium battery for immediate use.
- 3-Year Limited Warranty: Delivers peace of mind.
Specification
|
Model |
|
EK14-130Li |
|
Drive type |
|
Electric |
|
Type of operation |
|
Walike type |
|
Load Capacity |
Q (LBS) |
3300 |
|
Load Centre |
c (Inch) |
24 |
|
Distance between fork backrest and front wheel |
x (Inch) |
6 |
|
Wheelbase |
y (Inch) |
47 |
|
Service Weight（with battery） |
LBS |
3750 |
|
Tire material |
|
PU |
|
Driving wheel size |
Φ×w(Inch) |
Φ9.8×3.1 |
|
Front-wheel size |
Φ×w(Inch) |
Φ9.84×4.71 |
|
No of Driving wheel, Balance wheel/Bearing wheel(X=Driving wheel |
|
2/1X |
|
Load capacity |
|
Power |
|
Operator type |
|
Stand |
|
Mast/fork carriage tilt, forward/backward |
α/β (°) |
2/5 |
|
Lowered mast height |
h1 (Inch) |
84 |
|
Free lift height |
h2 (Inch) |
4 |
|
Lift height |
h3 (Inch) |
130 |
|
Extended mast height |
h4 (Inch) |
155 |
|
Height of seat/stand-on platform |
h7 (mm) |
5 |
|
Fork carriage width |
(in) |
3.5 |
|
Overall Length |
l1 (Inch) |
105 |
|
The max driving speed laden/unladen |
(in/h) |
16850/204724 |
|
Overall Width |
b1 (Inch) |
39 |
|
Fork Size |
s/e/l (Inch) |
1.4/4/37 |
|
Fork Width |
b5 (Inch) |
8.7-28 |
|
Ground clearance under mast |
m1 (Inch) |
2.4 |
|
Steering Motor |
|
24V/0.2kw |
|
Aisle width for pallets 1000*1200 crossways |
Ast (Inch) |
119 |
|
Aisle width for pallets 800*1200 lengthways |
Ast (Inch) |
123 |
|
Turing Radius |
Wa (Inch) |
62 |
|
Steering Motor |
|
24V/0.2kw |
|
Lifting Speed load/unload |
(in/s) |
4/5.5 |
|
Lowered Speed load/unload |
(in/s) |
5.3/4.7 |
|
Maximum gradeability load/unload |
(%) |
6/10 |
|
Charger |
|
24V/50A |
|
Drive Motor |
(kW) |
2.5 |
|
Lift Motor |
(kW) |
3.0 |
|
Battery voltage/rate capacity |
(V/Ah) |
24/150AH-Li |
