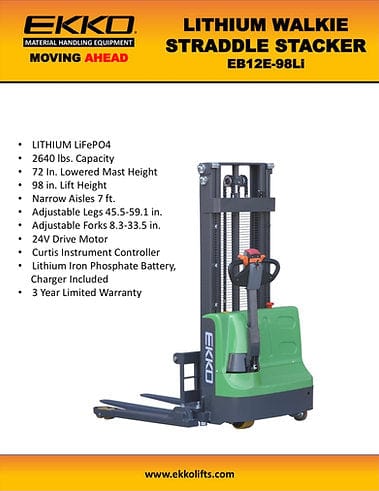

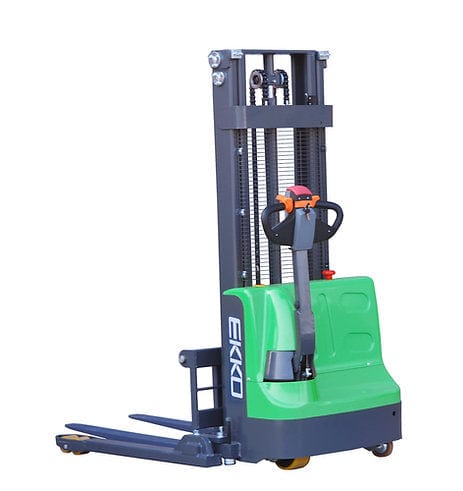

The Ultra-Manueverable Multitasker: EKKO EB12E-98Li Lithium Iron Phosphate Electric Straddle Stacker
The EKKO EB12E-98Li Lithium Iron Phosphate Electric Straddle Stacker is the ultimate warehouse workhorse, combining the versatility of a forklift, reach truck, and walkie stacker in one efficient machine. Powered by a 24V Lithium Iron Phosphate (LiFePO4) battery, this stacker offers eco-friendly operation with extended runtime and faster charging times.
Effortless Maneuvering and Unmatched Reach:
- Low-Profile Champion: The 72" lowered mast allows the EB12E-98Li to effortlessly pass through doorways, maximizing accessibility within your warehouse.
- Exceptional Reach: The impressive 98-inch maximum lifting height allows operators to reach and handle goods on high shelves, in mezzanines, or in the backs of taller trucks.
- Adjustable for Versatility: The adjustable forks (from 8.3 inches to 33.5 inches) and adjustable legs (from 45.7 inches to 59.1 inches) ensure the stacker can handle a wide variety of pallet sizes and configurations.
Additional Features for Enhanced Functionality and Operator Comfort:
- Lithium Iron Phosphate Battery: Experience longer runtime, faster charging times, and a longer lifespan compared to traditional lead-acid batteries, minimizing downtime and contributing to a more eco-friendly operation.
- Precise Control: The Curtis Instrument Controller, 24V drive motor, and 24V lift motor provide smooth operation and precise control for efficient maneuvering and load handling.
- Ergonomic Design: The handle and controls prioritize operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- 3-Year Limited Warranty: Delivers peace of mind.

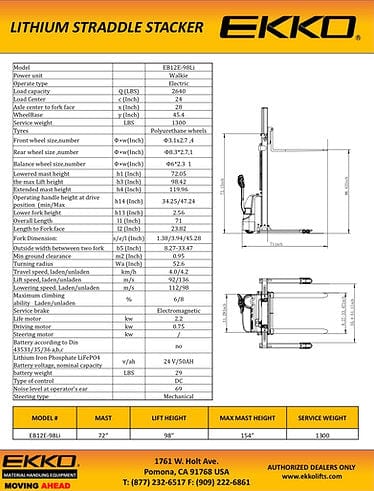

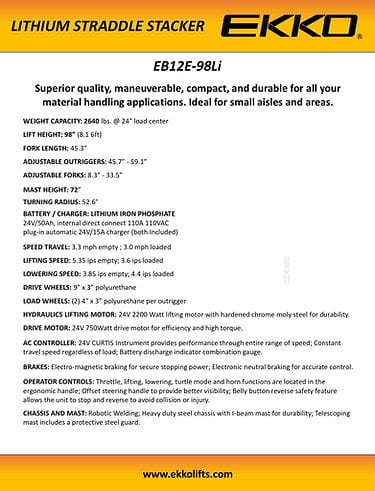

Specification
| Model | EB12E-98Li | |
| Power unit | Walkie | |
| Operate type | Electric | |
| Load Capacity | Q (LBS) | 2640 |
| Load Center | c (Inch) | 24 |
| Axle center to fork face | x (Inch) | 28 |
| Wheel Base | y (Inch) | 45.4 |
| Service weight | LBS | 1300 |
| Tires | Polyurethane wheels | |
| Front-wheel size, number | Φ×w(Inch) | Φ3.1x2.7 ,4 |
| Rear wheel size, number | Φ×w(Inch) | Φ8.3*2.7,1 |
| Balance wheel size, number | Φ×w(Inch) | Φ6*2.3 1 |
| Lowered mast height | h1 (Inch) | 72.05 |
| the max Lift height | h3 (Inch) | 98.42 |
| Extended mast height | h4 (Inch) | 119.96 |
| Operating handle height at drive position (min/Max | h14 (Inch) | 34.25/47.24 |
| Lower fork height | h13 (Inch) | 2.56 |
| Overall Length | l1 (Inch) | 71 |
| Length to Fork face | l2 (Inch) | 23.82 |
| Fork Dimension: | s/e/l (Inch) | 1.38/3.94/45.28 |
| Outside width between two fork | b5 (Inch) | 8.27-33.47 |
| Min ground clearance | m2 (Inch) | 0.95 |
| Turning radius | Wa (Inch) | 52.6 |
| Travel speed, laden/unladen | km/h | 4.0/4.2 |
| Lift speed, laden/unladen | m/s | 92/136 |
| Lowering speed. Laden/unladen | m/s | 112/98 |
| Maximum climbing ability Laden/unladen | % | 6/8 |
| Service brake | Electromagnetic | |
| Life motor | kw | 2.2 |
| Driving motor | kw | 0.75 |
| Steering motor | kw | / |
| Battery according to Din 43531/35/36 a,b,c | no | |
| Battery voltage, nominal capacity | v/ah | 24 V/50AH |
| battery weight | LBS | 29 |
| Type of control | DC | |
| Noise level at operator's ear | 69 | |
| Steering type | Mechanical |
