Description
Description

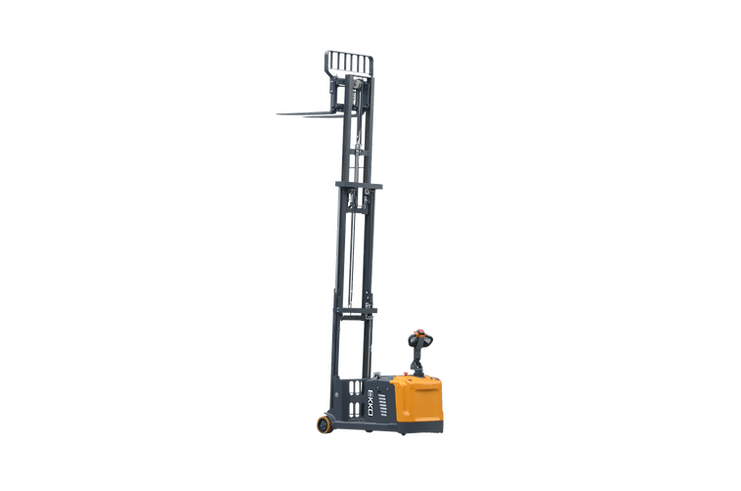

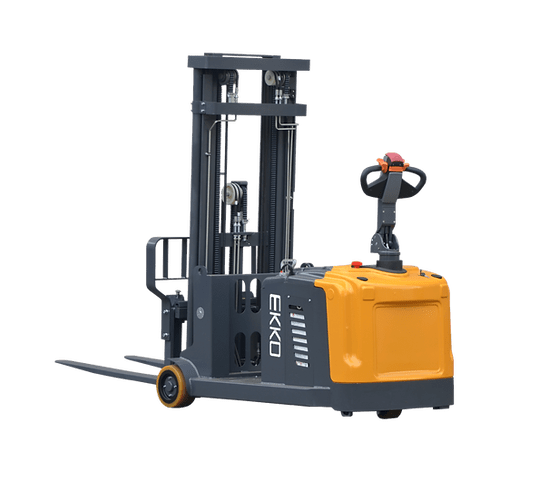

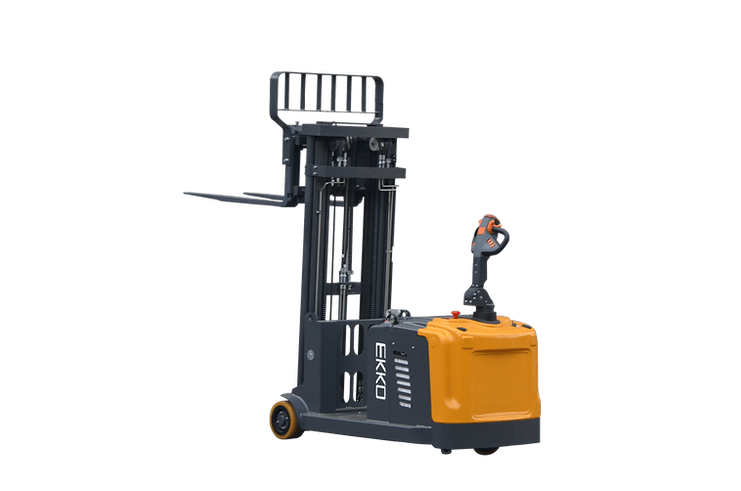

Precise Palletizing at Height: EKKO EK13S-177 Walkie Stacker with Side-Shifting
The EKKO EK13S-177 Fully Powered Counterbalanced Walkie Stacker with Side-Shifting combines the versatility of a forklift and a walkie stacker with the added precision of side-shifting. This powerful and maneuverable machine is ideal for tackling various material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors.
Superior Reach and Enhanced Efficiency with Side-Shifting:
- Effortless High-Level Palletizing: The impressive maximum lifting height of 177 inches (14.75ft) allows operators to effortlessly reach and handle goods on the highest shelves or in taller trucks.
- Accurate Load Placement: The side-shifting functionality enables precise lateral movement of pallets after lifting, ensuring perfect positioning on shelves or racks, saving time and maximizing efficiency during operation.
- Strong Lifting Capacity: Handles up to 2860 lbs of palletized materials with confidence.
Additional Features for Operator Comfort and Convenience:
- Adjustable for Versatility: The adjustable forks (from 8.6 inches to 28.3 inches) ensure the EK13S-177 can accommodate various pallet sizes.
- Precise Tilt Control: The 2/5-degree tilt function allows for minor adjustments during operation, enhancing control over load placement.
- Effortless Maneuvering: The Electronic Power Steering (EPS), Curtis controller, 24V AC drive motor, and 24V lift motor provide smooth operation, precise control, and comfortable maneuvering, even in tight warehouse spaces.
- Operator Comfort: Ergonomic handle and controls prioritize operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- Ready to Work: Includes a charger and battery for immediate use.
- 3-Year Limited Warranty: Delivers peace of mind.
Specification
|
Model |
|
EK13S-177 |
|
Drive type |
|
Electric |
|
Type of operation |
|
Walike type |
|
Load Capacity |
Q (LBS) |
2860 |
|
Load Centre |
c (Inch) |
23.6 |
|
Distance between fork backrest and front wheel |
x (Inch) |
5.91 |
|
Wheelbase |
y (Inch) |
46.81 |
|
Service Weight（with battery） |
LBS |
4070 |
|
Tire material |
|
PU |
|
Driving wheel size |
Φ×w(Inch) |
Φ9.84×2.95 |
|
Bearing wheel size |
Φ×w(Inch) |
Φ9.84×4.72 |
|
No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel |
|
2/1X |
|
Front wheelbase |
b10 (Inch) |
34.09 |
|
Rear wheelbase |
b11 (Inch) |
0 |
|
Mast/fork carriage tilt, forward/backward |
α/β (°) |
2/5 |
|
Lowered mast height |
h1 (Inch) |
78.74 |
|
Free lift height |
h2 (Inch) |
59.84 |
|
Lift height |
h4 (Inch) |
177.17 |
|
Extended mast height |
h4 (Inch) |
214.53 |
|
Height of seat/stand-on platform |
h7 (mm) |
5 |
|
The height of handle in the operation position |
h14 (Inch) |
43.5/56.69 |
|
Overall Length |
l1 (Inch) |
107.8 |
|
Body Length |
l2 (Inch) |
62.52 |
|
Overall Width |
b1/ b2 (Inch) |
39.29 |
|
Fork Size |
s/e/l (Inch) |
1.38/3.94/45.28 |
|
Fork Width |
b5 (Inch) |
8.66-28.35 |
|
Ground clearance under mast |
m1 (Inch) |
3.54 |
|
Min Ground clearance |
m2 (Inch) |
3.39 |
|
Aisle width for pallets 1000*1200 crossways |
Ast (Inch) |
115.95 |
|
Aisle width for pallets 800*1200 lengthways |
Ast (Inch) |
120.28 |
|
Turing Radius |
Wa (Inch) |
56.89 |
|
Driving Speed, load/unload |
(km/h) |
5.2/5.5 |
|
Lifting Speed load/unload |
(mm/s) |
100/120 |
|
Lowered Speed load/unload |
(mm/s) |
136/120 |
|
Maximum grade ability load/unload |
(%) |
6/8 |
|
Brake Type |
|
Electromagnetic brake |
|
Drive Motor |
(kW) |
2.5 |
|
Lift Motor |
(kW) |
2.5 |
|
Battery voltage/rate capacity |
(V/Ah) |
24/210 |
|
Battery Weight（±5%） |
(lbs) |
460 |
|
Type of drive control |
|
AC |
|
Noise level |
(dB(A)) |
70 |
|
Steering type |
|
EPS |
