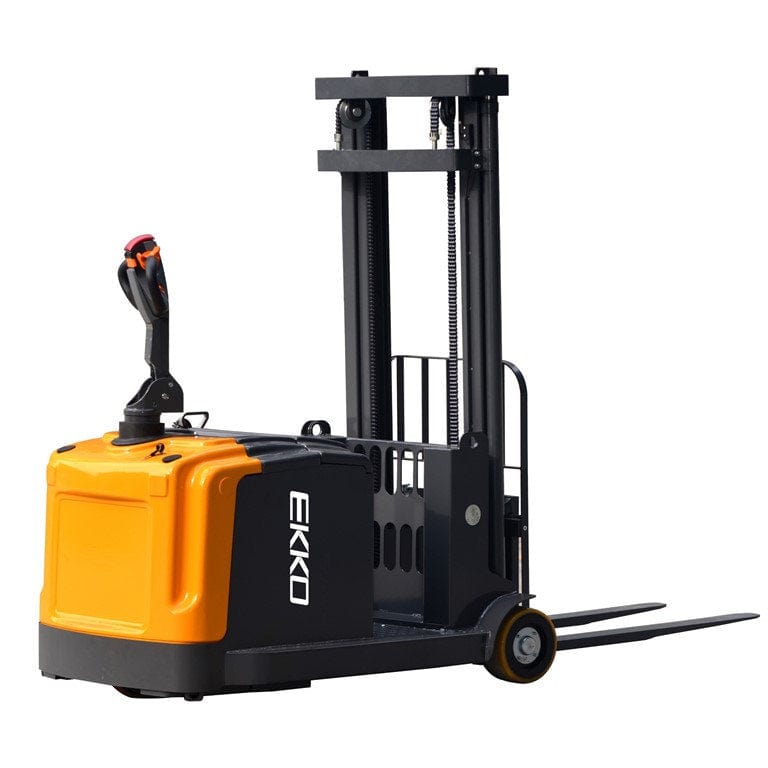

Agile and Capable: EKKO EK14-138 Walkie Stacker
The EKKO EK14-138 Fully Powered Counterbalanced Walkie Stacker combines the versatility of a forklift and a walkie stacker into a maneuverable and powerful machine. This stacker is ideal for tackling various material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors.
Strength, Reach, and Control:
- Handles Substantial Loads: With a 3300 lb load capacity, the EK14-138 efficiently transports a wide range of palletized materials.
- Reaches Higher Levels: The impressive maximum lifting height of 138 inches (11.5ft) allows operators to effortlessly access and handle goods on higher shelves or in taller trucks.
- Effortless Maneuvering in Tight Spaces: The Electronic Power Steering (EPS), Curtis controller, 24V AC drive motor, and 24V lift motor provide smooth operation, precise control, and agile maneuvering, even in narrow warehouse aisles.
Additional Features for Enhanced Functionality:
- Adjustable for Versatility: The adjustable forks (from 8.6 inches to 28.3 inches) ensure the EK14-138 can accommodate various pallet sizes.
- Precise Load Placement: The 2/5-degree tilt function allows for minor adjustments during operation, enhancing control over load placement.
- Operator Comfort: Ergonomic handle and controls prioritize operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- Charger Included: Ready to operate upon arrival.
- 3-Year Limited Warranty: Delivers peace of mind.
Specification
|
Model |
|
EK14-138 |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load Capacity |
|
3300 |
|
Load center distance |
(lb) |
24 |
|
Wheelbase |
(in) |
47 |
|
Lifting height |
(in) |
138 |
|
Free lifting height |
(in) |
4 |
|
Lowered mast height |
(in) |
90 |
|
Extended mast height |
(in) |
155 |
|
Mast/Fork carriage tilt forward/backward |
(in) |
2/5 |
|
Overall length |
( °) |
105 |
|
Overall width |
(in) |
39 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/4/37 |
|
Fork adjust width |
(in) |
8.7-28 |
|
Turning radius |
(in) |
62 |
|
Max.gradient performance, laden/unladen |
(in) |
6/10 |
|
Lift speed,laden/unladen |
(in/s) |
4/5.5 |
|
Lowering speed, laden/unladen |
(in/s) |
5.3/4.7 |
|
Charger |
(V/A) |
24V/30A |
|
Driving Motor |
(V/W) |
AC 24V/2500W |
|
Lifting Motor |
(V/W) |
24V/3000W |
|
EPS Steering Motor |
(V/W) |
24/200W |
|
Battery voltage |
(V/Ah) |
24V/210Ah (Side) |
|
Service Weight |
(lb) |
3880 |
Description
Agile and Capable: EKKO EK14-138 Walkie Stacker
The EKKO EK14-138 Fully Powered Counterbalanced Walkie Stacker combines the versatility of a forklift and a walkie stacker into a maneuverable and powerful machine. This stacker is ideal for tackling various material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors.
Strength, Reach, and Control:
- Handles Substantial Loads: With a 3300 lb load capacity, the EK14-138 efficiently transports a wide range of palletized materials.
- Reaches Higher Levels: The impressive maximum lifting height of 138 inches (11.5ft) allows operators to effortlessly access and handle goods on higher shelves or in taller trucks.
- Effortless Maneuvering in Tight Spaces: The Electronic Power Steering (EPS), Curtis controller, 24V AC drive motor, and 24V lift motor provide smooth operation, precise control, and agile maneuvering, even in narrow warehouse aisles.
Additional Features for Enhanced Functionality:
- Adjustable for Versatility: The adjustable forks (from 8.6 inches to 28.3 inches) ensure the EK14-138 can accommodate various pallet sizes.
- Precise Load Placement: The 2/5-degree tilt function allows for minor adjustments during operation, enhancing control over load placement.
- Operator Comfort: Ergonomic handle and controls prioritize operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- Charger Included: Ready to operate upon arrival.
- 3-Year Limited Warranty: Delivers peace of mind.
Specification
|
Model |
|
EK14-138 |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load Capacity |
|
3300 |
|
Load center distance |
(lb) |
24 |
|
Wheelbase |
(in) |
47 |
|
Lifting height |
(in) |
138 |
|
Free lifting height |
(in) |
4 |
|
Lowered mast height |
(in) |
90 |
|
Extended mast height |
(in) |
155 |
|
Mast/Fork carriage tilt forward/backward |
(in) |
2/5 |
|
Overall length |
( °) |
105 |
|
Overall width |
(in) |
39 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/4/37 |
|
Fork adjust width |
(in) |
8.7-28 |
|
Turning radius |
(in) |
62 |
|
Max.gradient performance, laden/unladen |
(in) |
6/10 |
|
Lift speed,laden/unladen |
(in/s) |
4/5.5 |
|
Lowering speed, laden/unladen |
(in/s) |
5.3/4.7 |
|
Charger |
(V/A) |
24V/30A |
|
Driving Motor |
(V/W) |
AC 24V/2500W |
|
Lifting Motor |
(V/W) |
24V/3000W |
|
EPS Steering Motor |
(V/W) |
24/200W |
|
Battery voltage |
(V/Ah) |
24V/210Ah (Side) |
|
Service Weight |
(lb) |
3880 |
