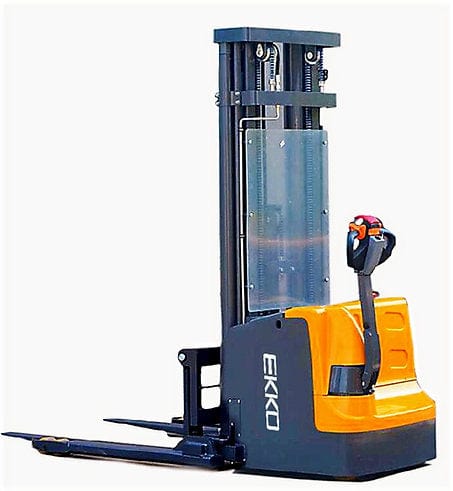

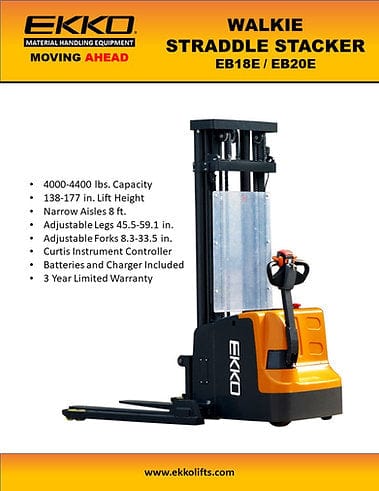

Powerful and Versatile Warehouse Assistant: EKKO EB18E Electric Straddle Stacker
The EKKO EB18E Electric Straddle Stacker combines the functionality of a forklift, reach truck, and walkie stacker into a powerful and versatile workhorse. This electric stacker is ideal for tackling various material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors.
Strength and Reach for Efficient Operations:
- Handles Heavy Loads: With a 4000 lb load capacity, the EB18E efficiently transports even the most demanding palletized materials.
- Reaches High Shelves: The impressive maximum lifting height of 138 inches (11.5ft) allows operators to effortlessly access and handle goods on high shelves or in taller trucks.
- Smooth Operation and Maneuverability: The Curtis controller, 24V AC drive motor, and 24V lift motor provide smooth operation and precise control for efficient maneuvering, even in tight warehouse aisles.
Additional Features that Enhance Functionality:
- Versatile Adjustments: Adjustable forks (from 9.8 inches to 31.5 inches) and legs (from 45.5 inches to 59.1 inches) ensure the EB18E can accommodate a wide range of pallet sizes.
- Operator Comfort: Ergonomic handle and controls prioritize operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- Convenience and Readiness: Includes a 24V/20A charger and batteries, so you can get started right away.
- 3-Year Limited Warranty: Delivers peace of mind.

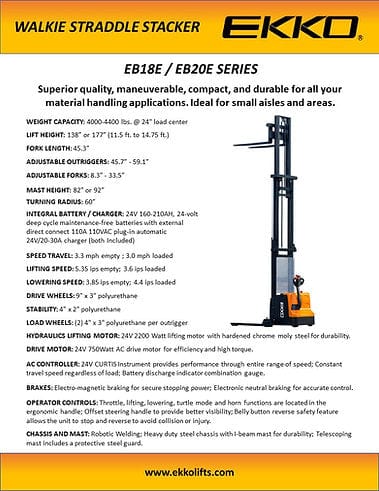

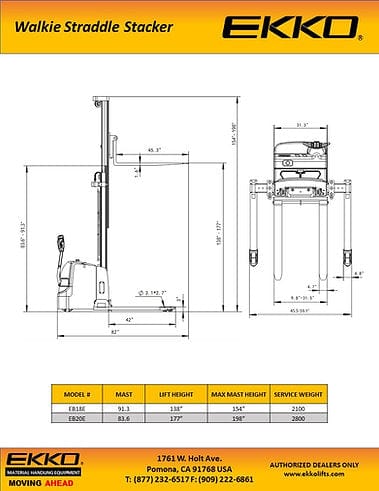

Specification
|
Model |
|
EB18E |
|
Load capacity |
(lb) |
4000 |
|
The max. lifting height |
(in) |
138 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4.7 |
|
Overall fork width |
(in) |
9.8-31.5 |
|
Lowered fork height |
(in) |
2.35 |
|
Fixed leg length |
(in) |
36.5 |
|
Adjustable legs |
(in) |
45.5-59.1 |
|
Turning radius |
(in) |
60 |
|
Overall length |
(in) |
82 |
|
Max width |
(in) |
61 |
|
Extended mast height |
(in) |
154 |
|
Lowered mast height |
(in) |
91.3 |
|
Battery voltage |
(V/Ah) |
2x12V/160Ah |
|
The charger |
(V/A) |
24V/20A |
|
Lifting Motor |
(W) |
3000 Watt, Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
|
Driving Motor |
(W) |
1500 Watt, Driving speed: laden/unladen:4.0/4.2km/h |
|
Service Weight |
(lb) |
2100 |
Description
Powerful and Versatile Warehouse Assistant: EKKO EB18E Electric Straddle Stacker
The EKKO EB18E Electric Straddle Stacker combines the functionality of a forklift, reach truck, and walkie stacker into a powerful and versatile workhorse. This electric stacker is ideal for tackling various material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors.
Strength and Reach for Efficient Operations:
- Handles Heavy Loads: With a 4000 lb load capacity, the EB18E efficiently transports even the most demanding palletized materials.
- Reaches High Shelves: The impressive maximum lifting height of 138 inches (11.5ft) allows operators to effortlessly access and handle goods on high shelves or in taller trucks.
- Smooth Operation and Maneuverability: The Curtis controller, 24V AC drive motor, and 24V lift motor provide smooth operation and precise control for efficient maneuvering, even in tight warehouse aisles.
Additional Features that Enhance Functionality:
- Versatile Adjustments: Adjustable forks (from 9.8 inches to 31.5 inches) and legs (from 45.5 inches to 59.1 inches) ensure the EB18E can accommodate a wide range of pallet sizes.
- Operator Comfort: Ergonomic handle and controls prioritize operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- Convenience and Readiness: Includes a 24V/20A charger and batteries, so you can get started right away.
- 3-Year Limited Warranty: Delivers peace of mind.
Specification
|
Model |
|
EB18E |
|
Load capacity |
(lb) |
4000 |
|
The max. lifting height |
(in) |
138 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4.7 |
|
Overall fork width |
(in) |
9.8-31.5 |
|
Lowered fork height |
(in) |
2.35 |
|
Fixed leg length |
(in) |
36.5 |
|
Adjustable legs |
(in) |
45.5-59.1 |
|
Turning radius |
(in) |
60 |
|
Overall length |
(in) |
82 |
|
Max width |
(in) |
61 |
|
Extended mast height |
(in) |
154 |
|
Lowered mast height |
(in) |
91.3 |
|
Battery voltage |
(V/Ah) |
2x12V/160Ah |
|
The charger |
(V/A) |
24V/20A |
|
Lifting Motor |
(W) |
3000 Watt, Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
|
Driving Motor |
(W) |
1500 Watt, Driving speed: laden/unladen:4.0/4.2km/h |
|
Service Weight |
(lb) |
2100 |
