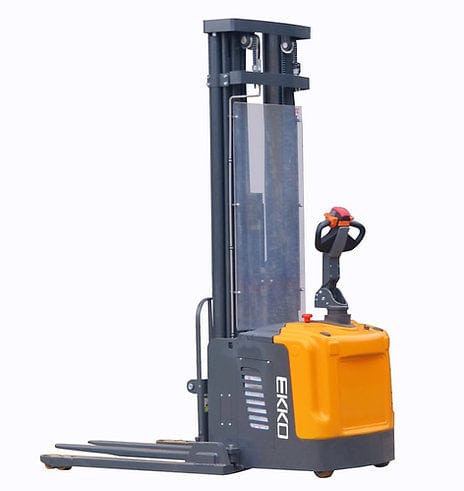

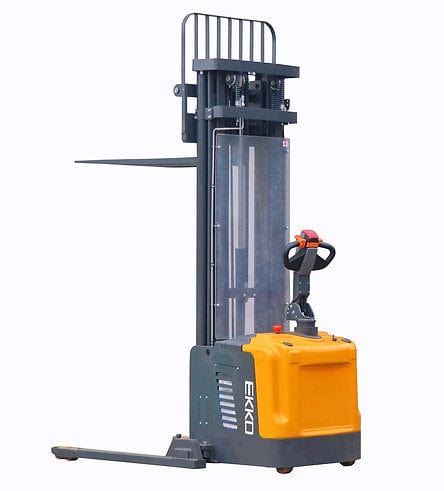

Powerhouse Performance for Warehousing Needs: EKKO EB16EA Electric Straddle Stacker
The EKKO EB16EA Electric Straddle Stacker is a powerful and versatile workhorse designed to tackle heavy-duty material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors. It combines the functionality of a forklift, reach truck, and walkie stacker, offering significant lifting capacity and reach compared to standard models.
- Exceptional Lifting Capacity: The EB16EA boasts a superior load capacity of 4400 lbs, ideal for handling even the heaviest palletized materials with confidence.
- Amplified Reach for Elevated Storage: The impressive maximum lifting height of 216 inches (18ft) allows operators to effortlessly reach and handle palletized goods on the highest shelves or in the tallest trucks.
- Enhanced Maneuverability and Control: The Electric Power Steering (EPS), Curtis Instrument Controller, 24V AC drive motor, and 24V lift motor ensure smooth operation, precise control, and effortless maneuvering, even in tight warehouse spaces.
Additional Features:
- Adjustable for Versatility: The adjustable forks (from 9.8 inches to 31.5 inches) and legs (from 38.06 inches to 51.8 inches) ensure the EB16EA can handle a wide range of pallet dimensions.
- Free Lift Advantage: The 76.25 inches of free lift allows for additional clearance when transporting pallets under obstacles.

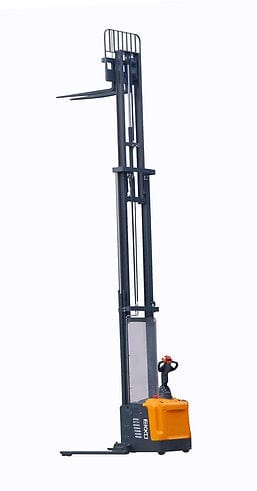

- Triple Mast for Increased Stability: The triple mast design provides enhanced stability, especially when handling heavy loads at elevated heights.
- Operator Comfort and Convenience: Ergonomic handle and controls prioritize operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- Extended Runtime Potential: The 24V/210Ah battery may offer extended operation on a single charge compared to lower Ah batteries (depending on usage).
- 3-Year Limited Warranty: Delivers peace of mind.

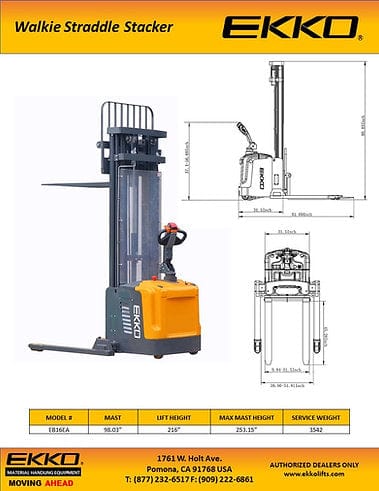

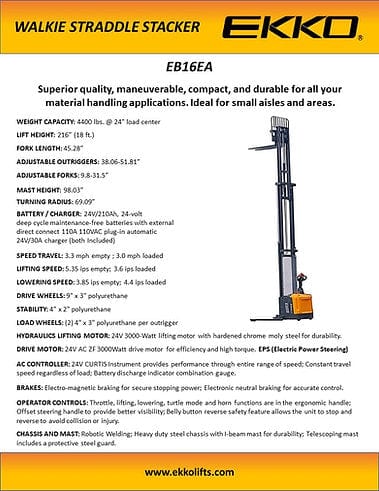

Specification
|
Model |
|
EB16EA |
|
Load capacity |
(lb) |
4400 |
|
The max. lifting height |
(in) |
216 |
|
Load center distance |
(in) |
24 |
|
Free Lift |
(in) |
76.25 |
|
EPS (Elec. Power Steer) |
|
Yes |
|
Fork length |
(in) |
45.28 |
|
Single fork width |
(in) |
4.7 |
|
Overall fork width |
(in) |
9.8-31.5 |
|
Lowered fork height |
(in) |
1.58 |
|
Fixed leg length |
(in) |
42 |
|
Adjustable legs |
(in) |
38.06-51.81 |
|
Turning radius |
(in) |
69.09 |
|
Overall length |
(in) |
81.69 |
|
Max width |
(in) |
46.93-60.71 |
|
Extended mast height |
(in) |
253.15 |
|
Lowered mast height |
(in) |
98.03 |
|
Battery voltage |
(V/Ah) |
24/210Ah |
|
Charger |
(V/A) |
24V/30A |
|
Lifting Motor |
(W) |
3000 Watt, Lift speed, laden/unladen:95/160m/s Lowering speed, laden/unladen:130/110mm/s |
|
AC Driving Motor |
(W) |
3000 Watt, Driving speed: laden/unladen: 5.2/5.5km/h |
|
Service Weight |
(lb) |
3542 |
Description
Powerhouse Performance for Warehousing Needs: EKKO EB16EA Electric Straddle Stacker
The EKKO EB16EA Electric Straddle Stacker is a powerful and versatile workhorse designed to tackle heavy-duty material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors. It combines the functionality of a forklift, reach truck, and walkie stacker, offering significant lifting capacity and reach compared to standard models.
- Exceptional Lifting Capacity: The EB16EA boasts a superior load capacity of 4400 lbs, ideal for handling even the heaviest palletized materials with confidence.
- Amplified Reach for Elevated Storage: The impressive maximum lifting height of 216 inches (18ft) allows operators to effortlessly reach and handle palletized goods on the highest shelves or in the tallest trucks.
- Enhanced Maneuverability and Control: The Electric Power Steering (EPS), Curtis Instrument Controller, 24V AC drive motor, and 24V lift motor ensure smooth operation, precise control, and effortless maneuvering, even in tight warehouse spaces.
Additional Features:
- Adjustable for Versatility: The adjustable forks (from 9.8 inches to 31.5 inches) and legs (from 38.06 inches to 51.8 inches) ensure the EB16EA can handle a wide range of pallet dimensions.
- Free Lift Advantage: The 76.25 inches of free lift allows for additional clearance when transporting pallets under obstacles.
- Triple Mast for Increased Stability: The triple mast design provides enhanced stability, especially when handling heavy loads at elevated heights.
- Operator Comfort and Convenience: Ergonomic handle and controls prioritize operator comfort during extended use.
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- Extended Runtime Potential: The 24V/210Ah battery may offer extended operation on a single charge compared to lower Ah batteries (depending on usage).
- 3-Year Limited Warranty: Delivers peace of mind.
Specification
|
Model |
|
EB16EA |
|
Load capacity |
(lb) |
4400 |
|
The max. lifting height |
(in) |
216 |
|
Load center distance |
(in) |
24 |
|
Free Lift |
(in) |
76.25 |
|
EPS (Elec. Power Steer) |
|
Yes |
|
Fork length |
(in) |
45.28 |
|
Single fork width |
(in) |
4.7 |
|
Overall fork width |
(in) |
9.8-31.5 |
|
Lowered fork height |
(in) |
1.58 |
|
Fixed leg length |
(in) |
42 |
|
Adjustable legs |
(in) |
38.06-51.81 |
|
Turning radius |
(in) |
69.09 |
|
Overall length |
(in) |
81.69 |
|
Max width |
(in) |
46.93-60.71 |
|
Extended mast height |
(in) |
253.15 |
|
Lowered mast height |
(in) |
98.03 |
|
Battery voltage |
(V/Ah) |
24/210Ah |
|
Charger |
(V/A) |
24V/30A |
|
Lifting Motor |
(W) |
3000 Watt, Lift speed, laden/unladen:95/160m/s Lowering speed, laden/unladen:130/110mm/s |
|
AC Driving Motor |
(W) |
3000 Watt, Driving speed: laden/unladen: 5.2/5.5km/h |
|
Service Weight |
(lb) |
3542 |
