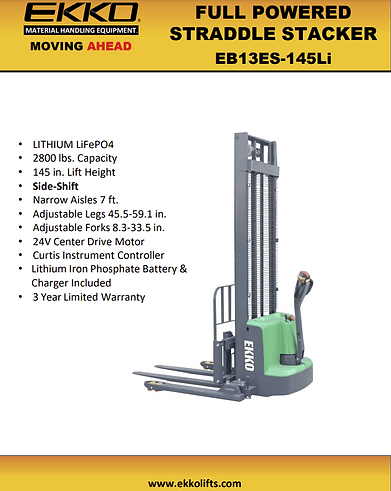

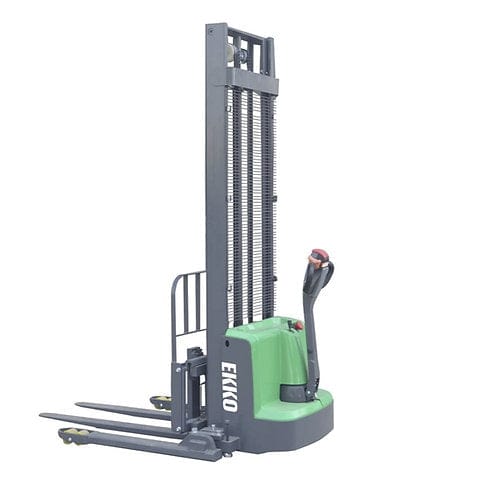

Enhanced Precision and Eco-Friendly Power: EKKO EB13ES-145Li Lithium Straddle Stacker
The EKKO EB13ES-145Li Lithium Straddle Stacker is a powerful and versatile workhorse, combining the functionality of a forklift, reach truck, and walkie stacker with the added precision of side-shifting. This electric stacker is ideal for tackling various material handling needs in warehouses, stockrooms, loading docks, and manufacturing floors.
Side-Shifting for Accurate Load Placement:
- Effortless Positioning: The side-shifting functionality allows for effortless lateral movement of loads after lifting, enabling precise positioning on pallets or shelves, saving time and improving efficiency.
Enhanced Performance with Lithium Battery Technology:
- Long-Lasting Power: Equipped with a 24V/50Ah lithium battery, the EB13ES-145Li may offer extended operation on a single charge compared to traditional lead-acid batteries, potentially reducing downtime for battery changes.
- Faster Charging Potential: Lithium batteries generally recharge quicker than lead-acid batteries, allowing for more operational uptime.
- Reduced Emissions (Potential): If your facility prioritizes eco-friendly practices, the EB13ES-145Li with a lithium battery may contribute to lower emissions compared to electric models with traditional batteries.
Versatility and Power for Diverse Applications:
- Capable Load Capacity: Handles up to 2640 lbs, suitable for transporting a wide range of palletized materials.
- Adjustable to Various Pallet Sizes: Adjustable forks (from 8.3 inches to 33.5 inches) and legs (from 45.7 inches to 59.1 inches) ensure the EB13ES-145Li can accommodate various pallet dimensions.
- Smooth Operation and Maneuverability: The Curtis Instrument Controller, 24V center drive motor, and 24V lift motor provide smooth operation and precise control for efficient maneuvering, even in tight warehouse aisles.
Additional Features:
- Ergonomic Handle and Controls: Designed for operator comfort during extended use.
- Durable Steel Construction with Robotic Welding: Built for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- 3-Year Limited Warranty: Delivers peace of mind.

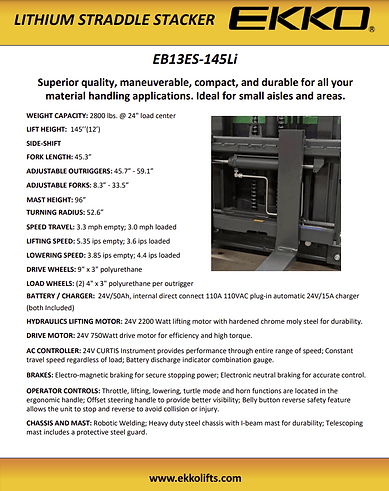

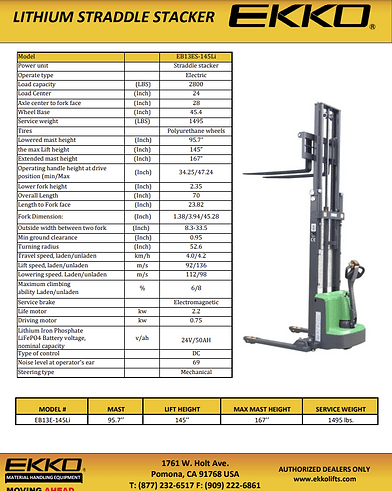

Specification
|
Model |
|
EB13ES-145Li |
|
Load Capacity |
(lbs) |
2640 |
|
The max. lifting height |
(in) |
145" |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Overall fork width |
(in) |
8.3-33.5 |
|
Lowered fork height |
(in) |
2.35 |
|
Fixed leg length |
(in) |
36.5 |
|
Adjustable legs |
(in) |
45.7-59.1 |
|
Turning radius |
(in) |
52.6 |
|
Overall length |
(in) |
70 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
167 |
|
Lowered mast height |
(in) |
95.7 |
|
Battery voltage (dimensions) |
(in) |
24V/50Ah Lithium |
|
Internal Charger |
V/A |
24V/15A |
|
Lifting Motor |
V/Kw |
2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
|
Driving Motor |
|
0.75kw.Driving speed: laden/unladen:4.0/4.2km/h |
|
Service Weight |
(lbs) |
1495 |
Description
Enhanced Precision and Eco-Friendly Power: EKKO EB13ES-145Li Lithium Straddle Stacker
The EKKO EB13ES-145Li Lithium Straddle Stacker is a powerful and versatile workhorse, combining the functionality of a forklift, reach truck, and walkie stacker with the added precision of side-shifting. This electric stacker is ideal for tackling various material handling needs in warehouses, stockrooms, loading docks, and manufacturing floors.
Side-Shifting for Accurate Load Placement:
- Effortless Positioning: The side-shifting functionality allows for effortless lateral movement of loads after lifting, enabling precise positioning on pallets or shelves, saving time and improving efficiency.
Enhanced Performance with Lithium Battery Technology:
- Long-Lasting Power: Equipped with a 24V/50Ah lithium battery, the EB13ES-145Li may offer extended operation on a single charge compared to traditional lead-acid batteries, potentially reducing downtime for battery changes.
- Faster Charging Potential: Lithium batteries generally recharge quicker than lead-acid batteries, allowing for more operational uptime.
- Reduced Emissions (Potential): If your facility prioritizes eco-friendly practices, the EB13ES-145Li with a lithium battery may contribute to lower emissions compared to electric models with traditional batteries.
Versatility and Power for Diverse Applications:
- Capable Load Capacity: Handles up to 2640 lbs, suitable for transporting a wide range of palletized materials.
- Adjustable to Various Pallet Sizes: Adjustable forks (from 8.3 inches to 33.5 inches) and legs (from 45.7 inches to 59.1 inches) ensure the EB13ES-145Li can accommodate various pallet dimensions.
- Smooth Operation and Maneuverability: The Curtis Instrument Controller, 24V center drive motor, and 24V lift motor provide smooth operation and precise control for efficient maneuvering, even in tight warehouse aisles.
Additional Features:
- Ergonomic Handle and Controls: Designed for operator comfort during extended use.
- Durable Steel Construction with Robotic Welding: Built for a long lifespan.
- Polyurethane Wheels: Offer smooth travel and wear resistance.
- 3-Year Limited Warranty: Delivers peace of mind.
Specification
|
Model |
|
EB13ES-145Li |
|
Load Capacity |
(lbs) |
2640 |
|
The max. lifting height |
(in) |
145" |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Overall fork width |
(in) |
8.3-33.5 |
|
Lowered fork height |
(in) |
2.35 |
|
Fixed leg length |
(in) |
36.5 |
|
Adjustable legs |
(in) |
45.7-59.1 |
|
Turning radius |
(in) |
52.6 |
|
Overall length |
(in) |
70 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
167 |
|
Lowered mast height |
(in) |
95.7 |
|
Battery voltage (dimensions) |
(in) |
24V/50Ah Lithium |
|
Internal Charger |
V/A |
24V/15A |
|
Lifting Motor |
V/Kw |
2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
|
Driving Motor |
|
0.75kw.Driving speed: laden/unladen:4.0/4.2km/h |
|
Service Weight |
(lbs) |
1495 |
