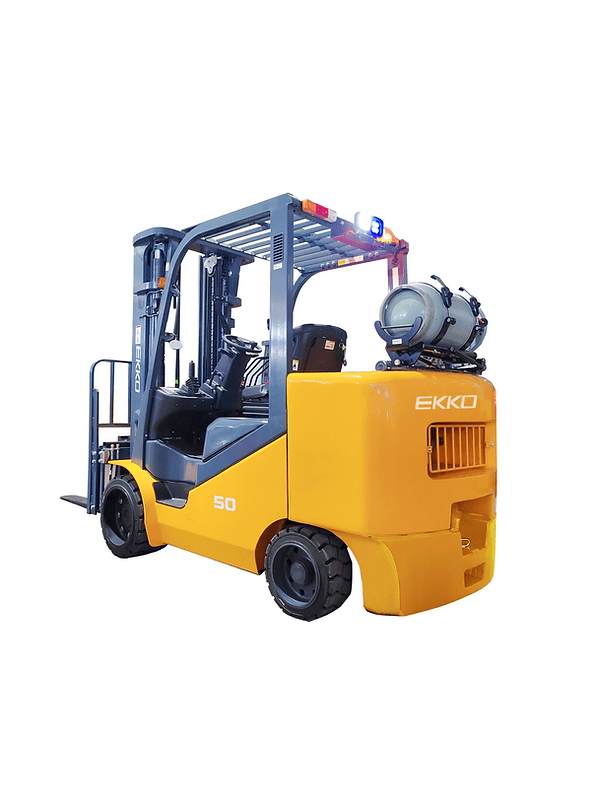

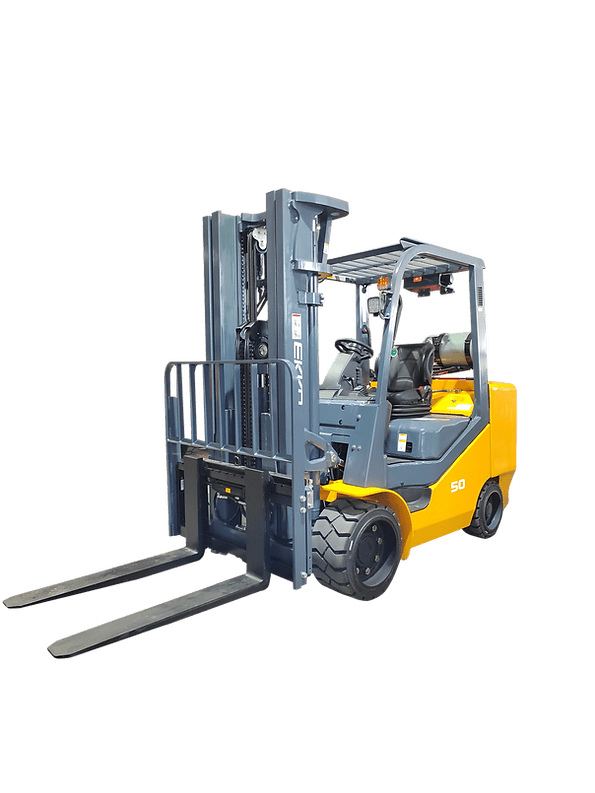

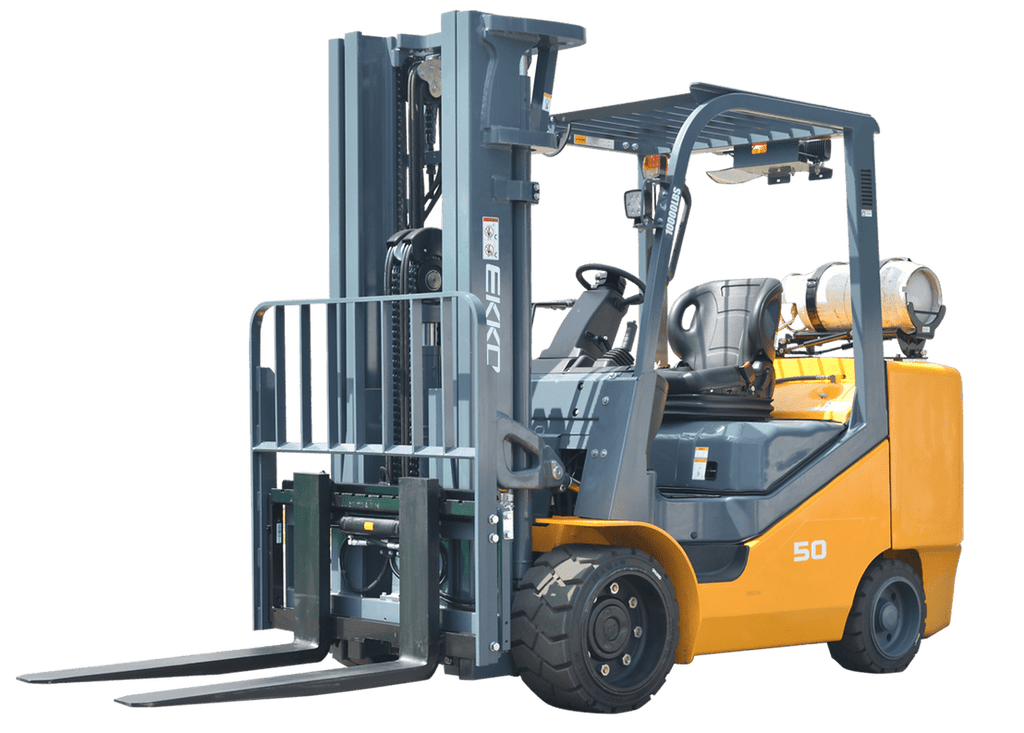

Powerful Performance for Demanding Warehouses: EKKO EK50LP Liquid Propane Forklift
The EKKO EK50LP Liquid Propane Forklift is a robust solution designed to tackle various material handling tasks in warehouses and distribution centers. Here's what makes the EK50LP a compelling choice for your operation:
Exceptional Lifting Capacity and Efficiency:

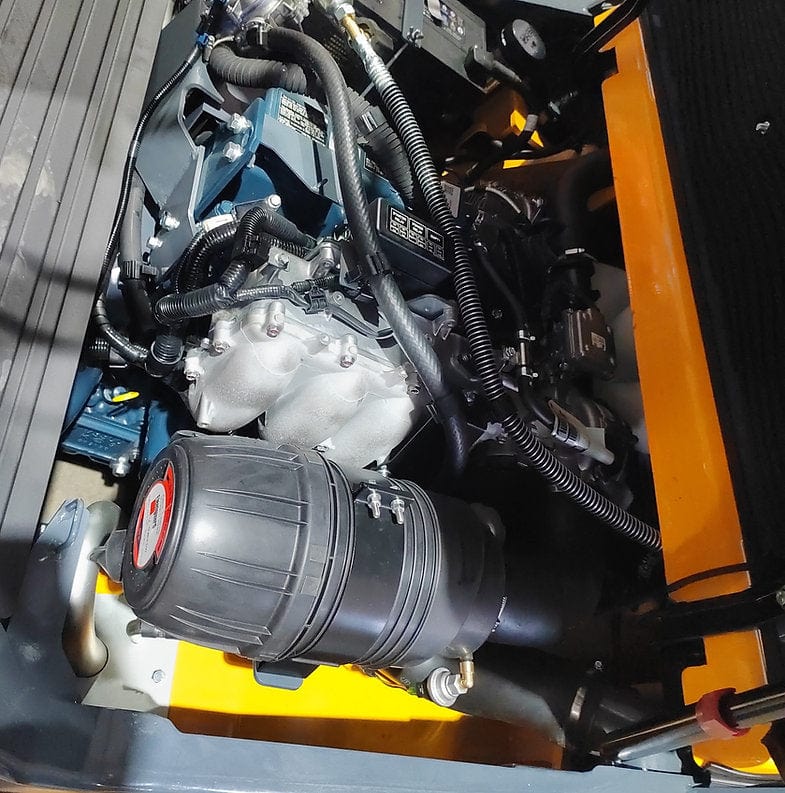

- Tier 4 EPA Compliant Engine: The EK50LP adheres to strict environmental regulations while delivering reliable power.
- High Load Capacity: Handles hefty loads of up to 10,000 lbs, making it suitable for transporting heavy pallets and materials.
Operator-Centric Design for Comfort and Safety:
- Multifunction Instrument Panel: Provides all critical information for safe and efficient operation at a glance.
- Enhanced Operator Compartment: Features a non-slip entrance step, wider access for easy entry and exit, and increased legroom to reduce fatigue during long shifts.
- Adjustable Steering Column: Allows operators to customize the steering position for optimal comfort and reduced arm and shoulder strain.
- Excellent Visibility: Provides a clear view of the work area for improved safety and precision while maneuvering.
- Integral Heavy-Duty Chassis: Offers a robust barrier around the operator for enhanced protection.

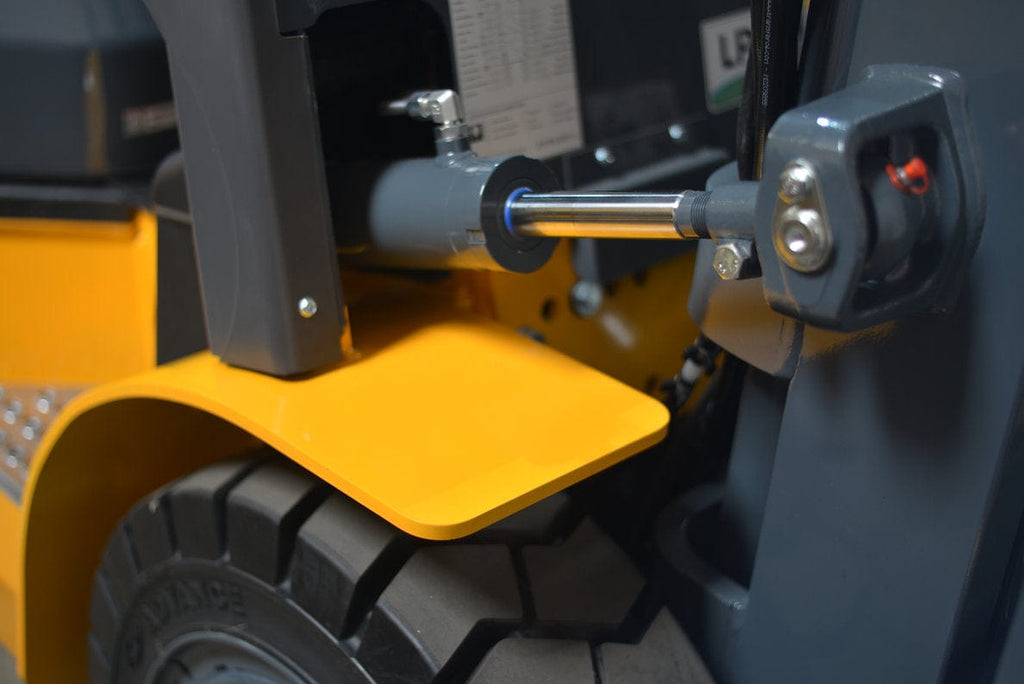

- Tighter Turning Radius: The steer axle pivots up to 80 degrees, enabling exceptional maneuverability in tight warehouse spaces.

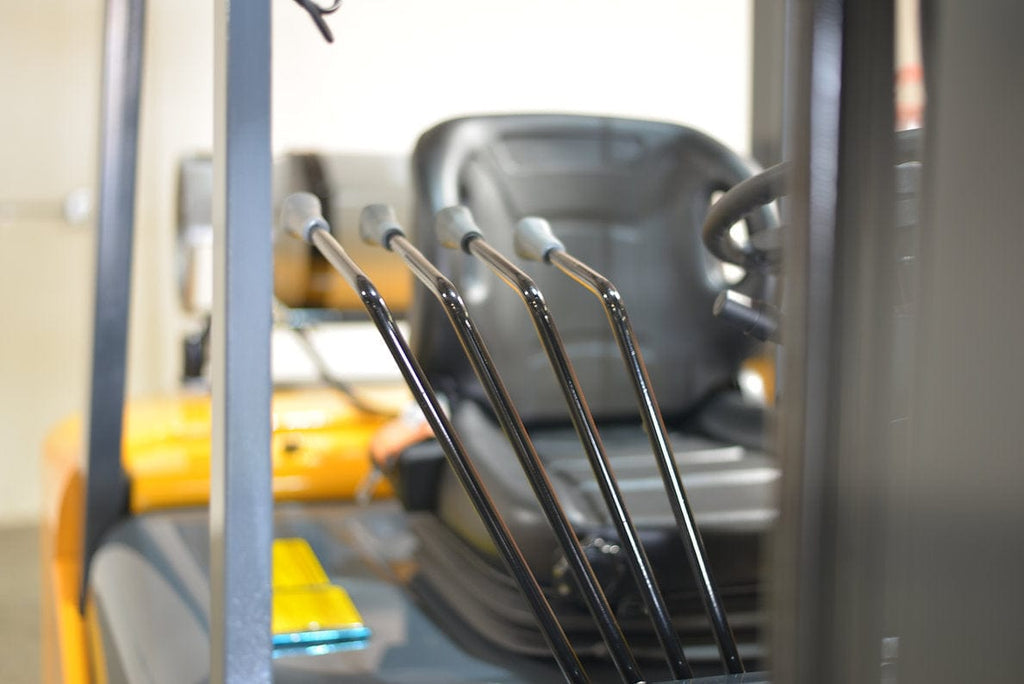

- Hydraulic Controls: Enhance control and precision during operation.
Specification
|
Model |
|
EK50LP |
|
Drive type |
|
LPG |
|
Type of operation |
|
Propane |
|
Load Capacity |
LBS |
10,000 |
|
Load Center |
in |
24 |
|
Lift height |
in |
185 |
|
Wheelbase |
in |
61.8 |
|
Service Weight |
LBS |
16,250 |
|
Tire material |
|
Pattern Cush. Tire |
|
Traction Pin Height |
in |
11.2 |
|
Service Brake |
|
Hydraulic Foot Pedal |
|
Overall width |
in |
55.9 |
|
Overall length with forks |
in |
157 |
|
Overall length without forks |
in |
109 |
|
Min ground clearance (at the mast) |
in |
4.3 |
|
Max traveling speed (loaded/unloaded) |
mph |
10.5/11.2 |
|
Mast Overall height |
in |
91.9 |
|
Free lifting height |
in |
44.3 |
|
Backrest height (from the surface of the forks) |
in |
47.6 |
|
Fork Size |
in |
48x5.9x1.97 |
|
Parking Brake |
|
Mechanical Hand Lever |
|
Engine Mode |
|
Kubota WG3800 |
|
Engine rated power |
HP/rpm |
63.2 |
Description
Powerful Performance for Demanding Warehouses: EKKO EK50LP Liquid Propane Forklift
The EKKO EK50LP Liquid Propane Forklift is a robust solution designed to tackle various material handling tasks in warehouses and distribution centers. Here's what makes the EK50LP a compelling choice for your operation:
Exceptional Lifting Capacity and Efficiency:
- Tier 4 EPA Compliant Engine: The EK50LP adheres to strict environmental regulations while delivering reliable power.
- High Load Capacity: Handles hefty loads of up to 10,000 lbs, making it suitable for transporting heavy pallets and materials.
Operator-Centric Design for Comfort and Safety:
- Multifunction Instrument Panel: Provides all critical information for safe and efficient operation at a glance.
- Enhanced Operator Compartment: Features a non-slip entrance step, wider access for easy entry and exit, and increased legroom to reduce fatigue during long shifts.
- Adjustable Steering Column: Allows operators to customize the steering position for optimal comfort and reduced arm and shoulder strain.
- Excellent Visibility: Provides a clear view of the work area for improved safety and precision while maneuvering.
- Integral Heavy-Duty Chassis: Offers a robust barrier around the operator for enhanced protection.
- Tighter Turning Radius: The steer axle pivots up to 80 degrees, enabling exceptional maneuverability in tight warehouse spaces.
- Hydraulic Controls: Enhance control and precision during operation.
Specification
|
Model |
|
EK50LP |
|
Drive type |
|
LPG |
|
Type of operation |
|
Propane |
|
Load Capacity |
LBS |
10,000 |
|
Load Center |
in |
24 |
|
Lift height |
in |
185 |
|
Wheelbase |
in |
61.8 |
|
Service Weight |
LBS |
16,250 |
|
Tire material |
|
Pattern Cush. Tire |
|
Traction Pin Height |
in |
11.2 |
|
Service Brake |
|
Hydraulic Foot Pedal |
|
Overall width |
in |
55.9 |
|
Overall length with forks |
in |
157 |
|
Overall length without forks |
in |
109 |
|
Min ground clearance (at the mast) |
in |
4.3 |
|
Max traveling speed (loaded/unloaded) |
mph |
10.5/11.2 |
|
Mast Overall height |
in |
91.9 |
|
Free lifting height |
in |
44.3 |
|
Backrest height (from the surface of the forks) |
in |
47.6 |
|
Fork Size |
in |
48x5.9x1.97 |
|
Parking Brake |
|
Mechanical Hand Lever |
|
Engine Mode |
|
Kubota WG3800 |
|
Engine rated power |
HP/rpm |
63.2 |
