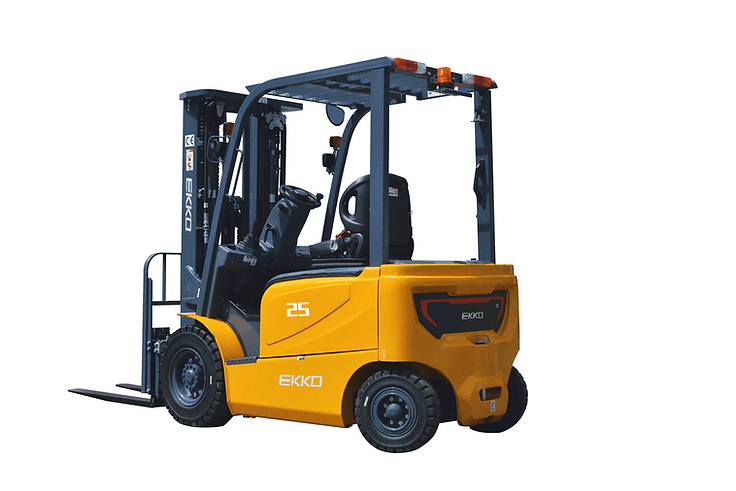

Heavy-Duty Champion for Demanding Workloads
The EKKO EK18GSH is a powerful 4-wheel electric forklift built to conquer your toughest material handling challenges. It excels in applications like loading and unloading trucks, working on docks, and handling materials in stockrooms, manufacturing floors, and warehouses.
Durable Design for Indoor and Outdoor Use
The EKKO EK18GSH features a robust steel construction and high-quality components, making it suitable for various indoor and outdoor applications. It can handle uneven terrain, but consult the manufacturer for specific recommendations to ensure optimal performance.
Key Features for Enhanced Productivity
- Unmatched Lifting Capacity: Handles a whopping 5,000 lbs., ideal for heavy-duty materials.
- Exceptional Reach: Stacks pallets up to 17.67 feet high with a 47.48-inch free lift for increased versatility.
- Precise Load Handling: Ensures accurate maneuvering with side-shifting forks.

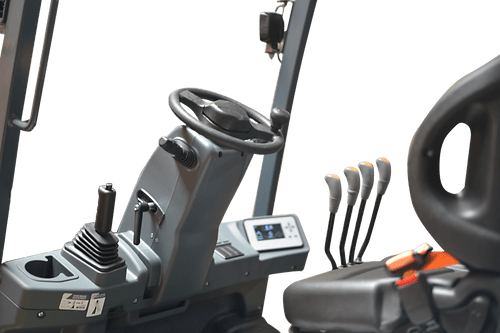

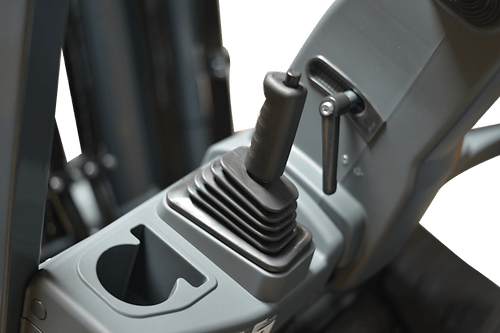

- Operator Comfort: Features ergonomic controls for comfortable operation during long shifts.
- Reliable Power: Powered by a ZAPI controller and a 48/480 AH lead-acid battery for long-lasting performance.
- Solid Performance: Equipped with solid pneumatic tires for added stability on various surfaces.
- Built to Last: Constructed with high-quality steel and robotic welding for a strong and reliable machine.
- Fast Charging Option: Compatible with a 3-phase 480V charger (optional 220V available for purchase) for quick recharging during busy operations.
- Peace of Mind: Backed by a 3-year limited warranty.
Specification
|
Model |
|
EK18GSH |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
5000 |
|
Load center distance |
(in) |
20 |
|
Wheel base |
(in) |
65.35 |
|
Lifting height |
(in) |
212 |
|
Free lifting height |
(in) |
54.9 |
|
Lowered mast height |
(in) |
94.5 |
|
Mast/Fork carriage tilt forward/backward |
( °) |
6/6 |
|
Side Shifting Forks |
|
3-way valve |
|
Overall length |
(in) |
138 |
|
Overall width |
(in) |
46.45 |
|
Fork size, Thick/Width/Length |
(in) |
1.57/4.72/42.12 |
|
Fork adjust width |
(in) |
8.7-29 |
|
Turning radius |
(in) |
84.2 |
|
Max.gradient performance, laden/unladen |
(%) |
15/25 |
|
Driving Motor |
(K/W) |
11 |
|
Lifting Motor |
(K/W) |
12 |
|
Battery voltage |
(V/Ah) |
48/480AH Lead acid |
|
Service Weight |
(lb) |
9520 |
Description
Heavy-Duty Champion for Demanding Workloads
The EKKO EK18GSH is a powerful 4-wheel electric forklift built to conquer your toughest material handling challenges. It excels in applications like loading and unloading trucks, working on docks, and handling materials in stockrooms, manufacturing floors, and warehouses.
Durable Design for Indoor and Outdoor Use
The EKKO EK18GSH features a robust steel construction and high-quality components, making it suitable for various indoor and outdoor applications. It can handle uneven terrain, but consult the manufacturer for specific recommendations to ensure optimal performance.
Key Features for Enhanced Productivity
- Unmatched Lifting Capacity: Handles a whopping 5,000 lbs., ideal for heavy-duty materials.
- Exceptional Reach: Stacks pallets up to 17.67 feet high with a 47.48-inch free lift for increased versatility.
- Precise Load Handling: Ensures accurate maneuvering with side-shifting forks.
- Operator Comfort: Features ergonomic controls for comfortable operation during long shifts.
- Reliable Power: Powered by a ZAPI controller and a 48/480 AH lead-acid battery for long-lasting performance.
- Solid Performance: Equipped with solid pneumatic tires for added stability on various surfaces.
- Built to Last: Constructed with high-quality steel and robotic welding for a strong and reliable machine.
- Fast Charging Option: Compatible with a 3-phase 480V charger (optional 220V available for purchase) for quick recharging during busy operations.
- Peace of Mind: Backed by a 3-year limited warranty.
Specification
|
Model |
|
EK18GSH |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
5000 |
|
Load center distance |
(in) |
20 |
|
Wheel base |
(in) |
65.35 |
|
Lifting height |
(in) |
212 |
|
Free lifting height |
(in) |
54.9 |
|
Lowered mast height |
(in) |
94.5 |
|
Mast/Fork carriage tilt forward/backward |
( °) |
6/6 |
|
Side Shifting Forks |
|
3-way valve |
|
Overall length |
(in) |
138 |
|
Overall width |
(in) |
46.45 |
|
Fork size, Thick/Width/Length |
(in) |
1.57/4.72/42.12 |
|
Fork adjust width |
(in) |
8.7-29 |
|
Turning radius |
(in) |
84.2 |
|
Max.gradient performance, laden/unladen |
(%) |
15/25 |
|
Driving Motor |
(K/W) |
11 |
|
Lifting Motor |
(K/W) |
12 |
|
Battery voltage |
(V/Ah) |
48/480AH Lead acid |
|
Service Weight |
(lb) |
9520 |
