Atlas® PV15PX 15,000 lb. Capacity Commercial Grade Two Post Lift
The Atlas® PV15PX is the ultimate solution for customers seeking a heavy-duty, professional-grade two-post lift at an unbeatable value. For over a decade, the Atlas® PV series has been setting the standard in durability and performance, earning praise like "bulletproof," "built like a brick outhouse," and "tougher than nails" from users around the world. Thousands of units have been sold, proving that Atlas® delivers top-notch quality at the most competitive prices in the industry.

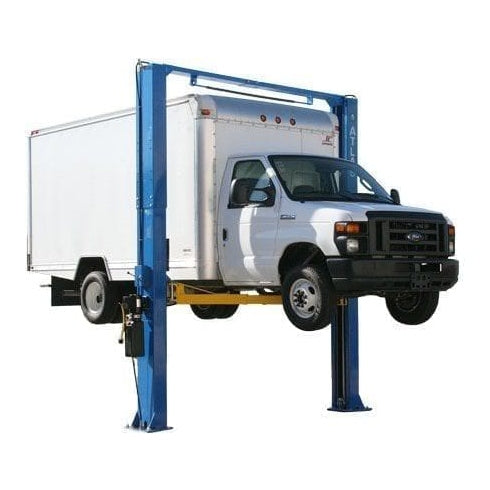

This lift is designed to accommodate everything from standard passenger cars to heavy-duty service trucks. With a 15,000 lb. capacity, it’s built to handle the toughest jobs with ease. The extra wide design, with nearly 123” between the symmetrical columns and a 109” drive-through space, offers plenty of room for the widest vehicles or those with large rearview mirrors. The extended arm length and included truck adapter set provide the clearance needed for lifting long wheelbase trucks, vans, and box trucks without worry.

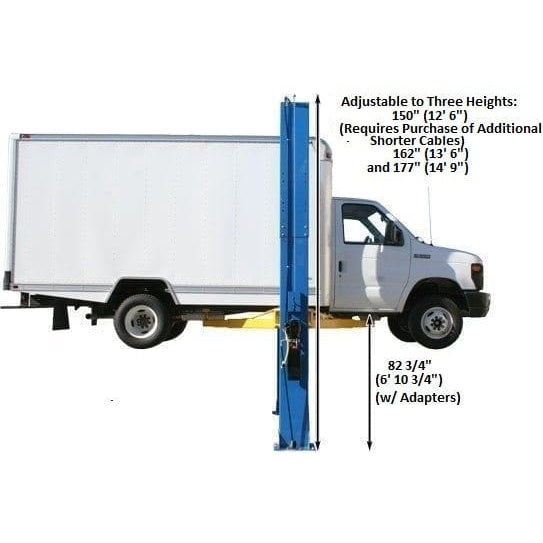

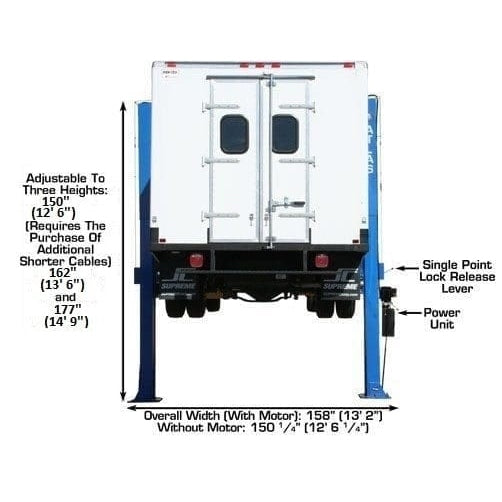

The Atlas® PV15PX features three adjustable height settings, with the tallest at 177” (14’ 9”), allowing for extra clearance. It also offers a special low height setting of 150” (12’ 6”), perfect for those needing more versatility (extra short cables are required for this setting).
Key Features of the Atlas® PV15PX Two Post Lift
-
15,000 lb. Capacity
Built to lift the heaviest vehicles with ease. -
Extra Tall & Extra Wide Design
Ideal for service trucks, vans, box trucks, and wide vehicles with large mirrors. -
Commercial Grade Construction
Heavy-duty design built to last for years in high-demand environments. -

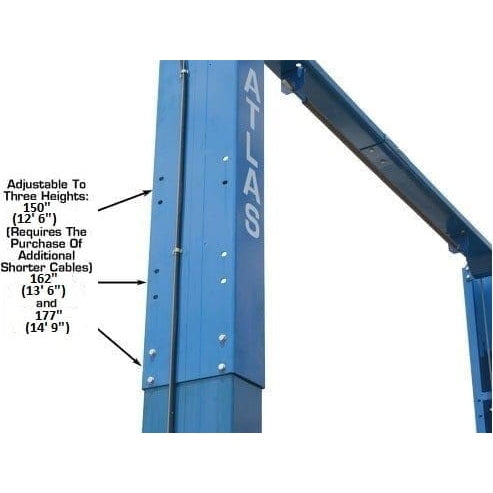

Adjustable Height Settings
-
165" (13' 9") or 177" (14' 9") (Standard)
-
150" (12' 6") (Requires purchase of extra short cables)
-
-

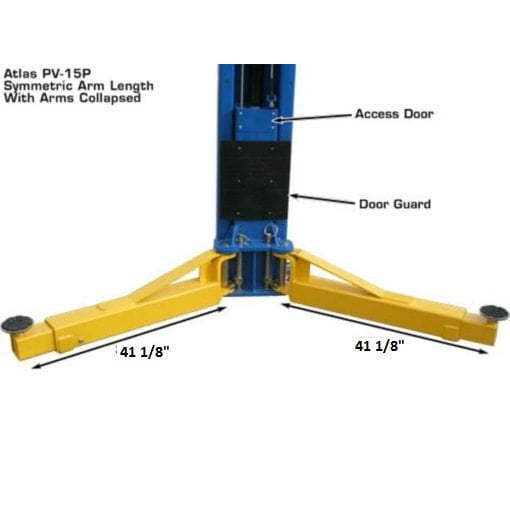

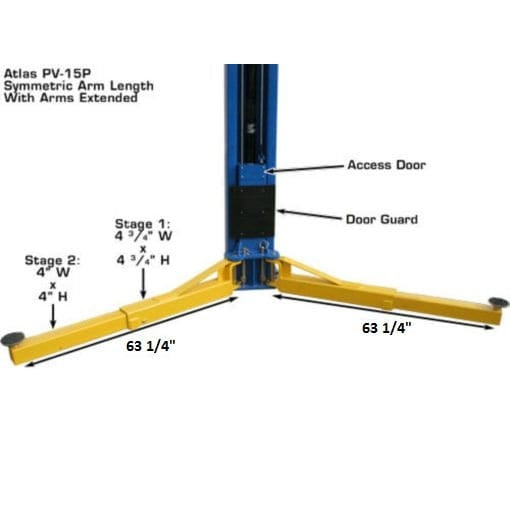

Symmetric Arms
Even weight distribution for stable lifting. -
Automatic Arm Restraints
For added security and ease of use. -

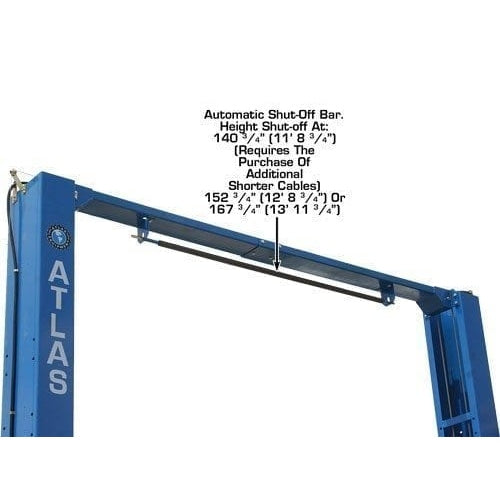

Padded Shut-Off Bar
Prevents damage to vehicles during operation. -
Door Guards on Carriages
Protects vehicle doors from damage. -

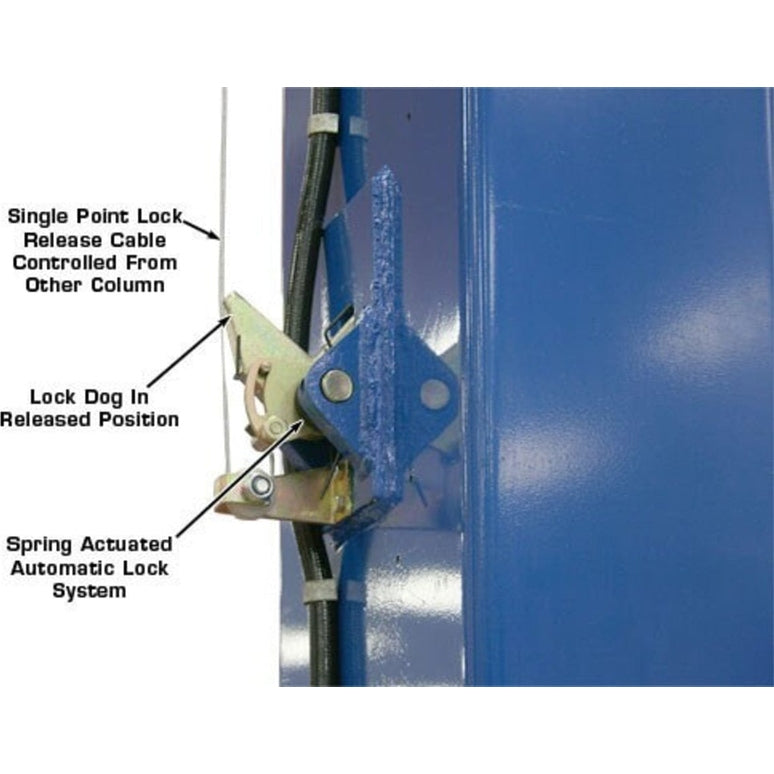

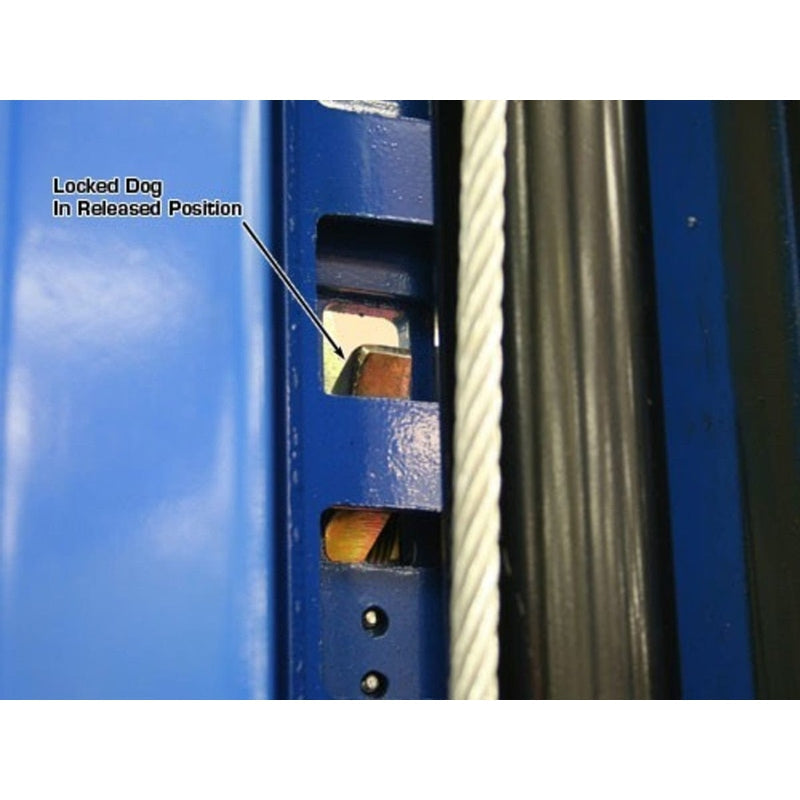

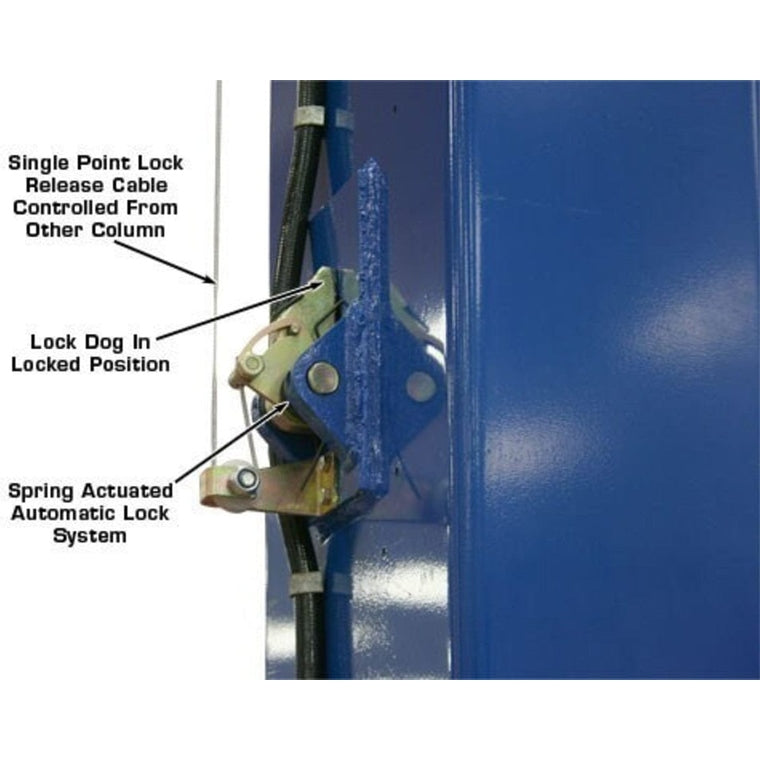

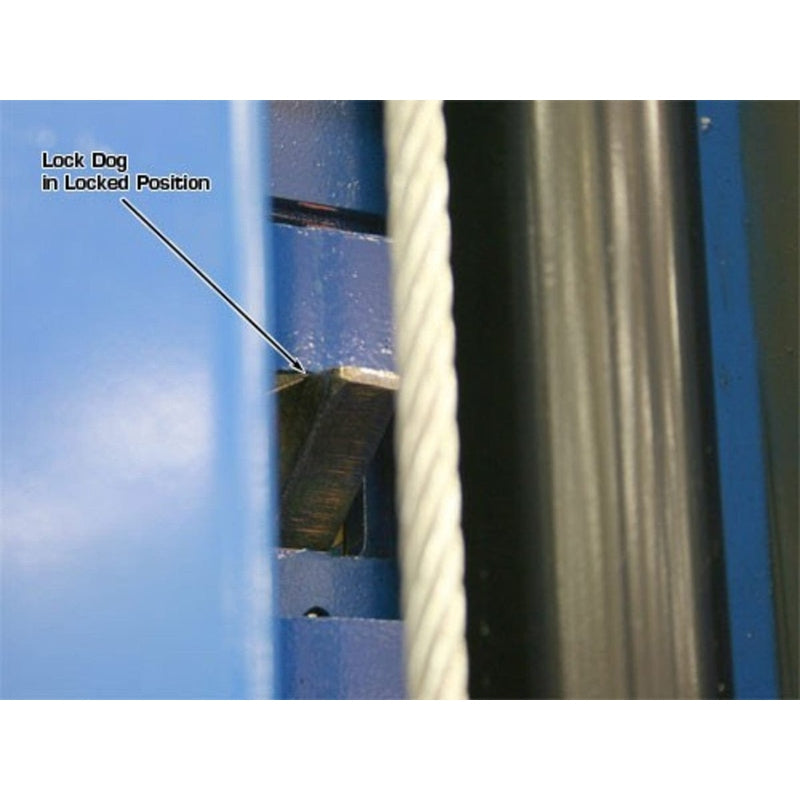

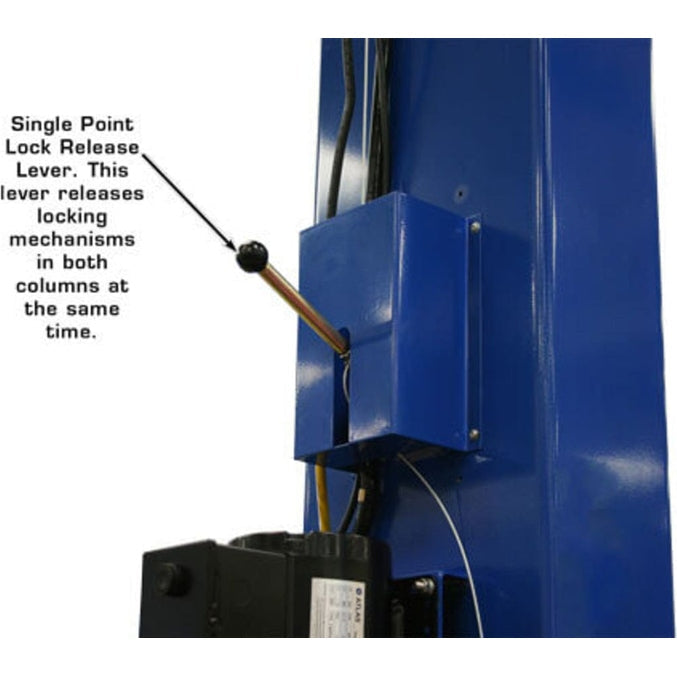

Single Point Lock Release
Simplifies lift operation with a single control point. -

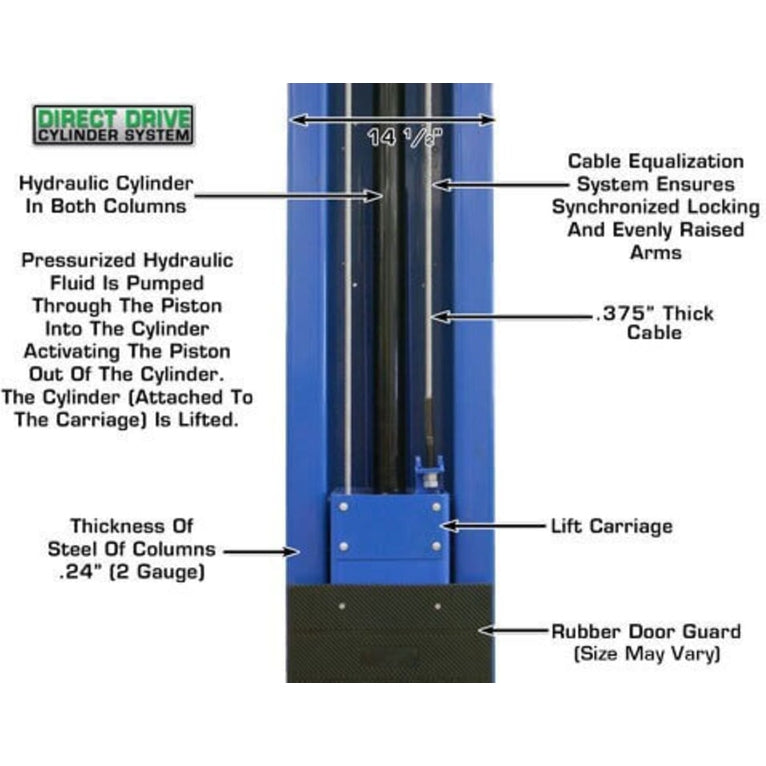

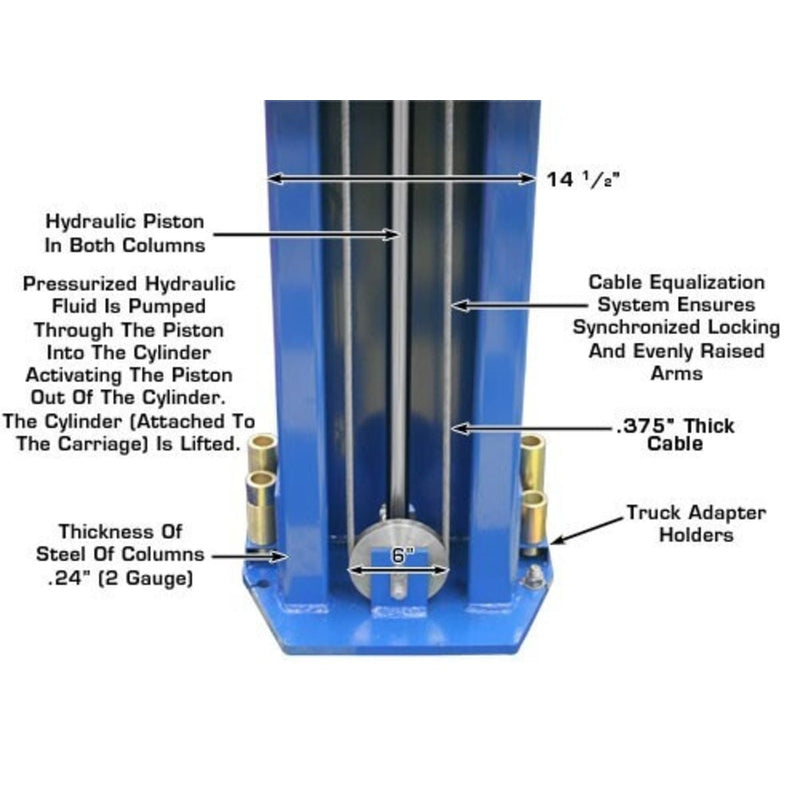

Direct-Drive Cylinders
Reliable and efficient lifting mechanism. -
Powder Coat Finish
For enhanced durability and long-lasting protection. -

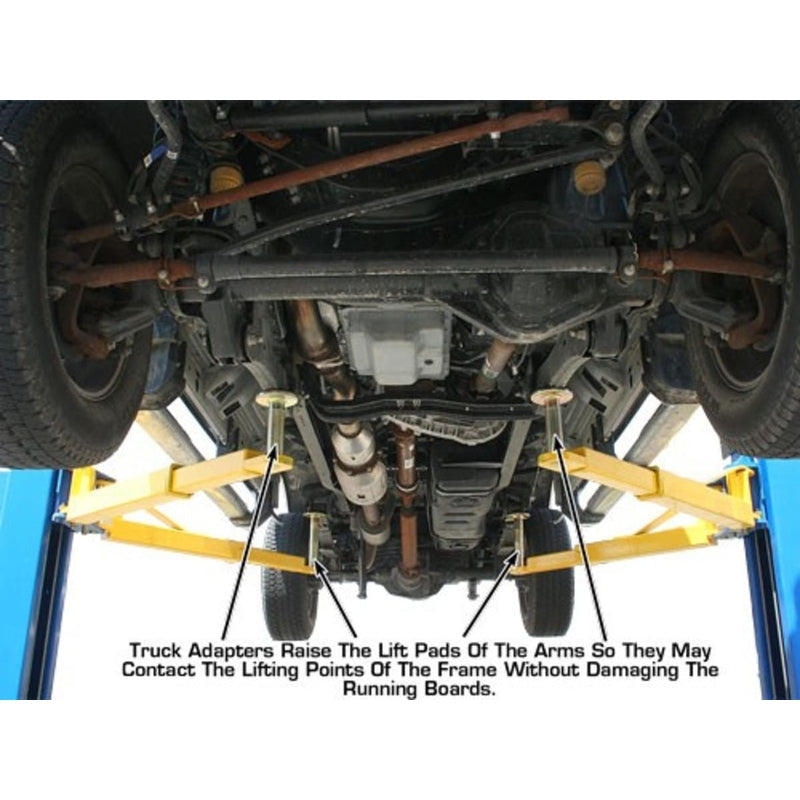

Free 12-Piece Truck Adapter Set
Includes everything you need for a wide range of vehicles. -

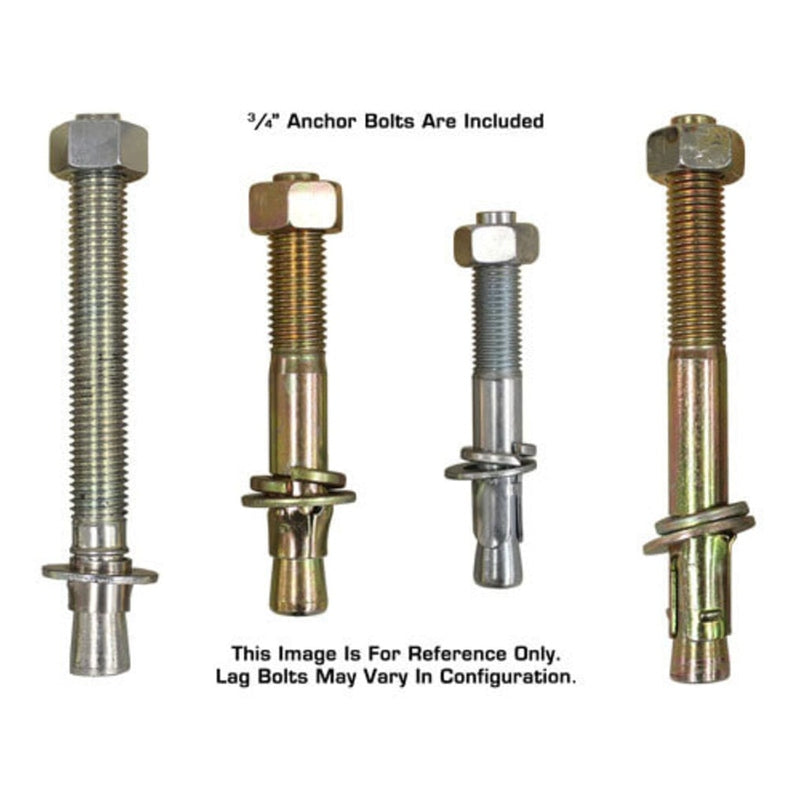

Mounting Hardware Included
For easy and secure installation. -

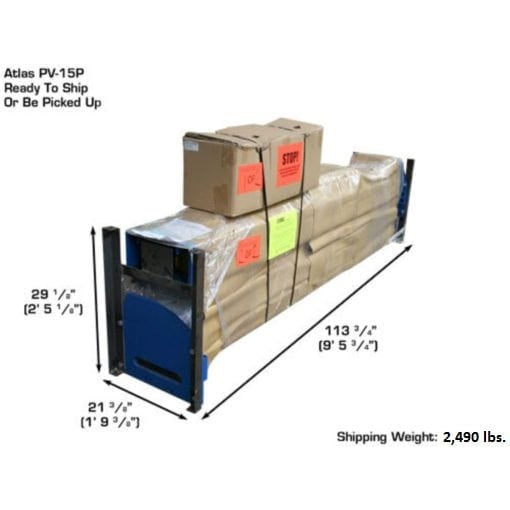

Shipping Weight: 2,490 lbs.
Requires 6" thick concrete with a 3000 PSI rating for installation. -
Warranty:
-
5-Year Structural Warranty
-
2-Year Hydraulic Warranty (Parts Only)
-

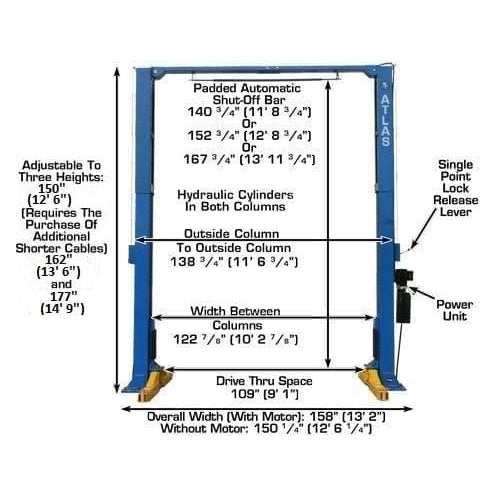

Specifications of the Atlas® PV15PX Two Post Lift
| Spec | Details |
|---|---|
| Capacity | 15,000 lb. |
| Overall Height | 165" (13' 9") or 177" (14' 9") |
| Special Low Height | 150" (12' 6") (Requires extra short cables) |
| Overall Floor Width | 150 3/4" (12' 6 3/4") |
| Outside Column to Outside Column | 139 1/8" (11' 7 1/8") |
| Max Lift Height (Without Adapters) | 72 1/4" |

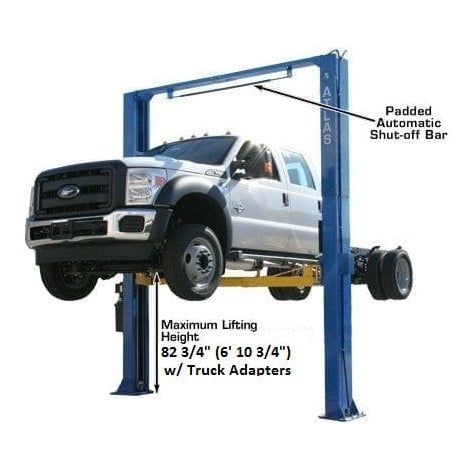

| Max Lift Height (With Adapters) | 81" |
| Minimum Pad Height | 7 1/4" |
| Inside Column Width | 123 1/2” (10' 3 1/2”) |
| Drive Thru Width | 109 1/2" (9' 1 1/2”) |
| Column Size | 7 1/2" x 14 1/2" |
| Column Thickness | 6mm |

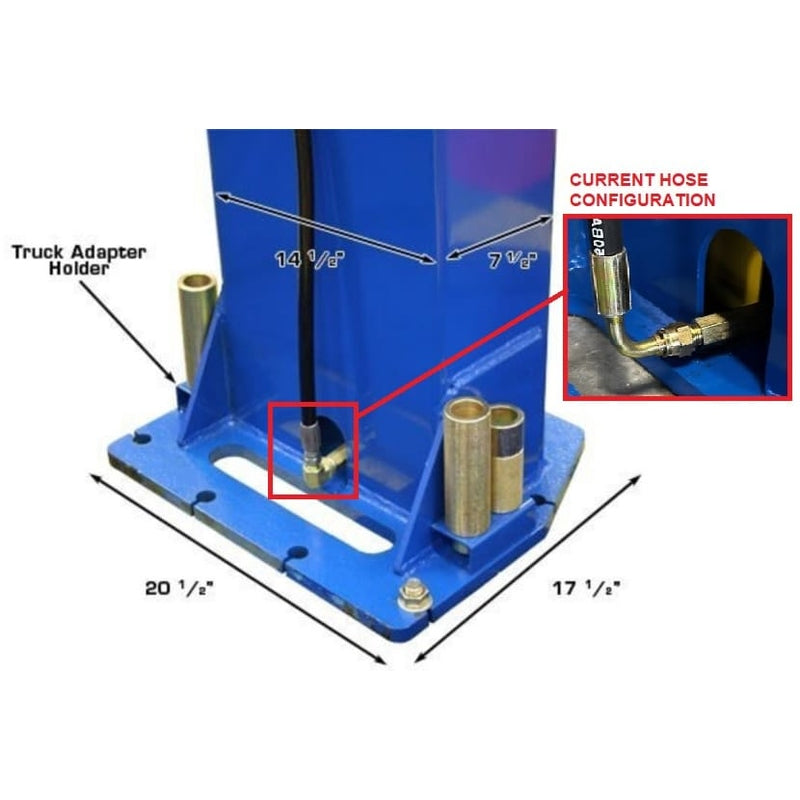

| Base of Lift | 17 1/2" x 20 1/2" |
| Motor/Electrical Requirement | 220 volt, single-phase, 30 amp breaker recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not included) |
| Shipping Weight | 2,490 lbs. |
| Adapter Heights | 4 Each: 1.25”, 2.5", 5" |
| Arm Hole/Adapter Peg Size | 1.5" |
