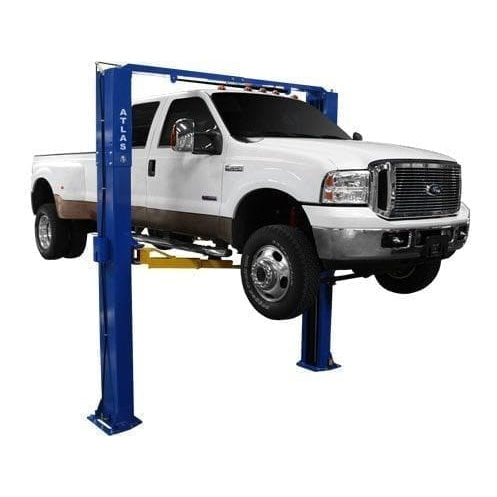

Atlas® PV10PX 10,000 lb. Capacity Commercial Grade Two Post Lift
The Atlas® PV10PX is the industry-standard two-post lift that delivers heavy-duty, professional-grade performance at an unbeatable price. For over a decade, Atlas® has been leading the way in designing lifts that are built like tanks—sturdy, reliable, and designed to last. With thousands of units sold, the PV series has earned a reputation for being bulletproof, tougher than nails, and the perfect solution for any service shop or DIY enthusiast.
Whether you’re working on personal vehicles in your garage or operating a commercial service department, the Atlas® PV10PX is built to handle everything from compact cars to one-ton diesel trucks. It’s designed with extra safety features and durability in mind, including a padded shut-off bar to protect the vehicle and padded carriages to avoid door damage when opening.
The PV10PX also comes with an upgraded 12-piece truck adapter set (vs. the standard 8-piece), offering maximum versatility for different vehicle types. Its reinforced rubber lift pads ensure solid contact with the vehicle’s lifting points, making it an ideal choice for the “biggest and baddest” lifts on the market.
Key Features
-
10,000 lb. Capacity
Engineered to lift the toughest vehicles with confidence. -
Commercial Grade Construction
Built for high-volume use in commercial service departments and home garages. -
Adjustable Height Settings
Choose between 143 1/8” (11’ 11 1/8”) or 147” (12’ 3”). -

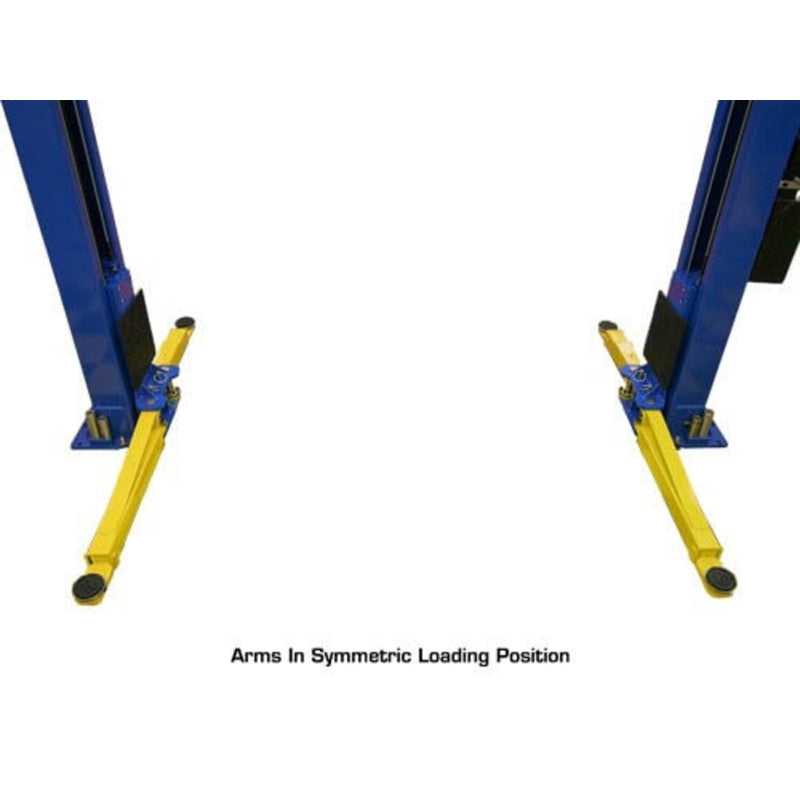

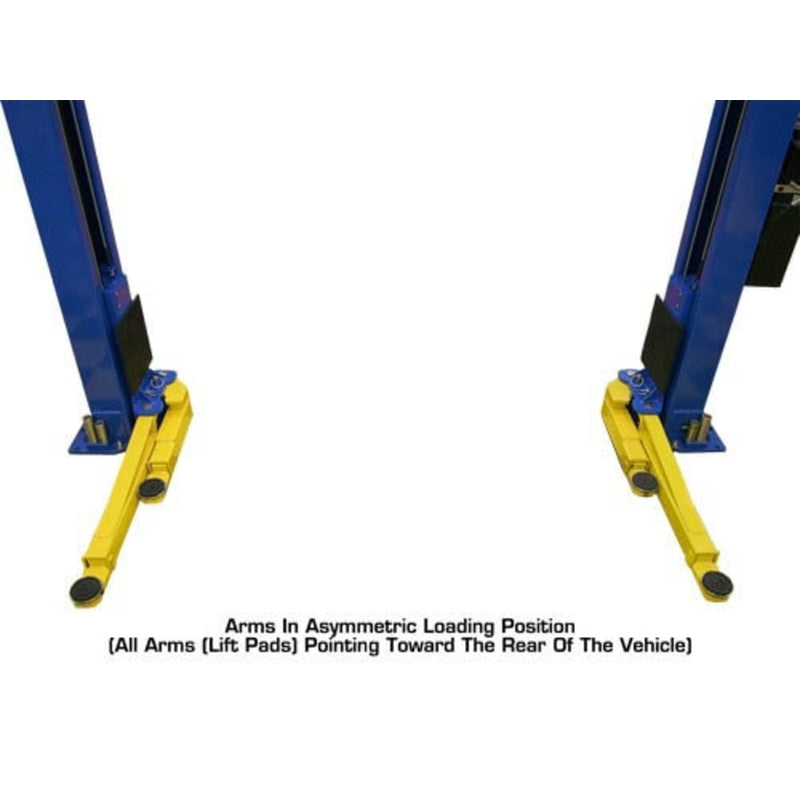

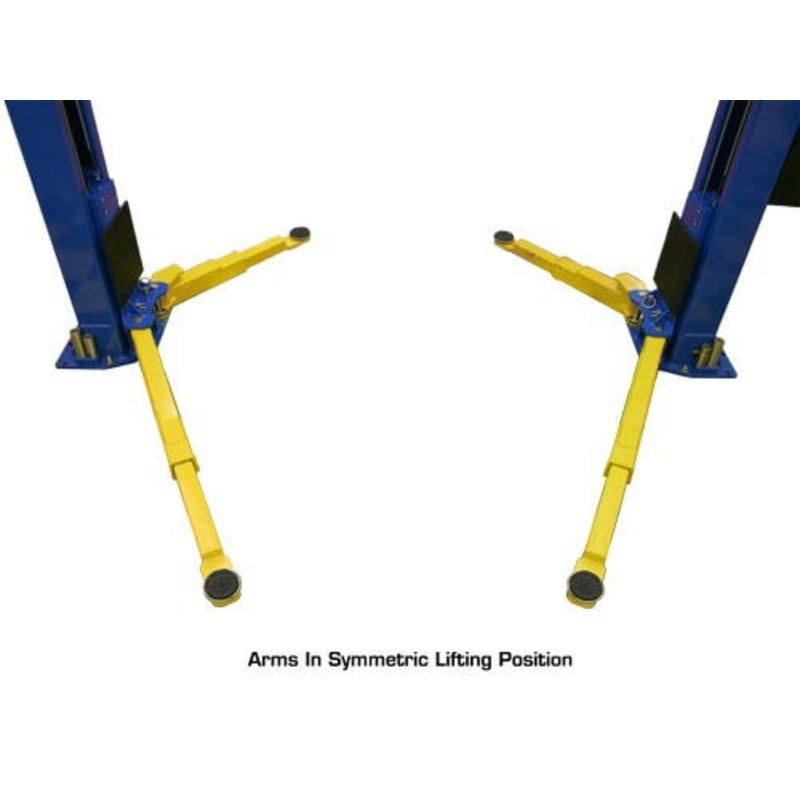

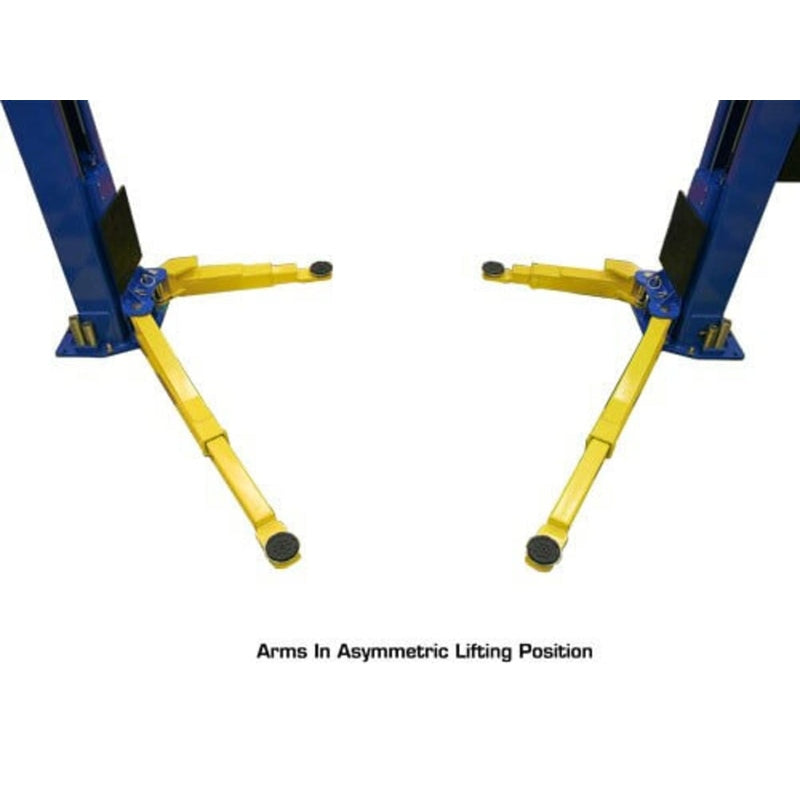

Asymmetric/Symmetric Arms
Versatile arm design allows for easy vehicle positioning and secure lifting. -

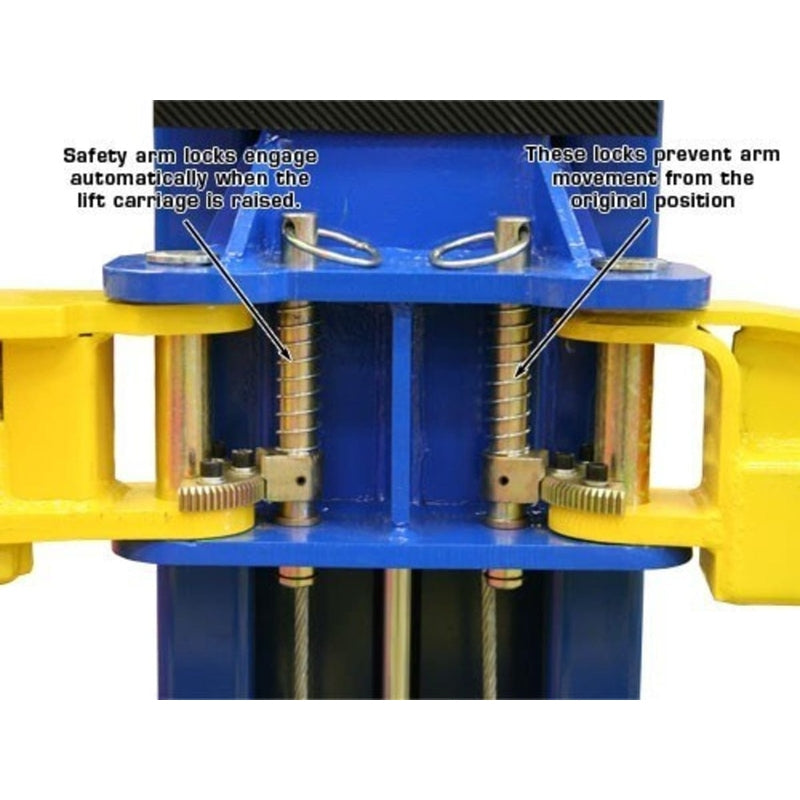

Automatic Arm Restraints
Secure the arms automatically for added safety. -

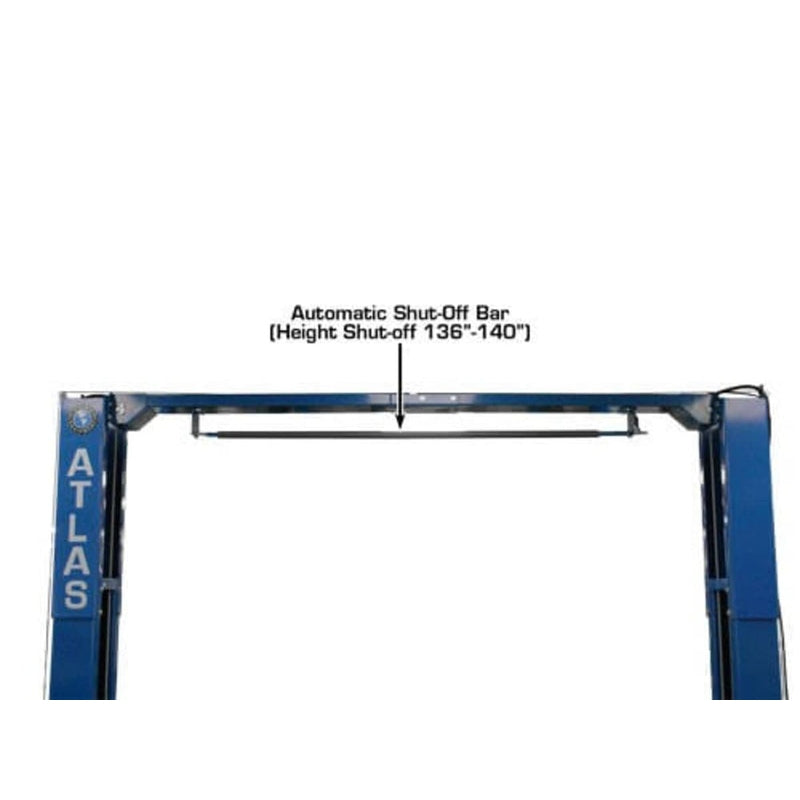

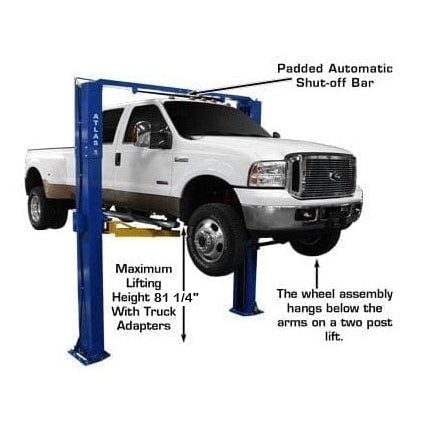

Padded Shut-Off Bar
Protects the vehicle’s top from coming into contact with the crossbar during lifting. -
Padded Carriages
Helps prevent door damage when vehicles are driven onto the lift. -

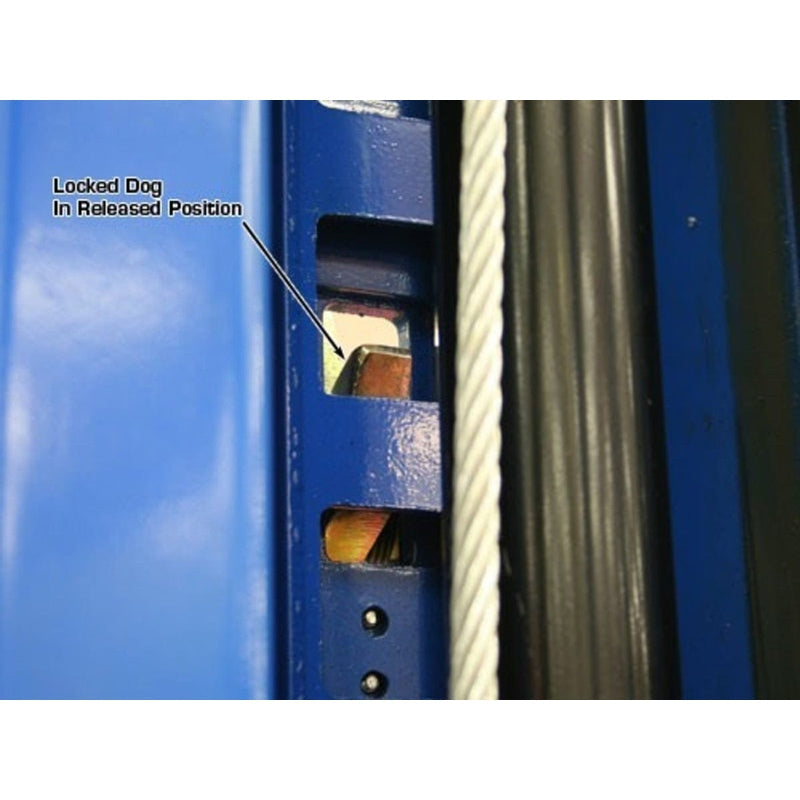

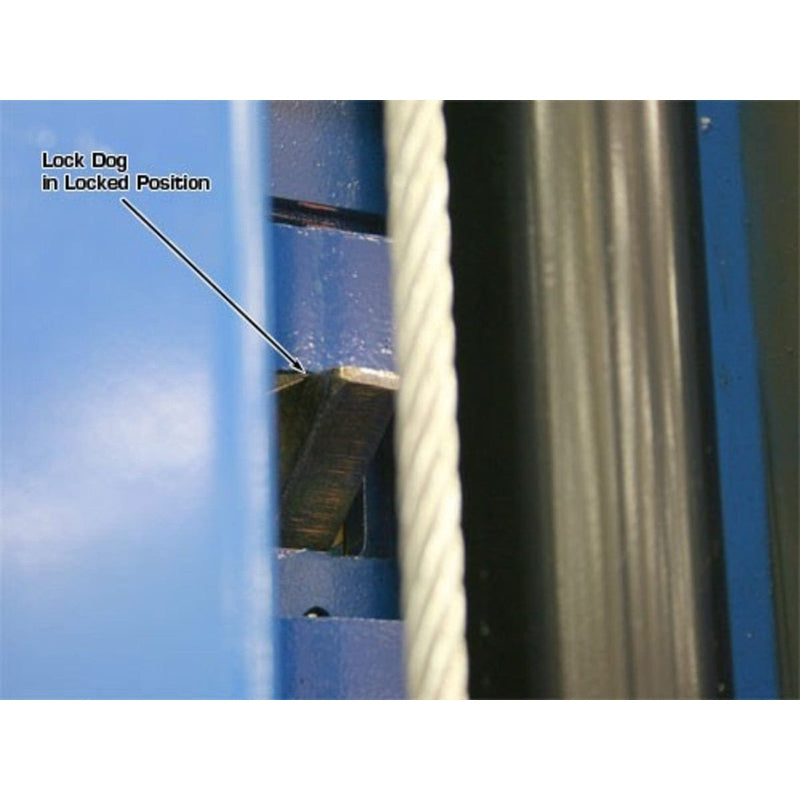

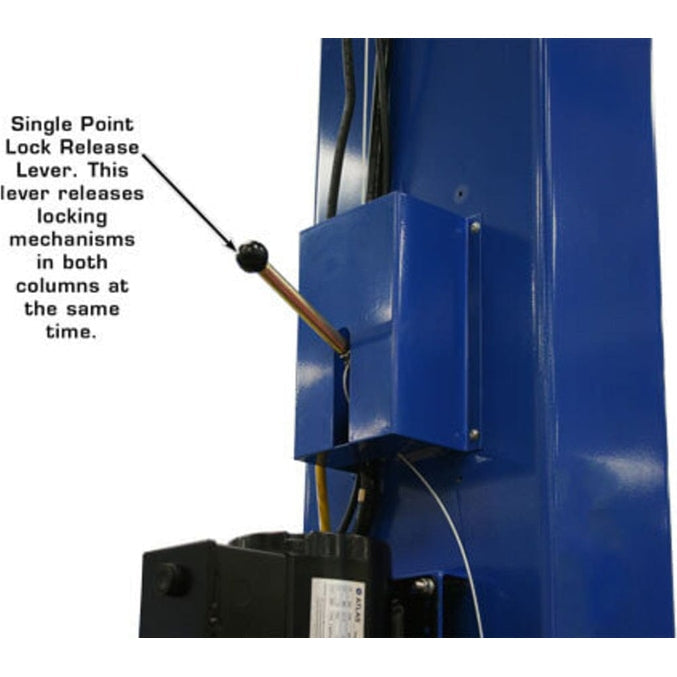

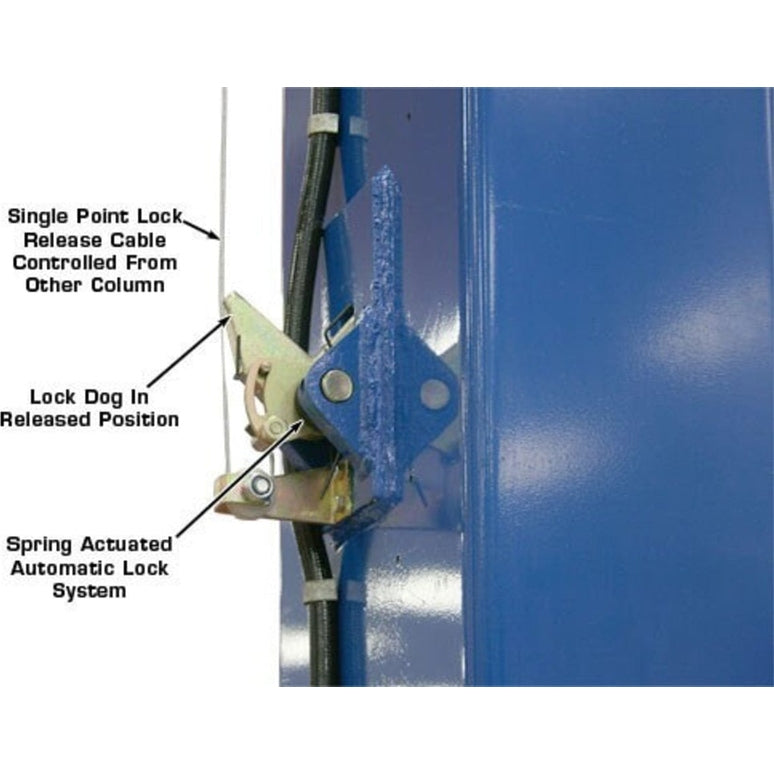

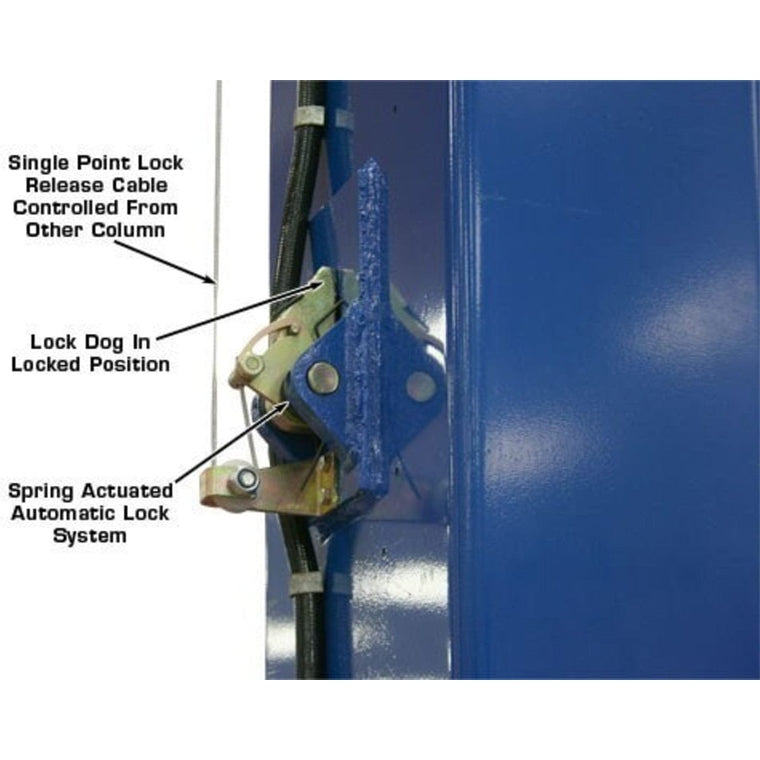

Single Point Lock Release
One simple action to release the lock and operate the lift. -

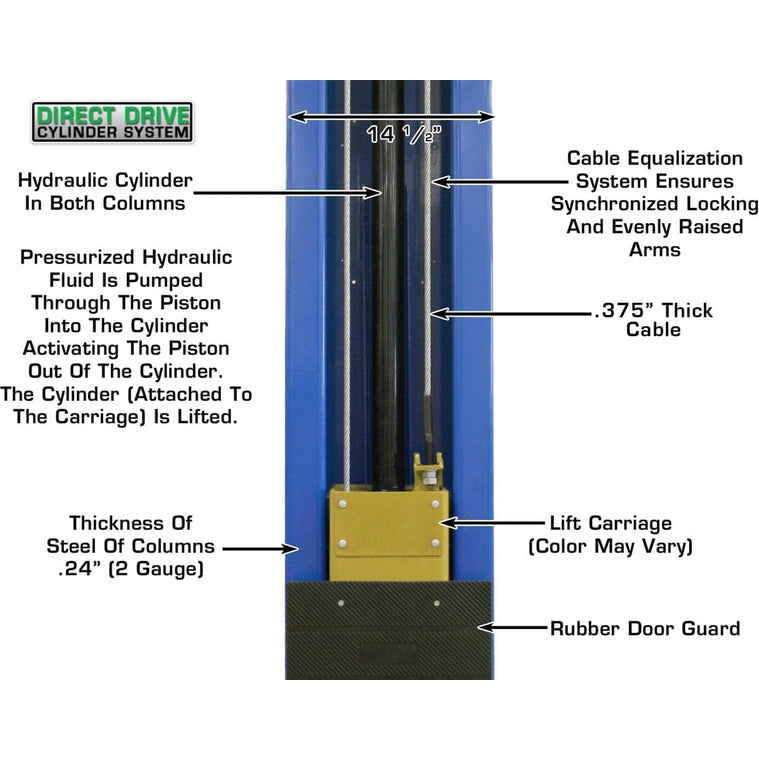

Direct-Drive Cylinders
Powerful, reliable lifting mechanism for long-lasting use. -
Powder Coat Finish
Offers additional durability and protection against wear and tear. -

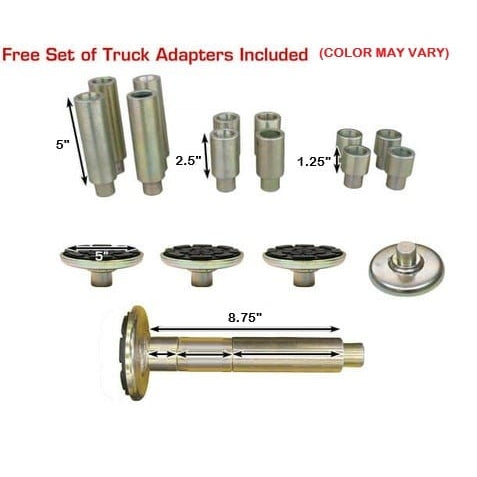

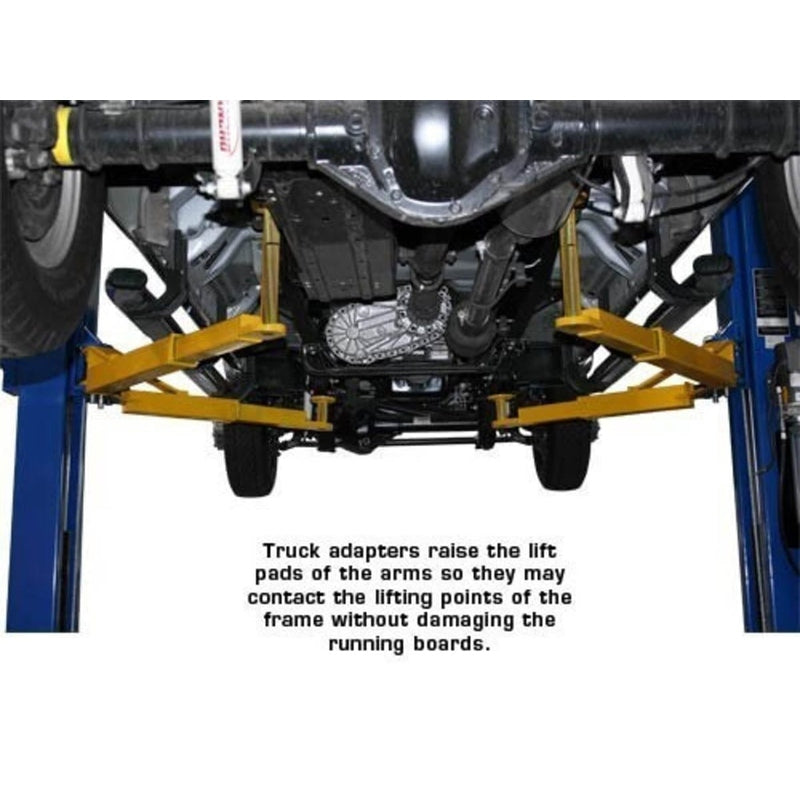

Free 12-Piece Truck Adapter Set
Equipped with all the necessary adapters to lift a wide range of vehicles. -

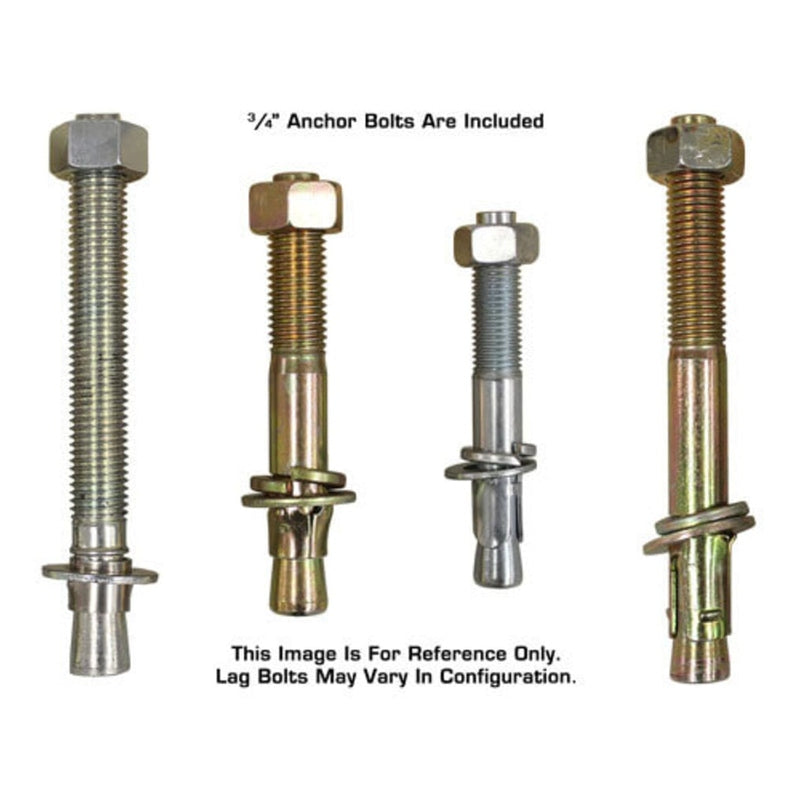

Mounting Hardware Included
For an easy and secure installation. -

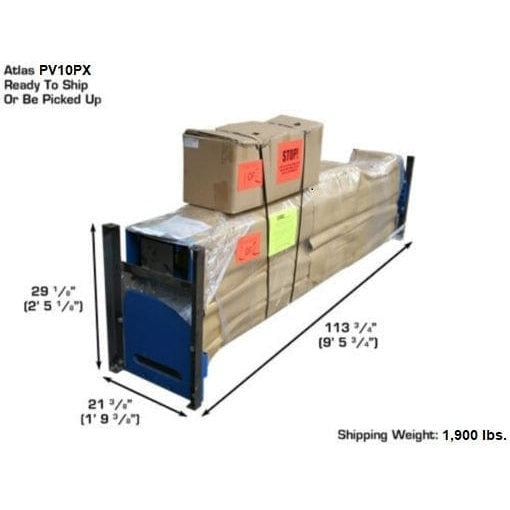

Shipping Weight: 1,875 lbs.
Requires 4" thick concrete with a 3000 PSI rating for installation. -
Warranty:
-
5-Year Structural Warranty
-
2-Year Hydraulic Warranty (Parts Only)
-
Specifications
| Spec | Details |
|---|---|
| Capacity | 10,000 lb. |

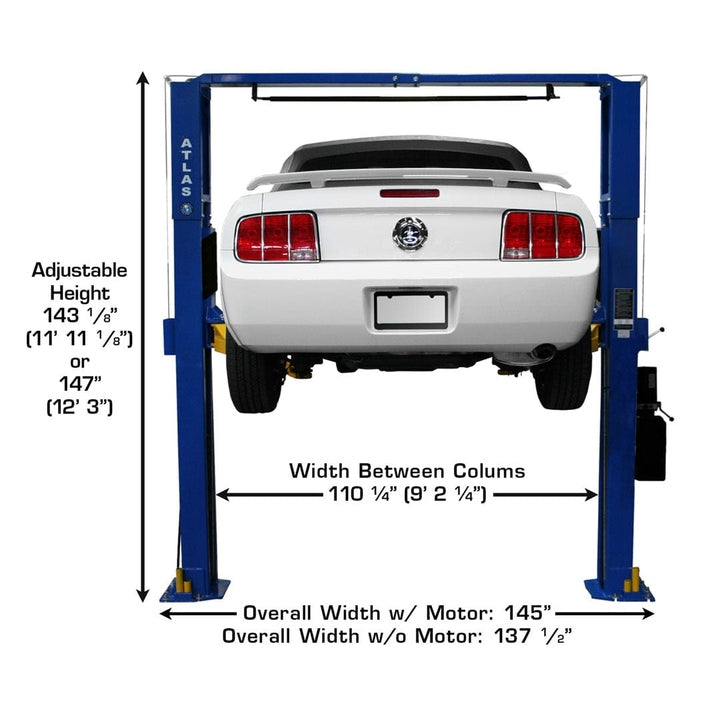

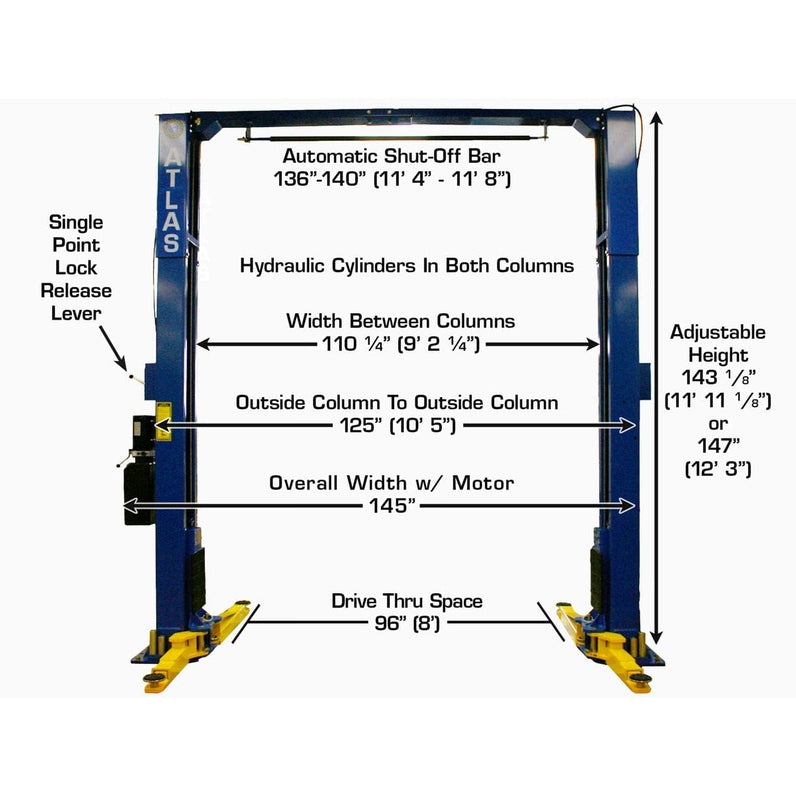

| Overall Height | 143 1/8" (11’ 11 1/8”) or 147” (12’ 3”) |
| Overall Width w/Motor | 145" (11’ 11”) |
| Outside Column to Outside Column | 125 1/2" (10’ 5 1/2”) |
| Max Lift Height (Without Adapters) | 72 1/2" |

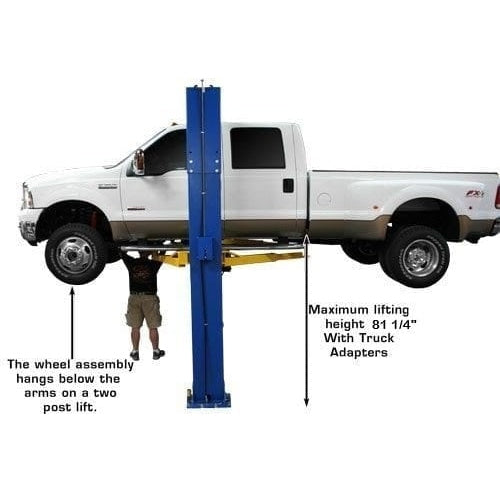

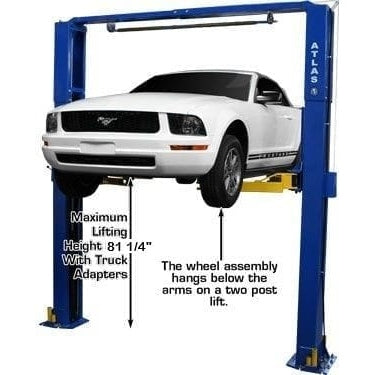

| Max Lift Height (With Adapters) | 81 1/4" |
| Minimum Arm Height | 4 1/2" |
| Inside Column | 110 1/8” (9’ 2 1/8”) |
| Drive Thru Width (Symmetric) | 96 1/4" (8’ 1/4”) |
| Drive Thru Width (Asymmetric) | 90 1/4" (7' 6 1/4") |

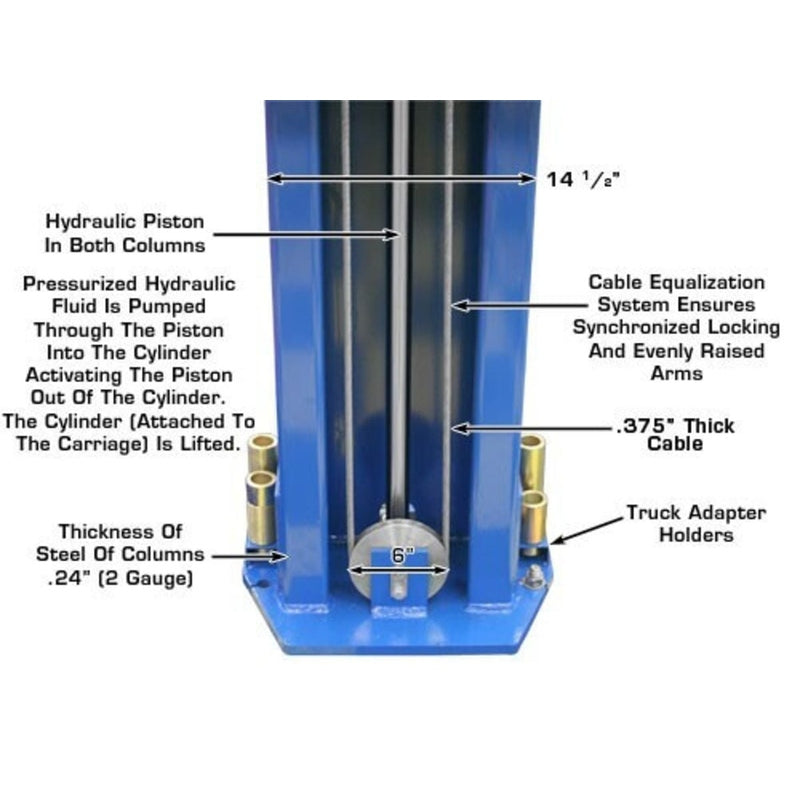

| Column Size | 7 1/2" x 14 1/2" |
| Column Thickness | 6mm |

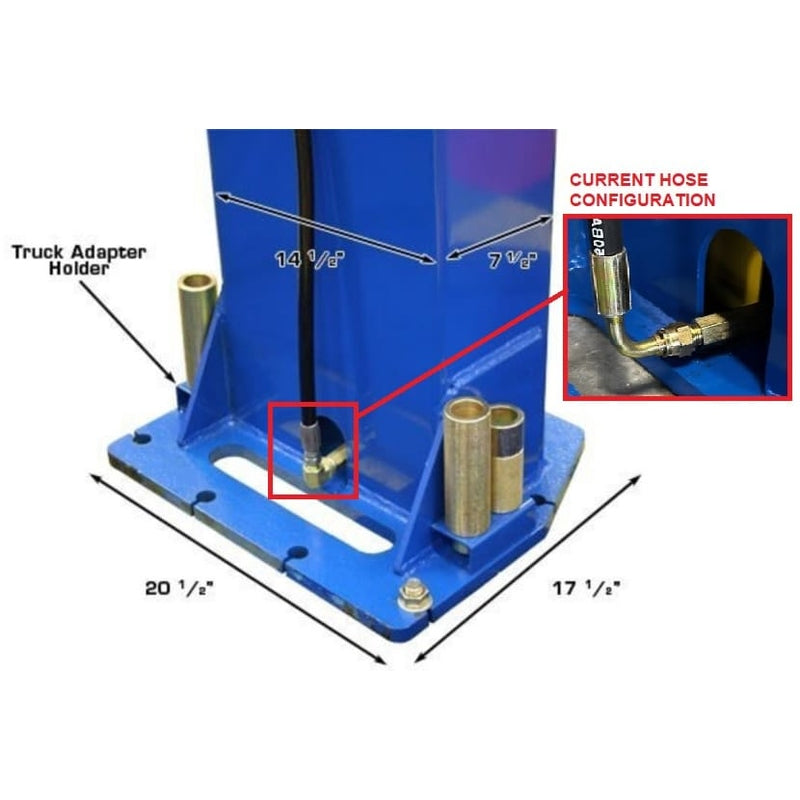

| Base of Lift | 17 1/2" x 20 1/2" |

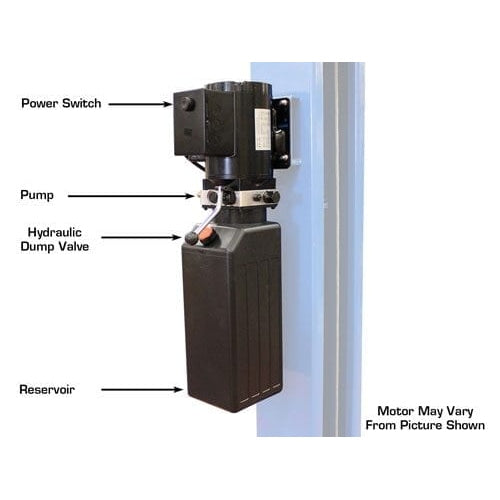

| Motor/Electrical Requirement | 220 volt, single-phase, 30 amp breaker recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not included) |
| Shipping Weight | 1,875 lbs. |
| Adapter Heights | 4 Each: 1.25”, 2.5", 5" |
| Arm Hole/Adapter Peg Size | 1.5" |
