Atlas PRO8000EXT-L 4 Post Lift + RJ35 Sliding Jacks Combo

The Atlas® Garage PRO8000EXT-L is an upgraded version of the popular PRO8000EXT, offering an additional 20 inches in length and 3 inches in width, making it the ideal lift for longer and larger vehicles. This lift boasts an impressive 8,000 lb. lifting capacity and provides the extra height, width, and length you need for a wider variety of vehicles. Although it's perfect for accommodating most long-wheelbase pickup trucks, it’s not suitable for duallys, as their wide rear tires do not fit between the column lock assemblies. If you need a lift for duallys, check out the Atlas® Garage PRO9000.

This model comes with two of the popular Atlas® RJ35 sliding bridge jacks, perfect for raising vehicles' wheels off the lift’s runways to service tires and brakes.

Features

PRO8000EXT-L

• 8,000 lb. Lifting Capacity

• Free Standing / Portable Design

• Extra Tall & Extra Long for versatility

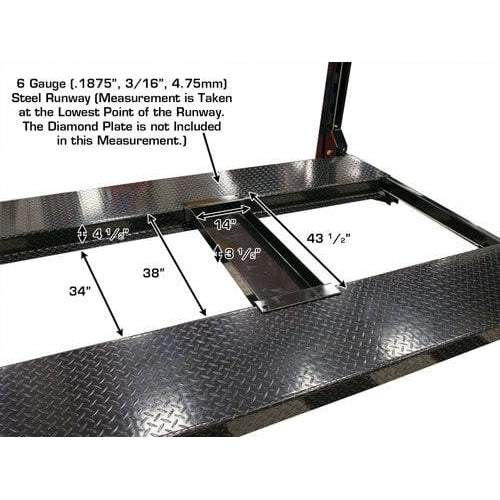

• Diamond Plated Runways for durability and grip

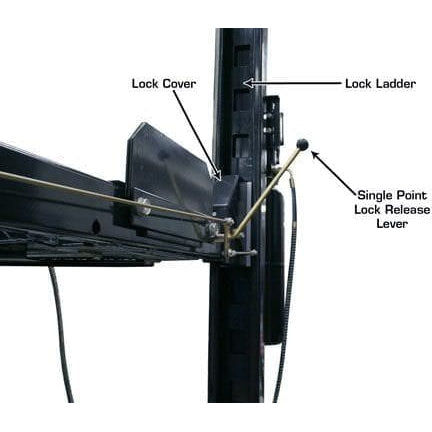

• Single-Point Lock Release for easy operation

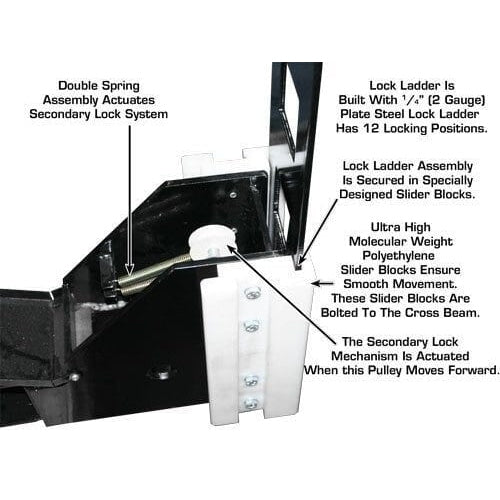

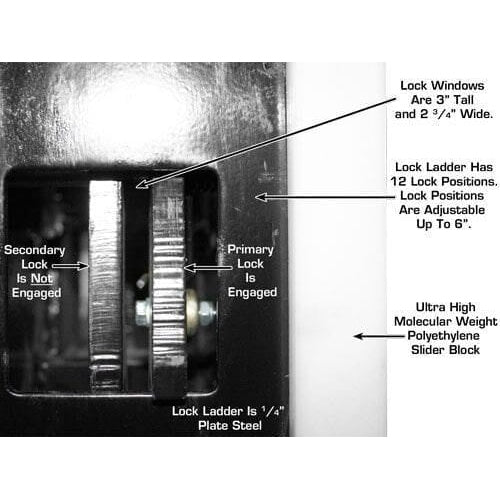

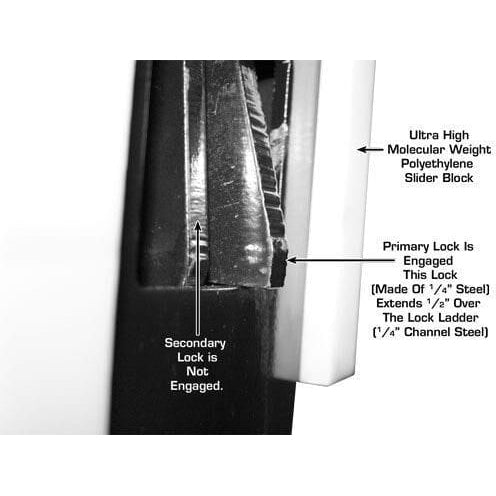

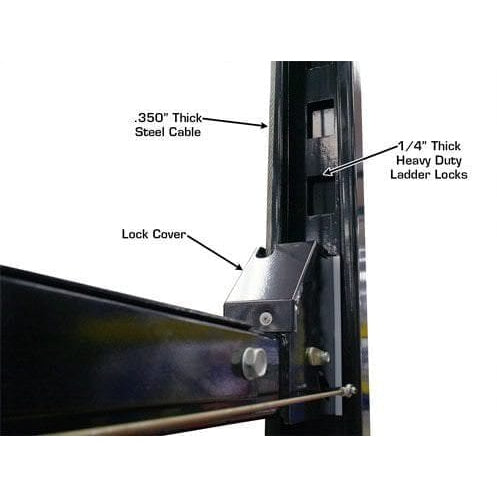

• Lock Ladder Design for enhanced safety

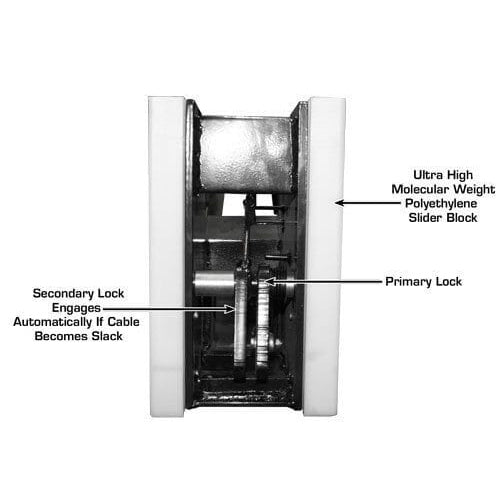

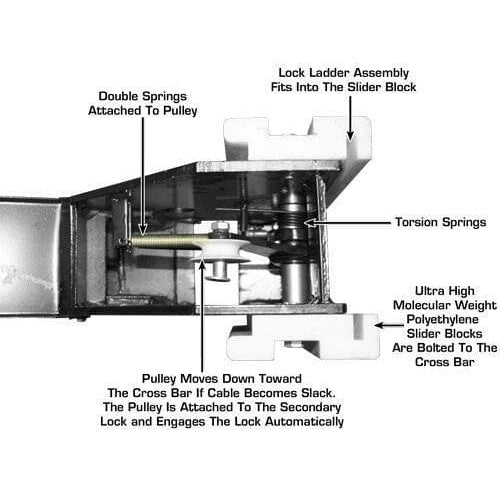

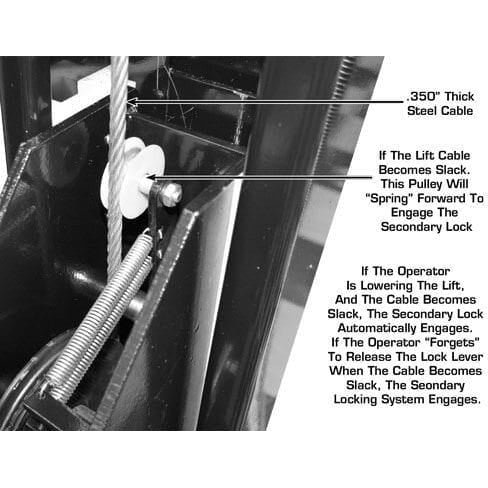

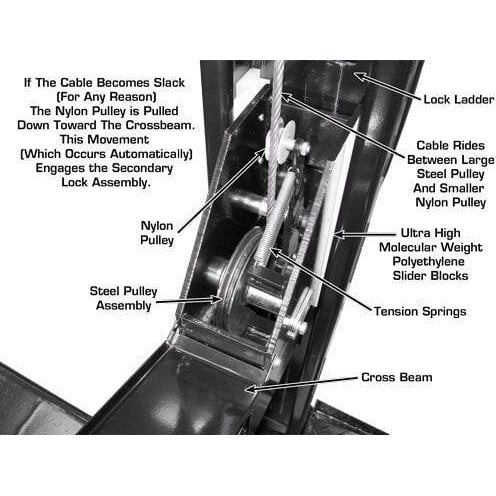

• Double Lock Safety System to keep your vehicle secure

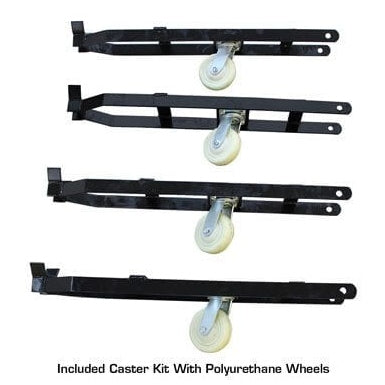

• Caster Kit with Polyurethane Wheels Included for mobility

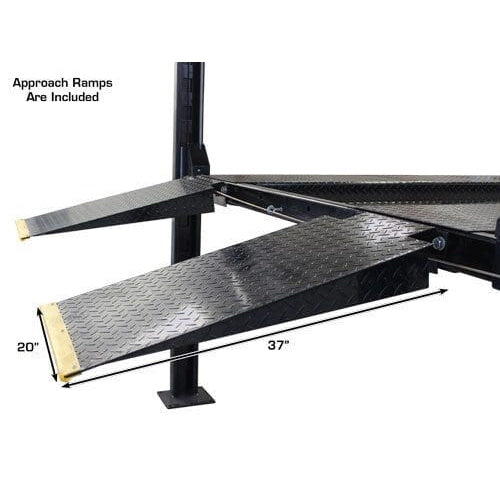

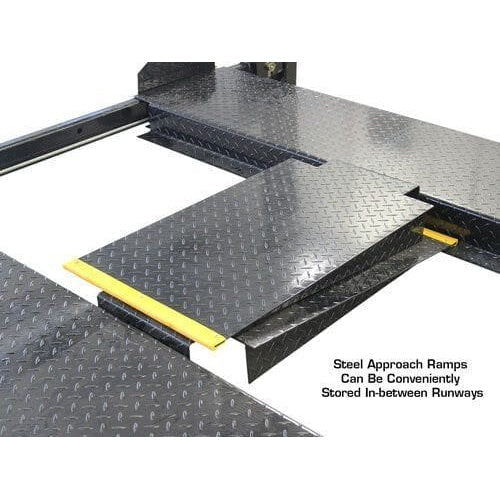

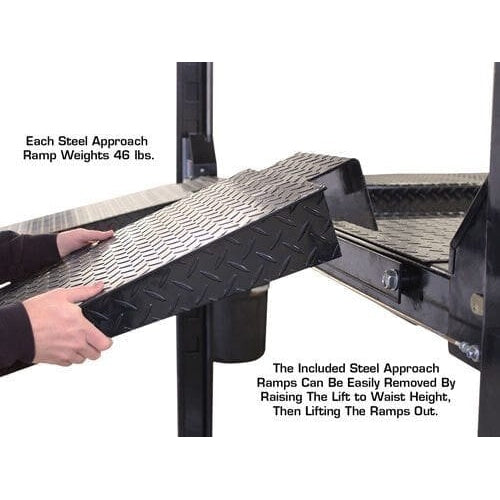

• Steel Approach Ramps for smooth vehicle entry

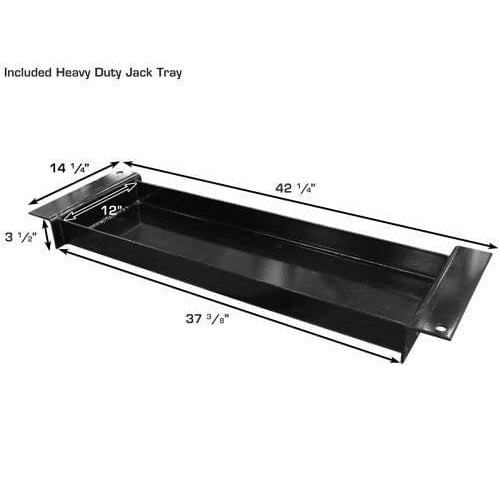

• Steel Jack Tray Included for convenient tool storage

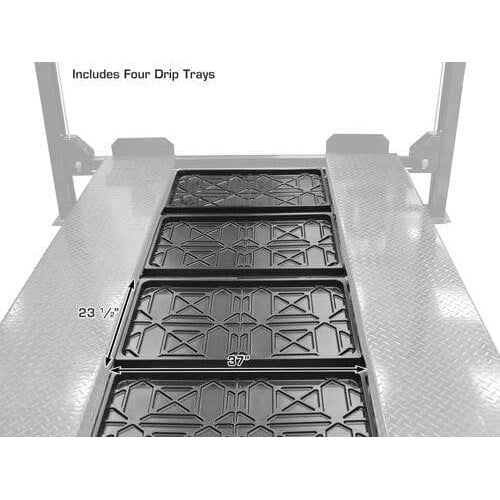

• 4 Plastic Drip Trays to protect your garage floor

• 4 Wheel Stops for easy parking

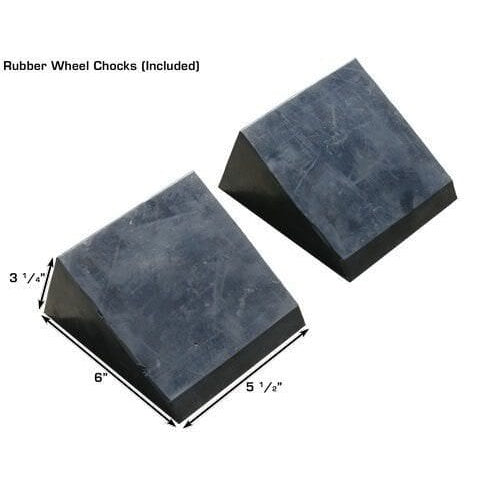

• 2 Rubber Wheel Chocks for added stability

• Perfect for working on or storing vehicles

• 110V Electric Operation (30 AMP Breaker Required)

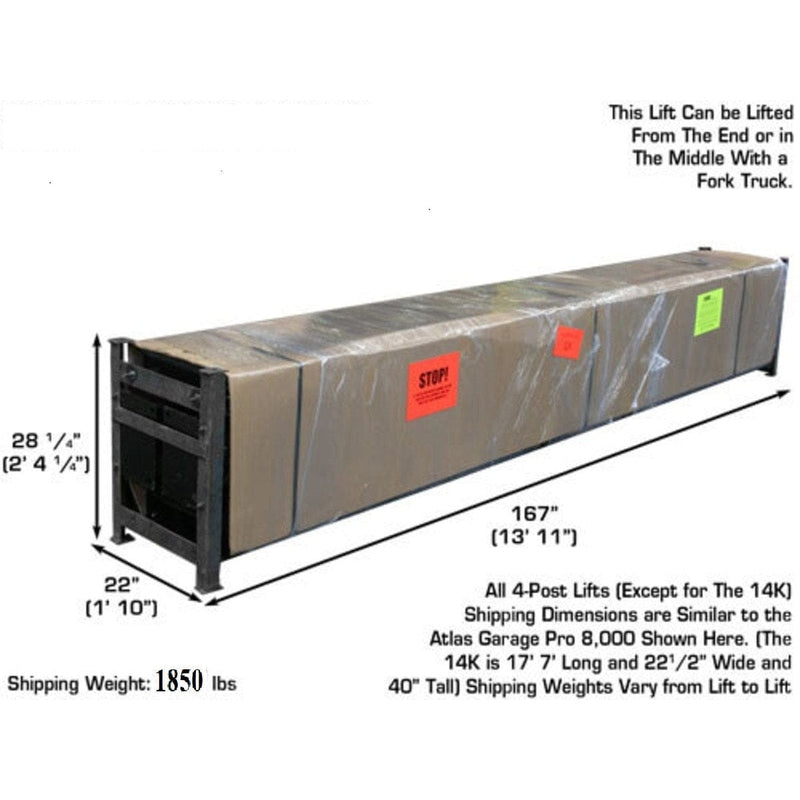

• Shipping Weight: 1,850 lbs.

• 2-Year Structural Warranty, 1-Year Hydraulic Warranty (Parts Only)

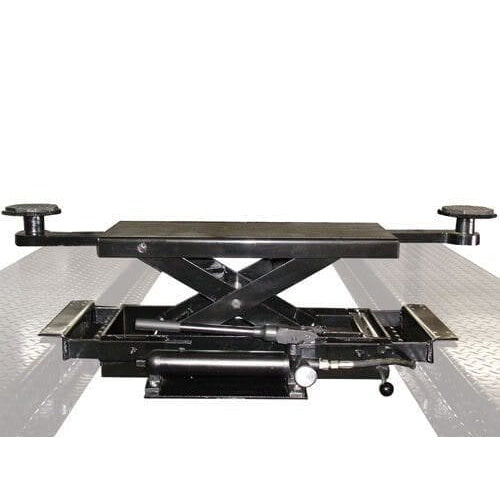

PROJACK35

• Sliding Bridge Jack

• Capacity: 3,500 lbs.

• Manual, Hand-Pump Operated

• Scissor Mechanism for level lifting

• Low Profile, Compact Design

• Adjustable Width to fit a variety of 4-post lifts

• Adjustable Lift Arms to reach different lifting points

• Multiple Safety Lock Positions

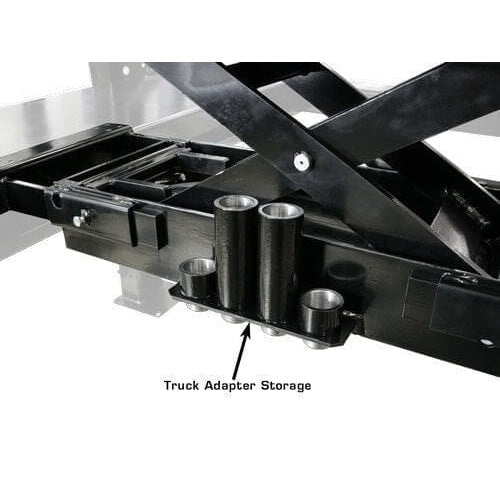

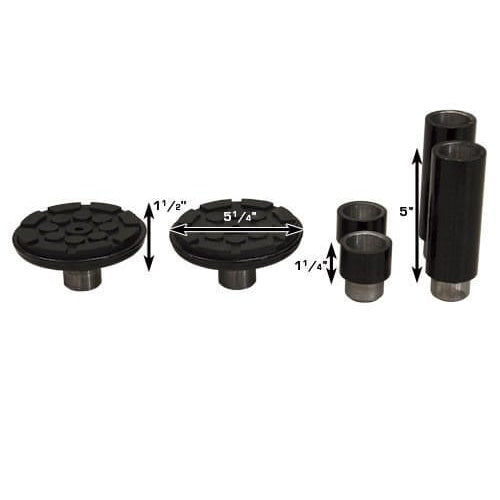

• 4-Piece Truck Adapter Set Included

• 1-Year Parts Only Warranty

Specifications

Atlas® Garage PRO8000EXT-L Specifications

• Capacity: 8,000 lb.

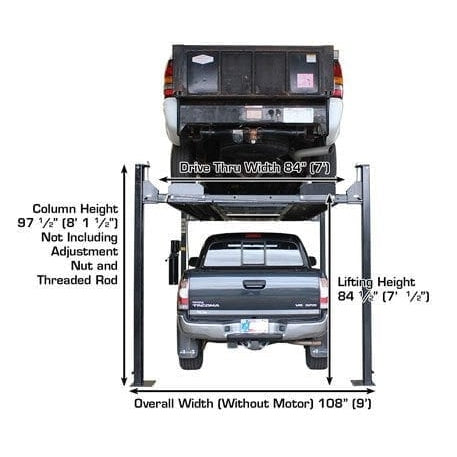

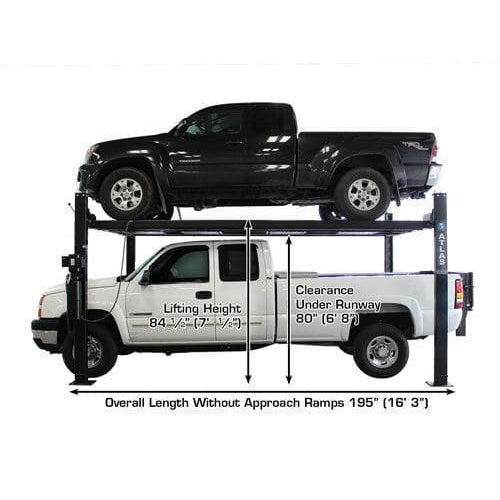

• Lifting Height: 84 ½" (7' ½")

• Overall Width (Without Motor): 108" (9')

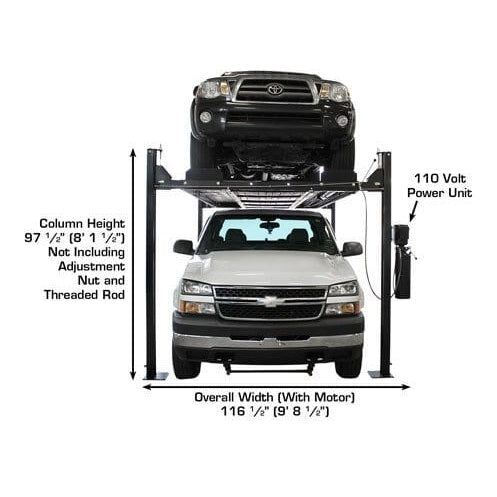

• Overall Width (With Motor): 116 ½" (9' 8 ½")

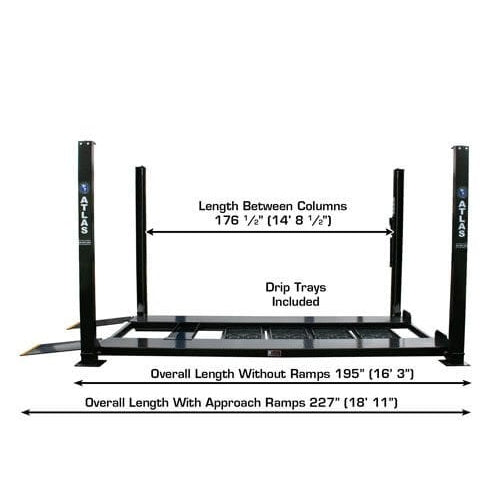

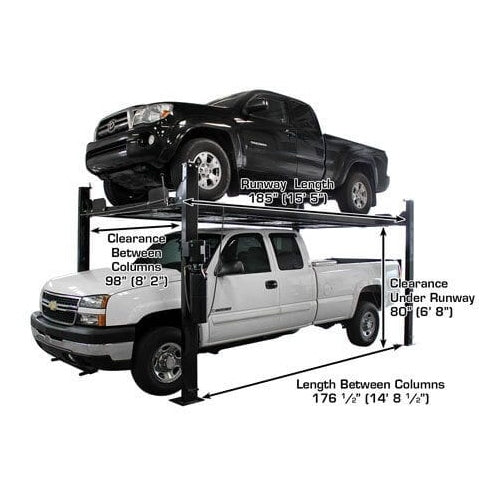

• Length Between Columns: 176 ½" (14' 8 ½")

• Overall Length with Approach Ramps: 227" (18' 11")

• Approach Ramp Dimensions: 36 ¾" x 19 5/8"

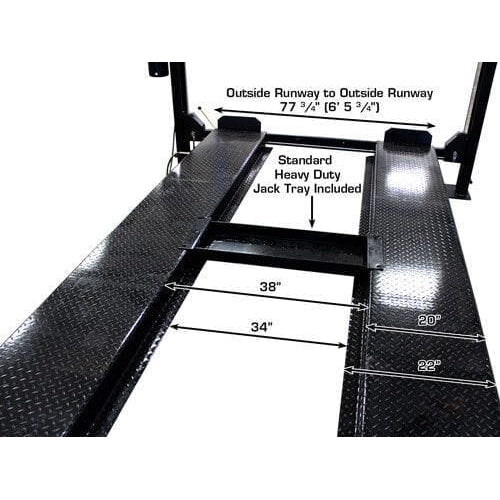

• Runway Width: 22"

• Runway Length: 185" (15' 5")

• Runway Thickness: 4 ½"

• Clearance Under Runways: Max 80" (6' 8")

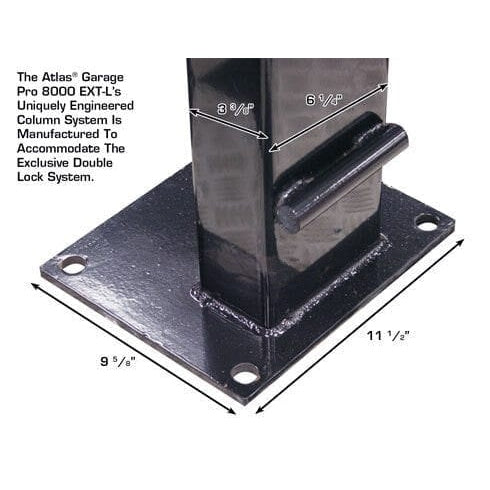

• Column Dimensions: 6 ¼" x 3 3/8"

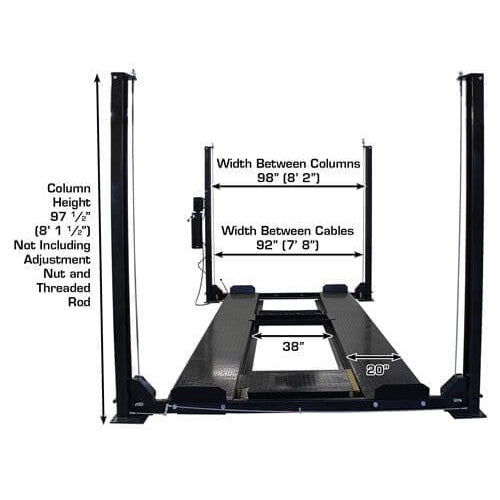

• Clearance Between Columns: 98" (8' 2")

• Height of Columns: 97 ½" (8' 1 ½")

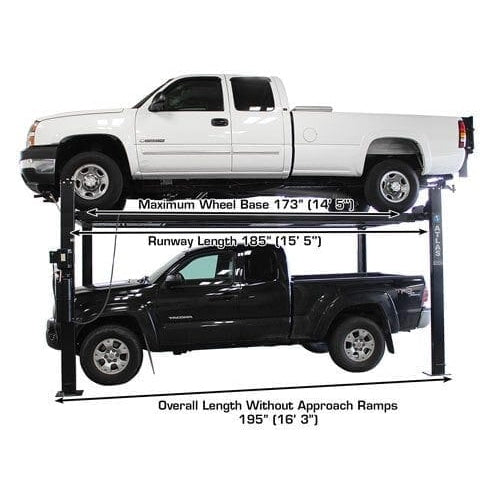

• Maximum Wheel Base: 173" (14' 5")

• Drive Thru (Outside of Tire to Outside of Tire): 84" (7')

• Motor: 110 Volt

• Oil Requirement: 3-5 Gallons AW32/AW46

• Shipping Weight: 1,900 lb.

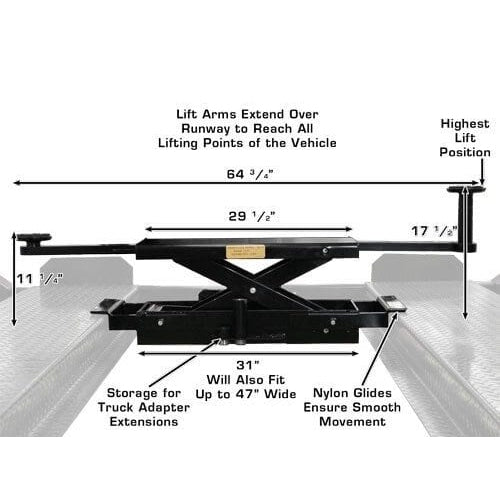

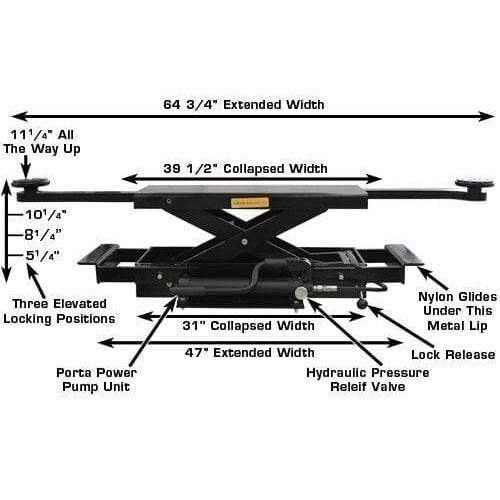

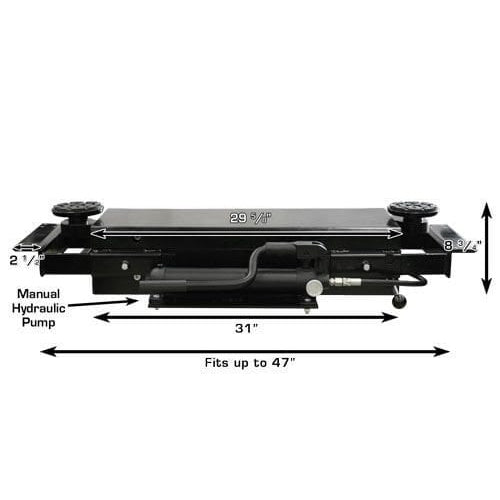

Atlas® RJ35 Specifications

• Capacity: 3,500 lb.

• Minimum Width: 29 ½"

• Maximum Width: 64 ¾"

• Working Width: 31" - 47"

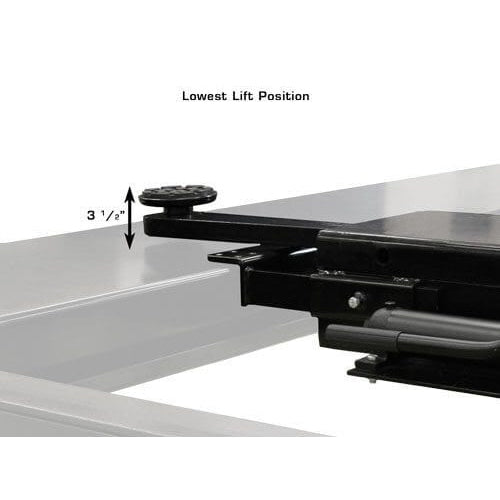

• Minimum Height with Lift Pad: 3 ½"

• Raised Height (without Adapter): 11"

• Raised Height (with Small Adapter): 12 ¼"

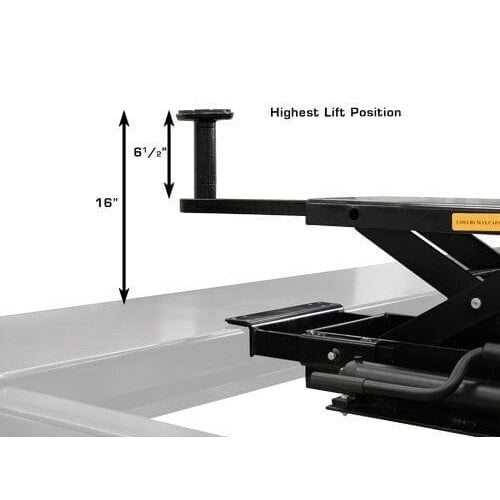

• Raised Height (with Large Adapter): 16"

• Raised Height (with Both Adapters): 17 ¼"

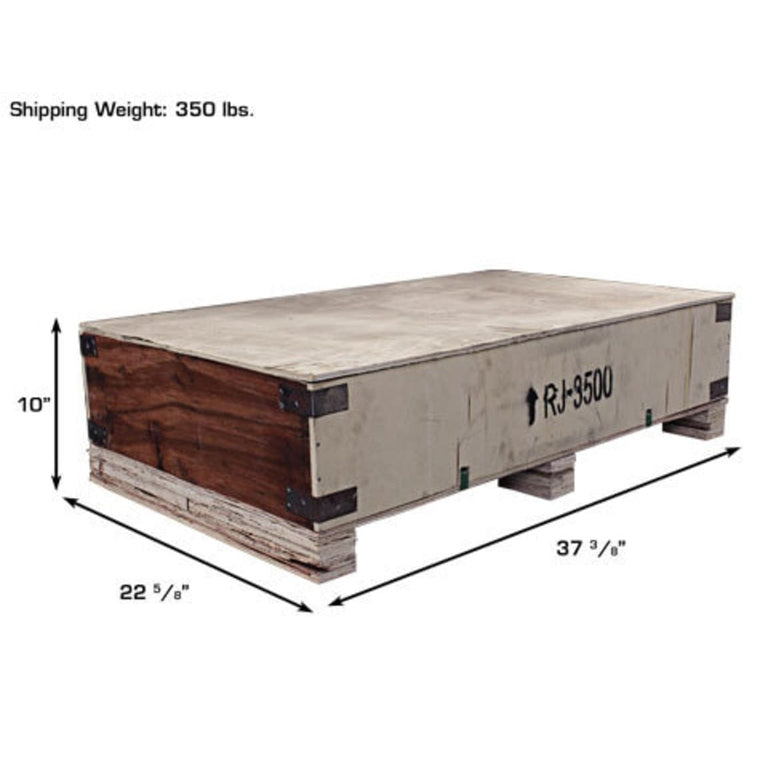

• Shipping Weight: 350 lb.

Documents

Atlas® Garage Pro 8,000 EXT-L Manual
