Atlas Platinum PVL14OF-EXT 4 Post Lift + RJ7000 ALI Certified Combo

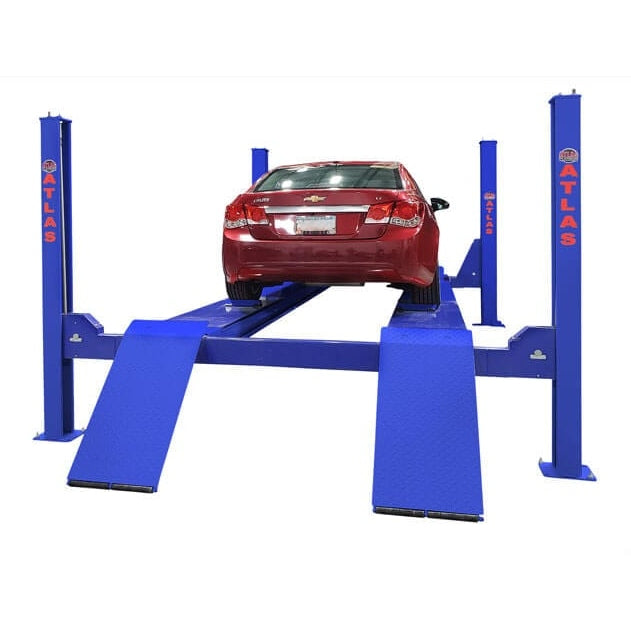

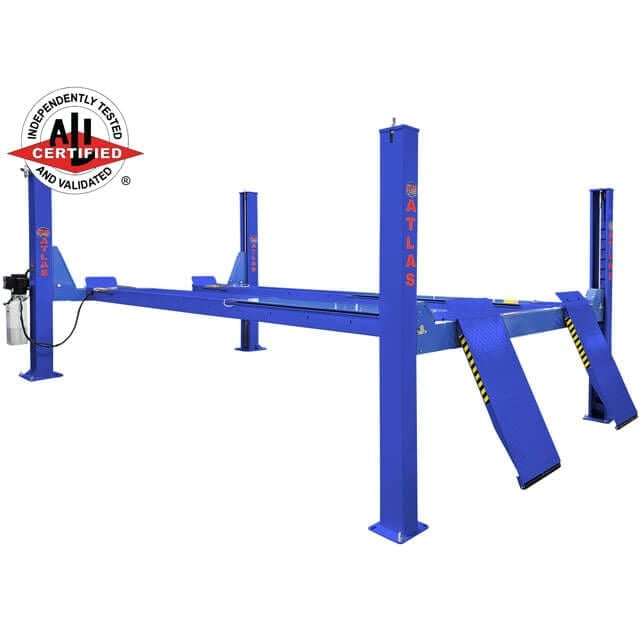

Atlas® Platinum PVL14OF-EXT Open-Front Alignment Lift

The Atlas® Platinum PVL14OF-EXT is a heavy-duty, commercial-grade four-post lift designed specifically for professional shops and high-traffic service centers. With its open-front design, the lift offers better access to the underside of vehicles, making it ideal for wheel alignments and servicing tasks. Featuring extra-long runways, built-in slip plates, and heavy-duty turntables, this lift ensures maximum functionality and convenience when working with cars, vans, SUVs, trucks, and even commercial vehicles.

Features:

• ALI Certified Lift – Meets the highest industry standards for safety and performance.

• 14,000 lb. Capacity – Strong enough to handle a wide range of vehicles, from cars to light-duty trucks.

• Open-Front Design – Offers better access to the underside of vehicles for wheel alignments and other services.

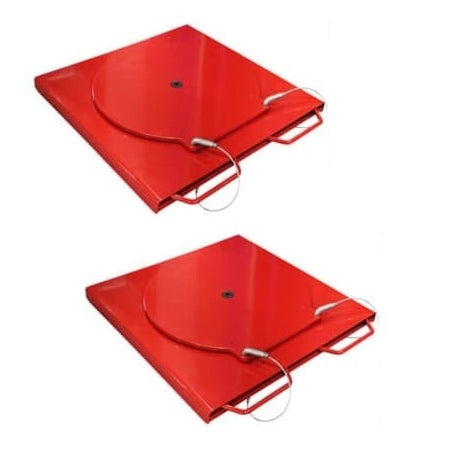

• Built-in Slip Plates & Turntables – Designed for wheel alignments, enhancing the lift’s versatility.

• Extra Long Runways – Accommodates larger vehicles comfortably.

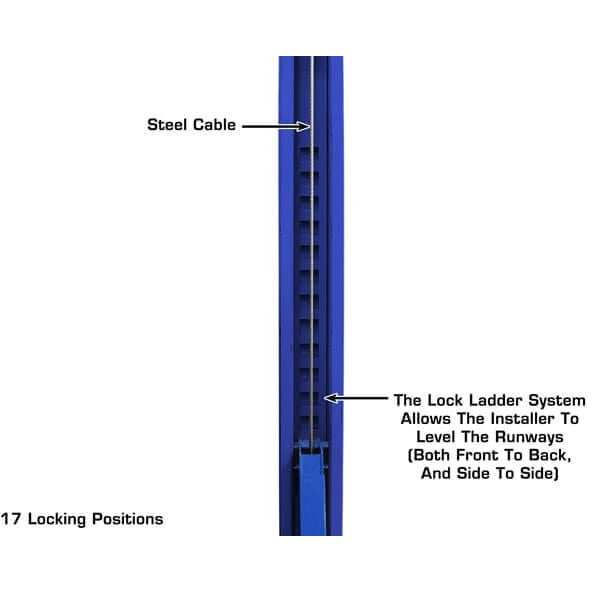

• Adjustable Lock Ladder Design – Enhances ease of use and safety.

• Higher Quality Powder Coat Finish – Durable and resistant to wear and tear.

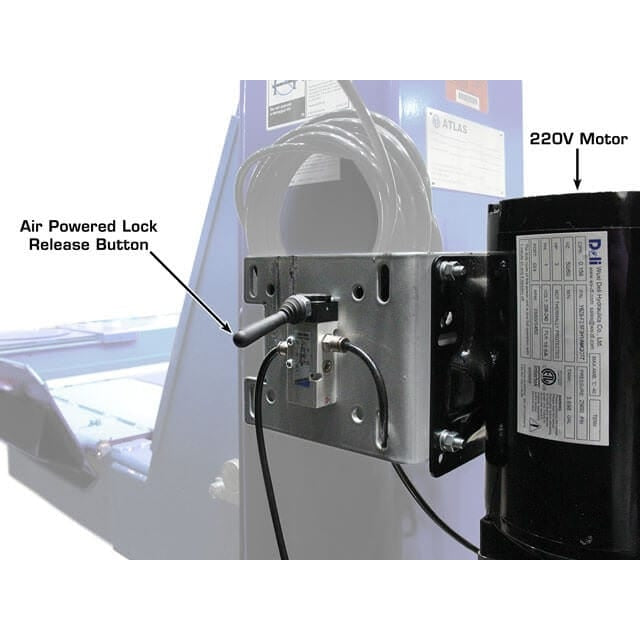

• Air Operated Single Point Lock Release – External air supply required for convenient lock release.

• Double Lock Safety System – Provides additional safety while the lift is in use.

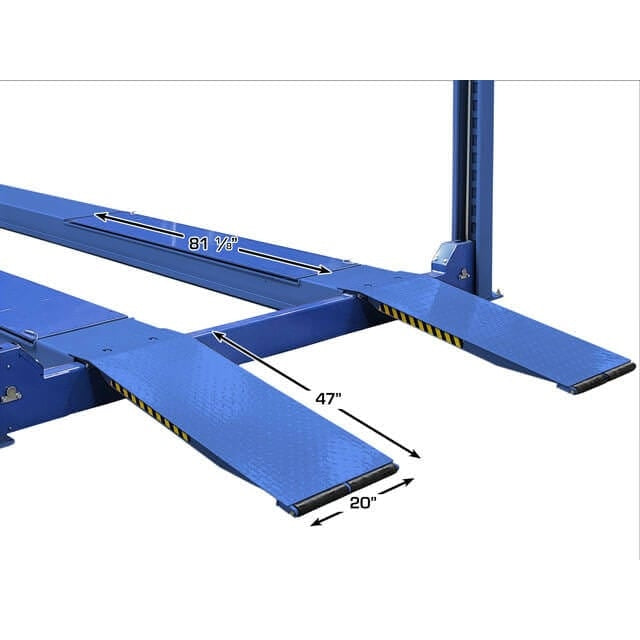

• Steel Approach Ramps Included – Easy for vehicles to drive onto the lift.

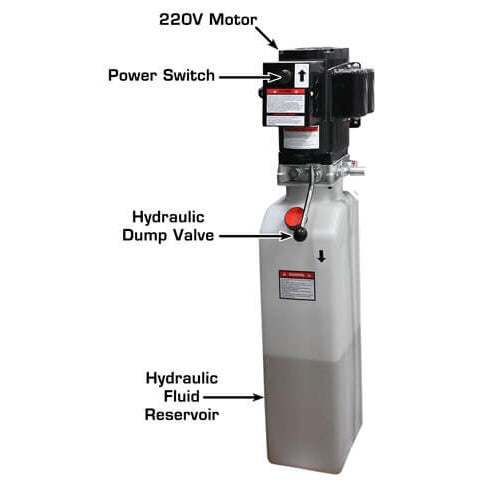

• Standard with Premium ALLY Powerunit – Includes a certified power unit for smooth operation.

• 220 Volt / 1 Phase Electric Operation – Requires a 30 amp breaker for safe electrical operation.

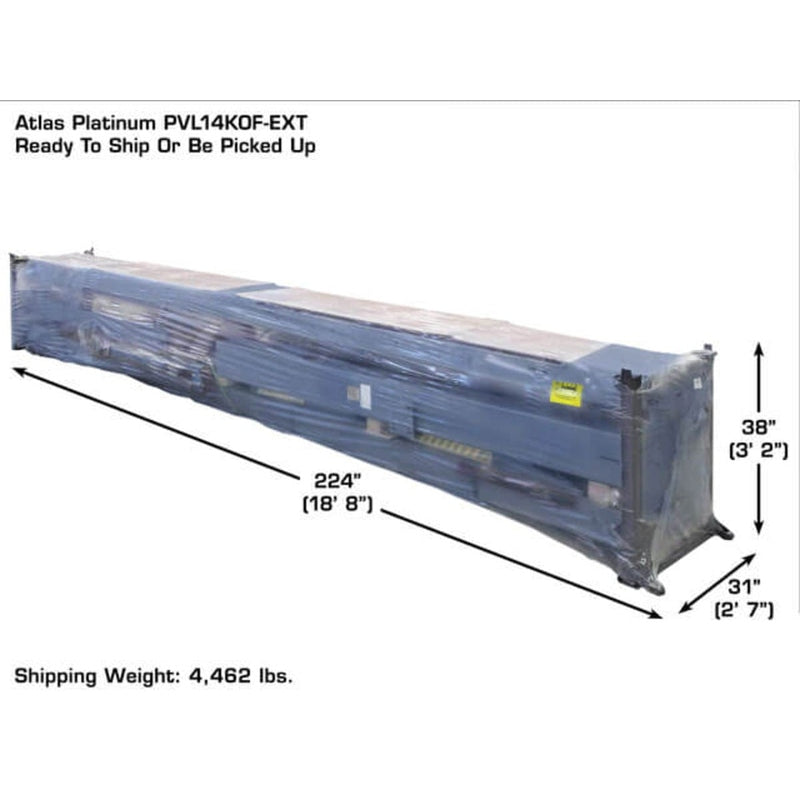

• Shipping Weight: 4,462 lbs.

Specifications:

• Capacity: 14,000 lbs.

• Lifting Height: 73 1/4" (6' 1 1/4")

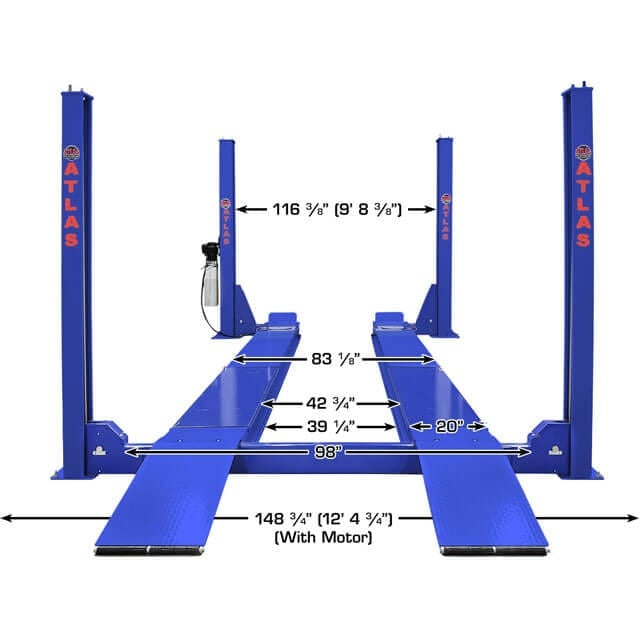

• Overall Width of Columns (Without Motor): 140 1/8" (11' 8 1/8")

• Overall Length with Approach Ramp: 272 1/8" (22' 8 1/8")

• Runway Length: 223 1/2" (18' 7 1/2")

• Runway Width: 20"

• Thickness of Runway: 7"

• Width Between Runways: 42 3/4" (with rail 39 1/4")

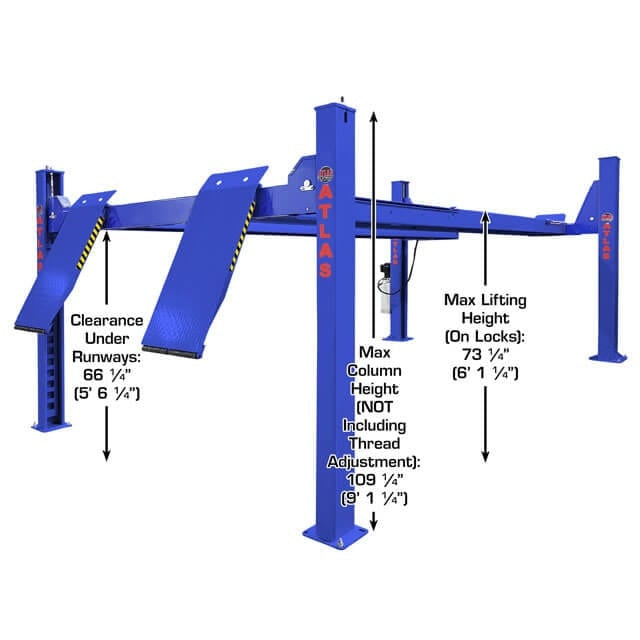

• Clearance Under Runways: 66 1/4" (5' 6 1/4")

• Clearance Between Columns: 116 3/8" (9' 8 3/8")

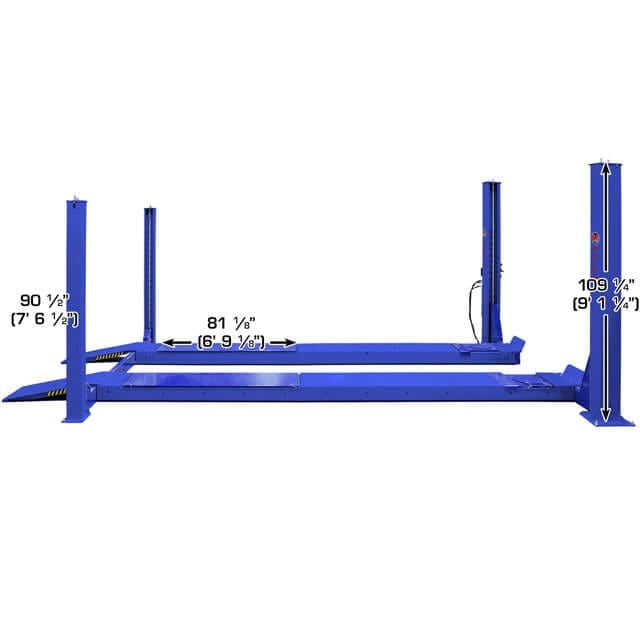

• Height of Columns: 92 1/2" (7' 8 1/2") Rear / 109 1/4" (9' 1 1/4") Front

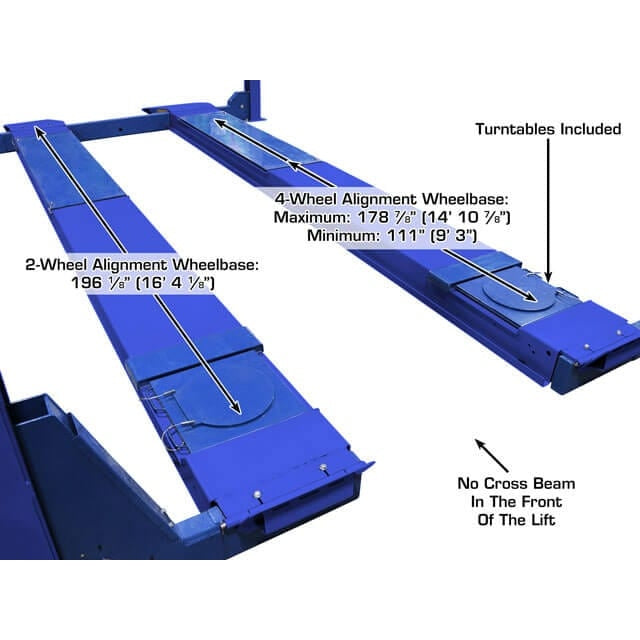

• Maximum Wheel Base: 203" (16' 11")

• Drive Thru: 94 1/2" (7' 10 1/2")

• Air Requirement: 85-115 PSI (External air supply required)

• Motor/Electrical Requirement: 220 volt, single-phase, 30 amp breaker recommended

• Oil Requirement: 3-5 Gallons AW32/AW46 (not included)

• Shipping Weight: 4,462 lbs.

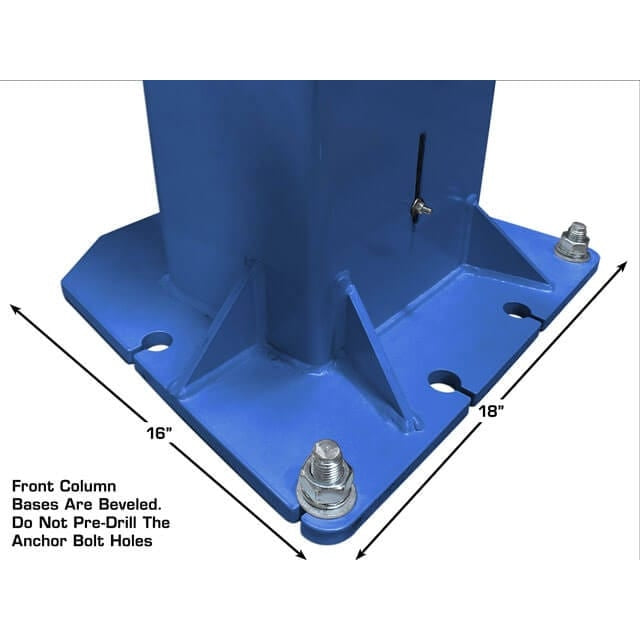

• Concrete Requirements: Minimum 6" thick with a 3000 psi rating

This lift is ideal for those looking to perform wheel alignments with greater ease and accuracy. The Atlas® Platinum PVL14OF-EXT comes with the additional benefits of ALLY Hydraulic AL3000 Power Unit, ensuring reliable lifting and smoother operation, while also being backed by a solid warranty for peace of mind.

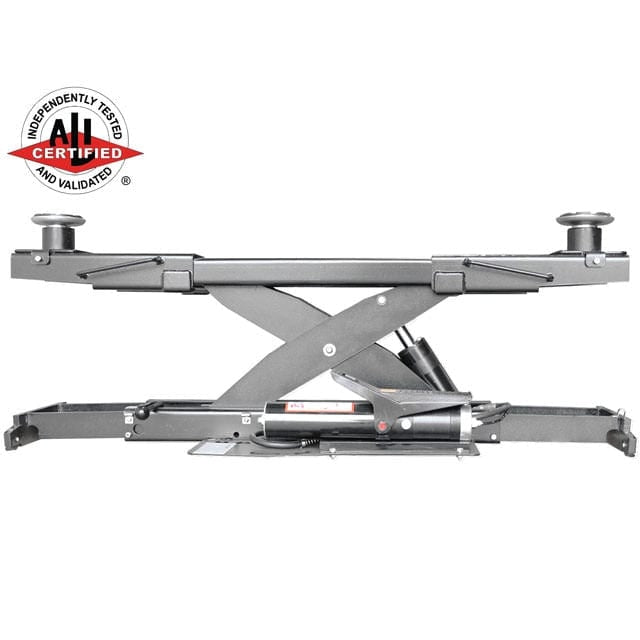

Atlas® Platinum RJ7000 Rolling Bridge Jacks

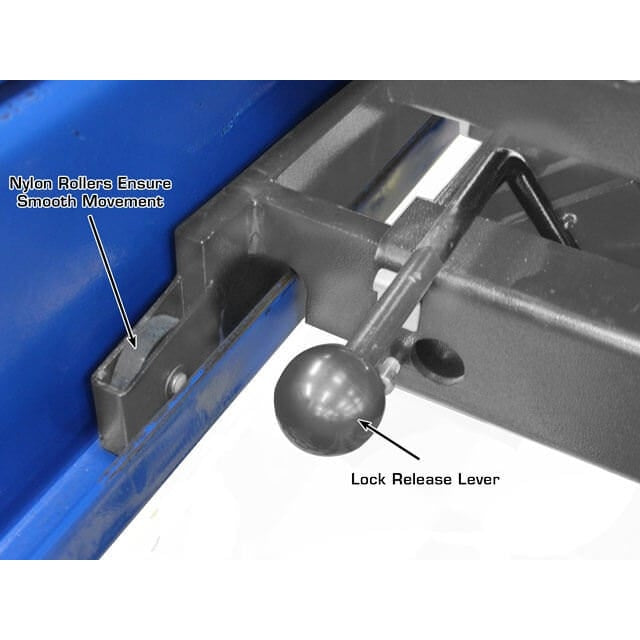

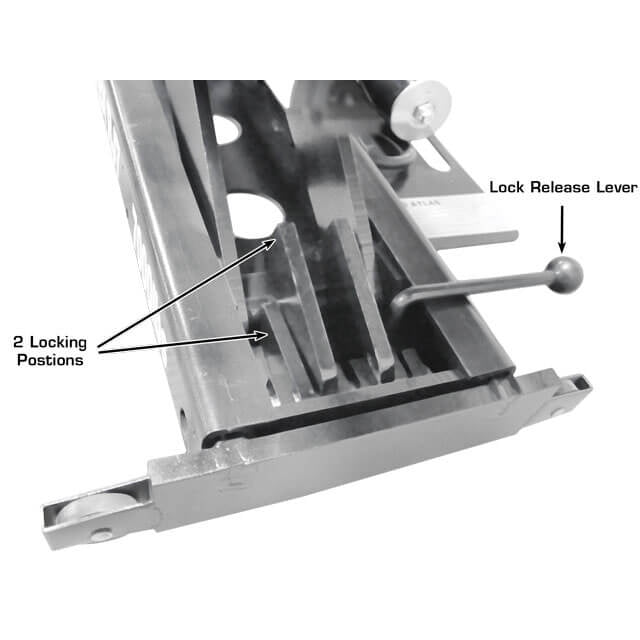

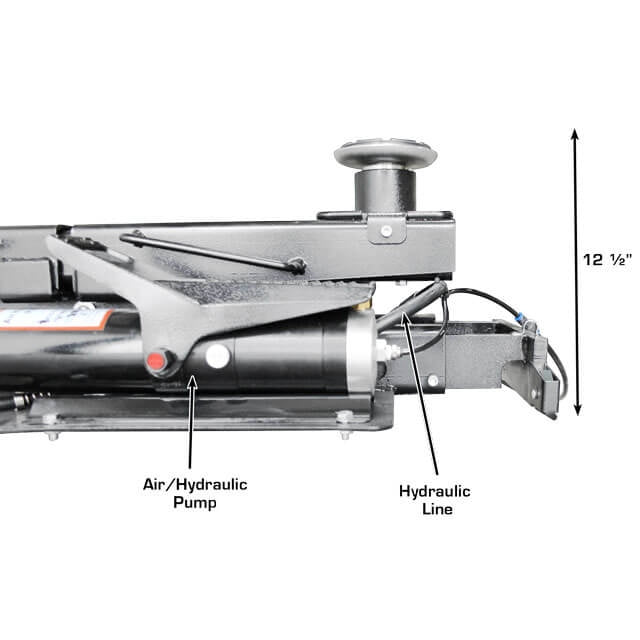

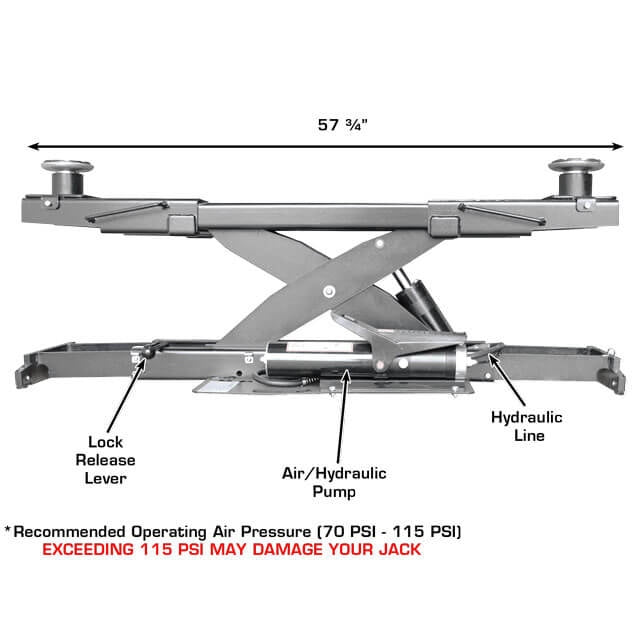

The Atlas® Platinum RJ7000 rolling bridge jacks are included with this combo package and are designed to lift a vehicle's wheels off the runway for tire servicing and brake work. These jacks have smooth rolling action, a low profile for easy positioning, and a scissor mechanism that allows for level lifting. The RJ7000 has a capacity of 7,000 lbs and is the perfect complement to this lift system.

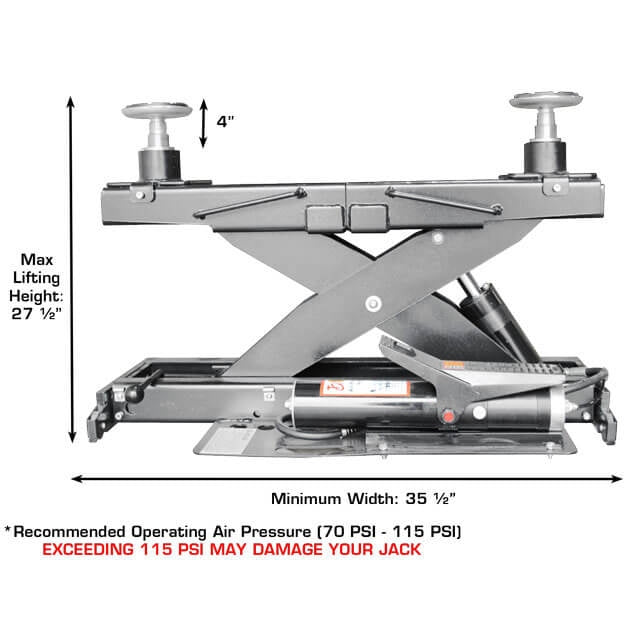

RJ7000 Specifications:

• Maximum Capacity: 7,000 lbs.

• Maximum Width: 45 1/2" (3' 9 1/2")

• Minimum Width: 36" (3')

• Distance Between Runway Capability: 36"-45"

• Maximum Lifting Height (With Adapters): 27 1/2" (2' 3 1/2")

• Air Requirement: 70-115 PSI

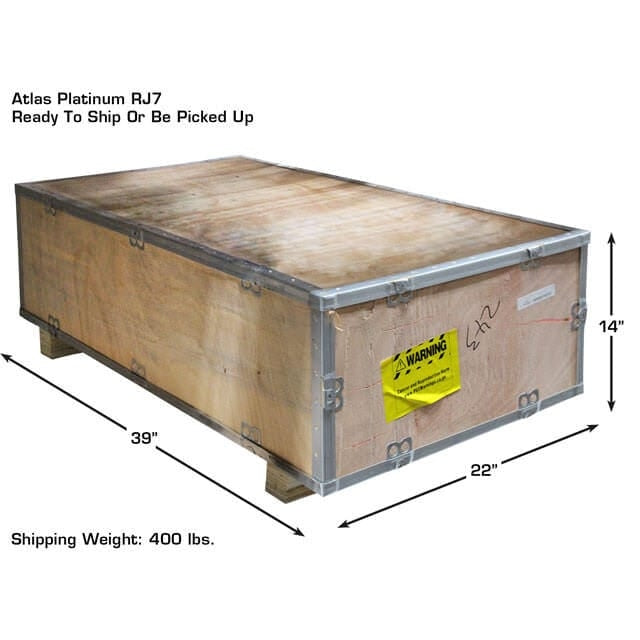

• Shipping Weight: 400 lbs.

• Double Screw-Up Adapter Pad: 1 1/2" - 4"

Documents

Atlas Platinum PVL14OF-EXT Manual

Atlas® Platinum RJ7000 Manual
