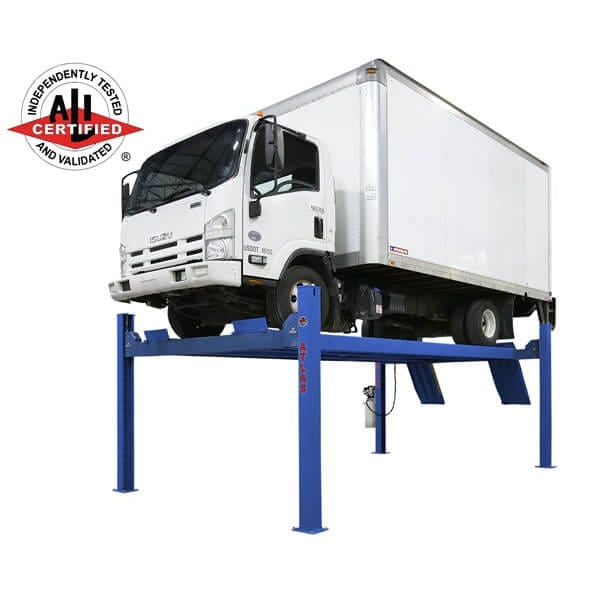

Atlas® Platinum PVL14 Four Post Lift

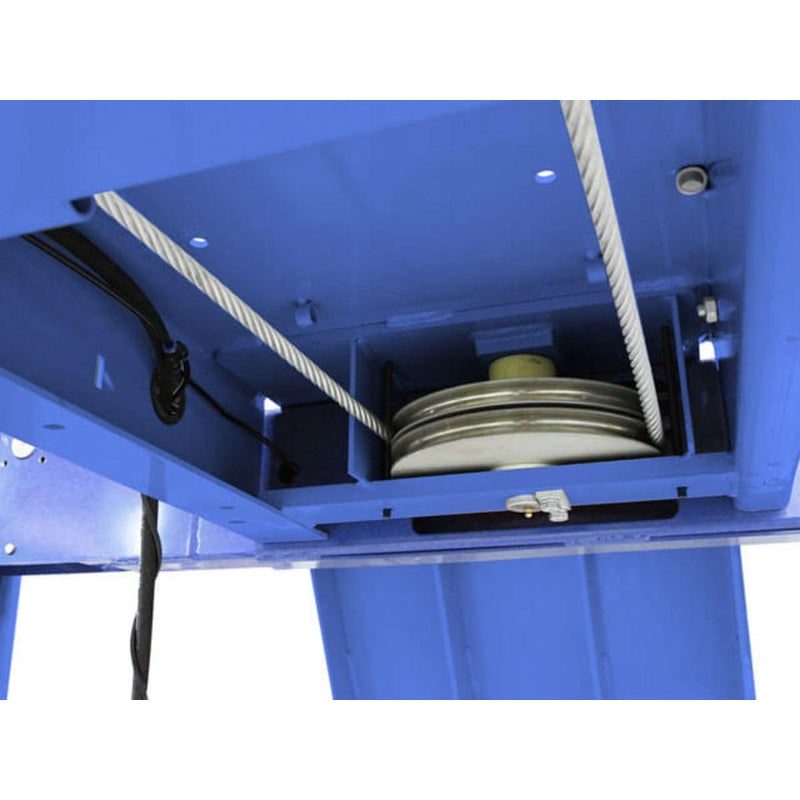

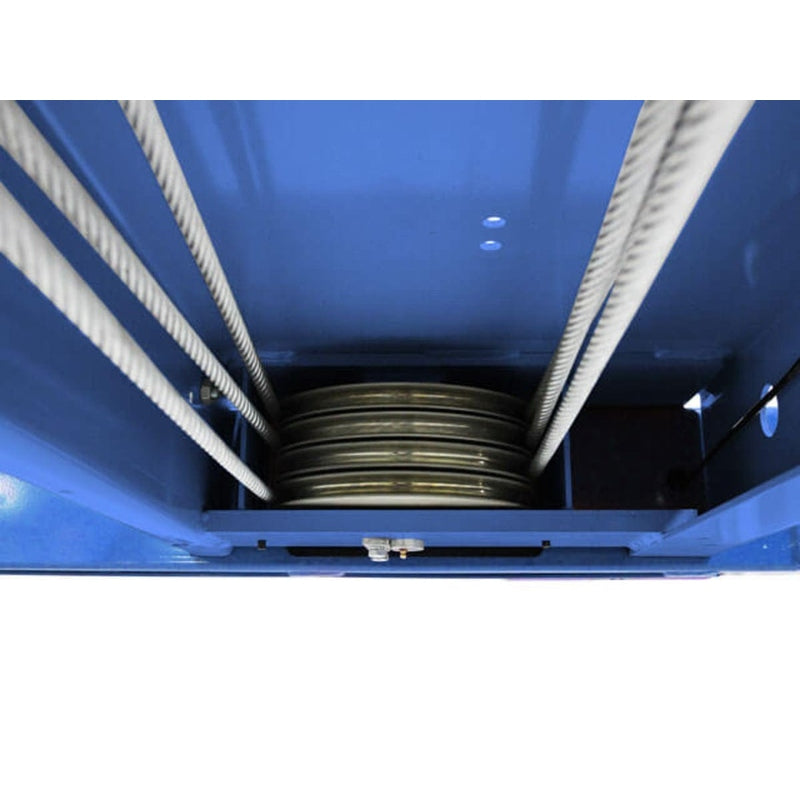

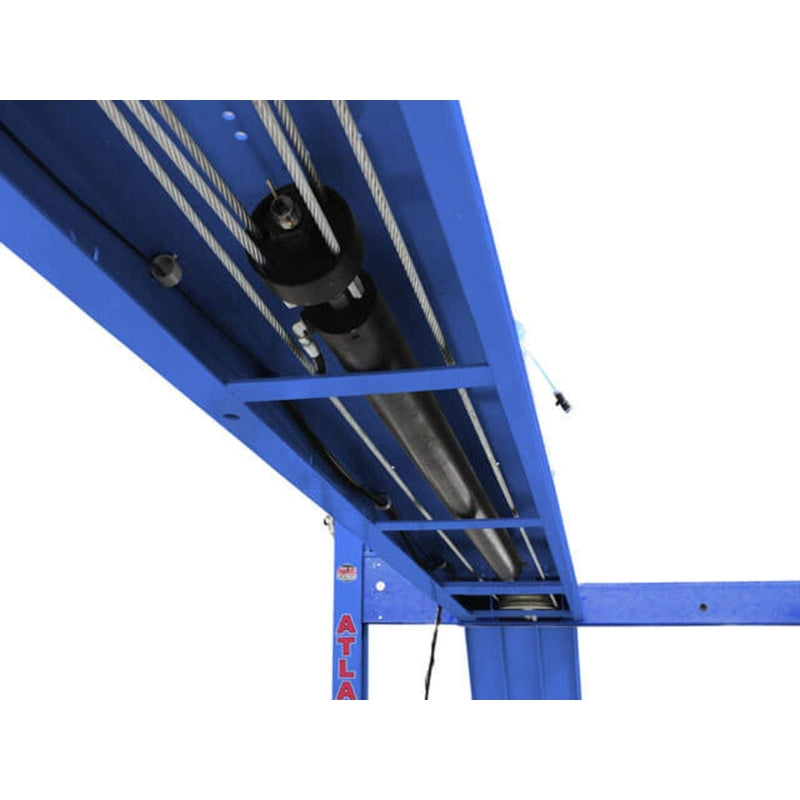

The Atlas® Platinum PVL14 is a heavy-duty, commercial-grade four-post lift designed for professional shops with high-volume needs. Whether you’re servicing cars, vans, SUVs, trucks, or even light and medium-duty commercial vehicles, this lift provides the capacity and durability required for tough, daily use. It uses an advanced cable system with a hydraulic cylinder that ensures smoother and safer lifting, avoiding the issues of traditional chain lifts.
Features:
-
ALI Certified – Meets the highest industry standards for safety and performance.
-
14,000 lb. Capacity – Strong enough to lift a wide range of vehicles, from cars to light trucks.
-
Heavy Duty, Commercial Grade – Built for long-term, high-performance use in busy shops.
-
Extra Tall, Extra Wide, Extra Long – Accommodates a variety of vehicles with ease.
-

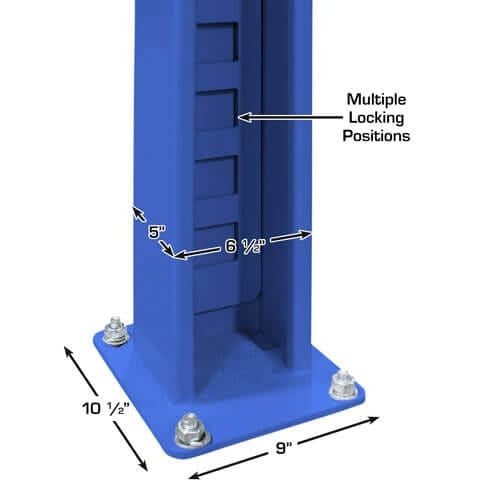

Adjustable Lock Ladder Design – Enhances safety and ease of use.
-
Powder Coat Finish – High-quality finish for durability and corrosion resistance.
-
Air Operated Single Point Lock Release – Easy, convenient lock release (external air supply required).
-
Double Lock Safety System – Provides extra security while lifting.
-
Steel Approach Ramps Included – Allows easy vehicle access.
-

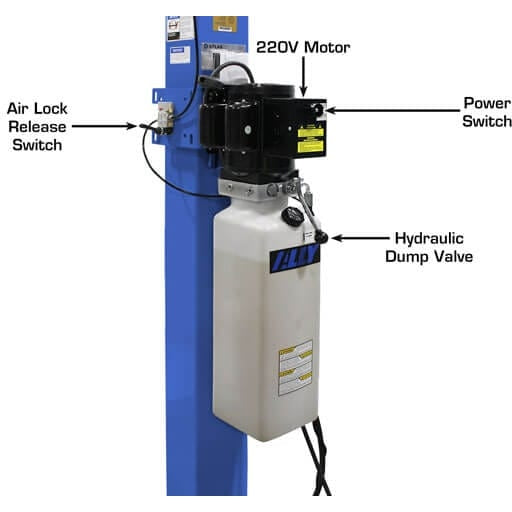

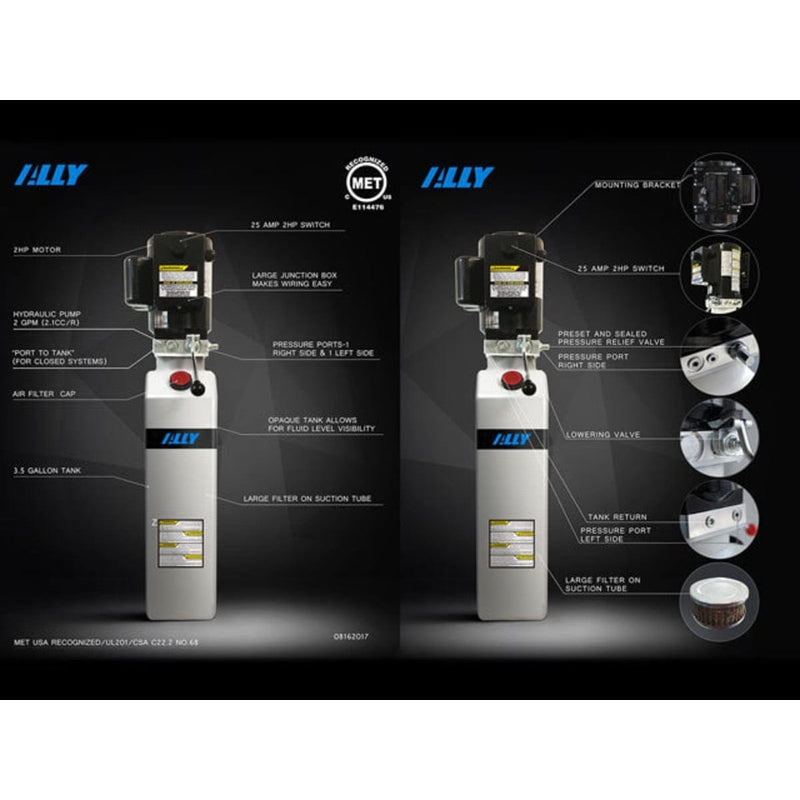

Standard with Premium ALLY Powerunit – Includes a certified power unit for efficient operation.
-
220 Volt / 1 Phase Electric Operation – Requires a 30 amp breaker.
Specifications:
-
Capacity: 14,000 lbs.
-

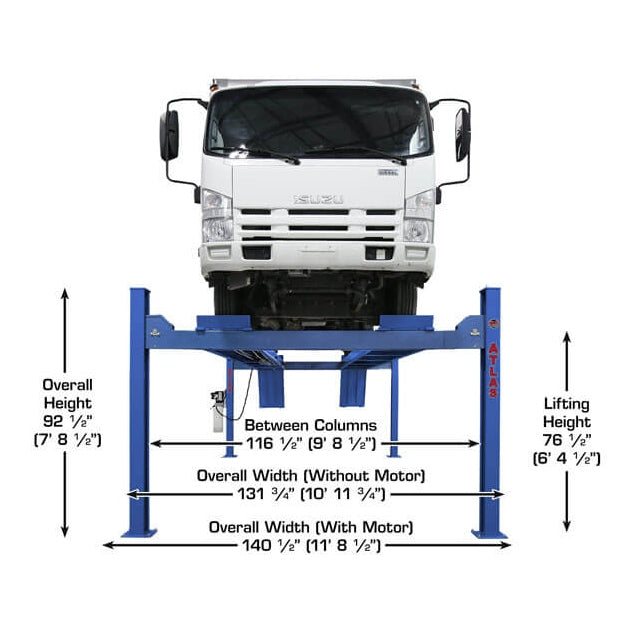

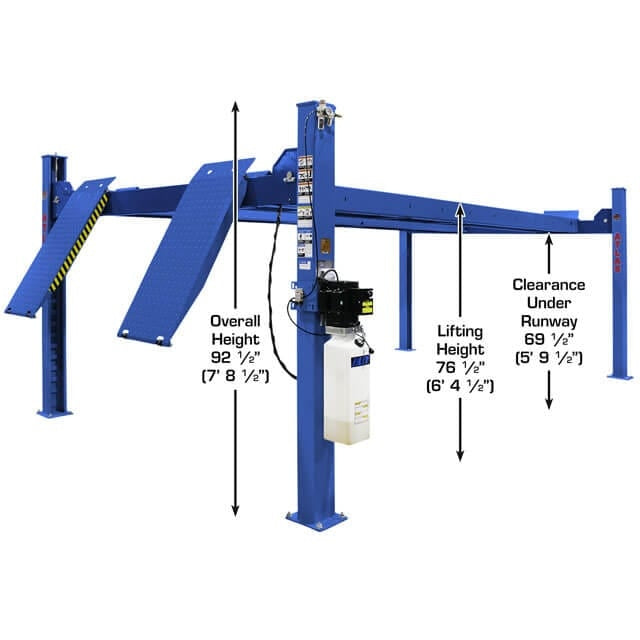

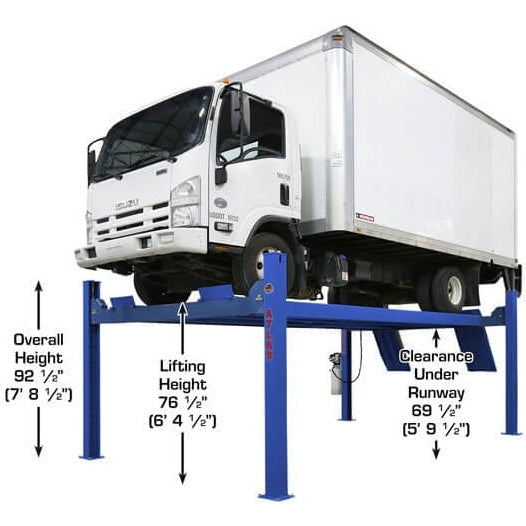

Lifting Height: 76 1/2" (6' 4 1/2")
-

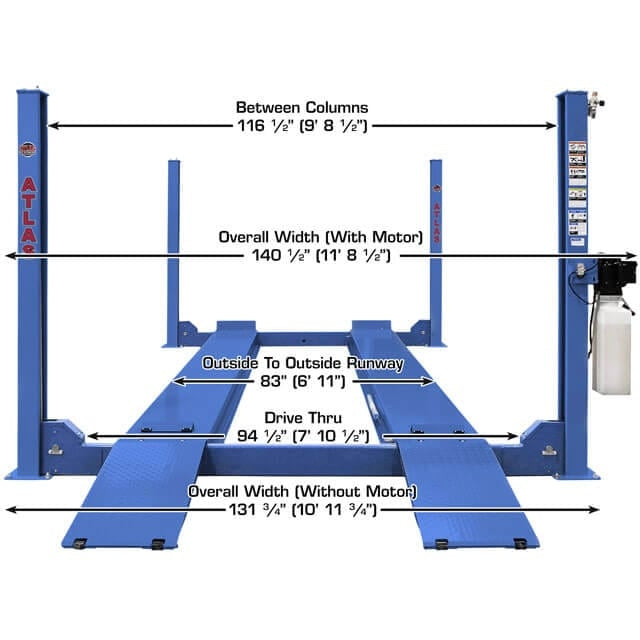

Overall Width of Columns (Without Motor): 131 3/4" (10' 11 3/4")
-

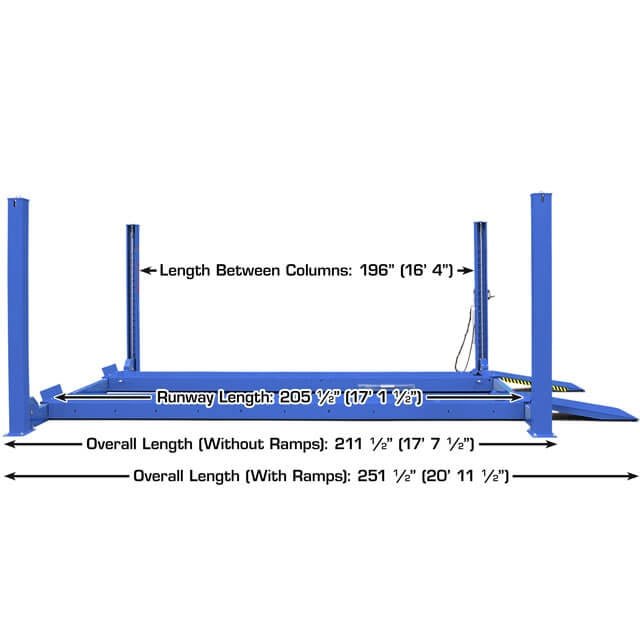

Overall Length with Approach Ramp: 251 1/2" (20' 11 1/2")
-

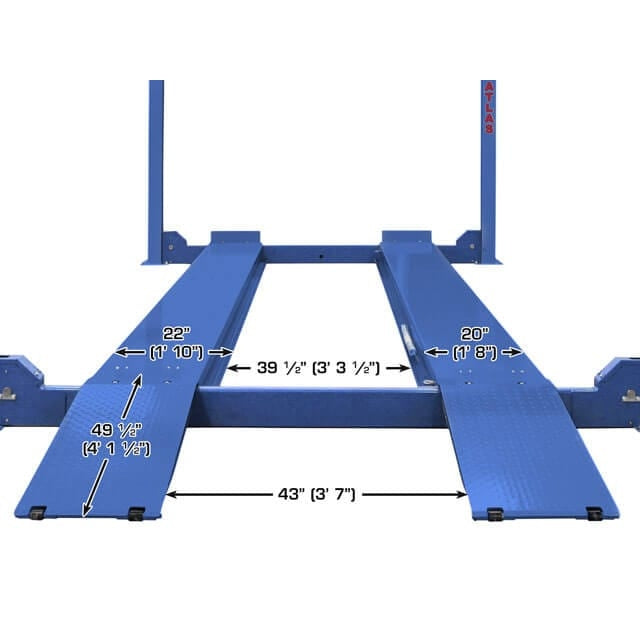

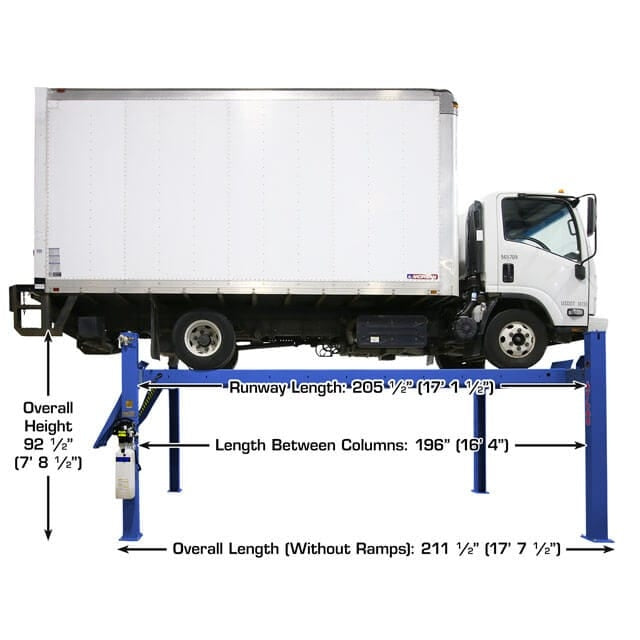

Runway Length: 205 1/2" (17' 1 1/2")
-
Runway Width: 20"
-
Thickness of Runway: 7"
-
Width Between Runways: 42 3/4"
-
Clearance Under Runways: 69 1/2" (5' 9 1/2")
-
Height of Columns: 92 1/2" (7' 8 1/2")
-
Maximum Wheel Base: 195" (16' 3")
-
Drive Thru: 94 1/2" (7' 10 1/2")
-
Air Requirement: 85-115 PSI (External air supply required)
-
Motor/Electrical Requirement: 220 volt, single phase, 30 amp breaker recommended
-
Oil Requirement: 3-5 Gallons AW32/AW46 (not included)
-

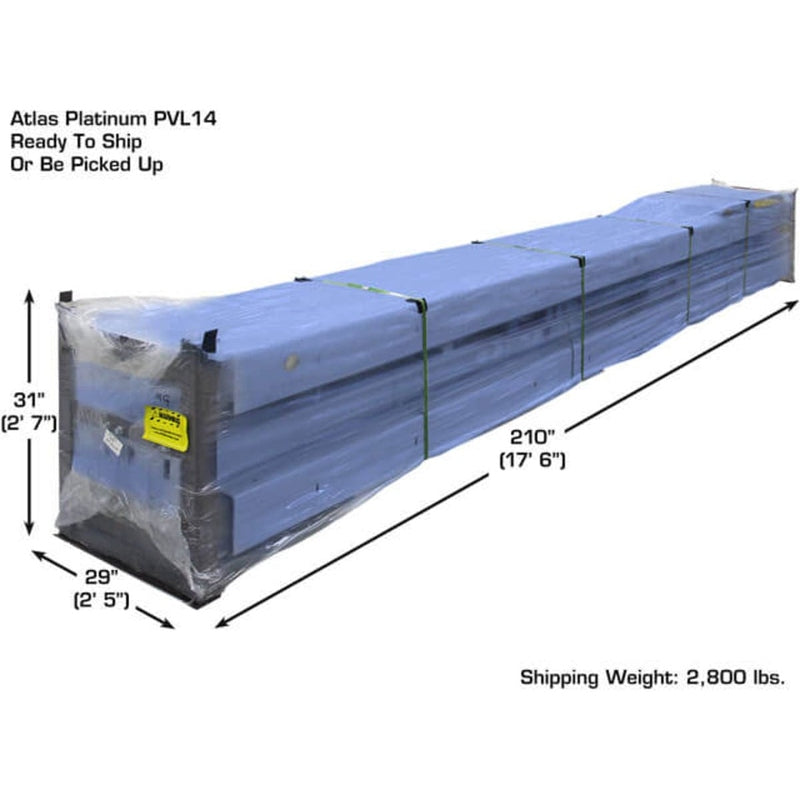

Shipping Weight: 2,800 lbs.
-
Minimum Concrete Requirement: 6" thick with 3000 psi rating
