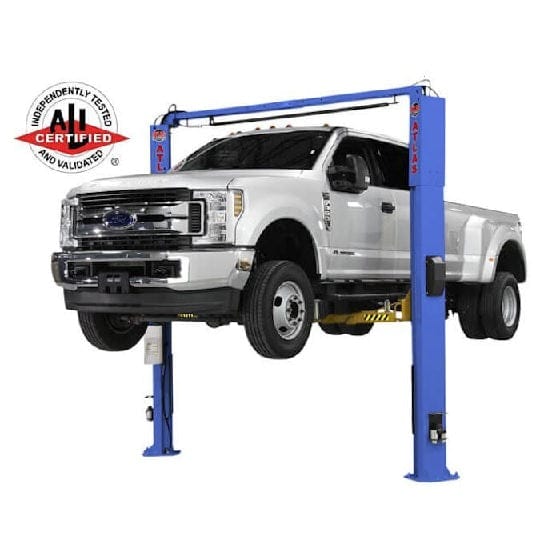

Atlas Platinum PVL10 ALI Certified 10,000 lb Overhead 2 Post Lift

The Atlas® Platinum PVL10 is a 10,000 lb. capacity two-post lift designed for professional workshops. It features the renowned Double S column design, which has proven its reliability worldwide over the past two decades. With the option to install the columns symmetrically or asymmetrically, this lift offers ultimate flexibility, making it ideal for both wide trucks and tight vehicle access spaces. The PVL10 is engineered with a 3-stage front arm design to ensure optimal lift point support and easy vehicle entry and exit.

The ALLY Hydraulic AL2850 Power Unit powers the lift, ensuring consistent and reliable lifting with minimal heat generation. This unit is certified for electrical compliance in the United States and Canada, and it comes with a leading two-year warranty. The Atlas® Platinum PVL10 is also backed by a 5-year structural and 2-year hydraulic warranty, making it an excellent investment for long-term use.

Features

Atlas® Platinum PVL10:

• Capacity: 10,000 lbs. — Designed to lift a wide range of vehicles, from trucks to SUVs.

• Double S Column Design: Enhances column strength for superior stability and durability.

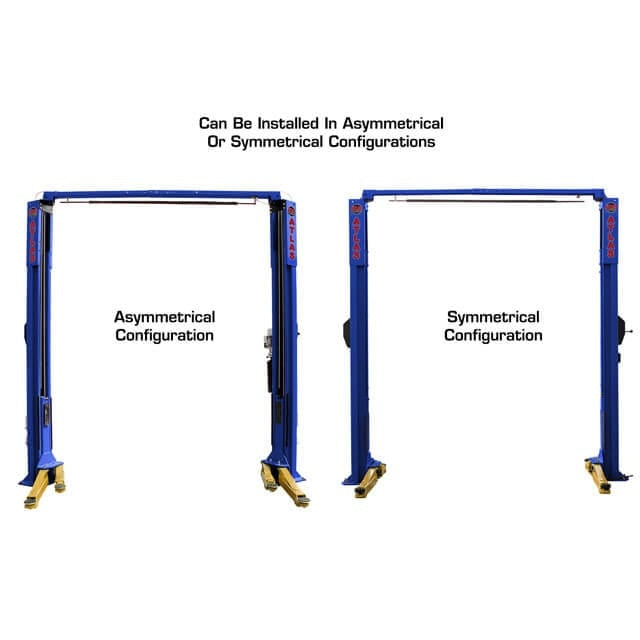

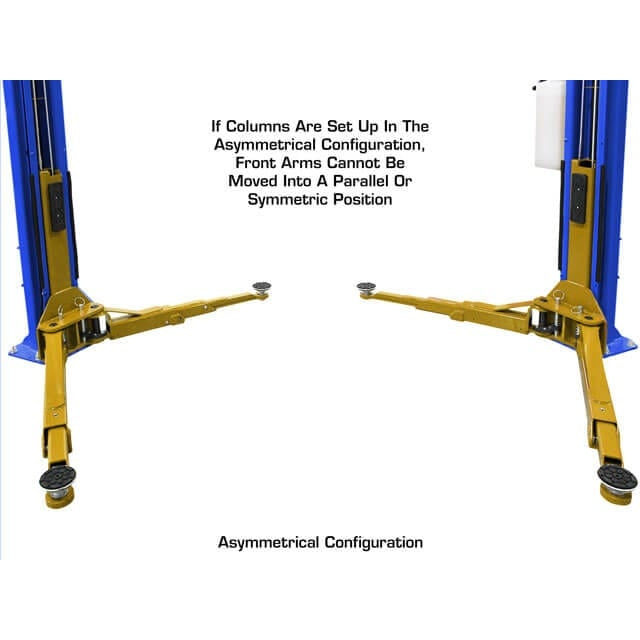

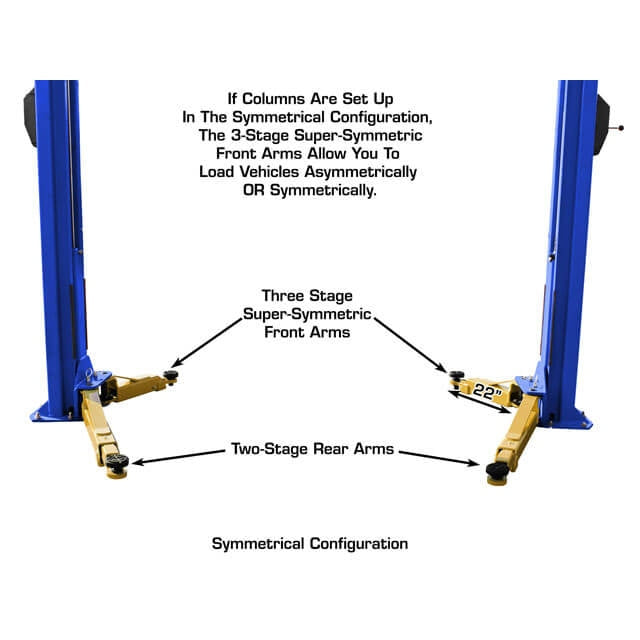

• Symmetric/Asymmetric Column Installation: Choose between a wider configuration for larger vehicles or a narrower configuration for easier vehicle entry.

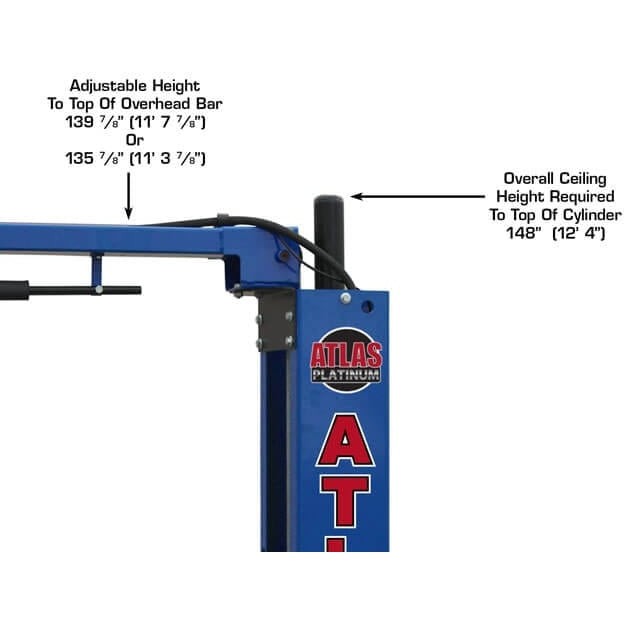

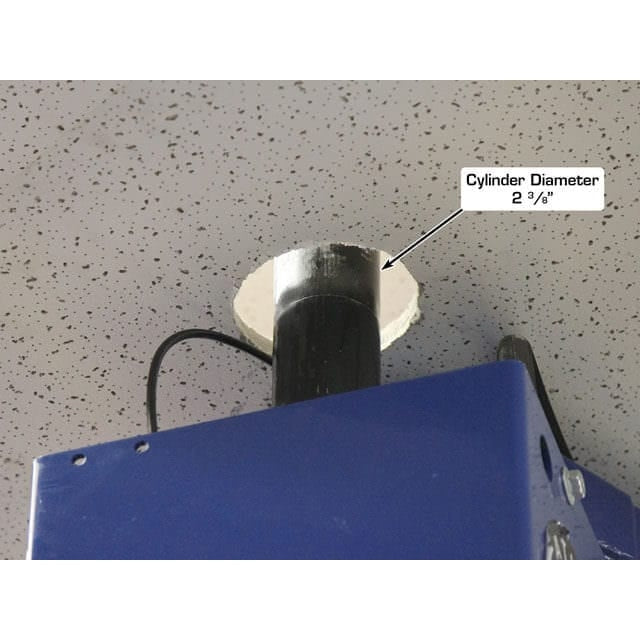

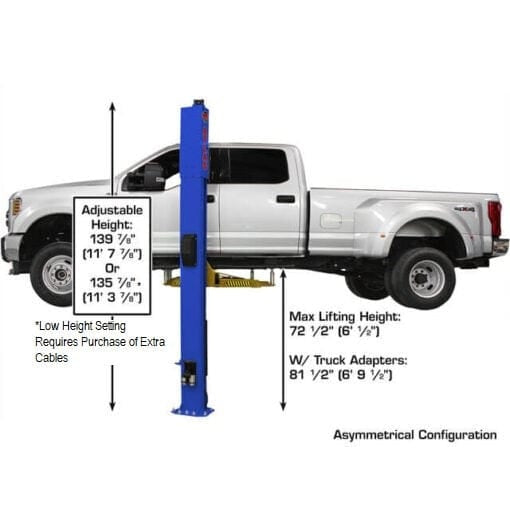

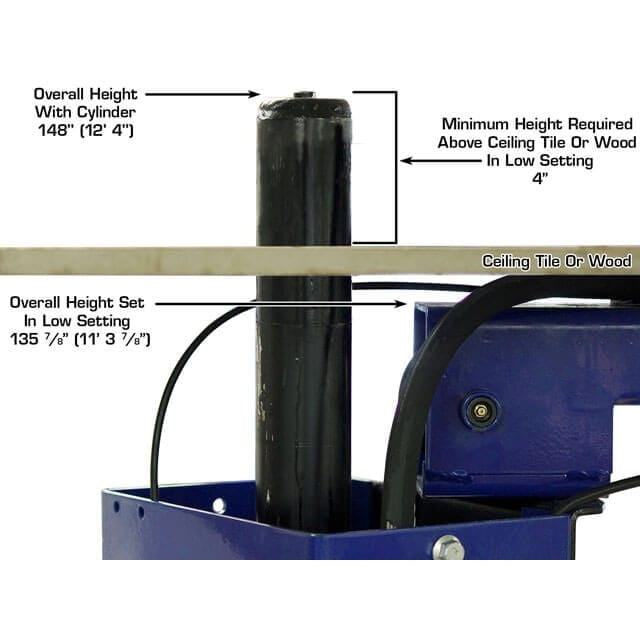

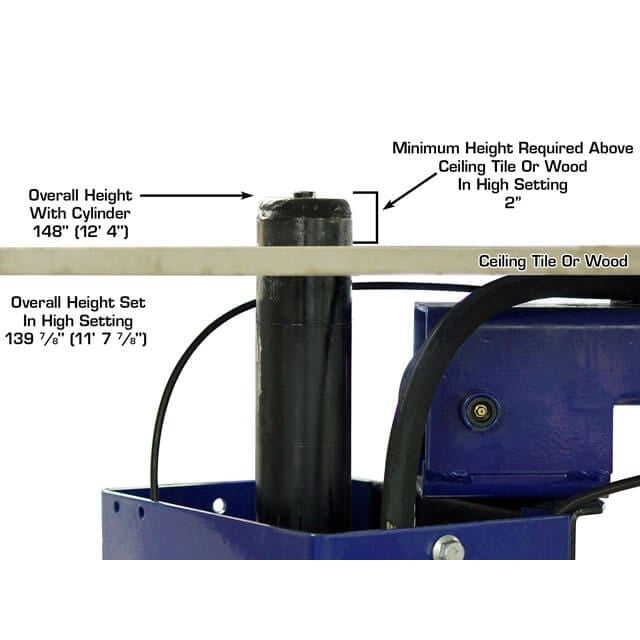

• Overall Height: 139 7/8” (11’ 7 7/8”), with a cylinder height of 12’ 4”. For a lower height, the Special Low Height option allows 135 7/8” (requires extra cables).

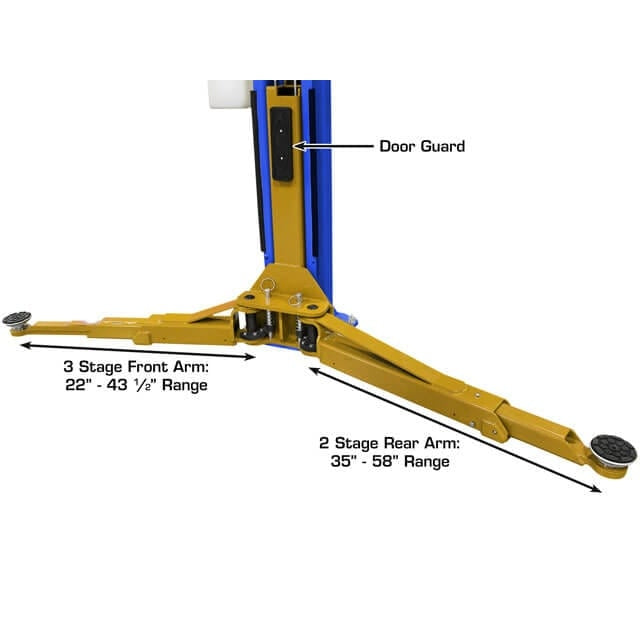

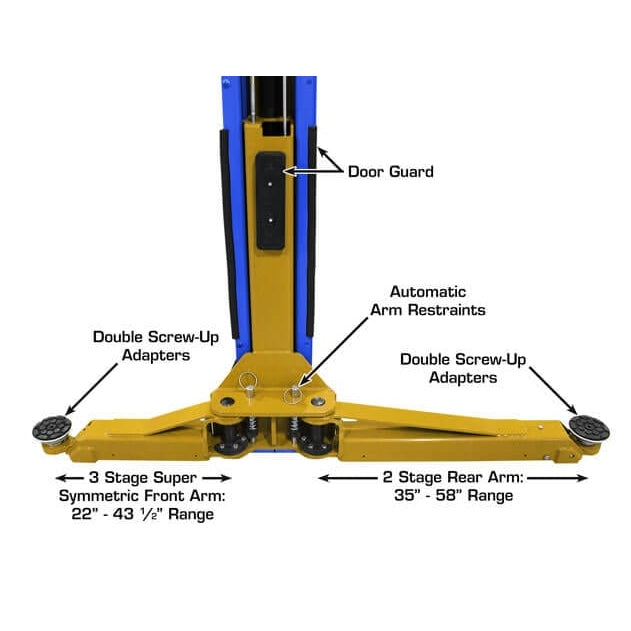

• 3-Stage Front Arms & 2-Stage Rear Arms: Offers flexible arm configurations to suit different vehicle lift points.

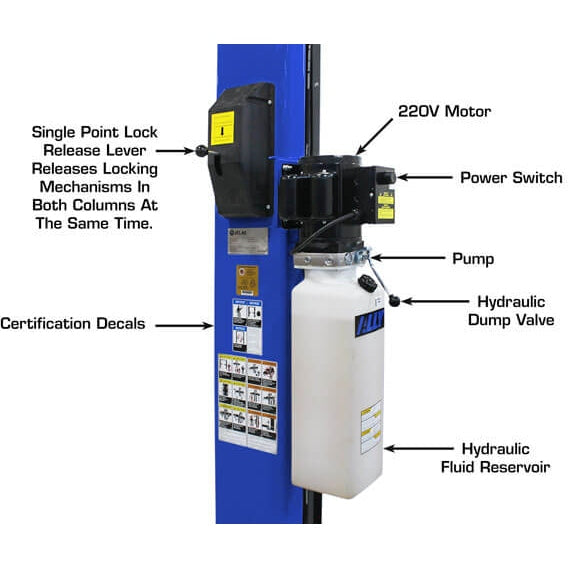

• Single-Point Lock Release: Simplifies the process of lowering the lift.

• Padded Carriages: Helps prevent vehicle damage while lifting.

• Powder Coat Finish: Provides protection against wear and corrosion.

• Includes Double Screw-up Adapters: Ensures secure vehicle lifting.

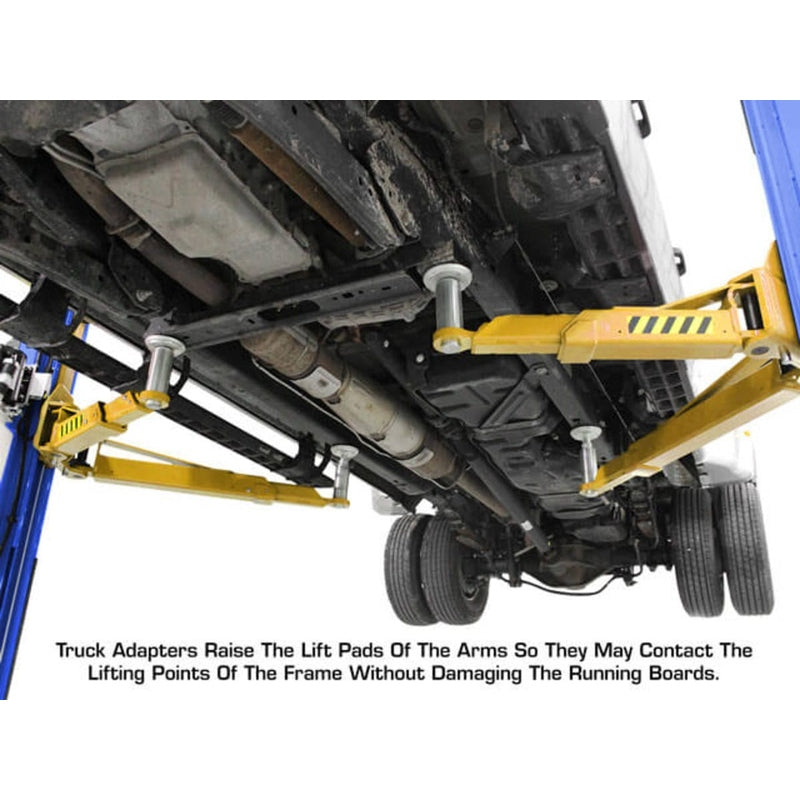

• Free 8-Piece Truck Adapter Set: Included to accommodate a wide range of vehicles.

• Premium ALLY Powerunit: Provides smooth, consistent lifting with two-year warranty.

• Mounting Hardware Included: For easy installation.

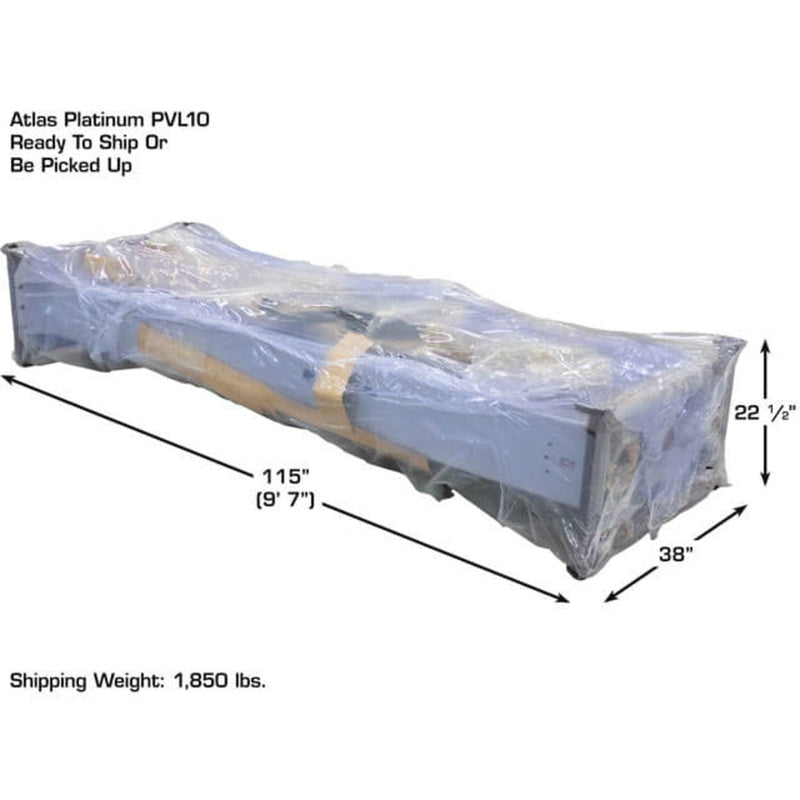

• Shipping Weight: 1,850 lbs.

• Warranty: 5-year structural, 2-year hydraulic, and 2-year power unit warranty for peace of mind.

Atlas® Platinum Rolling Bridge Jack Compatibility:

• Rolling Bridge Jack: Compatible with Atlas® Platinum RJ7000, sold separately.

Specifications

Atlas® Platinum PVL10:

• Capacity: 10,000 lbs.

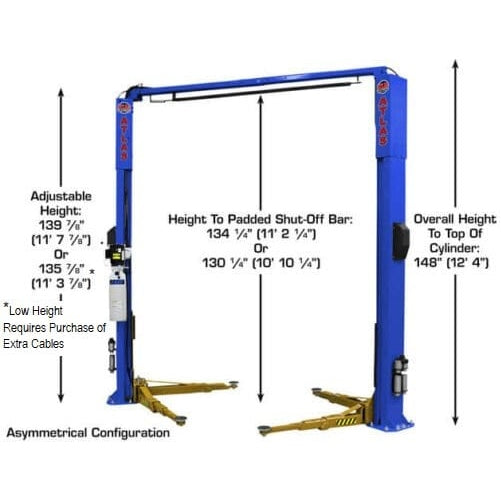

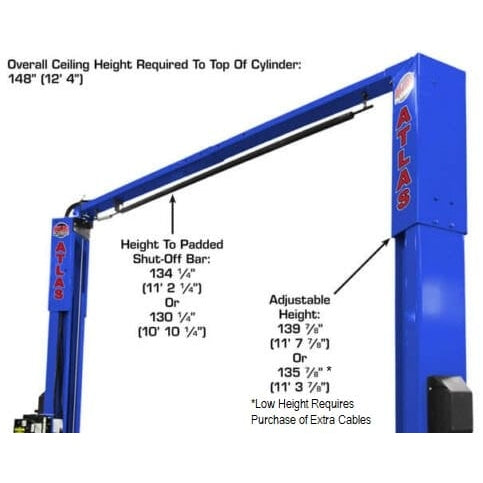

• Overall Height: 139 7/8” (11’ 7 7/8”) — Cylinder height of 12’ 4”. Special low height available at 135 7/8” (requires extra cables).

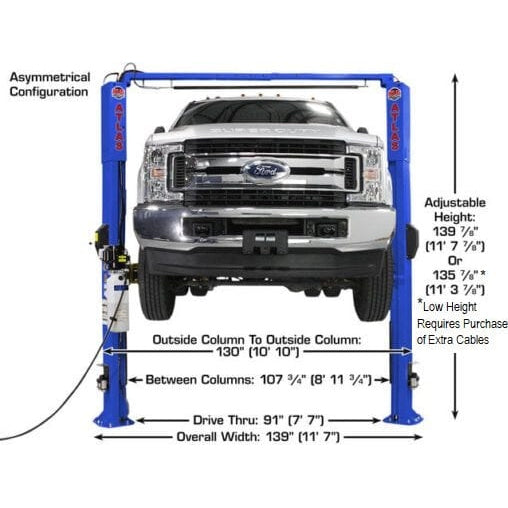

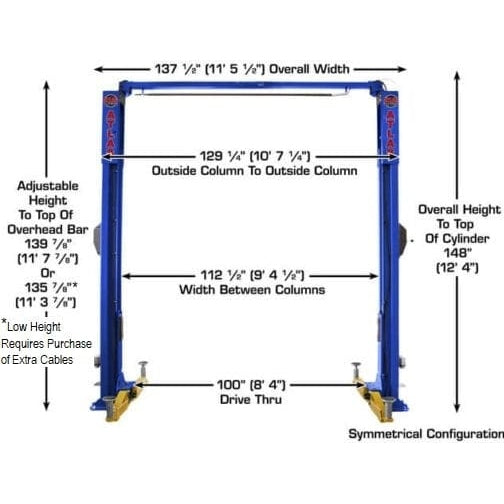

• Overall Floor Width: 139” (11’ 7”) for asymmetric or 137 1/2” (11’ 5 1/2”) for symmetric installation.

• Outside Column to Outside Column: 130” (10’ 10”) for asymmetric or 129 1/4” (10’ 9 1/4”) for symmetric.

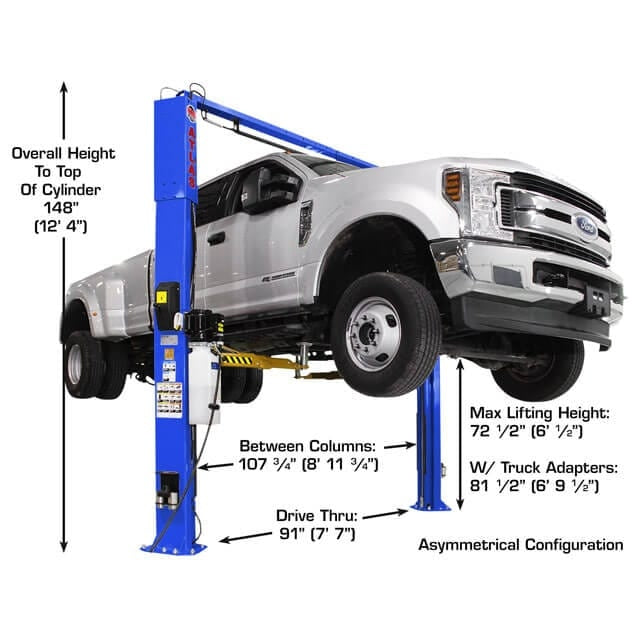

• Maximum Lift Height (Without Adapters): 72 1/2”.

• Maximum Lift Height (With Adapters): 81 1/2”.

• Minimum Arm Height: 4”.

• Inside Column: 107 3/4” (8’ 11 3/4”) for asymmetric or 112 1/2” (9’ 4 1/2”) for symmetric.

• Drive Thru: 91” (asymmetric) or 99 1/2” (symmetric).

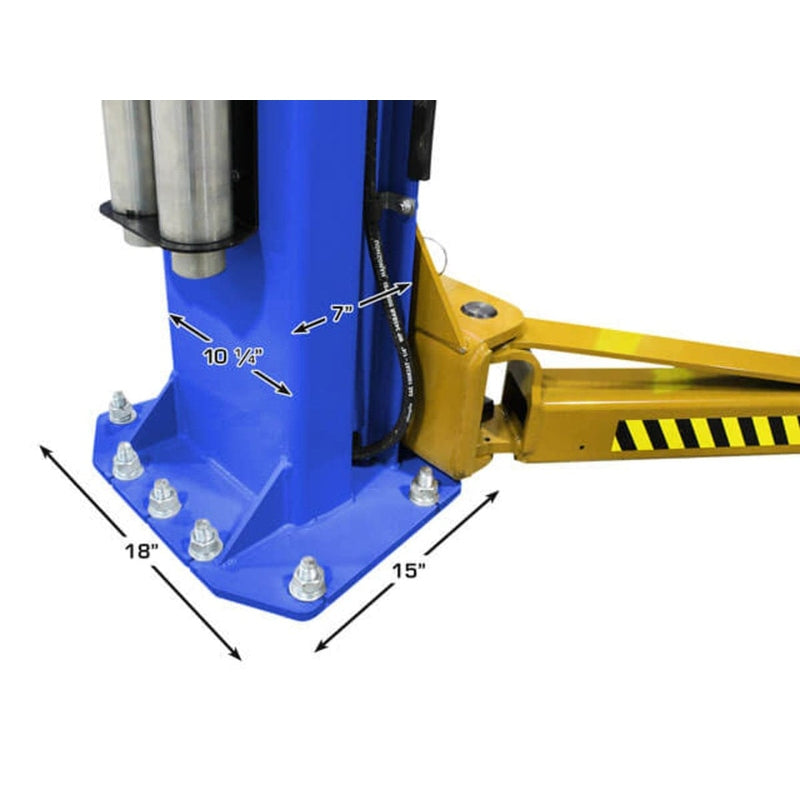

• Column Size: 7” x 10 1/4”.

• Column Thickness of Steel: 6mm.

• Base of Lift: 15” x 18”.

• Motor/Electrical Requirement: 220V single-phase, 30-amp breaker recommended.

• Oil Requirement: 3-5 gallons of AW32/AW46 (not included).

• Shipping Weight: 1,850 lbs.

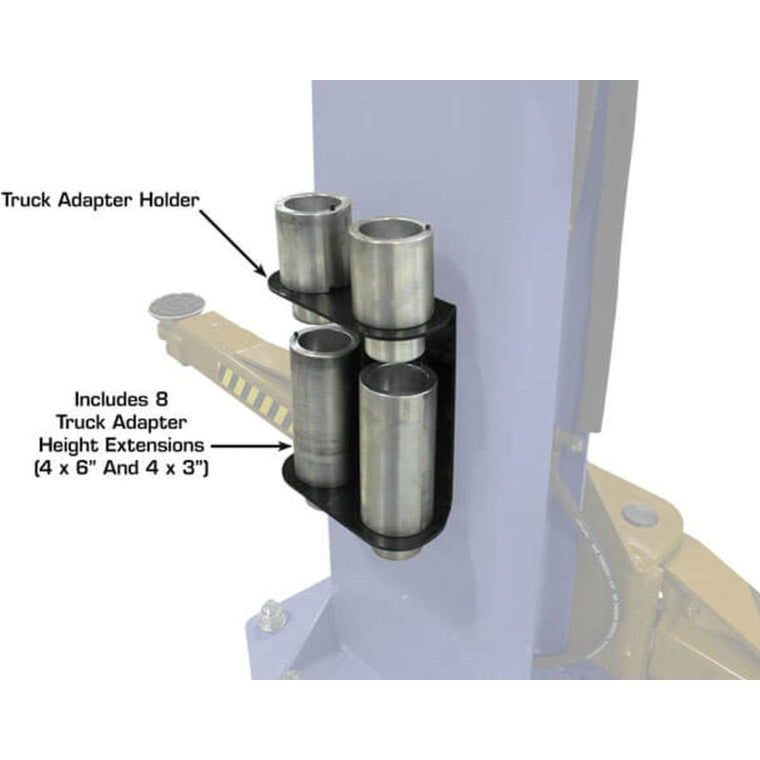

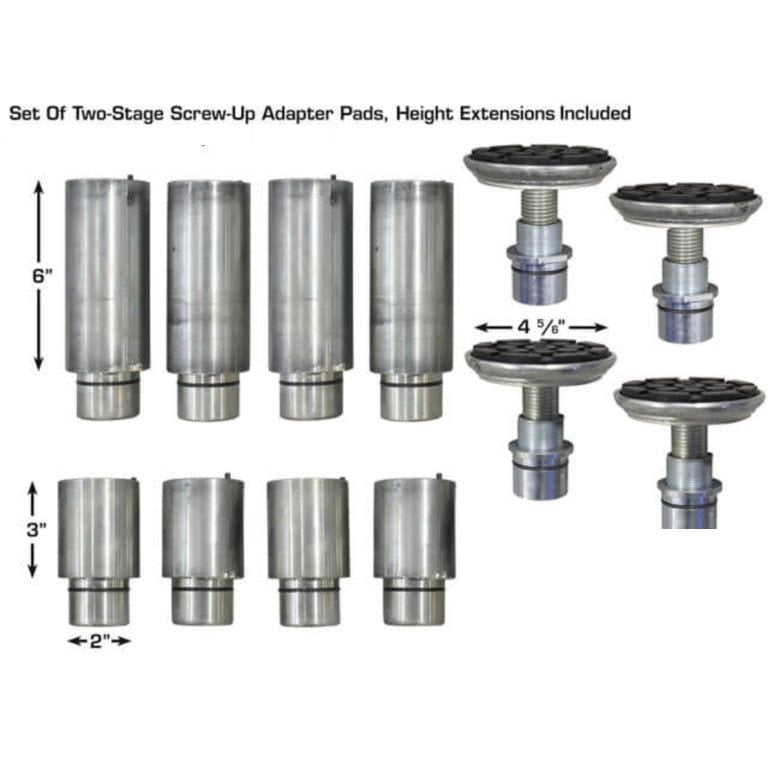

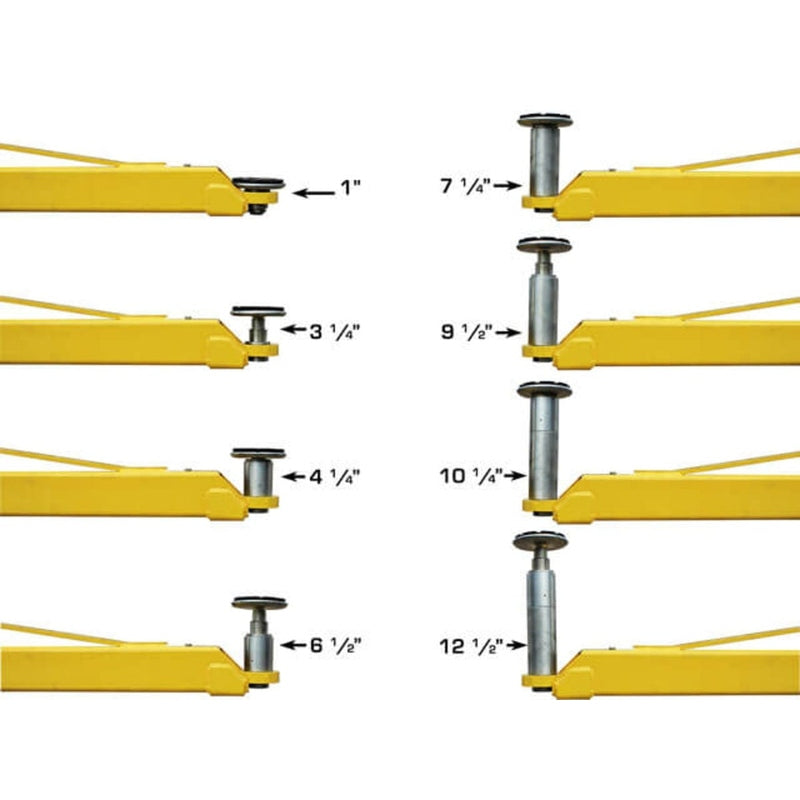

• Adapter Heights: 4 each — 3”, 6”.

• Arm Hole/Adapter Peg Size: 2”.

• Concrete Requirement: Requires a minimum of 4” concrete with a 3000 psi rating.
